Crossover Slopes Explained: 6, 12, 18, 24 and 48 dB per Octave
The crossover frequency tells you where a filter is referenced. The slope tells you how quickly attenuation grows beyond it. That difference controls protection, overlap, phase behavior and how forgiving the system is of driver placement.
What dB per octave means
An octave is a doubling or halving of frequency. A 12 dB/octave low-pass set at 80 Hz is approximately 12 dB lower one octave above, near 160 Hz, according to its ideal transfer function and reference convention.
6 dB/octave
A first-order slope changes gradually, creates broad overlap and offers limited protection. It can sum elegantly under ideal conditions but demands drivers capable of operating well beyond the nominal crossover.
12 and 18 dB/octave
Second- and third-order slopes provide increasing control while retaining moderate overlap. Polarity and phase relationships depend on alignment and acoustic behavior, not just the number displayed.
24 dB/octave
A fourth-order slope is common in active systems because it provides substantial separation and protection. A Linkwitz-Riley fourth-order acoustic target is designed for in-phase outputs that sum flat at crossover when levels and timing are correct.
48 dB/octave and steeper filters
Steep filters sharply limit out-of-band energy and can protect fragile drivers or isolate ranges. They are not automatically superior: delay, ringing behavior, narrow integration regions and measurement sensitivity may increase.
Filter families matter
Butterworth, Linkwitz-Riley and Bessel alignments have different amplitude and phase characteristics. Two filters both labeled 24 dB/octave may not sum identically. DSP menus should identify type where possible.
Electrical plus natural roll-off
A driver already falling at 12 dB/octave combined with an electrical 12 dB/octave filter may approach a 24 dB/octave acoustic slope. Measure the result rather than assuming menu slope equals acoustic slope.
Practical comparison

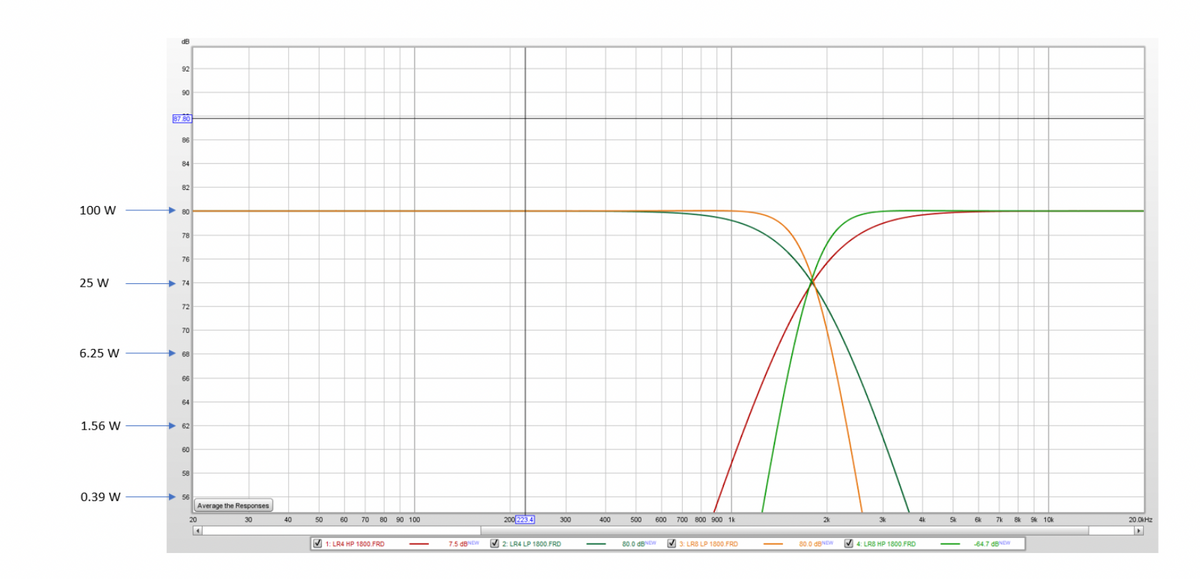

At one octave beyond crossover, ideal attenuation is roughly 6, 12, 18, 24 or 48 dB for the corresponding slopes. Since 6 dB is a large voltage change, slope choice dramatically affects energy delivered outside the passband.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Does a steeper slope always sound better?
No. It trades overlap and integration behavior for stronger isolation.
What slope protects tweeters best?
The correct acoustic slope and frequency depend on the tweeter, power and output target.
Why did changing slope alter bass level?
Overlap and phase relationship changed, affecting summation near crossover.
What is acoustic slope?
The measured driver roll-off after electrical filtering, natural response and installation effects combine.
Must adjacent drivers use identical slopes?
No, but their acoustic outputs must combine as intended.
