Car Audio Equalizers Explained: How to Use EQ Without Turning It Into a Loudness Booster
An equalizer reshapes frequency response. It does not create amplifier headroom, repair a loose door, reverse deep cancellation or make every frequency louder for free. Used correctly, EQ is a precision finishing tool.

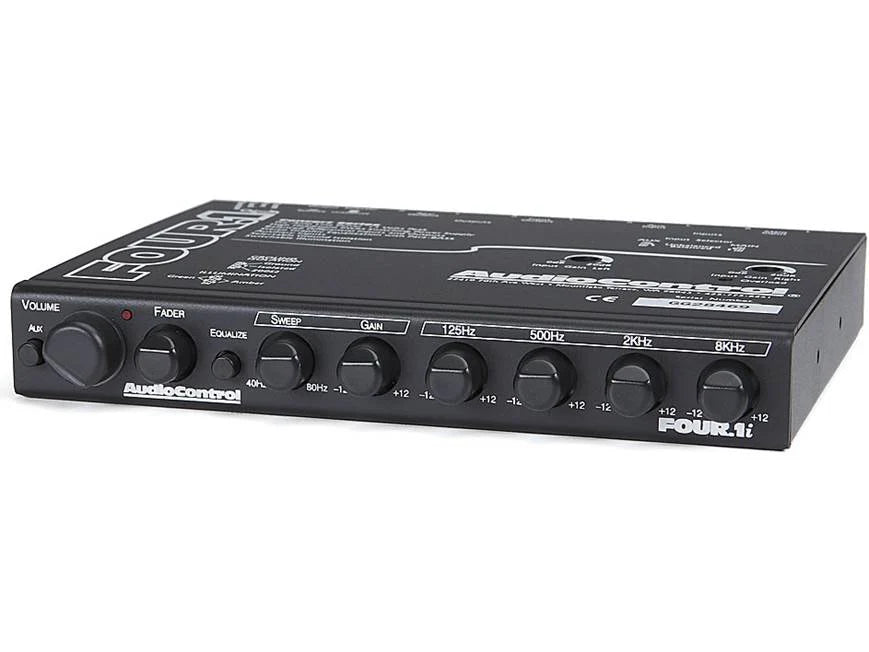

Graphic equalizers
A graphic EQ provides fixed frequency bands with adjustable gain. It is intuitive and useful for broad shaping, but the designer chooses band centers and bandwidths. Adjacent controls interact.
Parametric equalizers
A parametric band normally provides center frequency, gain and Q or bandwidth. This allows broad tonal shaping or narrow resonance control. Greater precision also makes careless overcorrection easier.
Understanding Q
Higher Q means a narrower adjustment; lower Q affects a broader range. Broad problems usually deserve broad corrections. Narrow peaks may accept narrow cuts. Extremely narrow boosts rarely solve an acoustic problem over more than one position.
Cut before boost
Reducing peaks preserves headroom and is often more stable than filling every dip. A 6 dB boost asks for double voltage and potentially four times the power at that frequency. If the dip is cancellation, extra energy may produce heat and excursion with little improvement.
What EQ can fix
EQ can correct broad tonal imbalance, moderate response peaks and consistent driver-response trends. It can tailor a house curve and match adjacent bands after crossovers, levels, polarity and delay are established.
What EQ cannot fix
It cannot repair rattles, air leaks, weak baffles, clipped signals, missing frequency content, severe phase cancellation or a driver operating outside its safe range. Correct the cause first.
Headroom and clipping
Every positive band consumes signal headroom in the DSP and output headroom in the amplifier. After significant EQ, recheck every stage for clipping and verify speaker excursion at the boosted frequencies.
A disciplined workflow
Measure drivers individually, correct installation and crossover issues, set levels and timing, create a target curve, apply the fewest useful changes, then average measurements and listen with familiar recordings.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is an EQ a volume booster?
No. It changes relative level by frequency and positive boost consumes headroom.
What is the best EQ curve?
One that suits the vehicle, listener and playback level while remaining smooth and achievable.
Should every RTA dip be boosted?
No. Deep narrow dips are often cancellation and resist equalization.
How many EQ bands should I use?
Only as many as solve repeatable, audible problems.
Should EQ come before crossover tuning?
No. Establish safe crossover, polarity, level and timing behavior first.
