12 Volt Encyclopedia · Volume VIII · Article 8
Flat Frequency Response: Why “Flat” Can Sound Incredible—or Completely Wrong
“Flat” is incomplete unless we ask: flat where, measured how, at what level and with what smoothing? A flat electrical signal is desirable. A ruler-flat microphone trace at one seat is not automatically the most natural in-car tonal balance.
Electrical flatness
An electrically flat device passes all audible frequencies at equal gain within its operating band. That is a useful equipment goal, but speakers and cabins turn voltage into acoustics with far more variation.
Anechoic and on-axis flatness
Speaker measurements in controlled space describe the direct sound at specified angles. In a vehicle, glass, seats, doors and asymmetric distances add reflections and absorption. The same speaker can measure differently at each seat.
In-room or in-car response
A microphone captures direct sound plus reflections at its position. A perfectly flat single-point trace can require aggressive corrections that fail centimeters away. Spatial averaging reveals trends that are more representative of the listening area.
Why a downward target often sounds natural
Many preferred in-car curves contain more energy in bass and gradually less toward high frequencies. Cabin gain, road noise, speaker directivity and human perception contribute. The exact slope is preference—not a universal law.
Flat can sound excellent
A smooth, well-integrated system with controlled directivity and a target appropriate to its environment can sound neutral and detailed. “Flat sounds bad” often describes the wrong measurement context, not a defect in accuracy.
Flat can sound thin or bright
If the bass target ignores road noise and perception, or the high-frequency microphone angle is unrepresentative, forcing a horizontal trace can produce weak bass and excessive treble. Measurement calibration and positioning matter.
Smoothness versus exactness
Broad smooth behavior is usually more audible and transferable than chasing every 1/24-octave ripple. Narrow comb-filter variations change with tiny position shifts. Use sensible smoothing and multiple measurements.
Build the target deliberately
Start with a known baseline, tune at realistic volume, compare familiar recordings and make broad preference adjustments. Save alternatives rather than repeatedly overwriting a good calibration.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions

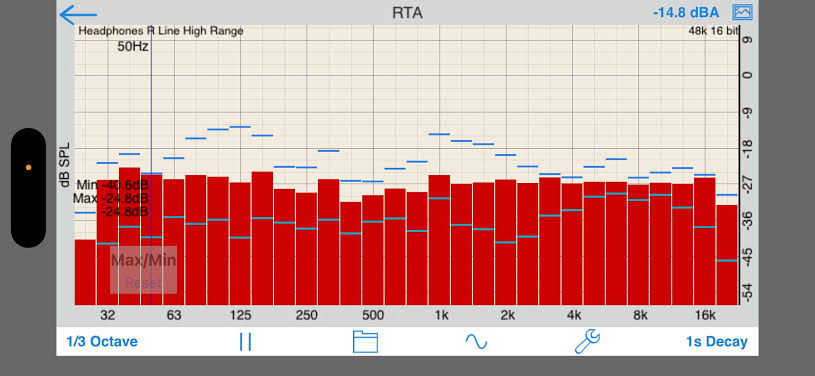

Should an RTA line be perfectly horizontal?
Not necessarily. The useful target depends on measurement context and listener preference.
What is a house curve?
A chosen target response, often with elevated bass and a gentle downward trend toward treble.
Why does one seat measure differently?
Path lengths, reflections and obstructions change throughout the cabin.
Is smooth more important than flat?
Often yes; large peaks and abrupt transitions are usually more objectionable than a gentle tilt.
Can road noise change the best target?
Yes. It masks low frequencies and changes perceived balance while driving.
