Roof and Sunroof Acoustics: Panel Resonance, Bass Pressure and Structural Tradeoffs

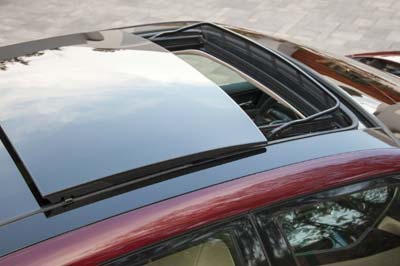

A plain roof skin can be one of the vehicle’s largest unsupported radiators. A sunroof removes some skin area and adds a reinforced cassette, which may increase local stiffness—but it also adds glass, tracks, cables, drains, a shade and seals that can move under bass pressure.
The large-panel problem
Roof pressure force is distributed across a broad surface. Factory bows, adhesive beads and curvature provide stiffness, but a detached bond or large span can oil-can and ring. Headliner fabric may hide the motion until a dome light, console or harness begins buzzing.
What the sunroof structure changes
A sunroof opening requires perimeter reinforcement and a cassette tied into the roof structure. This can shorten unsupported spans and reduce some skin flex. The tradeoff is a heavy mechanical assembly with clearances and sliding parts. The effect varies by vehicle; “sunroof roofs never flex” is as inaccurate as saying they are always weaker.
Glass and shade movement
Glass panels seal against compliant weatherstrips and may lift or chatter when pressure cycles are large. Shades can slap tracks, mesh deflectors can buzz and cables can tap housings. Adjustment follows vehicle service information; adding random thickness at a seal can cause water leaks or wind noise.
Drain tubes are sacred
Sunroof troughs intentionally collect water and route it through drains. Never cover outlets, pinch hoses or allow adhesive to enter the tray. A clogged or disconnected drain can flood pillars containing airbags and electronics. Verify drainage after any headliner work.
Treating a standard roof
With the headliner safely removed, apply appropriate CLD to broad roof spans without defeating factory bow bonds. Add lightweight automotive absorber where clearance and flammability requirements permit. Excess mass overhead raises the center of gravity slightly and can overload headliner fasteners; more is not automatically better.
Treating around a sunroof
Keep products away from tracks, motors, cables, drains, airbag deployment paths and service bolts. Treat only verified resonant sheet metal and isolated trim-contact points. Do not wrap the cassette in material that traps moisture or prevents future adjustment.
Headliner removal risk
Pillars often contain curtain airbags and clips with one-time-use or special release procedures. Disconnect and wait as specified by the manufacturer. Creasing a molded headliner can permanently damage it. For unfamiliar vehicles, professional removal is the sensible choice.
Testing
Use a slow bass sweep to separate structural resonance from mechanism chatter. Test sunroof closed, vented, open and shade positions. Inspect for water and wind noise after reassembly. If a noise appears only at extreme pressure, record its frequency and decide whether safe mechanical treatment or a narrow operational limit is appropriate.
Quick Reference
| Area | Possible issue | Treatment boundary |
|---|---|---|
| Roof skin | Oil-canning/resonance | CLD on safe broad spans |
| Cassette/frame | Fastener or bond noise | Service and isolate as designed |
| Shade/deflector | Slap or buzz | Adjustment and targeted decoupling |
| Drain tray/tubes | Water path | Never obstruct |
| Pillars/headliner | Trim contact | Respect airbags and clips |
Frequently Asked Questions
Does a sunroof strengthen the roof?
Its frame can add local structure, while its moving parts introduce other vibration paths.
Can I put mat on the glass?
No. Treat structure and service mechanisms correctly; do not burden moving glass.
Should I seal sunroof drains?
Never.
Why did the headliner start sagging?
Added mass, heat, damaged adhesive or clips may exceed the liner’s support.
Can bass break a sunroof?
Extreme pressure and existing faults can stress mechanisms; inspect and limit operation if movement is severe.
Final Word
A quieter, more accurate vehicle is built by controlling energy one path at a time. Stabilize the mounting structure, separate the speaker’s front and rear waves, treat resonant panels and contact points, then verify the result before final system tuning.
