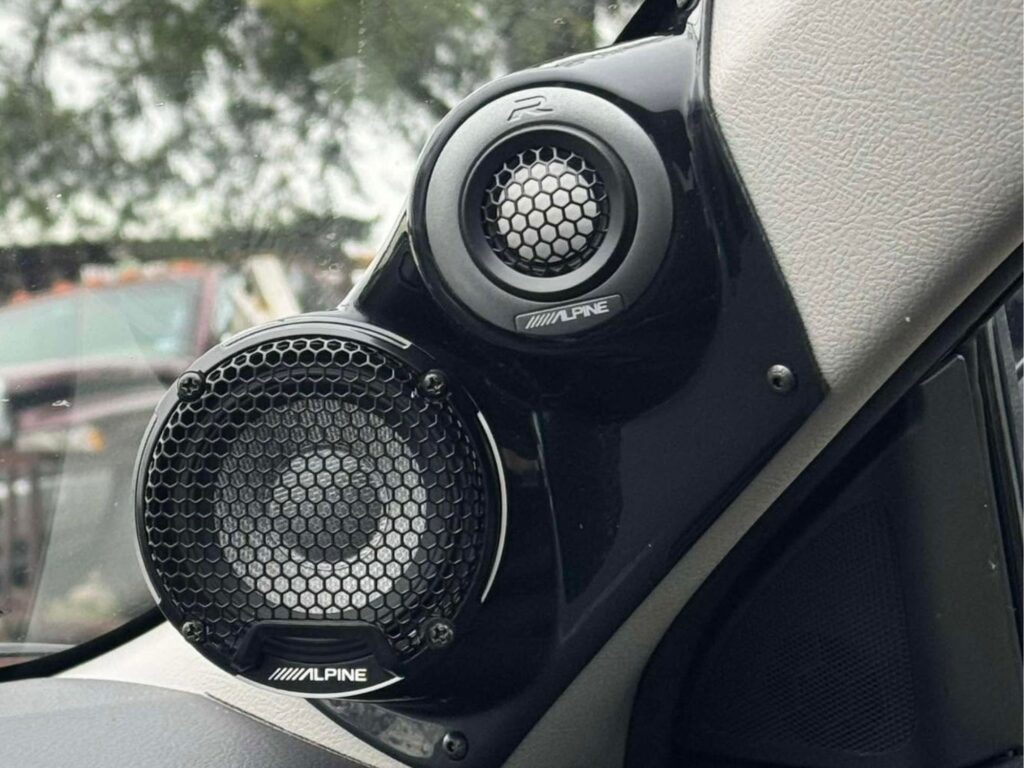

Soundstage, Speaker Aiming and Surface Reflections Inside a Vehicle
Soundstage is the illusion that music exists across a stable space in front of the listener rather than at individual door speakers. Placement and aiming matter, especially at high frequencies, but directivity, crossover, arrival time and reflections must be considered together.
Why high frequencies are directional
As wavelength becomes small relative to a diaphragm, radiation narrows. A midbass cone may be broadly distributed at low frequency but beam near its upper range. Tweeters also have designed dispersion that changes with diameter, dome shape and waveguide. “Aim everything at the ear” is a starting experiment, not a universal law.
On-axis and off-axis response
On axis means measuring along the driver’s intended reference direction. Moving off axis usually changes treble level and can expose breakup or waveguide behavior. A tweeter aimed across the cabin may create more similar left/right angles for both listeners, while direct aiming can maximize detail for one seat. Manufacturer polar data and measurements guide the choice.
Path length and arrival time
The driver sits closer to the left speakers than the right. Those arrival differences pull images toward the near side and affect crossover summation. DSP delay can hold closer channels, but the acoustic center, filters and reflections add timing not shown by a tape measure. Verify with impulse or phase measurements and listening.
Reflections from glass and trim
Windshields create strong early reflections; side glass, dashboard and consoles add others. A reflection combines with direct sound, producing frequency-dependent addition and cancellation called comb filtering. Soft surface texture can reduce upper-frequency energy, while shape and angle redirect it. Thin upholstery does little to deep bass.
When speakers are close together
Physical closeness is not inherently bad; coaxials deliberately place drivers together. Problems arise when two drivers reproduce the same frequencies from separated acoustic centers with different path lengths. Their outputs form lobes and nulls. Appropriate crossover slopes, spacing, polarity and delay determine whether the combination is coherent.
“Glancing” versus interference
Glancing is not a standard diagnosis for neighboring speakers. Muddy sound may come from excessive overlap, reflections, resonance, distortion or poor timing. Define what is measured: a response dip, long decay, unstable image or harsh off-axis peak. Precise language points to a fix.
Surface treatments
Absorptive pillar fabric, dash mats and grille materials can alter treble and reflection strength. A decorative textured panel may scatter very short wavelengths but is not a broadband diffuser at car-audio distances. Any treatment near airbags must be approved for that location and must not become a projectile.
A repeatable design process
Measure each driver alone on and off axis, select crossover regions where adjacent directivity is compatible, set safe slopes, establish level and delay, then evaluate combined response at several head positions. Use EQ after geometry and timing. Finish with familiar recordings and verify both seats if the build has two-seat goals.
Quick Reference
| Design variable | Main effect | Verification |
|---|---|---|
| Aiming | High-frequency balance/directivity | Polar and seat measurements |
| Spacing | Lobing through overlap | Individual + combined response |
| Delay | Arrival and crossover phase | Impulse/phase response |
| Surface angle | Reflection destination | Time-windowed measurements |
| Crossover | Overlap and protection | Acoustic slopes and summation |
Frequently Asked Questions
Should tweeters always point at the ears?
No. The best axis depends on polar response, reflections and seating goals.
Can close speakers interfere?
Yes if their passbands overlap and arrival relationships are uncontrolled.
Does textured plastic absorb sound?
Mostly at very high frequencies, if at all; shape often matters more than texture.
Can DSP fix a poor speaker location?
It helps timing and magnitude but cannot fully change directivity or remove reflections.
What creates a centered image?
Balanced level, compatible arrival time/phase, controlled reflections and suitable recordings.
Final Word
A quieter, more accurate vehicle is built by controlling energy one path at a time. Stabilize the mounting structure, separate the speaker’s front and rear waves, treat resonant panels and contact points, then verify the result before final system tuning.
