THE 12 VOLT ENCYCLOPEDIA · VOLUME X

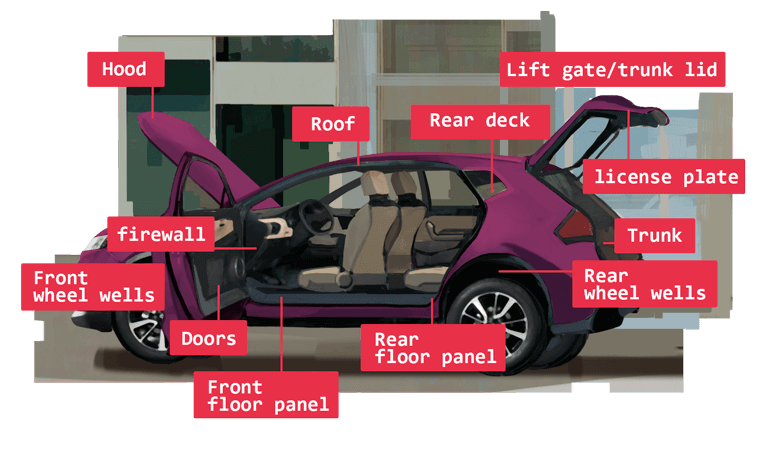

The Complete Vehicle Damping Installation Guide: Preparation, Application and SPL Techniques
Good damping work begins before the backing paper is peeled. Diagnosis prevents wasted weight, surface preparation prevents falling tiles, and disciplined layering keeps windows, airbags, drains and service access functional. This is the start-to-finish field guide.
Diagnose and document
Empty the vehicle, photograph every area and establish baseline noises with controlled sweeps and road testing. Record the frequency and operating condition for each noise. Identify safety components and consult service information. Label clips and fasteners so reassembly does not create new rattles.
Disassemble safely
Use non-marring tools and correct clip directions. Disconnect the battery when required and observe supplemental-restraint waiting procedures. Never probe yellow airbag wiring. Support seats and heavy trim; store fasteners by panel. A broken clip can erase the benefit of careful treatment.
Surface preparation
Vacuum loose debris, then clean grease and residue using a product compatible with the factory coating. High-concentration isopropyl alcohol on a lint-free cloth is often useful after an initial cleaner, but test finishes and ventilate. Wipe until the cloth remains clean and let the surface dry completely. Two careful passes beat installing over hidden dust.
Temperature and adhesion
Warm—not overheated—metal and product generally improve conformability. Follow the product’s stated application range. Peel a small section, position, then roll from the center outward to expel air and create full contact. Bridged valleys and bubbles reduce bond area. Do not use an open flame inside a vehicle.
Cutting and rolling
Use gloves around sharp sheet metal and foil. Round sharp mat corners, avoid covering bolts and overlap only when the product allows it. A hard roller supplies pressure; it does not need to crush factory seam sealer. Embossed foil often changes appearance when fully rolled, providing a useful coverage check.
Layer by function
CLD contacts resonant metal first. Absorber or decoupler follows where reflections or contact require it. A noise barrier needs a continuous decoupled layer with carefully treated seams. Foam placed beneath poorly bonded CLD cannot rescue it. Leave drainage and ventilation paths open.
Extreme-SPL methods
High-output builds may use multiple engineered layers, structural adhesives, welded or bonded reinforcement, removable braces and specialized moldable compounds. Heating material into balls with a torch introduces fire, toxic-fume and hidden-damage hazards and is not a recommended installation method. Use products with controlled heating instructions and non-flame tools.
Quality control
Operate every window, lock, seat, sunroof and latch before closing panels. Confirm airbag paths, drains, harness slack and weather seals. Sweep for rattles, road-test, inspect overhead and vertical adhesion after heat cycles, then retune the audio system. Keep photos so later service technicians know what lies beneath the trim.
Quick Reference
| Step | Pass condition | Failure prevented |
|---|---|---|
| Diagnose | Source/frequency documented | Treating the wrong part |
| Clean | Dry surface; clean cloth | Adhesive release |
| Apply | No bubbles or bridged contours | Poor shear transfer |
| Layer | Each material has a defined job | Weight without benefit |
| Reassemble | All clips/functions verified | New rattles and safety faults |
| Retest | Matched before/after comparison | Placebo conclusions |
Frequently Asked Questions
Should I clean twice?
Yes when needed: remove grime first, then residue, and verify the final cloth stays clean.
Can I use a torch to soften deadener?
No. Open flame inside a vehicle is unsafe and can release harmful fumes or damage wiring.
Must CLD overlap?
Usually not; follow the product instructions and prioritize full adhesion.
How hard should I roll it?
Firmly enough for full contact without damaging thin metal or factory seams.
When should the system be retuned?
After mechanical treatment and reassembly, because response and noise floor may change.
Final Word
A quieter, more accurate vehicle is built by controlling energy one path at a time. Stabilize the mounting structure, separate the speaker’s front and rear waves, treat resonant panels and contact points, then verify the result before final system tuning.
