Head-Unit Audio Tuning: Equalizers, Crossovers and Time Alignment Explained
Modern receivers can contain more tuning power than yesterday’s separate processors. The value is not the number of menu pages; it is the ability to assign safe frequency ranges, align arrival times and shape broad tonal balance without sacrificing clean signal headroom.
Begin with a clean baseline
Disable loudness, bass boost, surround simulation and aggressive presets. Set balance and fader centered, EQ flat and amplifier gains conservatively. Confirm every speaker is wired correctly and plays the intended channel. A tuning menu cannot compensate for reversed polarity, a loose door adapter or clipping upstream.
What equalization changes
An equalizer changes level over selected frequency regions. Graphic EQ supplies fixed bands; parametric EQ may allow frequency, gain and bandwidth. Broad adjustments shape tonal balance. Narrow cuts can control stable peaks. Deep cancellation dips should not be filled with large boosts because the added power often becomes heat and excursion rather than useful sound.
High-pass and low-pass filters
A high-pass filter reduces frequencies below its setting; a low-pass reduces those above. Front and rear speakers commonly receive high-pass protection, while a subwoofer receives low-pass filtering. The selected number is a reference point, not a brick wall. Attenuation continues according to slope.
Crossover slopes
A 6 dB-per-octave slope changes gradually and leaves broad overlap; 12, 18 and 24 dB slopes increasingly separate bands and improve protection. The speaker’s natural response and installation combine with the electrical filter to produce the measured acoustic slope. Identical menu settings do not guarantee ideal summation.
Speaker-size and location presets
A “small speaker” setting usually engages or raises a high-pass filter; it does not physically tell the radio cone diameter. Location presets may apply level, EQ or delay assumptions. These can be useful starting points, but inspect what changed before stacking manual settings on top.
Time alignment
Sound travels roughly 343 meters per second near room temperature. The near left speaker reaches the driver earlier than the far right. Delay can hold nearer channels so arrivals better coincide. Tape-measure distances provide a starting point, while acoustic centers, filters and reflections require measured or listening refinement.
Subwoofer integration

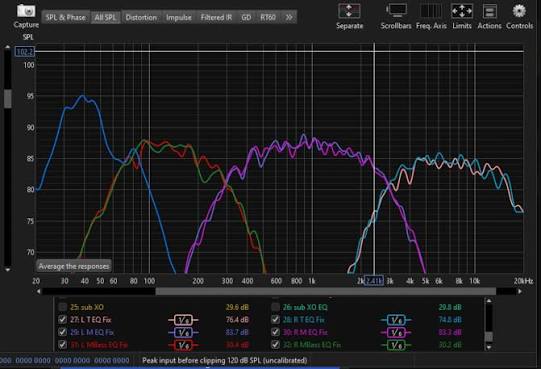

Set front high-pass and sub low-pass so their acoustic outputs overlap constructively. Adjust subwoofer polarity or phase, delay and level while measuring the crossover region. Maximum bass level is not the same as smooth integration; a narrow peak can hide a response hole nearby.
A disciplined order
Establish clean source level, safe crossovers and channel levels first. Align timing and polarity, then apply EQ. Recheck clipping after boost and listen at several volumes. Save a known-good preset before experimenting. Tuning is an ordered process because every later change depends on earlier assumptions.
Quick Reference
| Tool | Primary purpose | Common misuse |
|---|---|---|
| EQ | Shape tonal balance | Boosting cancellation |
| High-pass filter | Protect small speakers | Setting below useful range |
| Low-pass filter | Limit sub upper range | Using it as a volume control |
| Slope | Control overlap/protection | Assuming electrical = acoustic |
| Delay | Align arrival time | Entering distances without verification |
Frequently Asked Questions
Should EQ be used to make everything louder?
No. It changes relative level by frequency and boosts consume headroom.
What crossover should I use?
It depends on driver capability, placement, slope and output goal; manufacturer guidance is the safe start.
Does time alignment improve every seat?
Usually it prioritizes one seat or chosen listening area.
Is “flat” always best?
A smooth vehicle target often includes intentional tonal tilt and bass support.
Should head-unit and amplifier crossovers both be active?
Use one planned filter system unless combined slopes are deliberately designed.
Final Word
The modern head unit is a source selector, computer interface, audio processor and vehicle control point. Choose and configure it as a complete system component—not merely a screen—and it can make every downstream amplifier and speaker easier to use correctly.
