Factory-Amplified Systems: Summing Tweeter, Midrange, Woofer and Subwoofer Signals
A premium factory amplifier may send six or more processed bands to one side of the vehicle. The tweeter wire lacks bass, the woofer wire lacks treble and the subwoofer feed may contain only processed mono information. Building a full-range aftermarket source requires more than electrically adding them.
Active OEM crossovers
Factory processing divides the spectrum before amplification. Each speaker receives only the range it is expected to reproduce. This protects small drivers and supports packaging, but no individual channel is suitable as the sole input for a full-range aftermarket amplifier.
Electrical versus acoustic slopes
The signal on a wire contains the electrical filter. The factory driver and installation add their natural response. Summing electrical feeds may not recreate what the microphone heard in the vehicle because the OEM tuning expected the physical speakers to complete the acoustic slopes.
Level and polarity
Bands can use different gains or inverted polarity. A DSP input mixer must normalize levels and preserve the intended relationship. If one band is 12 dB higher, a simple equal sum is dominated by that input. If adjacent bands oppose through crossover, the reconstructed signal develops a hole.
Delay and all-pass problems
The factory amplifier may delay one driver or apply all-pass phase shaping. Adding delayed and undelayed copies creates comb filtering even when their frequency ranges overlap only modestly. Input EQ cannot fully repair a sum whose phase relationship changes rapidly with frequency.
How a DSP helps

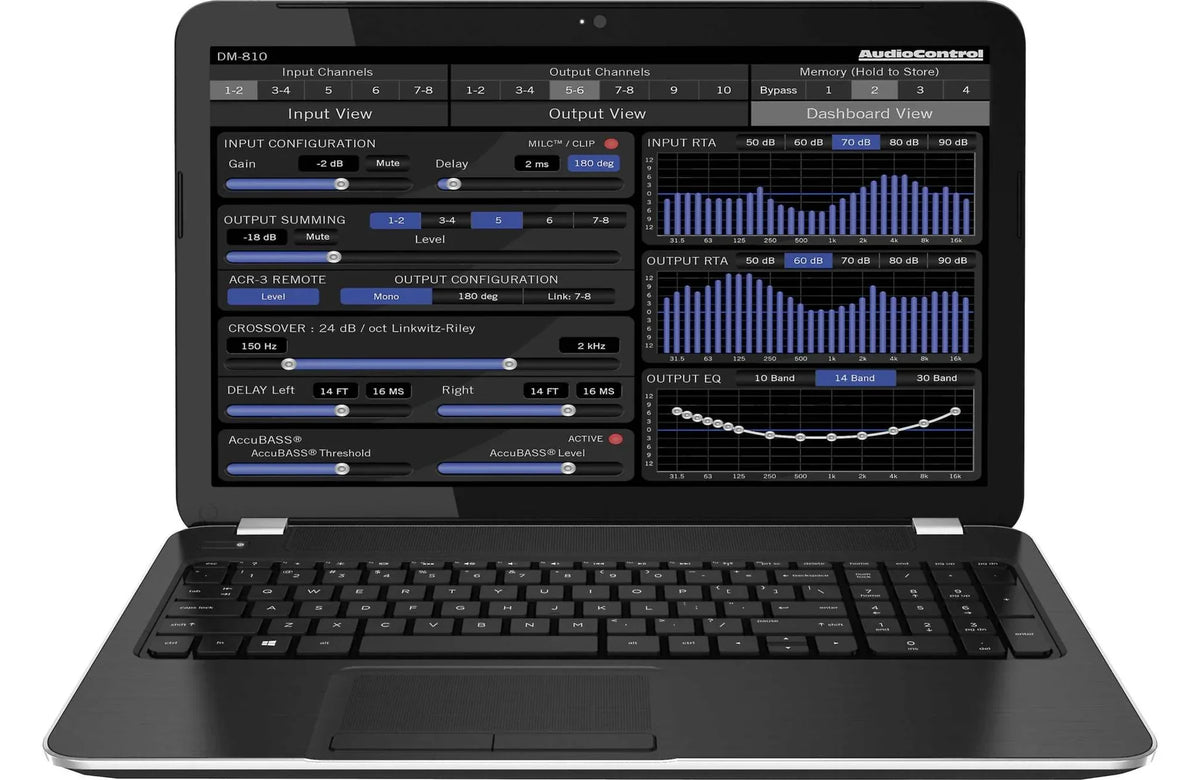

A capable integration processor measures or accepts multiple inputs, assigns bandwidths, corrects level and delay where possible, and routes a reconstructed signal to new outputs. Some processors provide automated analysis, but the installer must verify the result and recognize processing the tool cannot reverse cleanly.
Choose channels strategically
Do not sum every wire merely because an input is available. Select the minimum set that covers the desired range with stable overlap. A front tweeter, front woofer and factory sub may be enough; rear ambience or center channels can introduce different processing and contaminate the sum.
Pre-amplifier and digital alternatives
A compatible preamp or network interface can bypass the factory amplifier’s multiway processing and provide cleaner full-range channels. This is often preferable, but it may lose factory volume, chimes or surround decoding unless the interface recreates them. Compare retained functions, not just signal purity.
Validation
Play swept tones and left/right identification tracks. Measure each input alone, the electrical sum and every new output. Check response at multiple factory volumes for dynamic EQ. Confirm the result during calls, prompts and warning tones so a high-level chime does not blast through the new amplifier.
Diagnostic Reference
| Input problem | Audible result | Required response |
|---|---|---|
| Band-limited channel | Missing content | Select complementary bands |
| Unequal levels | One band dominates | Normalize input gain |
| Opposite polarity | Crossover cancellation | Verify/correct polarity |
| Different delay | Comb filtering | Analyze time/phase |
| Dynamic factory EQ | Balance changes with volume | Measure at multiple levels |
Frequently Asked Questions
Can I use the factory subwoofer wire for the whole system?
No. It normally lacks midrange and treble.
Does summing restore a flat signal automatically?
No. Level, polarity, delay, EQ and all-pass processing affect the result.
Should rear channels be included?
Only if their content and processing are needed and understood.
Can input EQ remove an all-pass filter?
Not with magnitude EQ alone; phase behavior must be addressed.
Why does the sum change with volume?
Dynamic OEM EQ or limiting may alter the input bands.
Final Word
Modern OEM integration is a systems-engineering job. The correct solution preserves the vehicle’s intended functions while providing a clean, predictable signal and power path for the aftermarket system. Application notes begin the diagnosis; measurements and complete functional testing finish it.
