THE 12 VOLT ENCYCLOPEDIA · VOLUME XII
The Factory Center-Channel Problem: Integrating Left, Right and Center Audio Correctly

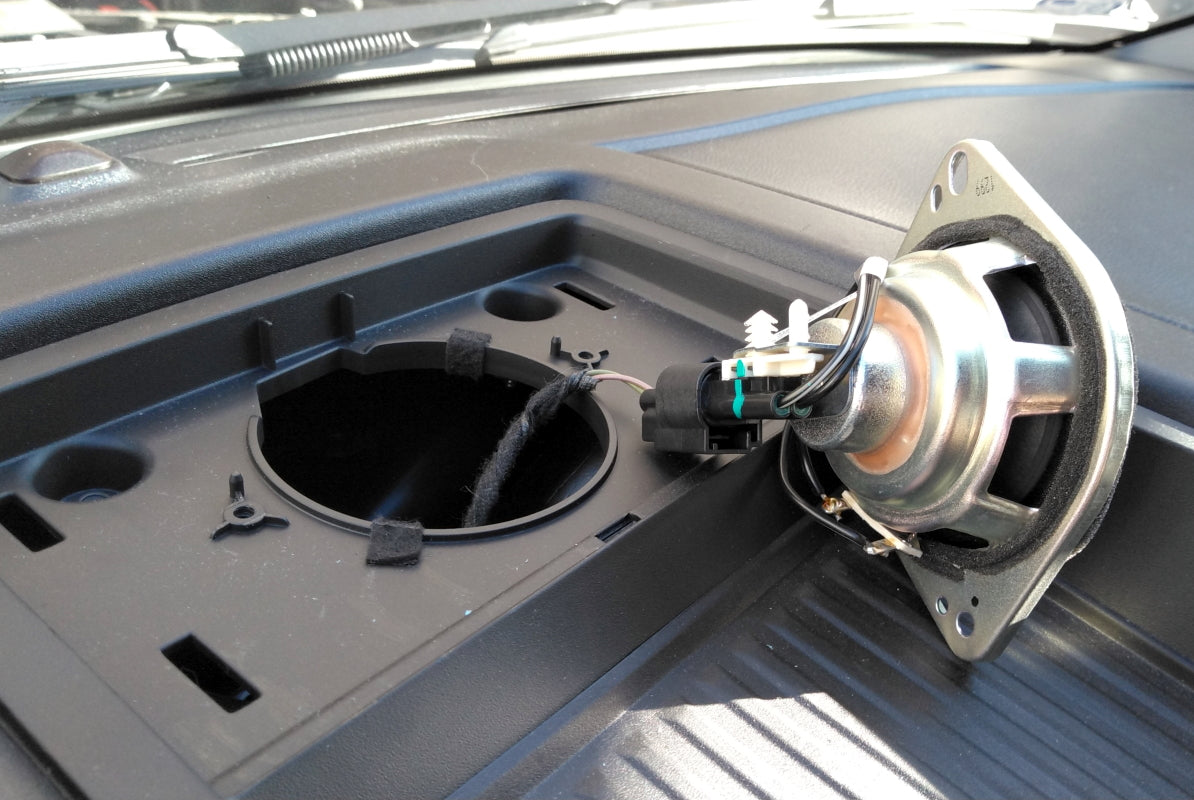

A dashboard center speaker may carry navigation, chimes, vocals, a matrix of left and right, or a genuinely discrete processed channel. Treating it as “one extra speaker” can collapse the stereo image, overload an amplifier or delete important alerts. First identify what the channel does.
Why manufacturers use a center
A center channel can stabilize speech and vocals for multiple seating positions, support surround decoding and provide a reliable location for prompts or alerts. In an asymmetric cabin, it may pull the image away from the nearest door. Factory processing is designed around its bandwidth, level, delay and impedance.
Discrete, summed or matrixed
Some systems create center from left-plus-right information; others derive only correlated content, and premium surround systems can send a discrete channel. Measuring left-only and right-only test material reveals whether center output follows both, one, or a separate decoder. Navigation and chimes must be tested independently.
Why tying left and right together is dangerous
Amplified outputs are low-impedance voltage sources. Connecting left and right positives can make the channels drive against each other whenever their signals differ. Ordinary bridge mode is also misunderstood: a bridgeable amplifier deliberately inverts one channel and drives a load between outputs. It does not safely combine stereo program into center.
DSP center generation
A capable processor can derive center at signal level, usually from correlated left/right content, then apply bandwidth, level and delay. Simple L+R summing sends everything common to center and may narrow the stage. More advanced center extraction preserves separation better. Either method needs a dedicated output and amplifier channel.
Dedicated amplification
The center speaker should have an amplifier channel compatible with its impedance and power. Factory dash speakers may be 2 ohms or lower and designed for limited bandwidth. Verify actual impedance and crossover needs before replacement. Do not parallel it onto a stereo channel merely because there is no spare output.
The stereo-delete option
A high-quality left/right front stage can create a convincing phantom center for the primary seat. Disabling the factory center may improve imaging if prompts and safety tones are retained elsewhere. This is often simpler than reproducing a poorly understood center matrix, but it may reduce image stability for passengers.
Passive summing limitations
A resistor network can combine preamp-level left and right without directly shorting sources, but it reduces voltage and does not provide intelligent center extraction. At speaker level, power and heat become serious. A designed summing interface is preferred over improvised resistors.
Tuning the center
Band-limit the center so it supports localization without becoming a bright mono loudspeaker. Match arrival and level with the left/right stage, then listen to hard-panned and centered material. If left-only content pulls strongly to the middle, center extraction or level is too aggressive.
Diagnostic Reference
| Strategy | Advantage | Risk |
|---|---|---|
| Retain OEM center path | Preserves factory behavior | May conflict with new tuning |
| DSP-derived center | Full control | Requires processing and amp channel |
| Passive preamp sum | Simple | Level loss and narrow image |
| Disable center | Clean stereo architecture | Prompts/passenger image may suffer |
| Tie amplified L/R | None | Unsafe—do not do it |
Frequently Asked Questions
Can I bridge left and right channels into the center?
No. Bridging does not combine stereo channels and tying outputs can damage them.
Should the center play full range?
Usually it benefits from deliberate bandwidth and level control.
Can I remove it?
Yes in some systems, if chimes/prompts are retained and the front stage is retuned.
Why is the factory center low impedance?
OEM amplifiers and speakers are designed as a matched system; verify before replacing.
Does L+R create a proper center?
It creates mono-sum content, but sophisticated extraction can preserve stereo width better.
Final Word
Modern OEM integration is a systems-engineering job. The correct solution preserves the vehicle’s intended functions while providing a clean, predictable signal and power path for the aftermarket system. Application notes begin the diagnosis; measurements and complete functional testing finish it.
