Amplifier Won’t Turn On—or Keeps Shutting Off: Complete Diagnostic Procedure
An amplifier requires stable battery power, a low-resistance return path, a valid turn-on command, a safe speaker load and adequate cooling. Troubleshooting becomes fast when those requirements are tested at the amplifier during the failure instead of inspected from across the trunk.
Separate no-power from protection
No lights or response suggests missing B+, ground or remote command, although some amplifiers use subtle indicators. A protection light means the unit woke but detected unsafe voltage, temperature, output load or internal fault. A unit that plays then shuts off must be tested at the exact level and temperature that causes it.
Constant power test

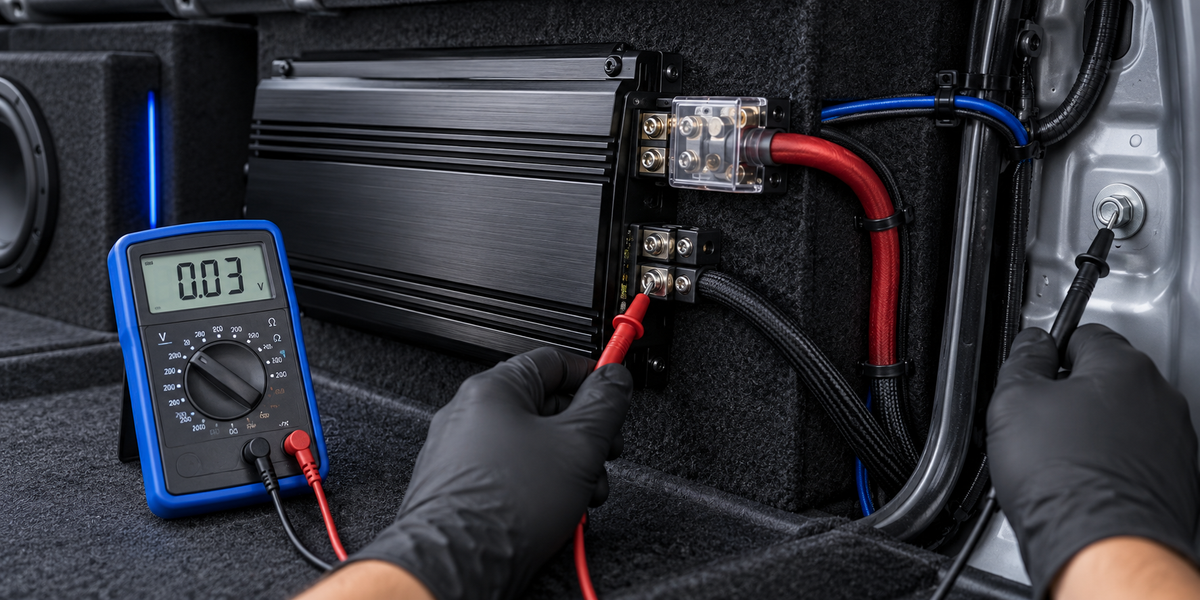

Measure from amplifier B+ to its ground terminal, not B+ to an unrelated chassis point. Check key-off and during attempted startup. A meter can show voltage through a nearly open connection because it draws almost no current; use loaded voltage-drop testing to prove the cable and fuse path.
Remote turn-on test
Measure remote voltage at the amplifier while connected. A wire may show 12 volts open-circuit but collapse when driving multiple devices. Loose strands, weak splices and output-current limits matter. If the source cannot support all turn-on inputs, use a relay or sequencer triggered by the source.
The set-screw wire trap
A thin bare remote wire placed directly under a large set screw can be cut strand by strand as the screw is tightened. It appears secure until vibration or one final quarter turn leaves only a few conductors. Use a correctly sized wire ferrule, terminal block or crimped connector compatible with the amplifier terminal.
Ground and voltage limits
Confirm the ground point, terminal torque and loaded drop. Measure for undervoltage and overvoltage at the amplifier. Smart charging and jump-start events can move outside expected range. An amplifier cycling with bass is commonly losing supply voltage or seeing an unsafe load.
Speaker load and wiring
Disconnect speaker outputs and retest at low level. Inspect for shorted strands, pinched wire and voice-coil impedance below rating. Parallel dual coils and multiple subwoofers can create a final load far lower than expected. Nominal impedance is not the minimum impedance at every frequency.
Thermal shutdown
Confirm airflow, heatsink temperature, mounting orientation and load. An amplifier buried under carpet can overheat even at a legal impedance. Clipping and low supply voltage add heat. Allow full cooling, then compare time-to-failure at reduced load and gain.
Internal fault conclusion
Only condemn the amplifier after verified power, ground, remote, safe unloaded outputs and temperature. Substitute a known-good amplifier or bench-test with current-limited power when qualified. Replacing the amplifier before correcting the wiring can destroy the replacement.
Diagnostic Reference
| Condition | Test | Interpretation |
|---|---|---|
| No lights | B+ to amp ground; remote to amp ground | Missing supply/command |
| Protection immediately | Remove speaker/RCA loads | External load or internal fault |
| Shuts off on bass | Log voltage and current | Drop/impedance/protection |
| Shuts off after time | Temperature and airflow | Thermal limit |
| Remote collapses | Test connected remote voltage | Weak source or damaged termination |
Frequently Asked Questions
Why is there 12 volts but the amp stays off?
The reading may collapse under load, ground may be missing, remote may be invalid or the amplifier may be faulty.
Can thin remote wire be used?
Current is small, but the termination must remain mechanically sound.
Why does the amp shut off on bass?
Voltage drop, low impedance, shorted wiring or thermal stress commonly appears at high demand.
Should protection be bypassed?
No. Find the unsafe condition.
Can gain cause shutdown?
Excess gain reaches clipping and heat sooner, though it does not change the connected impedance.
Final Word
Successful troubleshooting replaces guesswork with evidence. Power, signal, load, timing, temperature and mechanical integrity can all create similar symptoms; a disciplined test sequence separates them without damaging good equipment.
