How to Test Speakers and Subwoofer Voice Coils: Polarity, Resistance and Mechanical Damage
A speaker can fail electrically, mechanically or intermittently. One test cannot prove everything. A useful bench diagnosis combines visual inspection, DC resistance, a brief low-voltage polarity pulse, gentle movement and a controlled low-level audio sweep.
Inspect before energizing
Look for torn surrounds, separated spiders, lifted dust caps, burnt leads, cracked baskets and terminals touching the frame. Smell can reveal overheated adhesive or coil former. On dual-coil drivers, label every terminal before disconnecting jumpers.
Measure DC resistance

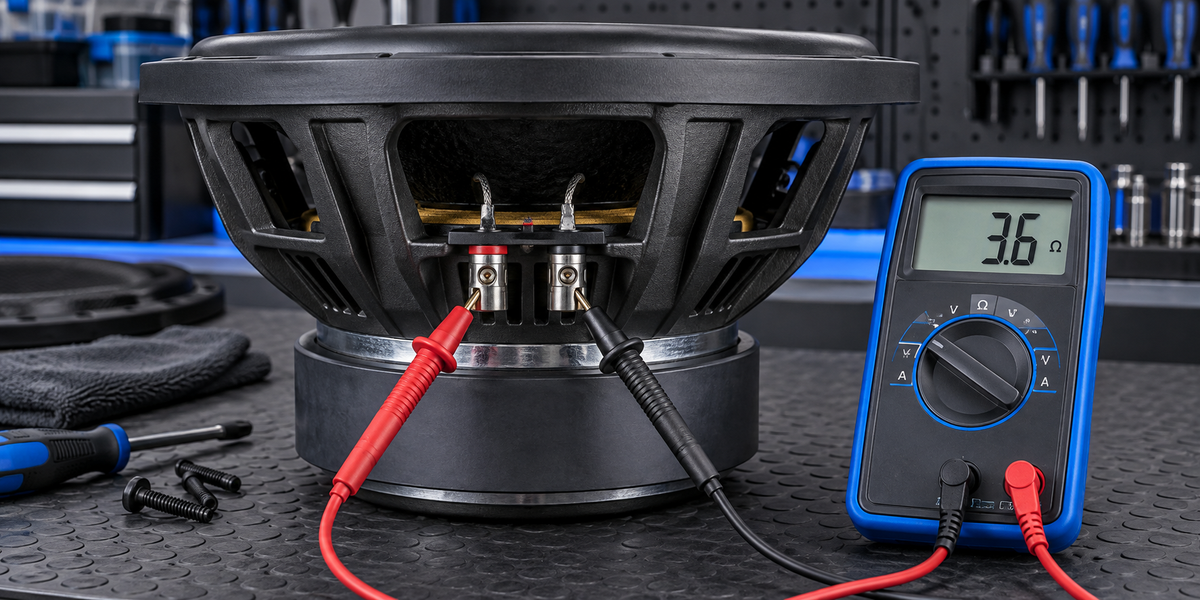

Disconnect the speaker from amplifiers and passive networks. Zero or note meter-lead resistance, then measure each coil separately. A nominal 4-ohm coil often reads roughly 3 to 4 ohms DC, but exact values vary. Infinite resistance indicates an open path; near-zero suggests a short or measurement problem.
Nominal impedance is not meter resistance
Advertised impedance describes an AC operating category, not one fixed value. Inductance and mechanical resonance make impedance change with frequency. The meter supplies DC and reports winding resistance. Use manufacturer data and compare matching coils rather than declaring failure from one generic number.
Safe polarity pop test
Use a 1.5-volt cell and touch it only briefly to a disconnected woofer or midrange. When battery positive contacts speaker positive, conventional polarity moves the cone outward. Do not hold the connection, use a 12-volt vehicle battery or pop-test a tweeter directly. Crossovers and factory electronics must be isolated.
Mechanical movement test
With power disconnected, press evenly around the dust cap using spread fingers and very small travel. Movement should be smooth and quiet. One-sided pressure can force a healthy coil to rub, so technique matters. Scraping, binding or a cone sitting crooked suggests gap contamination, a shifted motor, deformed basket or swollen coil.
Intermittent leads
A tinsel lead or coil connection can open only at certain cone positions. Watch resistance while moving the cone gently and flexing accessible leads without stressing them. A jumping reading identifies an intermittent path. Some breaks are hidden under the dust cap and require professional repair.
Dual-voice-coil interpretation
Both coils should normally measure closely. One open coil means the driver cannot be wired normally even if the other plays. A previous series or parallel jumper can confuse readings; isolate all terminals. Never assume the printed label reflects a repaired or reconed driver.
Low-level sweep
After electrical and mechanical checks, use a fused low-power source or test amplifier at minimal level. Sweep only through the driver’s intended range while listening for buzzes and discontinuities. Stop immediately if resistance, temperature or sound indicates damage.
Diagnostic Reference
| Meter result | Possible condition | Confirm with |
|---|---|---|
| OL/infinite | Open coil or lead | Terminal/lead continuity |
| Near 0 Ω | Short or meter error | Lead zero and known resistor |
| Coils differ greatly | Damaged coil/connection | Separate repeated measurements |
| Reading jumps with motion | Intermittent tinsel/coil lead | Gentle movement test |
| Normal DCR but scraping | Mechanical gap problem | Even-motion and sweep test |
Frequently Asked Questions
Can I use a 9-volt battery?
A brief 1.5-volt cell is safer and sufficient for polarity.
Why does a 4-ohm speaker read 3.4 ohms?
The meter reads DC winding resistance, normally below nominal AC impedance.
Does free cone movement prove the coil is good?
No. Electrical opens and heat damage can remain.
Can I battery-test a tweeter?
Do not connect a battery directly; use protected low-level audio and proper filtering.
Why does resistance change as the cone moves?
An intermittent lead or damaged winding may open at certain positions.
Final Word
Successful troubleshooting replaces guesswork with evidence. Power, signal, load, timing, temperature and mechanical integrity can all create similar symptoms; a disciplined test sequence separates them without damaging good equipment.
