Bad Car-Audio Grounds: Voltage Loss, Noise, Clipping, Heat and Shutdowns
A ground connection can look clean, feel tight and still fail when current rises. The return path is part of the power circuit, not an afterthought. Its conductor, terminal, mounting surface and vehicle structure must carry the same current as the positive cable.
Symptoms overlap
Poor grounds can cause low amplifier voltage, clipping, protection cycling, turn-on pops, alternator noise, unstable processors and hot terminals. These symptoms also have other causes. Diagnose the return path with loaded voltage drop rather than assuming every whine is a ground loop.
Choose approved structural metal
Use an OEM grounding stud or substantial structural point with known continuity to the vehicle return system. Thin floating brackets, seat tracks with coatings and random sheet metal may be poor paths. On aluminum or bonded structures, vehicle-approved points and corrosion compatibility are essential.
Prepare the interface
Remove paint and coating only beneath the terminal at an approved location. The lug must sit flat against clean metal. After assembly and testing, protect the exposed area from corrosion using a compatible coating around—not insulating between—the conductive surfaces.
Hardware stack
A through-bolt, nut and suitable locking hardware create controlled clamp force. Random self-tapping screws can strip thin metal, loosen with vibration and provide small contact area. Avoid drywall screws entirely. The cable lug, metal thickness and hardware must all suit expected current.
Termination quality
Strip without cutting strands, use the correct lug barrel and crimp tool, and add heat shrink for strain relief. Solder alone can wick into flexible cable and create a stress point; a properly engineered crimp supplies the primary mechanical and electrical joint. Pull-test every termination.
Loaded voltage-drop test

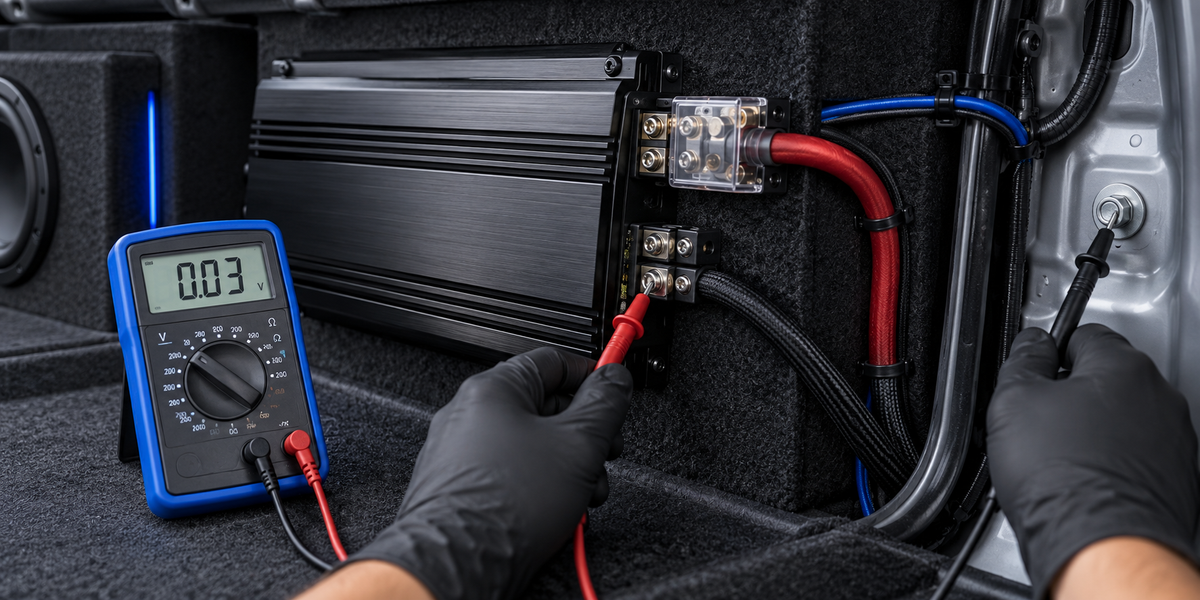

With the system reproducing a controlled high-demand signal, measure between amplifier ground terminal and battery negative or the approved front reference. The reading is loss in the complete return path. Move the probe step by step across connections to locate where the drop appears.
Front-to-rear return
When the body path shows excessive loaded loss, a correctly sized copper return to an approved front point can bypass uncertain joints. Route and protect it like a power conductor and preserve battery-sensor measurement. Test before and after at identical load.
Ground-loop noise
Multiple components grounded at different potentials can drive shield current through RCA cables. Establish low-resistance power grounds, verify signal shield integrity and isolate the entry point systematically. Ground-loop isolators can alter bandwidth and should not conceal unsafe power wiring.
Diagnostic Reference
| Fault | What it causes | Proof test |
|---|---|---|
| Paint under lug | High interface resistance | Drop across lug-to-metal |
| Loose bolt | Heat and intermittence | Load/thermal inspection |
| Undersized return | Voltage loss | End-to-end loaded drop |
| Bad crimp | Localized heat | Drop across termination |
| Sensor bypass | Energy-management errors | Verify current-sensor topology |
Frequently Asked Questions
Should amplifier ground be shorter than 18 inches?
Short is useful only when the nearby body path is proven; total return quality matters more than a slogan.
Can I use a self-tapping screw?
A proper through-bolt or approved stud is more reliable for high current.
Should paint remain under the lug?
No. The conductive surfaces must contact directly.
Will a front-to-rear return always help?
Only when the existing return path is limiting or uncertain.
How much ground drop is acceptable?
As low as practical and within equipment/system requirements; compare under real load.
Final Word
Successful troubleshooting replaces guesswork with evidence. Power, signal, load, timing, temperature and mechanical integrity can all create similar symptoms; a disciplined test sequence separates them without damaging good equipment.
