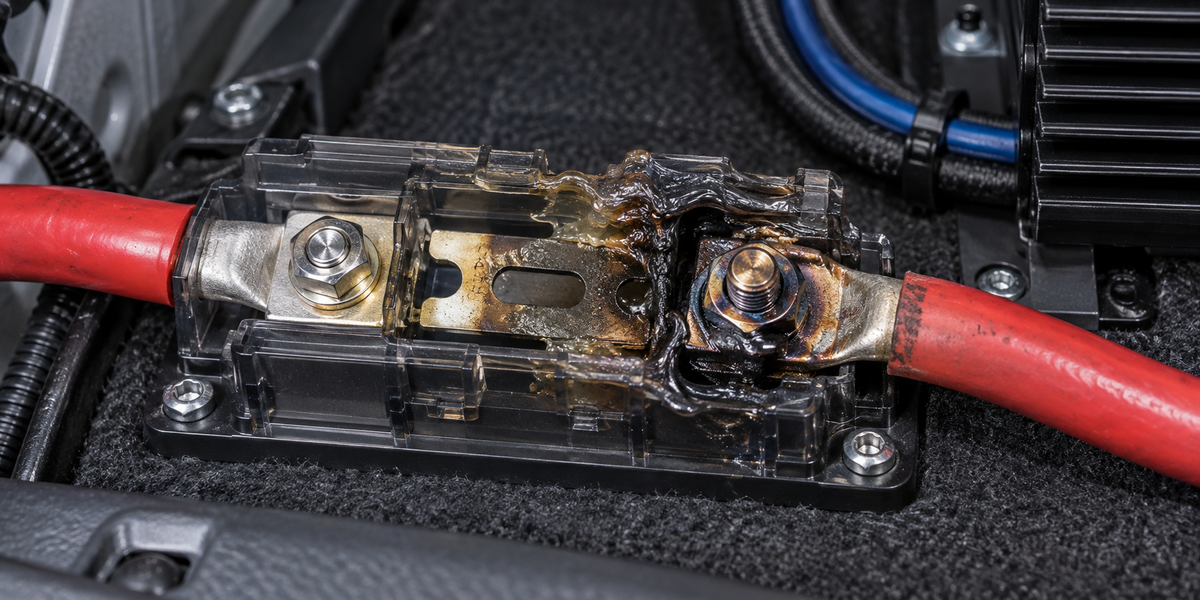

Why Fuse Holders Melt: Loose Connections, Cheap Hardware and Improper ANL Assembly
A fuse can remain electrically intact while its holder melts around it. The cause is often not excessive system current through the fuse element, but resistance where current transfers from cable to lug, lug to blade or blade to holder. At high current, milliohms become heaters.
I²R heating
Heat produced at a resistance is proportional to current squared. A 0.005-ohm connection carrying 200 amperes dissipates 200 watts locally. That heat is concentrated in a tiny contact and surrounding plastic. The fuse rating cannot prevent heat caused below its melting threshold at the wrong place.
Direct current path
The cable conductor or ring terminal should contact the fuse blade or designed conductive block directly. Decorative washers should not become current-carrying spacers. Hardware above the fuse supplies clamp force; it should not force current through several unknown plated interfaces.
Contact area and pressure
A connection conducts across microscopic contact points. Flat clean mating surfaces and correct clamp force increase effective area. A loose nut, warped blade or undersized lug concentrates current. Excess torque can crack the holder, strip threads or deform soft metal, so use the maker’s specification.
Material and plating
Bright appearance does not prove low resistance. Base-metal conductivity, plating thickness, fuse-element attachment and corrosion performance matter. Inferior fuses and holders can use thin metal or inconsistent joints. Choose established electrical products with current and temperature ratings rather than cosmetic weight.
Thermal cycling
The connection expands when hot and contracts when cool. Plastic creeps, hardware relaxes and oxidation develops, raising resistance. The next cycle becomes hotter and loosens further. Discoloration, odor or softened plastic is a warning to stop, not an invitation to retighten a damaged holder and continue.
Termination failures
Loose set screws, partially inserted cable, cut strands and poor crimps reduce conducting area. Fine-strand cable can cold-flow under the wrong clamp. Use the terminal method specified by the holder, inspect strand capture and support cable so vibration does not lever the connection.
Fuse location and sizing
The main fuse protects the positive cable from battery current and belongs close to the source, with the unfused length minimized. Its rating must protect the cable under the installation conditions. Oversizing the fuse to stop nuisance opening can turn the cable or holder into the fuse.
Post-installation inspection
After controlled high-load operation, measure voltage drop across the fuse assembly and inspect temperature with appropriate tools. Compare both sides and neighboring connections. Replace heat-damaged blades, blocks and plastic; thermal damage can destroy spring pressure and plating permanently.
Diagnostic Reference
| Failure | Heat mechanism | Correction |
|---|---|---|
| Loose blade/nut | Reduced contact pressure | Replace damage; torque correctly |
| Washer in current path | Extra resistive interfaces | Direct blade-to-lug/block contact |
| Poor crimp | Fewer conducting strands | Correct lug and crimp tool |
| Cheap thin hardware | High material/joint resistance | Rated quality components |
| Oversized fuse | Cable no longer protected | Size fuse to conductor |
Frequently Asked Questions
Why did the holder melt without blowing the fuse?
Contact resistance created localized heat below the fuse element’s opening threshold.
Should washers sit between ring terminal and fuse?
No unnecessary hardware should interrupt the designed current path.
Can I reuse a discolored fuse?
Heat may have damaged its joints or plating; replace the compromised assembly.
Does a larger fuse run cooler?
It does not repair poor contact and may leave the cable underprotected.
How can I confirm the repair?
Measure loaded voltage drop and temperature after proper assembly.
Final Word
Successful troubleshooting replaces guesswork with evidence. Power, signal, load, timing, temperature and mechanical integrity can all create similar symptoms; a disciplined test sequence separates them without damaging good equipment.
