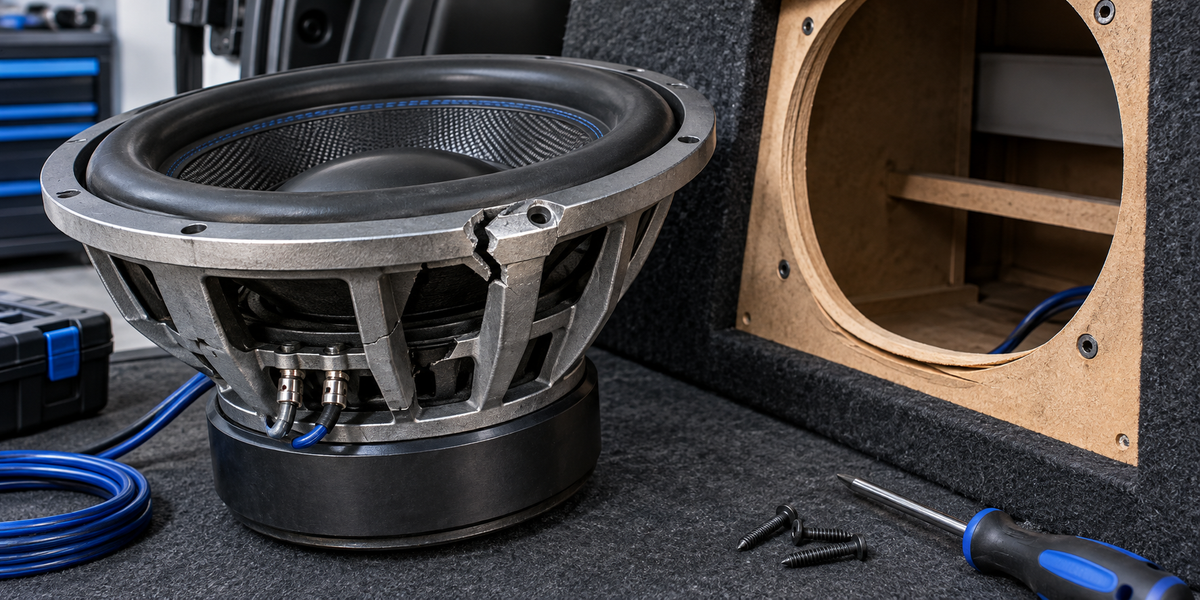

Broken Subwoofer Baskets and Cracked Mounting Flanges: Why the Enclosure May Be Responsible
A heavy subwoofer is a motor, suspension and frame bolted to a vibrating pressure vessel. If the mounting plane flexes or the hardware wedges into the basket, the frame experiences repeated stress it was never intended to absorb. The crack may appear to be a driver defect while the enclosure is the root cause.
Baffle flex twists the frame
A single thin baffle can bow as internal pressure cycles and the motor reacts against cone acceleration. If mounting points move by different amounts, a rigid cast basket is twisted repeatedly. Fatigue concentrates around screw holes, spokes and terminal areas until a fracture begins.
Layering and bracing
Additional baffle layers increase thickness, while window braces, dowels and ties to opposite panels shorten unsupported spans. Laminated layers must be fully bonded, not merely screwed at the edges. A decorative double ring that floats over a flexible main panel does not provide complete structural support.
Flat underside hardware
The underside of the fastener head should bear flat on the basket’s mounting surface or on a proper washer. A tapered countersunk head acts like a wedge in a straight hole, deforming stamped steel or concentrating stress in cast material. Drywall screws are brittle, tapered and inappropriate.
Threaded inserts and through-bolts
Threaded inserts, T-nuts or through-bolts provide repeatable clamp force and allow service without chewing the wood. They must be installed squarely and secured so they cannot spin or fall into the box. Select hardware that clears the surround and does not bottom before clamping.
Torque sequence
Tighten in a crossing pattern through several light passes so the gasket compresses evenly. Do not pull one corner fully down while the opposite side floats. Final torque should be firm enough to seal and resist motion without bending the flange.
Inverted subwoofers
An inverted driver hangs its motor away from the enclosure and may place different leverage on the mounting flange. The fasteners are also visually exposed and sometimes used as styling elements. Through-bolts or engineered inserts, a rigid baffle and secondary retention in extreme applications deserve extra attention.
Other causes of basket damage
Shipping impact, a shifted motor, enclosure collision, uneven cutout support and overtightened clamps can also crack a basket. Inspect the cutout for high spots and adequate flange contact. The mounting gasket should support a continuous plane rather than isolated points.
Diagnose the enclosure after failure
Place a straightedge across the baffle, inspect separated laminate, pressurize at safe level and measure movement. Check every fastener witness mark. Replacing the woofer without correcting flex or hardware invites the same failure.
Diagnostic Reference
| Mounting choice | Effect | Recommendation |
|---|---|---|
| Countersunk tapered screw | Wedges/deforms flange | Avoid unless basket is designed for it |
| Drywall screw | Brittle and poor bearing | Do not use |
| Flat washer/pan head | Even bearing area | Use compatible size |
| Threaded insert | Repeatable service | Install square and secure |
| Through-bolt + nut | Strong retention | Use accessible locking hardware |
Frequently Asked Questions
Can a subwoofer break from box flex?
Yes. Repeated twisting of the mounting plane can fatigue the basket.
Are drywall screws acceptable?
No. Use appropriate flat-bearing structural hardware.
Should screws be extremely tight?
No. Use even controlled clamping without deforming the flange.
Is a double baffle enough?
Not always; broad panels may also require bracing to other walls.
Why is inverted mounting more demanding?
Motor leverage and retention consequences make rigid support especially important.
Final Word
Successful troubleshooting replaces guesswork with evidence. Power, signal, load, timing, temperature and mechanical integrity can all create similar symptoms; a disciplined test sequence separates them without damaging good equipment.
