Choosing Power Wire, Ground Wire and Fusing for an Amplifier
Power wire is selected by current, conductor material, total circuit length, installation environment and acceptable voltage loss. The number printed on an amplifier kit is not proof that the copper inside matches the claimed gauge.
Current and distance work together
A longer wire has more resistance. More current creates more voltage loss and heat through that resistance. A gauge acceptable for a short trunk-mounted battery may be inadequate from an engine-compartment battery to the same amplifier. Include the complete positive and return paths.
OFC versus CCA

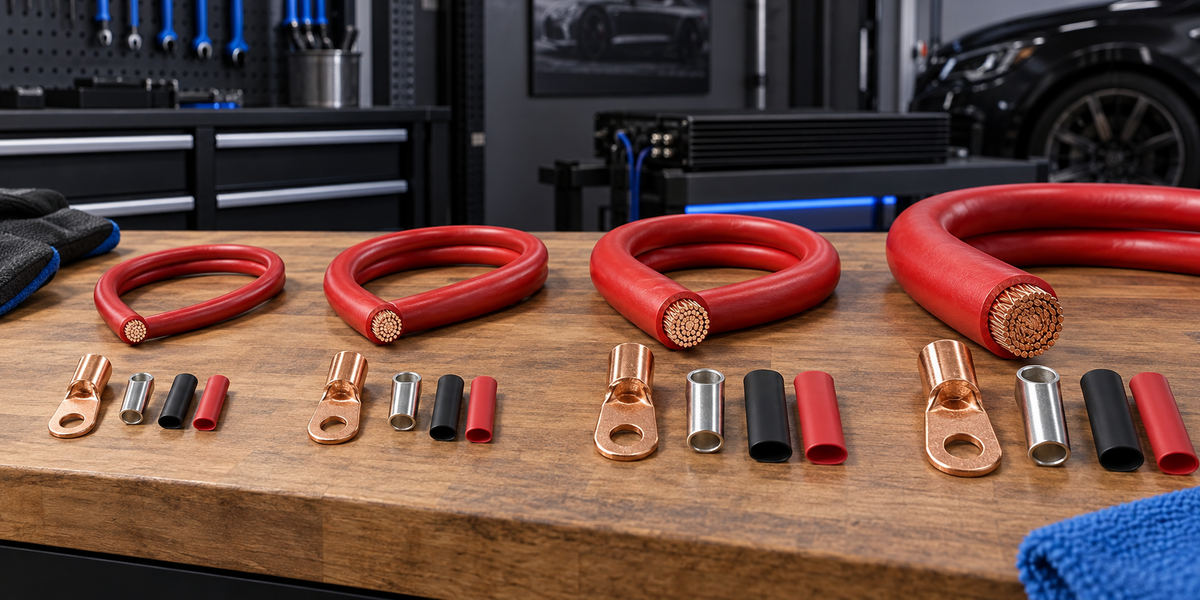

OFC means oxygen-free copper, a highly conductive copper cable. CCA means copper-clad aluminum: an aluminum core with copper coating. CCA carries less current than equal-size copper and usually requires a larger gauge for similar drop. The insulation diameter can hide a small conductor.
Gauge standards and strand count
American Wire Gauge describes conductor area, not cable appearance or strand count. Many fine strands improve flexibility but do not automatically increase total copper. Compare actual conductor area, weight and documented specification. Oversized insulation and “true gauge” slogans need verification.
The ground carries equal current
Whatever current leaves the battery through positive power must return. Ground cable should normally match the positive conductor’s current capability. A short rear ground is useful only if the body path is proven. A dedicated return may be required in questionable bonded or aluminum structures.
The fuse protects the cable
The main fuse exists to stop the battery from feeding a shorted power cable until it burns. Choose its rating at or below the safe capacity of the conductor and installation. The amplifier’s internal fuses protect equipment; they do not protect the unfused front-to-rear cable.
Distribution for several amplifiers
A large main cable can feed a fused distribution block, then smaller branches to individual amplifiers. Each smaller branch must be fused for its gauge unless already protected by a sufficiently small upstream fuse. Ground distribution must provide equal-quality return paths.
Connections dominate failures
An oversized cable with a poor crimp or loose fuse blade can fail worse than a correctly sized smaller conductor. Use proper lugs, full-strand insertion, rated blocks, direct contact surfaces and correct torque. Measure loaded voltage drop after installation.
Selection example
If a system may draw 180 amperes over a long front-to-rear run, select copper gauge from a conservative voltage-drop/ampacity chart, then verify actual drop. Do not use a 250-amp fuse simply because the amplifier advertises 2,500 watts if the chosen cable is protected at a lower safe rating.
Quick Reference
| Design factor | Why it matters | Correct response |
|---|---|---|
| Higher current | More heating/drop | Larger conductor |
| Longer run | More resistance | Larger conductor |
| CCA material | Less conductive than copper | Upsize or use OFC |
| Smaller branch | Lower ampacity | Fuse at distribution |
| Questionable body return | Unknown resistance | Loaded test or copper return |
Frequently Asked Questions
Is 4-gauge enough for every 1,000-watt amp?
No. Voltage, efficiency, length and conductor material determine current and drop.
Can CCA use the same chart as OFC?
No. Aluminum-based cable has higher resistance.
Should the ground be smaller because it is short?
It must still carry full current; size the complete return path safely.
Can amplifier fuses replace the battery fuse?
No. The main cable remains unprotected before the amplifier.
Why measure after using a chart?
Terminations and vehicle return paths add resistance the chart cannot predict.
Final Word
Correct equipment pairing is not matching the largest printed numbers. It is building a chain in which every source, processor, amplifier, driver, enclosure, wire and electrical component can perform its assigned job safely and cleanly.
