Head Unit, DSP and Amplifier Compatibility: Voltage, Inputs, Outputs and Gain Structure

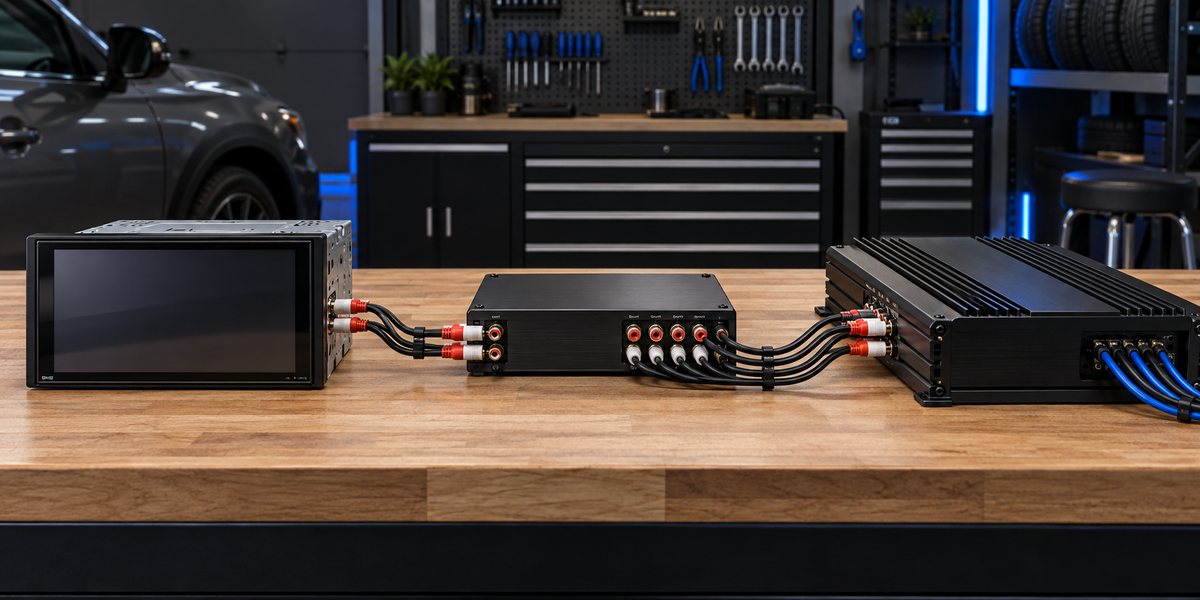

The signal chain is a relay race. Every device must accept the signal handed to it and provide the format the next device expects. A connector that physically fits does not prove electrical compatibility.

HEAD UNITDSP / LOCAMPLIFIERDRIVEREVERY STAGE MUST ACCEPT THE PREVIOUS STAGE’S LEVELstrong clean signal → sensible gain → lower noise12 VOLT OUTLET EQUIPMENT-PAIRING DIAGRAM — RATINGS MUST BE COMPARED UNDER THE SAME CONDITIONS

Signal type first

A head unit may provide low-level RCA voltage, while a factory radio may provide amplified speaker-level voltage, balanced output or digital network data. The DSP input must support that type. Never connect an unknown factory output merely because two wires contain music.

Input sensitivity defined

Input sensitivity is the voltage range an amplifier or processor needs to reach full output. It is what the gain control matches. If a radio supplies 5 volts but an amplifier input accepts only 2 volts at its setting, the input can clip before the gain appears high.

Higher preout voltage

A stronger clean RCA signal lets the amplifier use less sensitivity, improving the desired signal relative to induced noise. It does not increase amplifier power beyond its supply and load capability. The voltage must remain clean at the chosen radio volume.

Channel count

A four-way active front stage plus stereo rear and subwoofer can require eleven processed outputs. Buying an eight-output DSP means channels must be combined or features dropped. Count tweeters, mids, woofers, subs and zones before purchasing processors and amplifiers.

Factory signal behavior

OEM feeds may be band-limited, equalized, delayed or fixed level. The processor may need summing, de-equalization, all-pass correction and an external volume control. Auto-summing cannot fix every incompatible phase relationship. Measure the exact trim.

Balanced and differential inputs

A differential input responds to the voltage difference between two wires and rejects noise common to both. Many factory and RCA-input amplifiers use variations of this approach. It does not permit grounding arbitrary negative speaker wires. Follow the specified connection method.

Remote turn-on

The source must wake every processor and amplifier in a controlled order. A low-current remote output may need a relay, while signal-sensing devices may remain awake and drain the battery. Plan turn-on and shutdown timing as part of compatibility.

Gain structure

Establish the source’s maximum clean level, set DSP input and output without clipping, then adjust amplifier sensitivity to the target speaker voltage. Gain structure means arranging levels so every stage uses healthy signal without running out of headroom.

Quick Reference

Source output Required receiving input Common risk
RCA preamp Low-level compatible Input overdrive or noise
Factory speaker level High-level differential Voltage/BTL incompatibility
Digital network Vehicle-specific interface No analog audio present
Fixed-level OEM DSP/master controller No normal volume tracking
Multiple band-limited channels DSP summing inputs Phase/delay cancellation

Frequently Asked Questions

Does a 5-volt RCA make more amplifier watts?

No. It allows lower input sensitivity and can improve noise margin.

Can speaker-level output connect to RCA input?

Only when the input is designed for that voltage and wiring type.

How many DSP channels do I need?

At least one output for every independently controlled speaker band or zone.

Can signal sensing replace remote wire?

Sometimes, but verify shutdown behavior and parasitic draw.

What is gain structure?

Matching each stage so signals are strong and clean without clipping.

Final Word

Correct equipment pairing is not matching the largest printed numbers. It is building a chain in which every source, processor, amplifier, driver, enclosure, wire and electrical component can perform its assigned job safely and cleanly.
