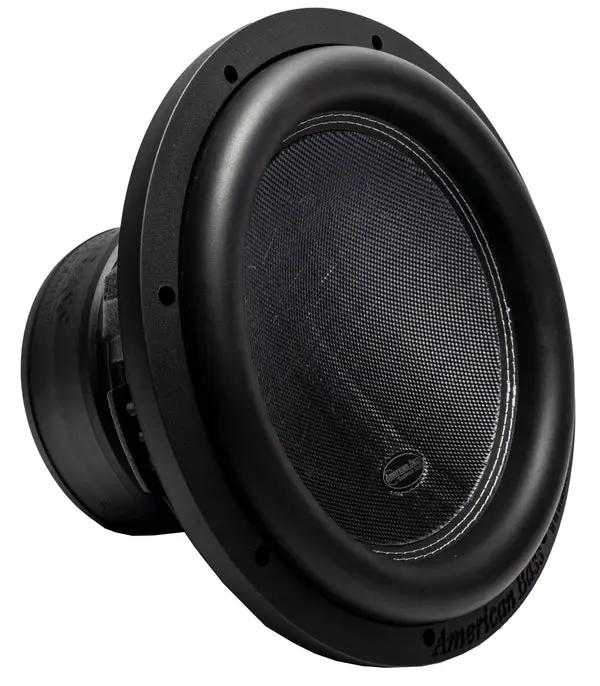

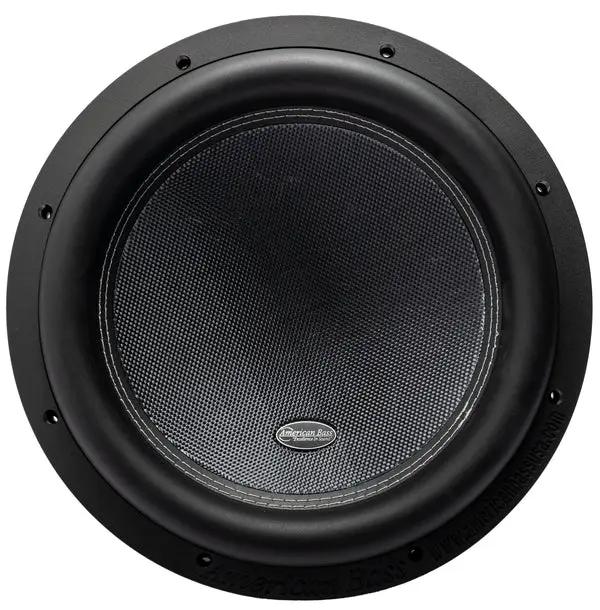

American Bass XR Series 12" Subwoofer

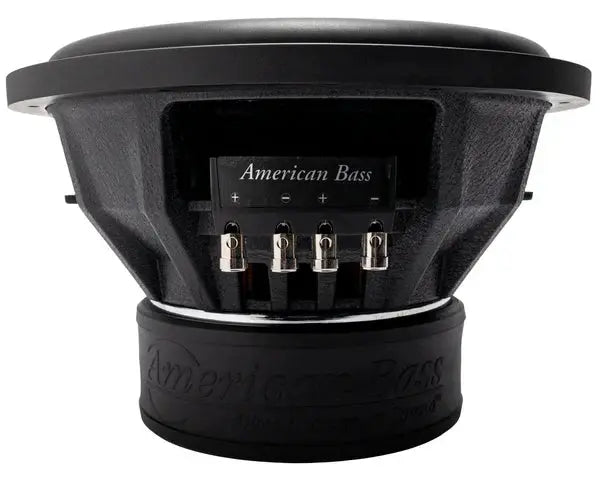

The American Bass XR Series 12" Subwoofer is built for serious car audio enthusiasts who want deep, impactful bass with dependable durability. It features on-side terminals for quicker, cleaner installs, plus a fiberglass reinforced cone, cast frame and stitched rubber surround for reliable high‑power performance.

• RMS POWER: 1200W — continuous power handling for sustained bass output without immediate distortion.
• MAX POWER: 2400W — peak power capability for short, high‑level transients and dynamic shifts in music.
• IMPEDANCE (OHMS): D2 — dual 2‑ohm configuration supporting flexible amplifier wiring options.
• SENSITIVITY DB: 89 — efficiency metric indicating the SPL achievable with a given input, useful for system matching.
• MOUNTING DEPTH (IN): 7.76" — total depth required in the mounting location; helps determine fitment in tight vehicles.
• CUTOUT SIZE (IN): 10.7" — diameter of the mounting hole needed to install the woofer.
• PORTED BOX (FT³): 2 - 2.25 — recommended enclosure volume for a ported configuration, guiding enclosure design for best bass extension.

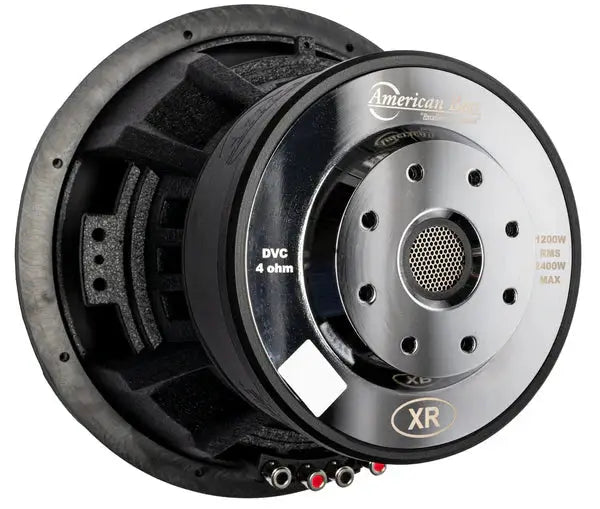

• MAGNET SIZE (OZ): 200 — magnet mass contributing to control and durability under heavy excursion.
• VOICE COIL SIZE: 3" — large-diameter coil improves heat dissipation and power handling at high outputs.
• BASKET TYPE: CAST — rigid frame construction that enhances durability and alignment under power.
• RECOMMENDED AMP (PAIR): VFL COMP 2.5K — guidance for amplifier pairing when installing a pair of these woofers.

In a proper ported enclosure within the 2.0–2.25 ft³ range, this XR 12" woofer delivers strong, controlled bass with the ability to handle high power levels. The combination of a large 200 oz magnet, 3" voice coil and rigid cast basket helps maintain linear motion and low distortion at high excursion, while the on-side terminals simplify wiring in challenging installs. Pair it with the specified VFL COMP 2.5K amplifier for a matched high‑power, high‑fidelity bass system.
