DC Audio NEO Elite 4.0 15" Subwoofer ***BUILT TO ORDER***

The DC Audio NEO Elite 4.0 15" Subwoofer is a purpose-built Neo-powered woofer designed for extreme power handling and ground-pounding bass, tuned for high-power SPL applications while preserving musical low end.

• 4.0" high-temp aluminum voice coil: 8-layer coil wound on a black anodized aluminum former, enabling high power handling and heat dissipation for sustained output.
• Large flat-wound 4" coil: enhances heat distribution and excursion control, supporting aggressive bass in high-power builds.
• 15" outside driver diameter, 12" mounting depth, 14.25" mounting hole: large chassis for deep bass in properly sized enclosures; fits with substantial mounting depth and a wide mounting footprint.
• Power handling: 4500W RMS / 9000W peak: built to withstand demanding amplifiers and sustained deep bass in large enclosures.
• Ohm options: d.7 / d1 / d2 / d4: flexible compatibility with a range of amplifier loads and enclosure designs.
• Sd: 815 cm: substantial cone area contributing to strong low-frequency output in ported configurations.
• Impedance and coils: Re 3.9 Ohm, Le 4.70 mH, Xmax 34 mm; Fs 30.36 Hz; Qms 8.08, Qes 0.36, Qts 0.35
• Sound quality and output tuning: Ref SPL @ 1W 88.83 dB; designed to deliver controlled, deep bass with high excursion capability.

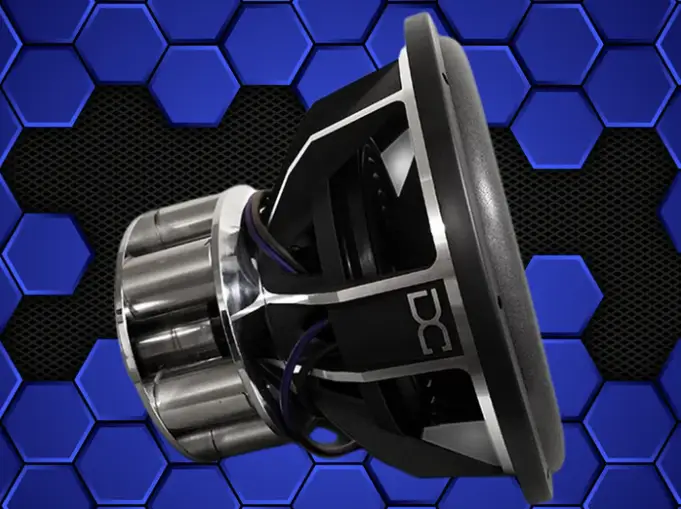

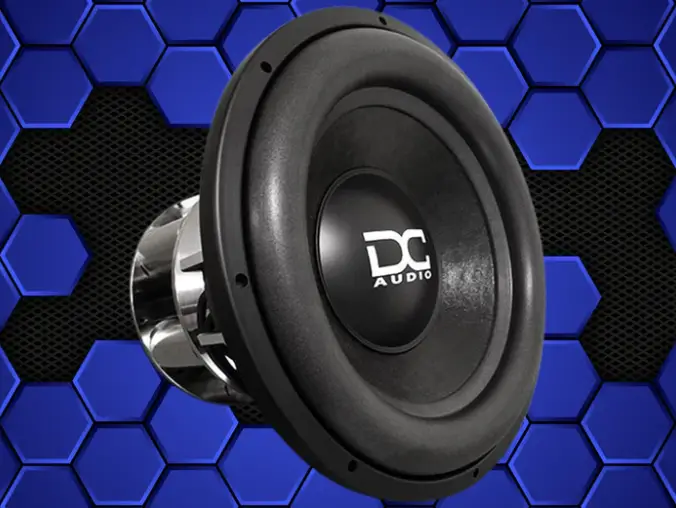

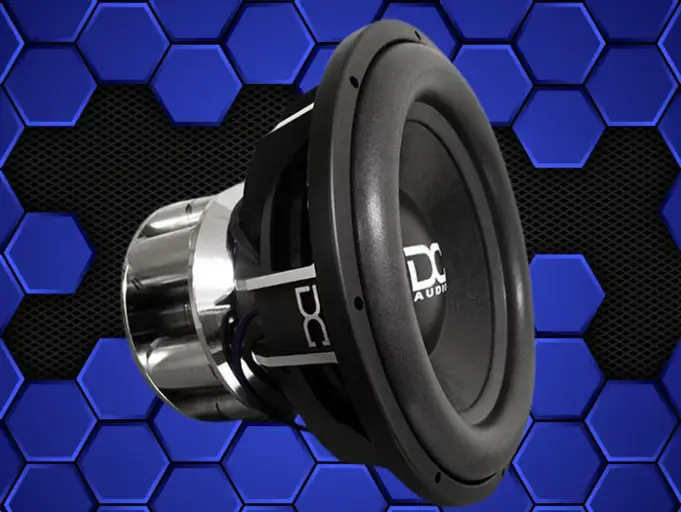

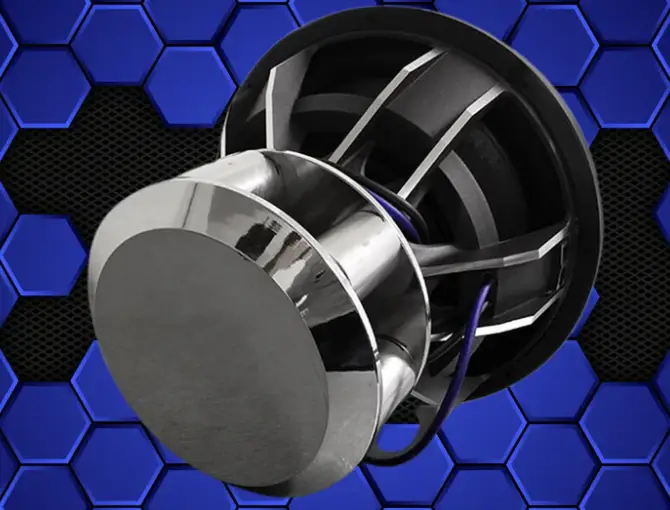

• Construction and motor assembly: Cast DC Series aluminum black frame with non-inverted mount; FE A‑analyzed and optimized motor assembly; fully CNC machined; 6 columns of NEO; dome polypropylene dust cover with White DC logo; wide long-throw foam surround.
• Direct leads and durability: 8 AWG OFC direct leads; extra heavy-duty sewn tinsel leads wired to the top spider for reliable high-excursion operation.
• Enclosure guidance: Suggested ported box 3.25 ft³ for 15" designs; sealed box data not provided.

Benefits: In a high-power 15" system, the NEO Elite 4.0 is built to take substantial power and deliver deep, authoritative bass with strong cone control. Its large coil, heavy-duty motor assembly, and robust frame support sustained output in ported enclosures around 3.25 ft³, making it well-suited for competition-level SPL builds or any install demanding serious low-end output without compromising reliability. The impedance options and high excursion design address varied amp and enclosure choices, while the durable hardware—8 AWG direct leads, sewn tinsel wires, and CNC-machined components—helps ensure consistent performance in demanding environments.
