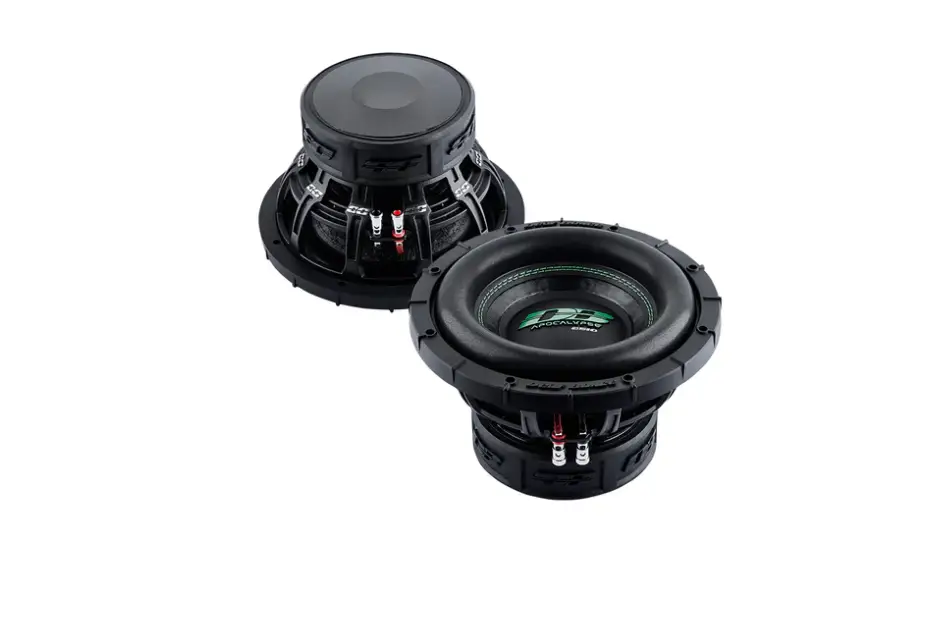

Deaf Bonce Apocalypse DB-SA2510 D1/D2 | 10" Subwoofer

The Deaf Bonce Apocalypse DB-SA2510 D1/D2 is a 10-inch subwoofer built for high-power bass in serious car audio installations, offering dual impedance options to match either 1+1 or 2+2 Ohm systems.

• Size: 10 inch — standard subwoofer diameter that fits a range of medium-to-large enclosures while delivering strong low-end performance.
• Voice coil size: 2.5 inch — larger coil area improves heat dissipation and sustained power handling during extended playback.
• Cone: Paper — a lightweight cone material that provides a balanced mix of stiffness and damping for controlled bass.
• Magnet: Ferrite — ferrite magnet supports solid magnetic strength in a compact frame and contributes to overall efficiency.
• Voice coil wire: CCA — copper-clad aluminum wire lowers mass while maintaining conductive performance for the coil assembly.
• Surround: Foam — foam surround supports linear excursion and reliable movement over a broad frequency range.
• RMS Power: 1000 W — continuous power handling capability for demanding music and amplified systems.
• MAX Power: 2000 W — peak power rating for brief transient demands without exceeding mechanical limits.
• Frame: Alu — aluminum frame provides rigidity and efficient heat management within a lightweight structure.
• Impedance: 1+1 / 2+2 Ohm — dual impedance options for flexible amplifier matching and wiring configurations.
• SPL: 85,20 / 85,40 dB — sensitivity figures across configurations, indicating output potential per watt at a standard distance.
• Fs: 33,00 / 34,00 Hz — low-frequency resonance range, influencing enclosure tuning and bass extension.
• Qts: 0,56 / 0,58 — representative of the driver’s electrical damping and alignment with enclosure type.
• BL: 18,60 / 21,60 — motor strength indicators that affect how effectively the driver converts electrical power to motion.
• Vas: 27,00 / 27,30 L — equivalent enclosure volumes guidance for tuning and fitment in different enclosures.
• Xmeh: 28.00 / 28.00 mm — mechanical excursion limit for safe, linear travel of the cone and surround.
• Xmax: 14,00 / 14,00 mm — maximum linear excursion, informing how far the cone can move under load before distortion.
• Mounting depth: ( 151,2 mm) — depth required to install the subwoofer in a cabinet or enclosure.
• Cut-out dimension: ( 242,0 mm) — hole diameter needed for mounting in the enclosure.
• Gross weight: 22 lb ( 10,50 kg) — overall packaged weight, relevant for shipping and rack considerations.

The DB-SA2510 D1/D2 is designed to deliver controlled, high-power bass within a practical 10-inch footprint. Its dual-impedance configuration and robust mechanical build support flexible amplifier pairing, while the combination of a paper cone, foam surround, and a ferrite magnet provides reliable performance under demanding music and install conditions. Use this subwoofer when planning a dedicated bass channel in a multi-amp setup and when enclosure space and mounting depth are precisely constrained by your vehicle’s install. The included specifications guide enclosure design, wiring options, and heat management for sustained listening sessions.
