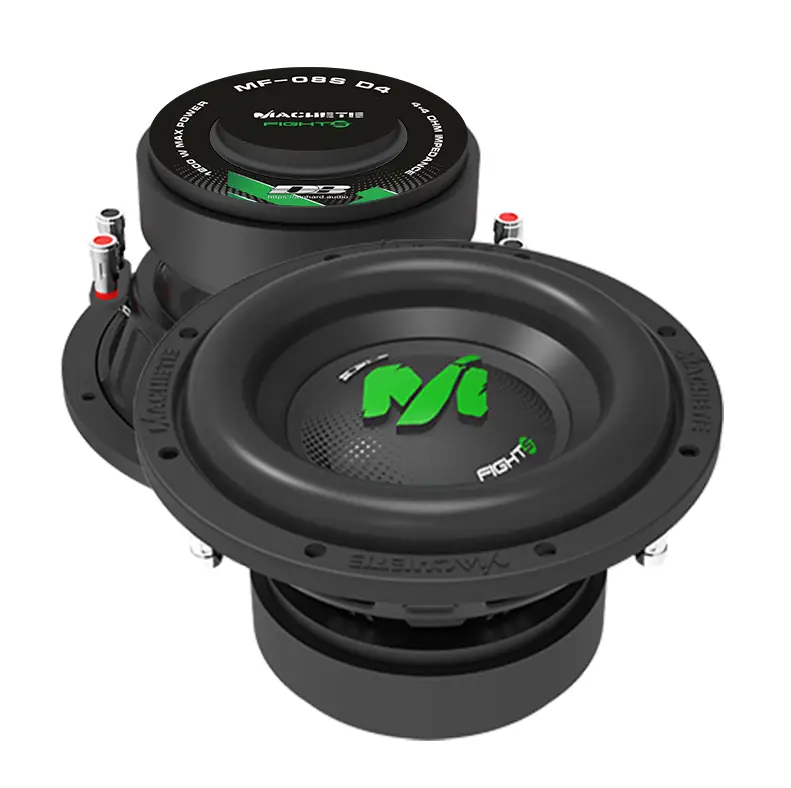

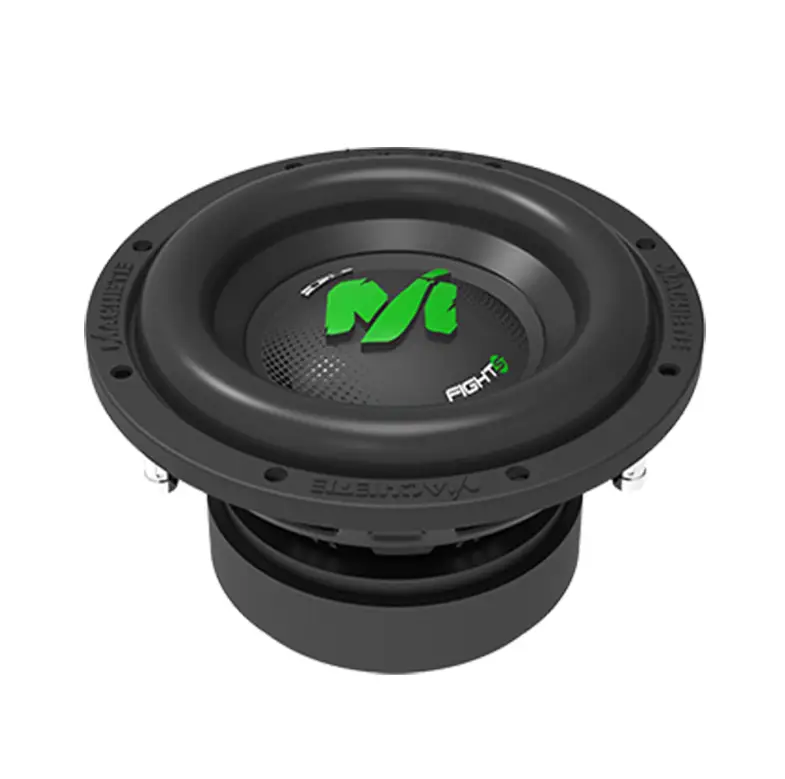

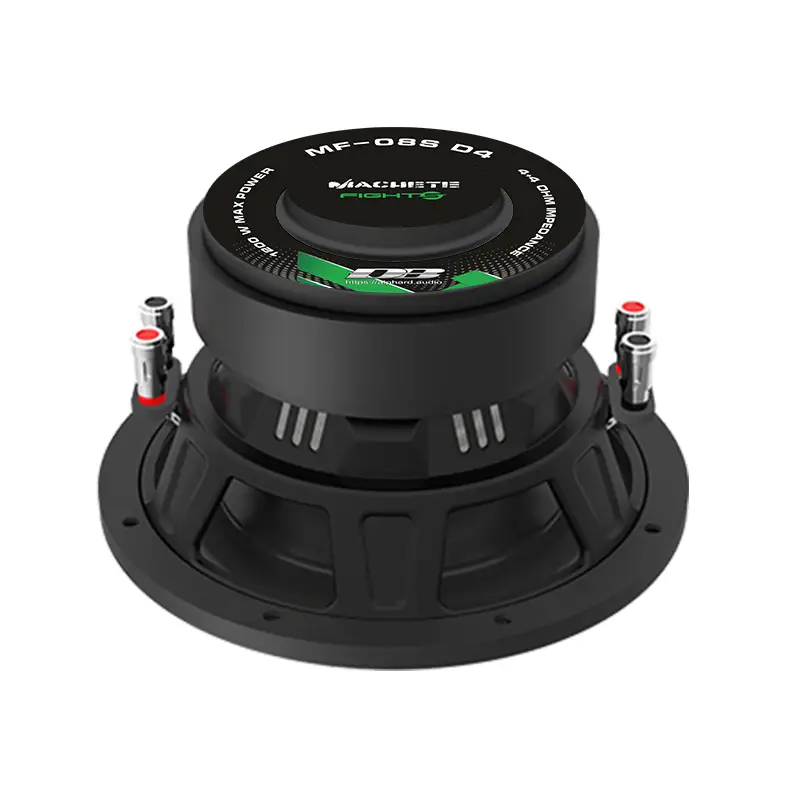

Deaf Bonce Machete MF-08S D2/D4 8" Subwoofer

The Deaf Bonce Machete MF-08S D2/D4 is an 8-inch subwoofer engineered for high-power car audio builds, delivering robust bass with flexible wiring options. It supports dual impedance options (2+2 / 4+4 Ohm) and a substantial power range to suit demanding amplifiers.

• Size: 8 inch — standard 8-inch driver diameter, balancing bass output with installation flexibility.
• Voice coil size: 2.00 inch — a larger voice coil helps manage heat and sustain power handling during demanding playback.
• Cone: Paper — a lightweight, responsive cone material that contributes to clear midbass and transient response.
• Magnet: Ferrite — a durable ferrite magnet informs the motor strength and overall linearity under drive.
• Voice coil wire: Copper — copper windings for efficient electrical conduction and heat transfer.
• Surround: Foam — foam surround supports extended excursions while maintaining durability.
• RMS Power: 600 W — continuous power handling for sustained, realistic bass output in daily driving.
• MAX Power: 1200 W — peak power capability for brief dynamic bursts without clipping when paired with appropriate amplification.
• Frame: Steel — rigid frame construction to resist flex and maintain alignment under heavy use.
• Impedance: 2+2 / 4+4 Ohm — dual-impedance options for flexible wiring and amp compatibility.
• SPL: 84.00 / 84.30 dB — sensitivity figures indicating expected acoustic output per watt in typical setups.
• Fs: 48.00 / 48.20 Hz — low-frequency resonance point guiding enclosure tuning choices.
• Qts: 0.41 / 0.42 — combined driver parameters affecting enclosure alignment and bass extension.
• BL: 15.10 / 15.40 — motor strength indicator influencing control and excursion capability.
• Vas: 7.50 / 7.90 L — enclosure volume guidance for achieving desired bass performance.
• Xmeh: 24.00 mm — mechanical excursion capability for controlled, linear movement.
• Xmax: 12.00 mm — maximum linear peak-to-peak excursion for clean, deep bass.
• Mounting depth: 115.8 mm — space requirement to install the subwoofer behind panels or in compartments.
• Cut-out dimension: 183.0 mm — necessary hole size for proper seating in a mounting surface.
• Gross weight: 1.00 kg — package-to-vehicle handling consideration for shipping and mounting planning.

In a real install, MF-08S D2/D4 pairs with appropriate amplification to deliver sustained bass with solid control. Its dual-impedance wiring and solid mechanical–electrical parameters support a range of enclosure designs and vehicle applications, while the mounting depth and cut-out dimensions simplify installation planning.
