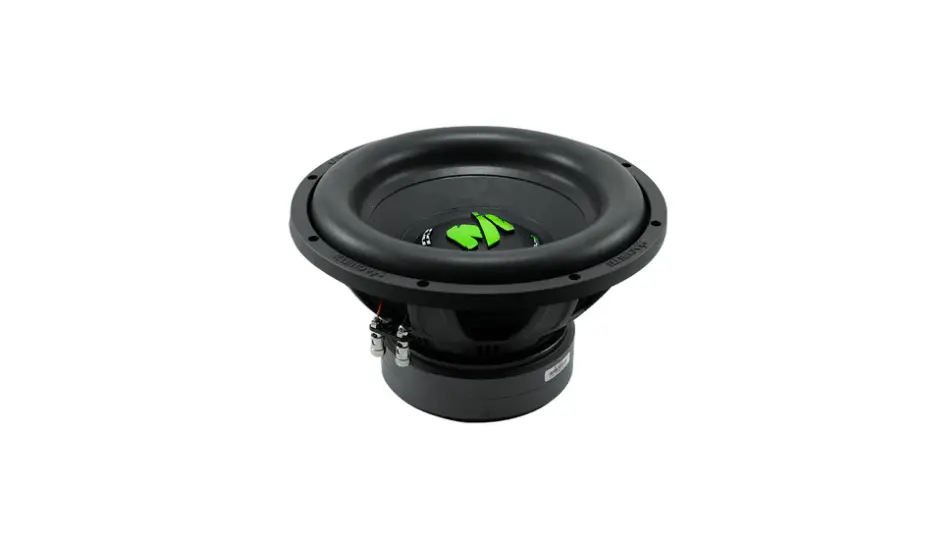

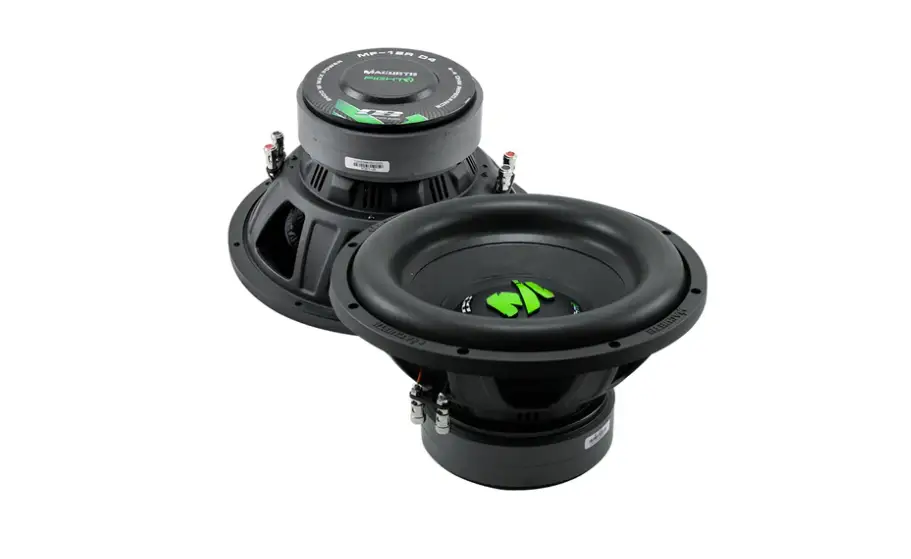

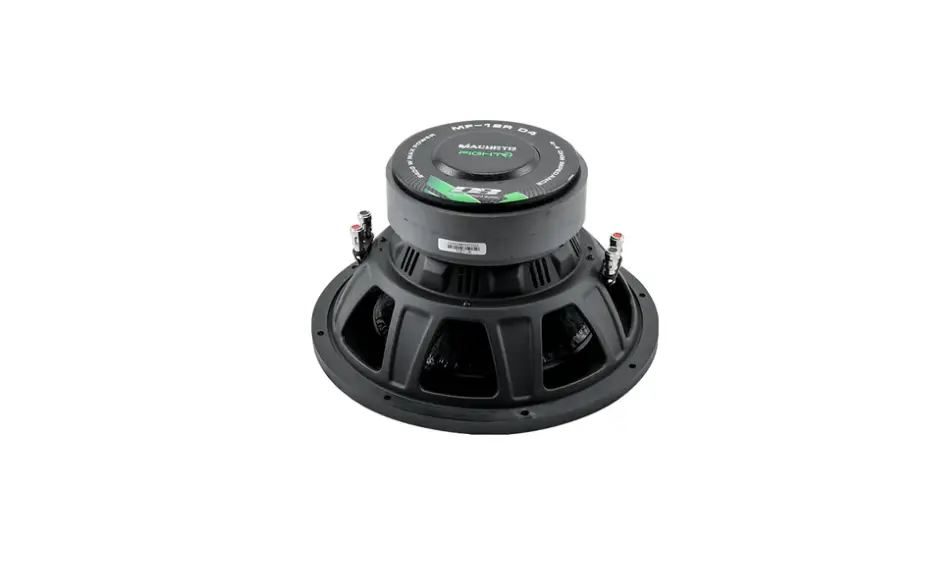

Deaf Bonce Machete MF-12R D2/D4 12" Subwoofer

Deaf Bonce Machete MF-12R D2/D4 is a 12-inch subwoofer designed for demanding car-audio systems, offering dual-impedance wiring (2+2/4+4 Ohm) and a robust power pathway for high-output bass.

• Size: 12" diameter cone delivers substantial bass authority in compact mounting spaces.
• Voice coil size: 3" voice coil supports higher power handling and improved heat distribution during extended bass bursts.
• Cone: Paper cone provides lightweight, responsive mid-bass behavior with solid stiffness for controlled excursion.
• Magnet: Ferrite magnet creates a durable, steady magnetic field for reliable motor performance.
• Voice coil wire: CCAW wiring combines strength with light weight for efficient signal transfer under demanding use.
• Surround: Foam surround aids controlled cone movement and long-term durability against mechanical stress.
• RMS Power: 1200W continuous power handling for sustained bass performance with capable amplifiers.
• MAX Power: 2400W peak capability handles short bursts in dynamic music passages.
• Frame: Steel frame provides rigid chassis to resist distortion under heavy excursions.
• Impedance: 2+2/4+4 Ohm dual-voice-coil configuration enables flexible wiring to amps and enclosures.
• SPL: 86.00 / 86.30 dB sensitivity reflects how efficiently the driver converts power to audible output.
• Fs: 37.60 / 38.00 Hz resonance, indicating strong bass extension into the lower midrange.
• BL: 15.80 / 20.50, motor strength related to control and linearity in dynamic bass.
• Vas: 24.80 / 27.60 L equivalent enclosure volume for achieving intended box tuning.
• Xmeh: 30 mm mechanical excursion capability for meaningful cone movement within limits.
• Xmax: 0.59" (15.00 mm) maximum linear excursion before notable distortion occurs.
• Mounting depth: 6.3" (161.8 mm) required depth in the mounting space.
• Cut-out dimension: 11.1" (282.0 mm) hole diameter needed for installation.
• Gross weight: 22.5 lb (10.25 kg) total unit weight.

In a high-output setup, this MF-12R D2/D4 delivers substantial bass with flexible impedance to fit a range of amplifiers, while its robust construction and measured parameters support durable, accurate performance in real-world installations. Plan for an 11.1" cut-out and a 6.3" mounting depth to ensure a proper fit in your vehicle, and match with an appropriate amplifier to leverage the 1200W RMS continuous power and 2400W peak capabilities.
