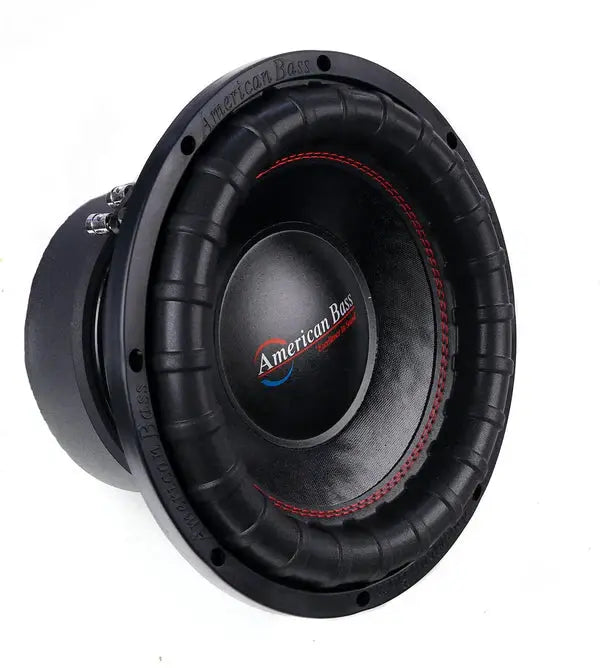

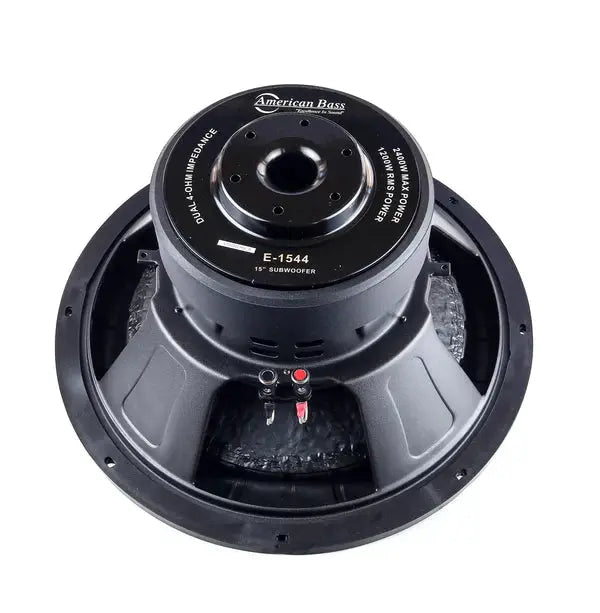

American Bass Elite Series 15" Subwoofer Dual 4 Ohm

The American Bass Elite Series 15" Dual 4 Ohm subwoofer is built for high-performance car audio enthusiasts who demand serious bass without breaking the bank.

• RMS Power: 1200W — provides steady, real-world bass performance capable of sustained output without overheating or distortion.
• Max Power: 2400W — handles brief, high-demand transients for impactful bass slam when the music calls for it.
• Impedance (OHMS): D4 — dual 4-ohm voice coils offering flexible wiring options for different amplifier setups.
• Sensitivity: 87.3 dB — indicates efficiency; actual output depends on enclosure and amplifier pairing.
• Mounting Depth: 7.71 in — determines fitment depth in vehicles with deeper mounting spaces.
• Cutout Size: 13.5 in — specifies the hole diameter required for installation.
• Ported Box (ft³): 3.25 — optimal enclosure volume for a ported configuration to emphasize low-end extension.
• Magnet Size: 150 oz — a large magnet improves control and heat handling for high-power bass.
• Voice Coil Size: 3" — larger coil aids heat dissipation under heavy power demands.
• Basket Type: Stamped — lightweight, rigid structural design typical of performance drivers.
• Recommended Amp (Pair): VFL 2.5K — pairing guidance for two subs to achieve ample headroom and balanced output.
• Cone Construction: Fiber-added non-pressed cone — adds stiffness for cleaner sound and reduced distortion under excursion.
• Surround: Hi-roll high-density foam surround with double stitching — enhances durability and long-term excursion control.
• Voice Coil Construction: 3" hi-temp 4-layer voice coil on an aluminum bobbin — designed for higher heat tolerance and sustained power handling.

In a ported enclosure around 3.25 ft³, this sub delivers robust, high-power bass with controlled excursion. Its 7.71" mounting depth and 13.5" cutout fit a wide range of vehicles, while the 150 oz magnet and 3" high-temperature coil help maintain performance during long listening sessions. The dual 4-ohm configuration and the recommended VFL 2.5K amplifier pairing support flexible system design, letting you tune for loud, clean bass with consistent dynamics. The cone, surround, and coil construction are built to endure high power and repeated excursions, delivering XFL-like performance at a more accessible price.
