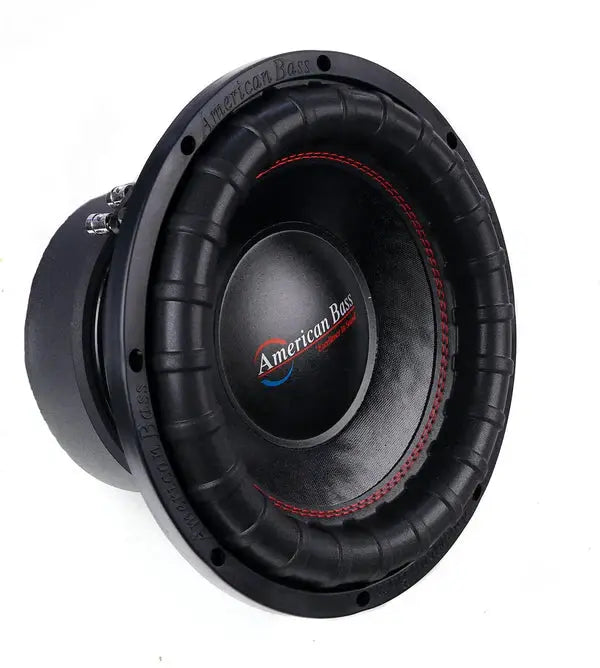

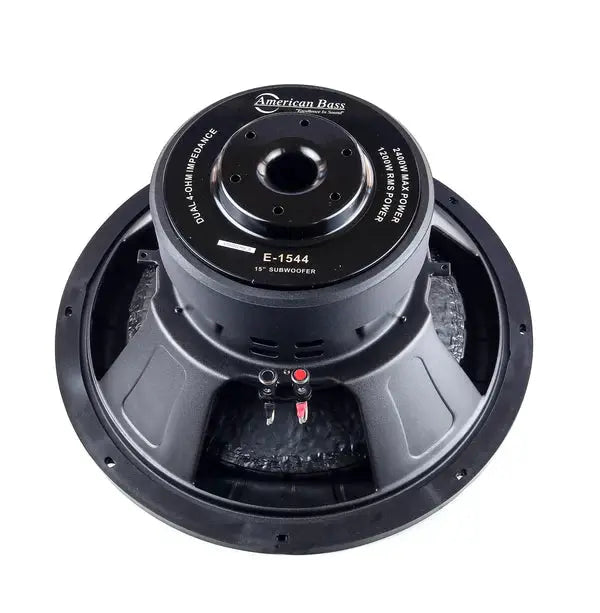

American Bass Elite Series 15" Subwoofer Dual 4 Ohm
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 1200 W
- Voice-coil options: D4
- Mounting depth: 7.72 inches
- Cutout size: 13.5 inches
- Voice-coil diameter: 3 inches
American Bass Elite Series 15" Subwoofer Dual 4 Ohm is backordered and will ship as soon as it is back in stock.
American Bass Elite Series 15" Subwoofer Dual 4 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring powerful low-end bass to your car audio system with the American Bass Elite Series 15-inch dual 4-ohm subwoofer. It combines 1200W RMS power handling with a 3-inch high-temperature voice coil and a recommended 3.25 ft³ ported enclosure.
Key Features & Benefits
- Power handling: 1200W RMS and 2400W maximum ratings describe its continuous and peak power handling.
- Dual 4-ohm voice coils: The D4 configuration gives you wiring options when planning an amplifier setup.
- Reinforced construction: A fiber-added non-pressed cone and double-stitched, high-density foam surround are designed for repeated excursion.
- High-temperature coil: The 3-inch, four-layer voice coil on an aluminum bobbin is designed for heat tolerance under sustained power.
- Ported enclosure guidance: The listed 3.25 ft³ ported-box volume helps guide enclosure planning.
Technical Specifications
| RMS POWER | 1200W |
| MAX POWER | 2400W |
| IMPEDANCE (OHMS) | D4 |
| SENSITIVITY DB |
87.3 |
| MOUNTING DEPTH (IN) | 7.71 |
| CUTOUT SIZE (IN) | 13.5 |
| PORTED BOX (FT3) | 3.25 |
| MAGNET SIZE (OZ) | 150 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | STAMPED |
| RECOMMENDED AMP (PAIR) | VFL 2.5K |
- Cone: Fiber-added non-pressed construction.
- Surround: Hi-roll, high-density foam with double stitching.
- Voice coil construction: 3-inch, high-temperature, four-layer coil on an aluminum bobbin.
Why Choose This Product?
This 15-inch subwoofer pairs substantial power handling with construction details suited to repeated excursion. Its stamped basket, 150 oz magnet, and 3-inch voice coil help define the driver’s build, while the listed ported-box volume gives you a starting point for enclosure planning.
Installation & Compatibility Notes
Allow for the 7.71-inch mounting depth and 13.5-inch cutout when checking your installation space. The recommended VFL 2.5K amplifier is specified for a pair of subwoofers; account for that pairing when selecting system components.
The listed 3.25 ft³ volume applies to a ported enclosure. Confirm your enclosure dimensions and amplifier setup suit your installation before purchasing.
Frequently Asked Questions
What do the 1200W RMS and 2400W maximum ratings mean?
1200W is the RMS power rating, while 2400W is the maximum power rating. Keep the two ratings distinct when matching system components.
What does D4 mean for this subwoofer?
D4 identifies its dual 4-ohm voice-coil configuration. Consider the amplifier and planned wiring when choosing your system setup.
What enclosure volume is listed for a ported box?
The specified ported-box volume is 3.25 ft³.
What installation space does it require?
Allow for a 13.5-inch cutout and 7.71-inch mounting depth, then check these dimensions against your available space.
What amplifier is recommended?
The listed recommendation is a VFL 2.5K amplifier for a pair of subwoofers.
