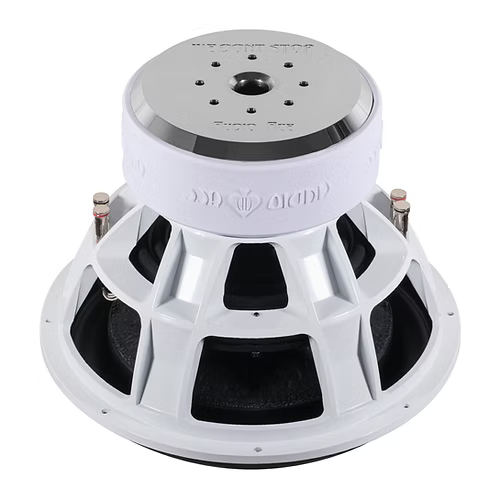

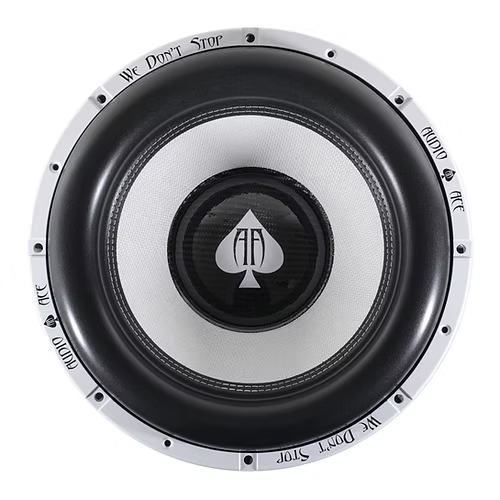

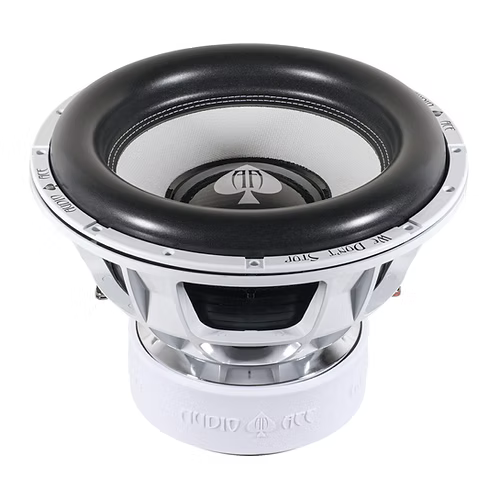

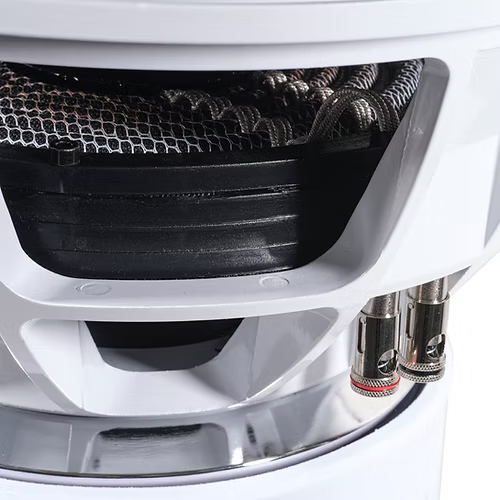

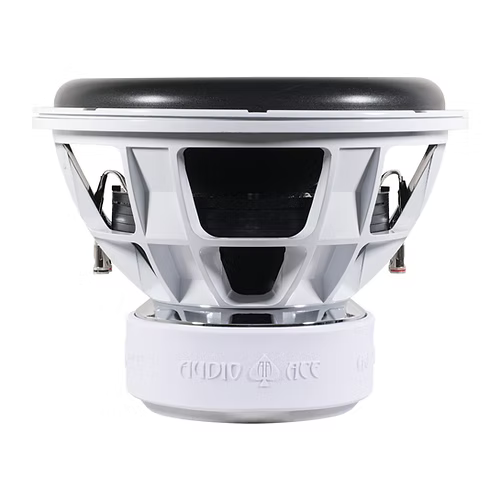

Audio Ace Jester Series 15" Subwoofer Dual 2 Ohm

The Audio Ace Jester Series 15" Dual 2 Ohm subwoofer delivers extreme, controllable bass for enthusiasts who want both high output and musicality—rated at 3,000 RMS with a robust motor design and large, rigid platform for demanding power handling.

• Size and impedance: 15" subwoofer with Dual 2 Ohm voice coils, offering flexible wiring to match a range of amplifiers and system architectures.
• RMS power handling: 3,000 RMS, indicating sustained high-power capability without excessive distortion when paired with a suitable amplifier.
• Basket: Heavy Duty Die Cast Aluminum Basket, providing structural rigidity and reduced resonance for cleaner sound at high excursion.
• Magnet structure: 300 oz magnet, delivering strong motor force for controlled cone movement under demanding bass signals.
• Voice coil and coil count: 3" BACCAW 4 Layer Coil, enabling high power handling with stiffness and thermal capacity to sustain heat during extended play.
• Suspension: 4 Layer Spider Suspension (10"), contributing to stable cone control and linear excursion across the operating range.
• Dimensions: Cutout 14.331 in, Depth 10.07 in, defining the enclosure size and mounting depth for fitting in large vehicle applications.
• Box recommendations: 3–4 cubic foot ported enclosure with 14–16 square inches of port area per cubic foot; tuning 28–36 Hz; optimal in ported 4th and 6th order designs; not recommended for sealed applications.

Benefits: In a vented enclosure sized around 3–4 cubic feet, this driver leverages its large magnet and strong motor to deliver deep, controlled bass with high excitation capability. The dual 2-ohm configuration supports flexible amplifier matching, while the heavy aluminum basket and four-layer coil design help maintain performance under demanding power and long musical passages. The recommended ported tuning range enables low-end extension without sacrificing bass punch, making it well-suited for loud, confident car audio systems rather than sealed-box setups.
