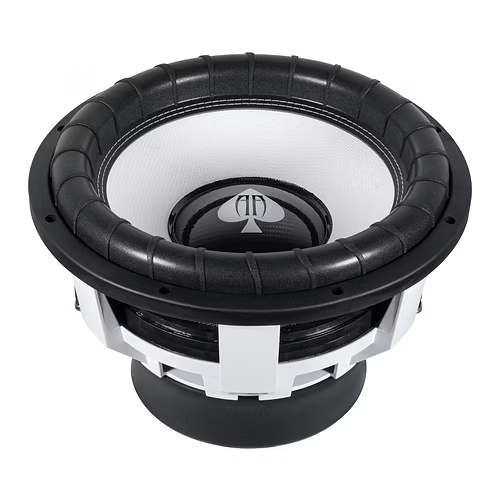

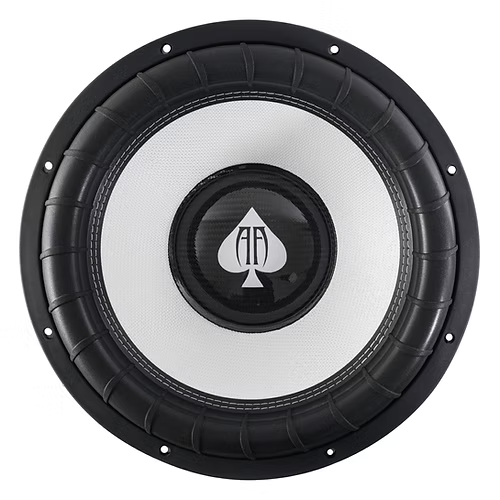

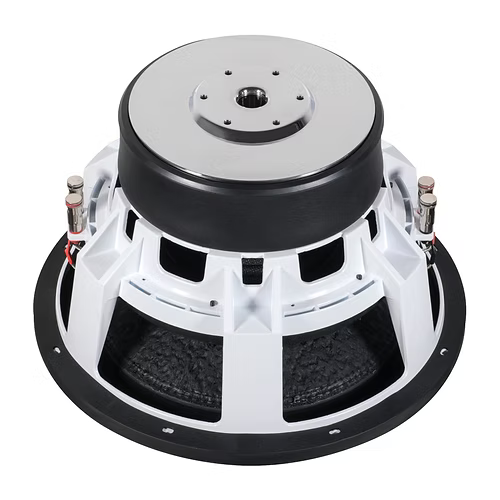

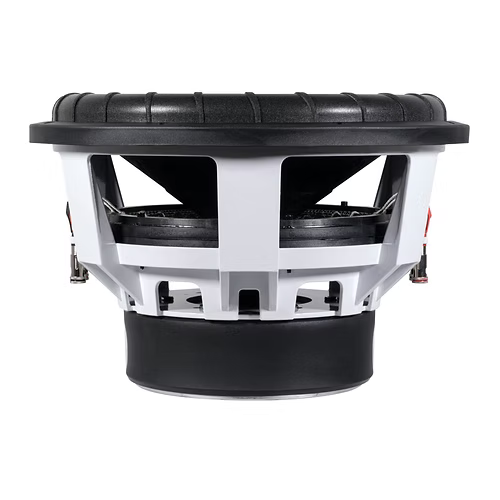

Audio Ace Wild Series 15" Subwoofer Dual 4 Ohm

The Audio Ace Wild Series 15" Dual 4 Ohm subwoofer is a high-power 15-inch driver designed for demanding car-audio builds, delivering serious low-end potential with a 252 oz magnet, a 3" high-temperature coil, and a rugged ribbed surround paired with a heavy-duty bolted spider ring.

• Dual 4 Ohm voice coils: Enables flexible wiring configurations to suit different amplifier loads and enclosure designs.
• RMS power: 2000 W RMS (conservative) capability for commanding bass with confidence in a properly designed system.
• Outer diameter: 15.551 inches, defining the mounting footprint and helping match enclosure design to fitment.
• Cutout: 14.173 inches, the recommended hole diameter for mounting in compatible enclosures.
• Depth: 8.98 inches, important for enclosure depth planning and fitment in tight spaces.
• Magnet and motor: 252 oz motor providing strong magnetic flux for controlled excursion and bass authority.
• Voice coil: 3" high-temperature coil for durability under demanding, long-duration excursions.
• Suspension and basket: Durable ribbed surround, six-spoke basket, and heavy-duty bolted spider ring for reliability and controlled cone motion.
• Electrical parameters (selected): Fs 28.5 Hz; Qts 0.482; Qes 0.541; Qms 4.370; Vas 60.4938 L; Sd 819.40 (typical design targets for enclosure tuning and room integration).
• Box recommendations: Sealed 2.75 cu ft; Ported 3–3.5 cu ft; 12–14 sq in of port per cubic foot; tuning 30–36 Hz; 4th order and 6th order configurations supported.

Benefits: In a proper build, this 15" driver excels in sealed or ported enclosures tailored to its box recommendations, delivering substantial bass output with tight control and minimal port-induced chuff. The dual 4 Ohm configuration and robust motor let you optimize impedance and power delivery for a high-performance, low-end capable system that remains stable across demanding listening scenarios.
