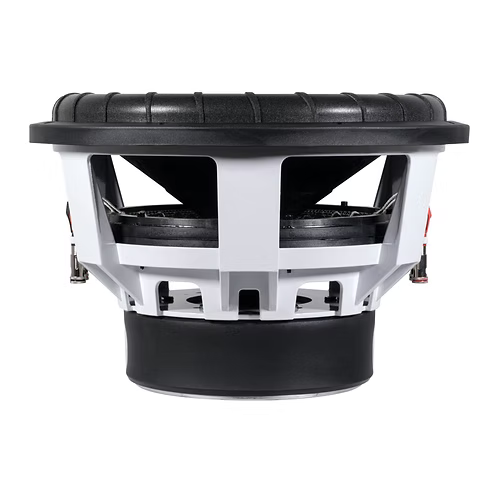

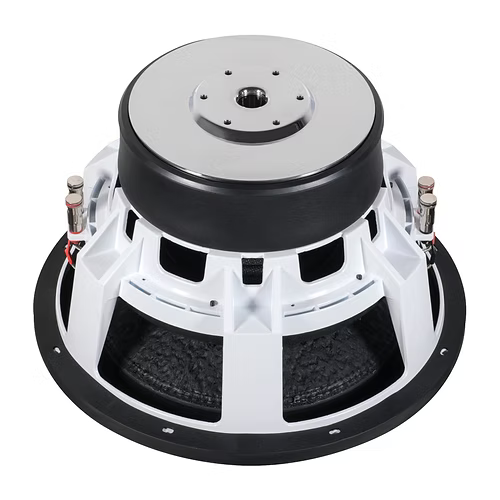

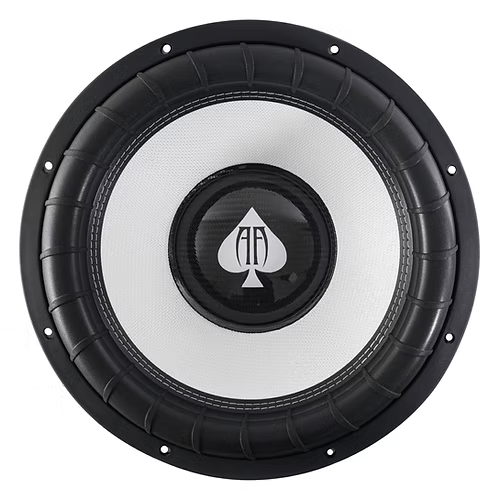

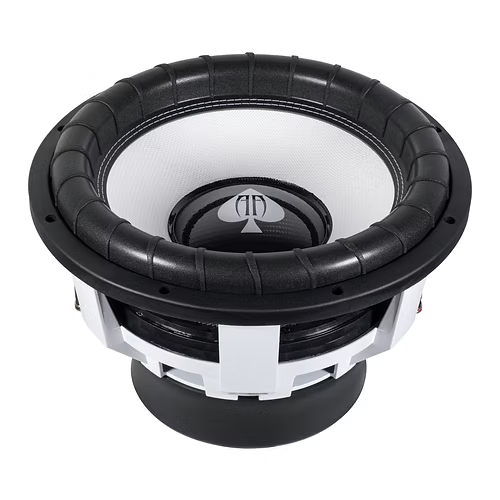

Audio Ace Wild Series 15" Subwoofer Dual 4 Ohm
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 2000 W
- Voice-coil options: D4
- Voice-coil diameter: 3 inches
- Mounting depth: 8.98 inches
- Mounting cutout diameter: 14.173 inches
Audio Ace Wild Series 15" Subwoofer Dual 4 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a deep-bass car audio system around the Audio Ace Wild Series 15" Dual 4 Ohm subwoofer. Its 2000 W RMS rating, dual voice coils, and 252 oz motor suit demanding builds with a properly designed enclosure.
Key Features & Benefits
- Dual 4 Ohm voice coils: Offer wiring flexibility when matching the subwoofer to an amplifier and enclosure design.
- 2000 W RMS capability: Supports high-power system planning when the rest of the build is properly designed.
- 252 oz motor: Provides the magnetic motor assembly specified for this driver.
- 3" high-temperature voice coil: Is designed for demanding, long-duration excursions.
- Reinforced suspension and basket: The ribbed surround, six-spoke basket, and bolted spider ring support controlled cone motion.
Technical Specifications
| Specification | Value |
|---|---|
| Product | Audio Ace Wild Series 15" subwoofer |
| Voice coil configuration | Dual 4 Ohm |
| RMS power | 2000 W RMS (conservative) |
| Outer diameter | 15.551 inches |
| Cutout diameter | 14.173 inches |
| Depth | 8.98 inches |
| Motor | 252 oz |
| Voice coil | 3" high-temperature coil |
| Surround | Ribbed |
| Basket | Six-spoke |
| Spider ring | Heavy-duty, bolted |
| Fs | 28.5 Hz |
| Qts | 0.482 |
| Qes | 0.541 |
| Qms | 4.370 |
| Vas | 60.4938 L |
| Sd | 819.40 |
| Sealed box recommendation | 2.75 cu ft |
| Ported box recommendation | 3–3.5 cu ft |
| Port area recommendation | 12–14 sq in per cubic foot |
| Ported box tuning | 30–36 Hz |
| Supported configurations | 4th order and 6th order |
Why Choose This Product?
This 15-inch driver gives you sealed and ported enclosure options, with stated box recommendations to guide your design. Its dual 4 Ohm coils allow different wiring configurations, while the motor and suspension components are specified for demanding car audio builds.
Installation & Compatibility Notes
Plan enclosure fit around the 15.551-inch outer diameter, 14.173-inch cutout, and 8.98-inch mounting depth. Allow for the enclosure and installation clearances required by your specific build.
For a sealed enclosure, the recommendation is 2.75 cu ft. For a ported enclosure, use the stated 3–3.5 cu ft recommendation, 12–14 sq in of port area per cubic foot, and 30–36 Hz tuning range. Confirm that your amplifier supports the final impedance created by your dual 4 Ohm coil wiring.
Frequently Asked Questions
What is the power rating?
The listed rating is 2000 W RMS, described as conservative. Plan the system around the subwoofer and the capabilities of your amplifier.
What enclosure sizes are recommended?
The recommendations are 2.75 cu ft sealed or 3–3.5 cu ft ported. Ported designs are listed with 12–14 sq in of port area per cubic foot and tuning from 30–36 Hz.
What are the mounting dimensions?
The outer diameter is 15.551 inches, the cutout is 14.173 inches, and the mounting depth is 8.98 inches.
How should I wire the dual 4 Ohm voice coils?
The coils allow flexible wiring configurations. Confirm the resulting load is supported by your amplifier before choosing a wiring arrangement.
Can it be used in a bandpass enclosure?
The listed supported configurations include 4th order and 6th order designs.
