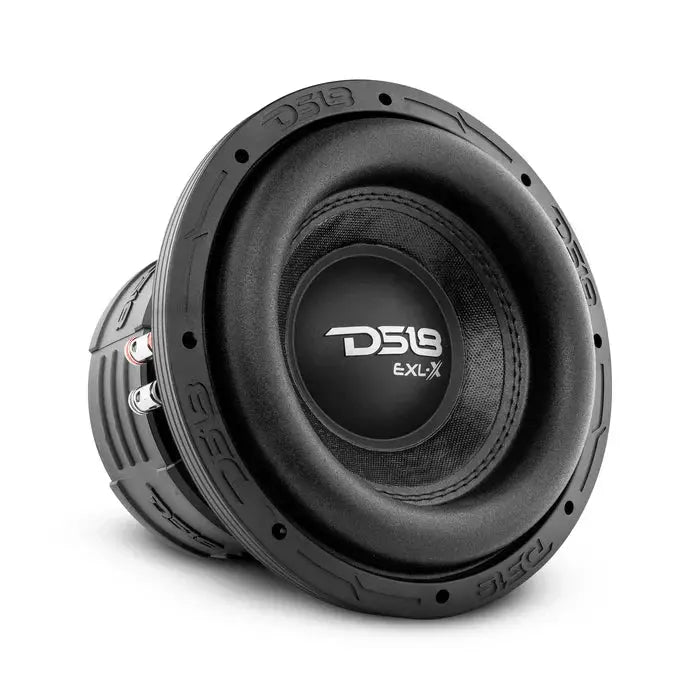

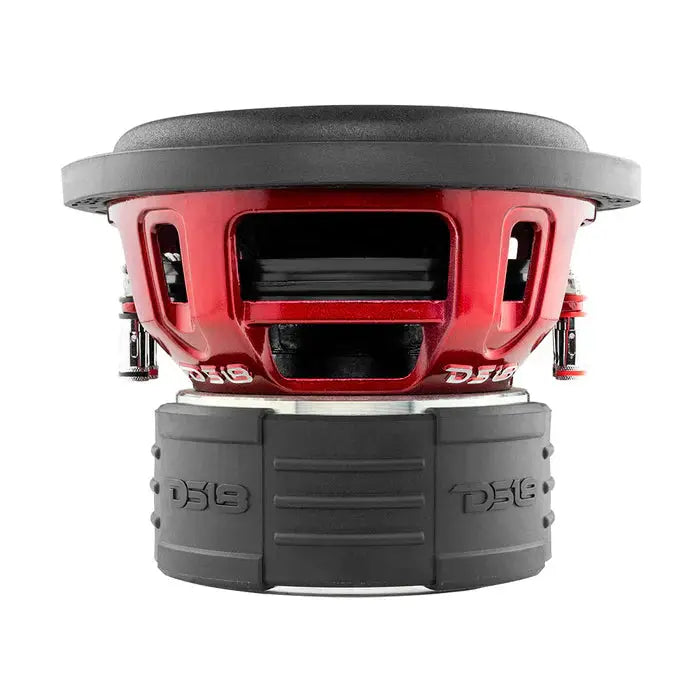

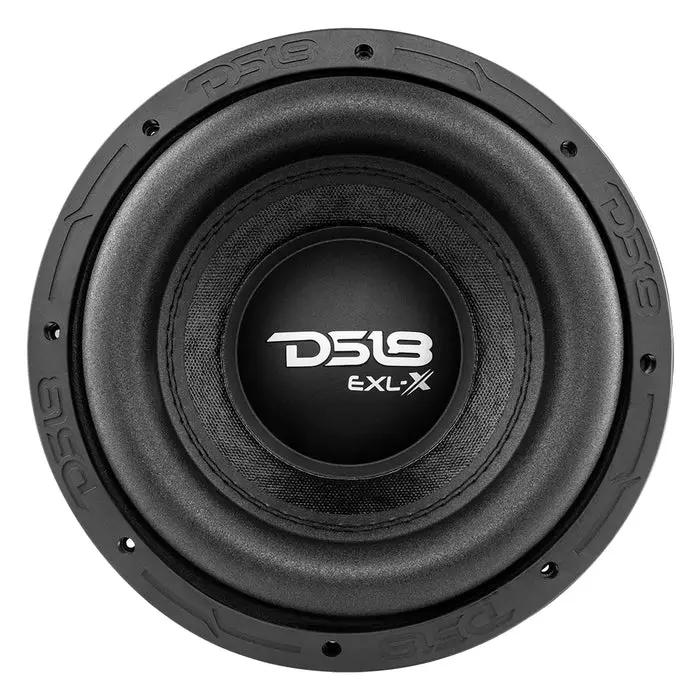

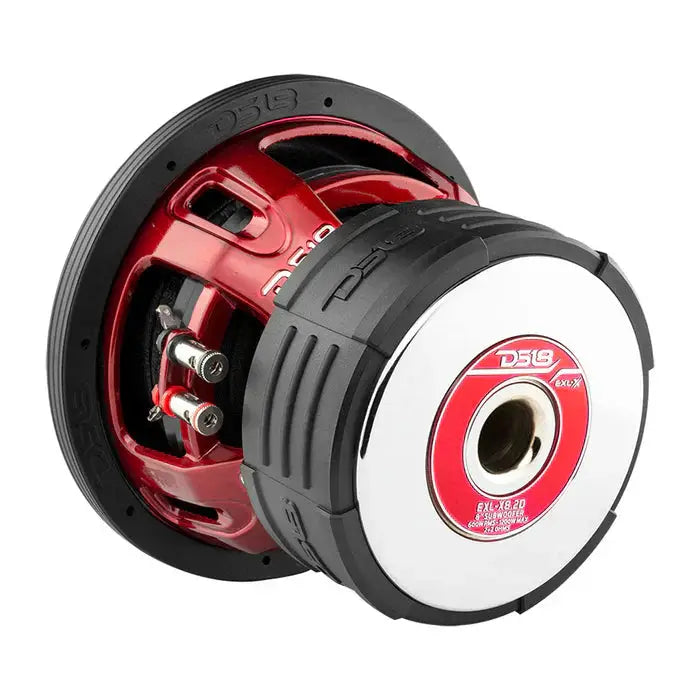

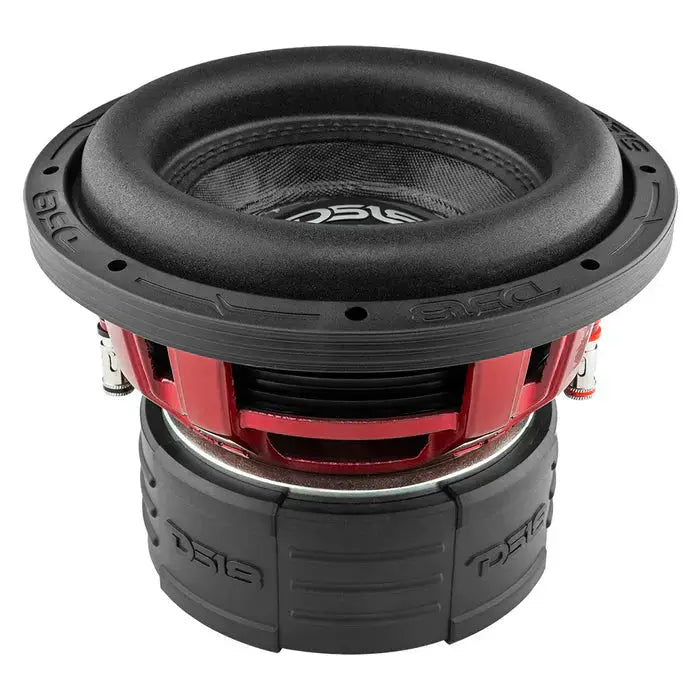

DS18 EXL-X8.2D EXL-X 8" Subwoofer 1200 Watts Dvc 2-Ohms

DS18's EXL-X8.2D is an 8-inch car subwoofer built for competition-grade bass, delivering up to 1200W peak with a 2+2 ohm dual voice coil. Its red aluminum basket and glass fiber dust cap pair with a ferrite magnet to deliver precise, impactful low end in sealed or ported enclosures.

• Nominal Diameter: 8" / 203.2 mm — standard 8-inch footprint that fits a wide range of trunk and cabin installations, while delivering substantial cone area for deep bass.
• Nominal Impedance: 2+2 ohms — two 2-ohm voice coils provide wiring options to match amplifiers and enable flexible configurations.
• RMS Power Handling: 600W — continuous power rating for sustained playback without overheating when paired with a capable amplifier.
• Maximum Power Handling: 1200W — peak power handling for transient bass bursts and dynamic passages.
• Sensitivity (1w/1m): 89dB — higher sensitivity means more output per watt, aiding system matching with modest amplifiers.
• Frequency Response: 38Hz–1kHz — extends deep bass to 38 Hz while preserving bass clarity up to 1 kHz for musical integrity.
• Voice Coil Diameter: 2.5" / 63.5 mm — larger coil supports heat dissipation and excursion control under high-power playback.
• Voice Coil Former Material: Black Aluminum — helps with heat transfer and structural rigidity in high-excursion conditions.
• Cone Material: Non Pressed Paper + Glass fiber — combines stiffness and damping for accurate bass reproduction.
• Dust Cap Material: PPI — adds rigidity and helps protect the voice coil assembly from debris.
• Basket Material / Finish: Aluminum Basket; Glossy Red — rigid frame with distinctive aesthetic and structural integrity.
• Magnet Material: Ferrite — provides robust magnetic field for stable performance under demanding use.
• Weight: 130 oz — overall mass contributing to mechanical behavior and bass authority.
• Recommended Enclosures: Sealed Internal Volume 0.3 ft3; Ported Internal Volume 0.5 ft3; Port Size 1" x 8" x 10.56"; Port Tuning 55 Hz; Ported Box Output 42 Hz — designed to support sealed or ported designs with specified enclosure volumes and tuning for intended bass response.
• Overall Dimensions: Diameter 8.58" / 218 mm; Depth 6.61" / 168 mm; Front Mount Baffle Cutout 7.36" / 187 mm; Mounting Depth 5.51" / 140 mm

The EXL-X8.2D excels in compact-to-mid-sized builds, delivering 600W RMS into a 2+2 Ω load and handling up to 1200W peak for deep, controlled bass. Its dual 2-ohm coils offer flexible amplifier matching, while the ferrite magnet and aluminum basket provide a durable, heat-tolerant chassis. Whether a sealed enclosure for tight, musical bass or a ported box for louder, deeper output, this sub delivers precise bass performance with consistent reliability.
