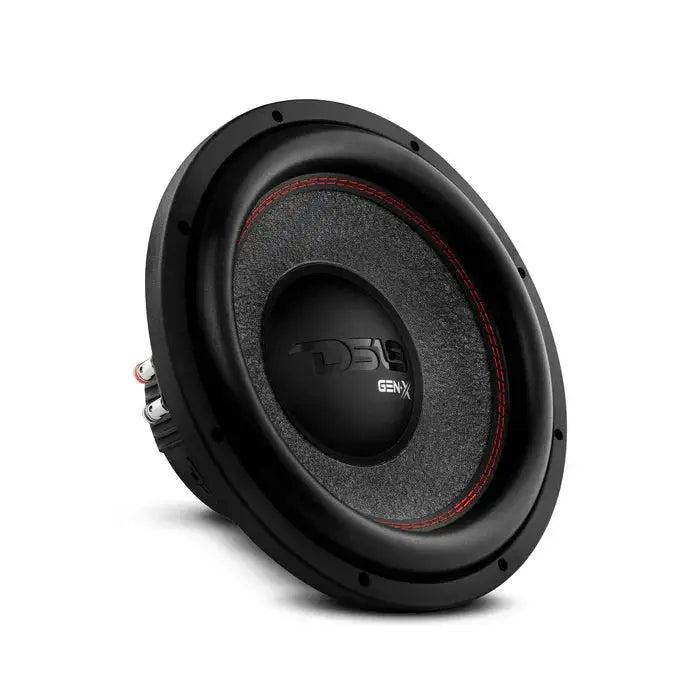

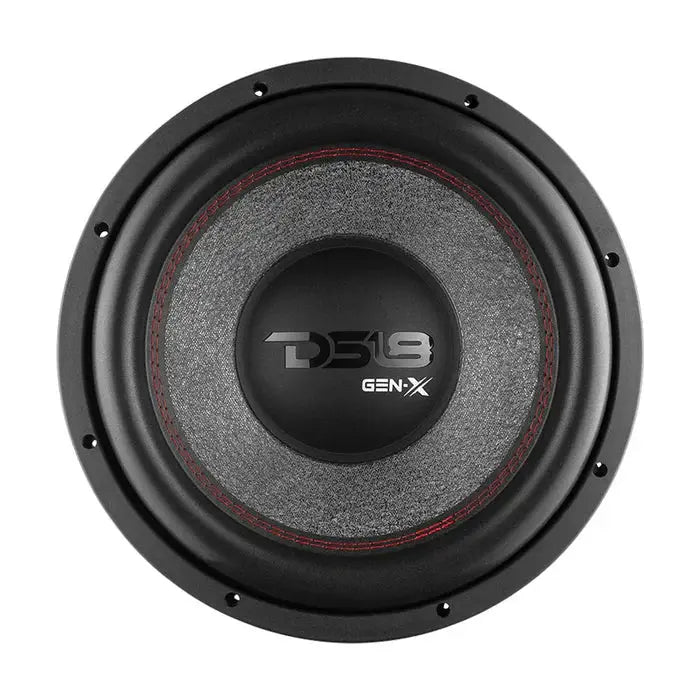

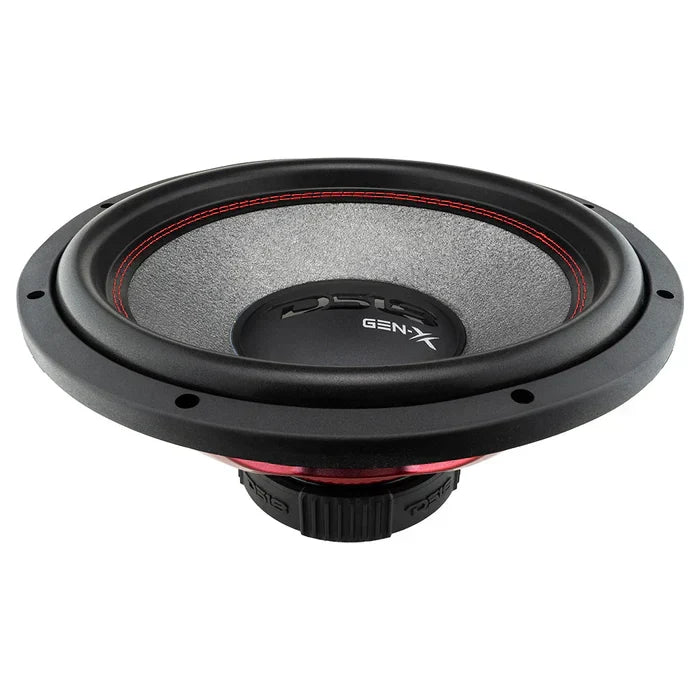

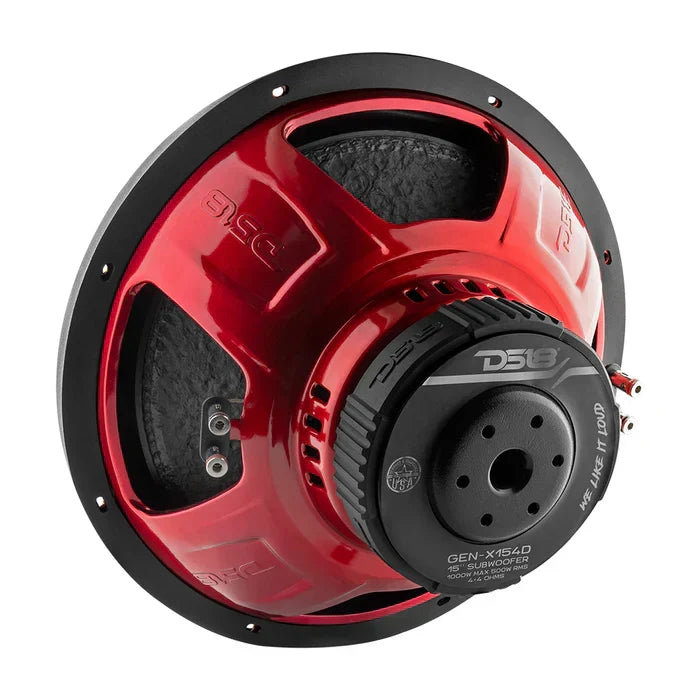

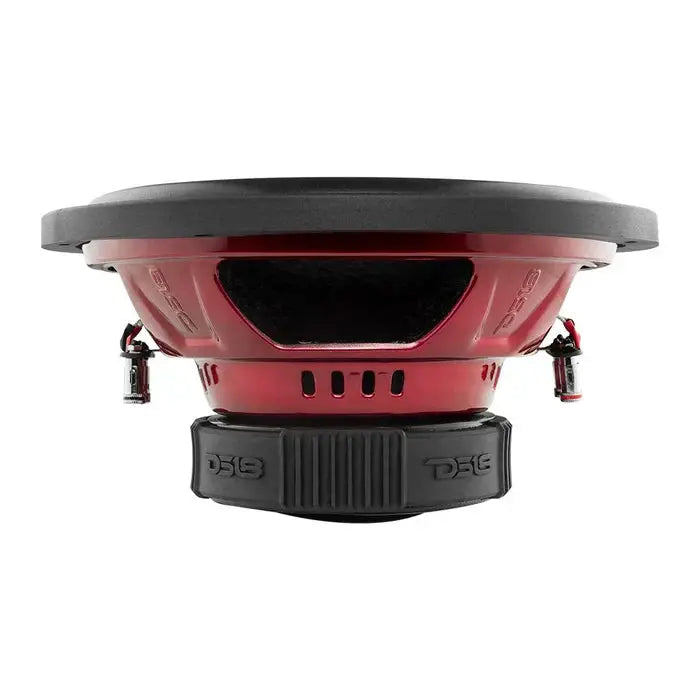

DS18 GEN-X154D DS18 GEN-X 15" SUBWOOFER

The DS18 GEN-X154D is a 15" car subwoofer delivering 500W RMS (1000W MAX) with a dual 4-ohm voice coil and a ferrite magnet, built for enthusiasts who demand accurate, high-output bass in demanding installs.

• Size: 15" driver diameter for substantial bass output and strong displacement.
• RMS Power: 500W continuous handling, enabling consistent performance with a capable amplifier.
• Max Power: 1000W peak capacity for transient bass energy without clipping.
• Impedance: 4 + 4 Ohms (dual voice coil) offering flexible wiring options and better amplifier compatibility.
• Voice Coil Size: 2" voice coils for effective heat management and controlled motion.
• Magnet Size: 70 oz ferrite magnet providing a strong, efficient magnetic field.
• Voice Coil Former Material: Aluminum, contributing to durability and heat handling.
• Cone: Paper with glass fiber construction for rigidity and responsive bass.
• Surround: Foam edge surround supporting smooth cone movement.
• Mounting Cut-Out: 14.01" (356 mm)
• Mounting Depth: 7.63" (194 mm)
• Overall Diameter: 15.55" (395 mm)
• Frequency Response: 18 Hz – 250 Hz
• Frame: Steel basket for durability and stability under heavy use

In practice, the GEN-X154D pairs with a suitable amplifier to deliver clean, controlled bass across a wide range of music. The dual voice coils provide flexible wiring options and amplifier compatibility, enabling varied configurations and enhanced bass output. The rigid cone and foam surround yield distortion-free bass and precise reproduction down to 18 Hz, making it a strong match for serious car audio builds that demand impactful, accurate low end. Its mounting dimensions—14.01" cut-out and 7.63" depth—facilitate installation in most car setups.
