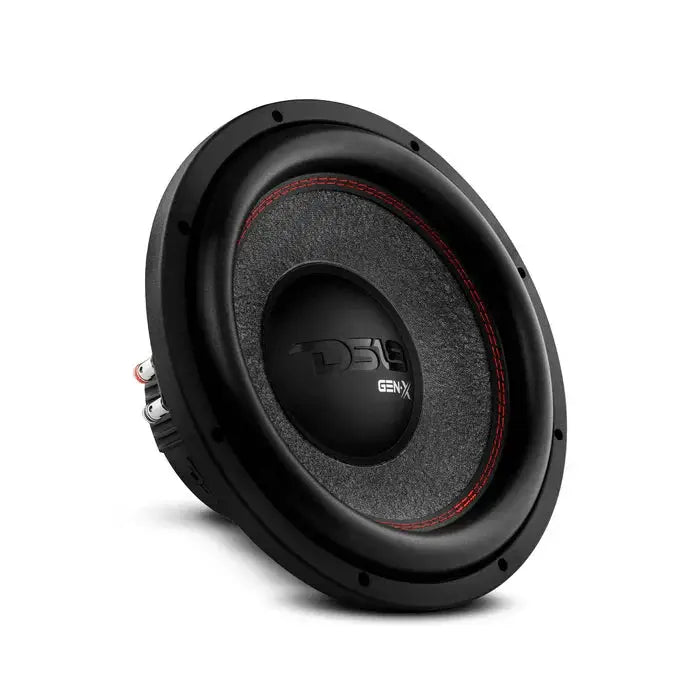

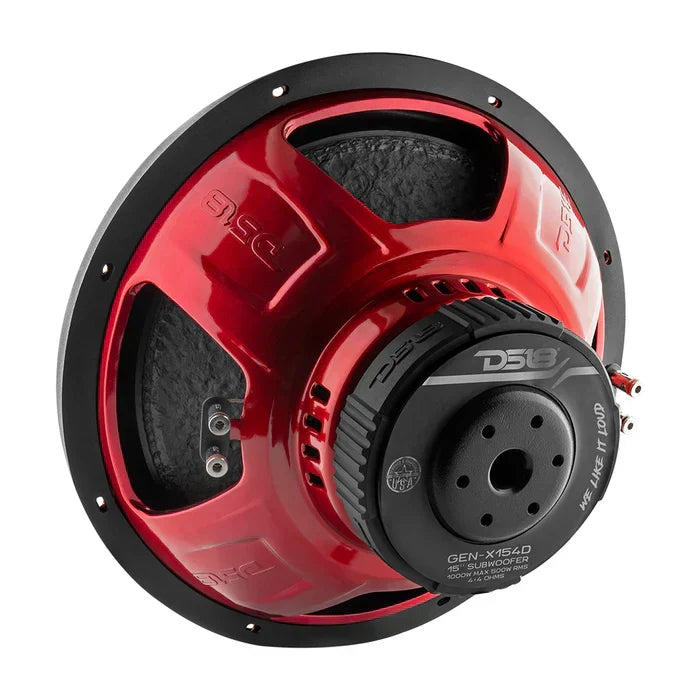

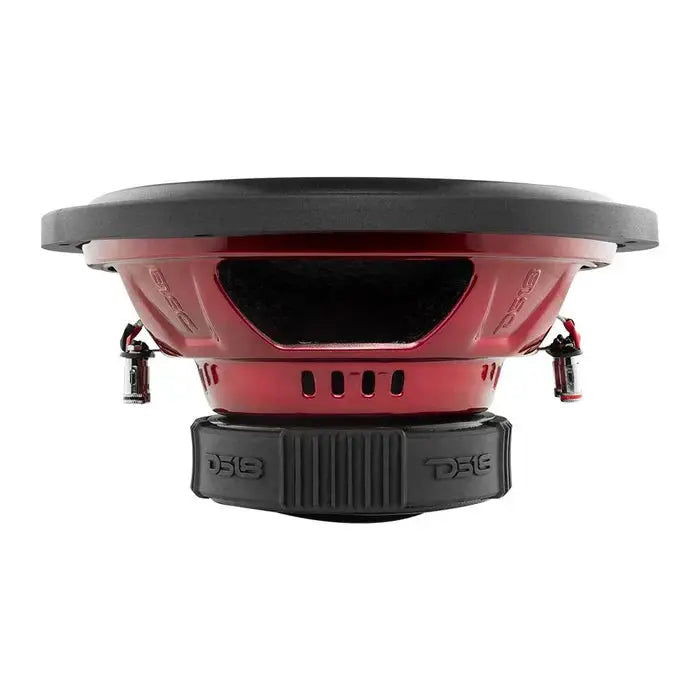

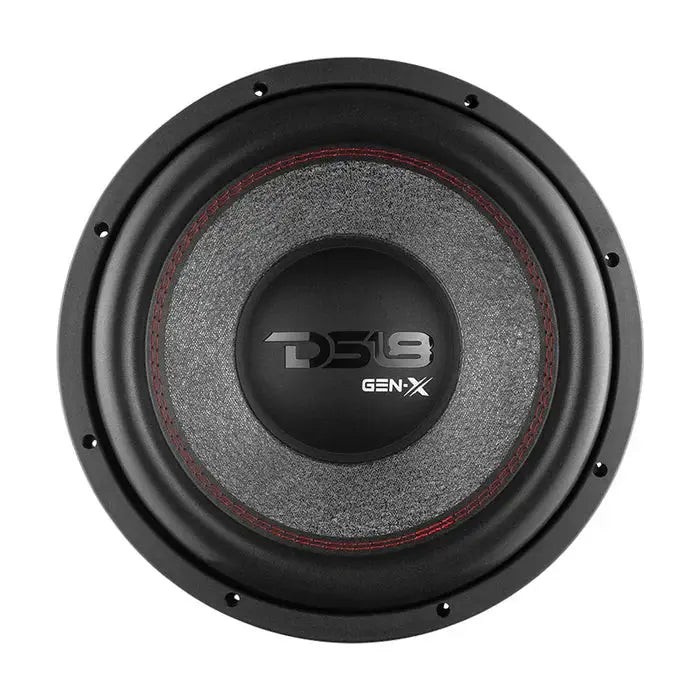

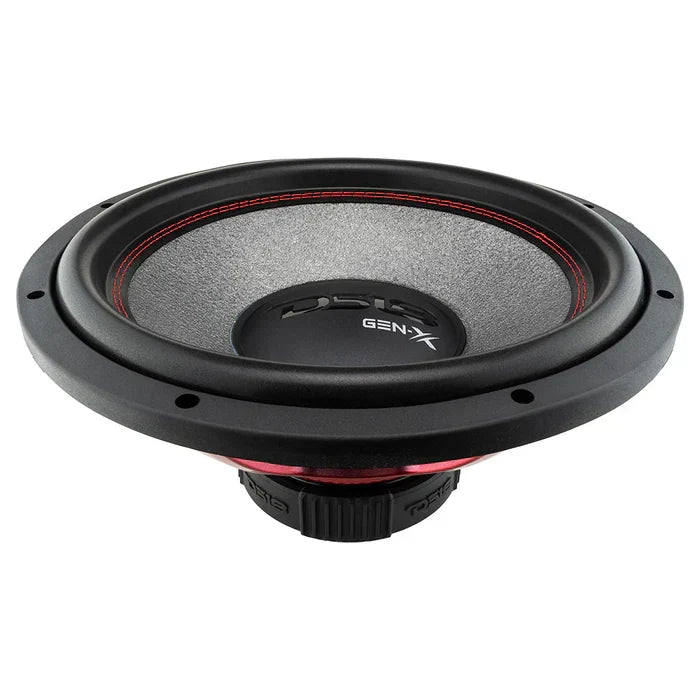

DS18 GEN-X154D DS18 GEN-X 15" SUBWOOFER
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 500 W
- Voice-coil options: D4
- Frequency response: 18 Hz–250 Hz
- Voice-coil diameter: 2 inches
- Magnet material: Ferrite
DS18 GEN-X154D DS18 GEN-X 15" SUBWOOFER is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep low-frequency bass to your car audio system with the DS18 GEN-X154D 15-inch subwoofer. Its 500W RMS power handling, dual 4-ohm voice coils, and 18 Hz–250 Hz frequency response make it a substantial subwoofer option for builds planned around its size and electrical requirements.
Key Features & Benefits
- 500W RMS power handling: Match it with a suitable amplifier for continuous power within the subwoofer’s stated rating.
- Dual 4-ohm voice coils: The two coils provide wiring options when planning an amplifier-compatible system.
- Paper and glass fiber cone: This cone construction combines the listed materials in the moving assembly.
- Aluminum voice coil formers: The 2-inch formers are a key part of the subwoofer’s coil construction.
- Steel basket and foam surround: These materials define the frame and cone edge assembly.
Technical Specifications
| Model | GEN-X154D |
|---|---|
| Driver diameter | 15" |
| RMS power handling | 500W |
| Maximum power | 1000W |
| Voice coil configuration | Dual 4-ohm (4 + 4 Ohms) |
| Voice coil size | 2" |
| Magnet | 70 oz ferrite |
| Voice coil former material | Aluminum |
| Cone | Paper with glass fiber construction |
| Surround | Foam edge surround |
| Mounting cut-out | 14.01" (356 mm) |
| Mounting depth | 7.63" (194 mm) |
| Overall diameter | 15.55" (395 mm) |
| Frequency response | 18 Hz–250 Hz |
| Frame | Steel basket |
Why Choose This Product?
The GEN-X154D pairs a 15-inch driver with a dual-coil design, giving you a clearly defined starting point for planning a car audio bass system. Its listed frequency response reaches down to 18 Hz, while its 500W RMS rating helps you compare amplifier options by continuous power handling.
The cone, surround, coil formers, magnet, and basket details also give you useful construction information when comparing subwoofers for a specific build. Check the complete dimensions against your intended mounting location before choosing it.
Installation & Compatibility Notes
Allow for a 14.01-inch (356 mm) mounting cut-out and 7.63-inch (194 mm) mounting depth. The overall diameter is 15.55 inches (395 mm), so account for the surrounding space as well as the cut-out.
Plan the amplifier and wiring around the dual 4-ohm voice coils. Confirm the intended wiring configuration and resulting load are supported by your amplifier. The subwoofer’s stated power ratings are 500W RMS and 1000W maximum.
Frequently Asked Questions
What is the power rating of the DS18 GEN-X154D?
It is rated for 500W RMS and 1000W maximum power. Use the RMS rating when comparing continuous amplifier output.
What impedance does this subwoofer have?
It has dual 4-ohm voice coils, listed as 4 + 4 Ohms. Plan the wiring so the resulting load is compatible with your amplifier.
How much mounting space does it need?
The mounting cut-out is 14.01 inches (356 mm), and the mounting depth is 7.63 inches (194 mm). Its overall diameter is 15.55 inches (395 mm).
What frequency range is listed?
The stated frequency response is 18 Hz–250 Hz.
