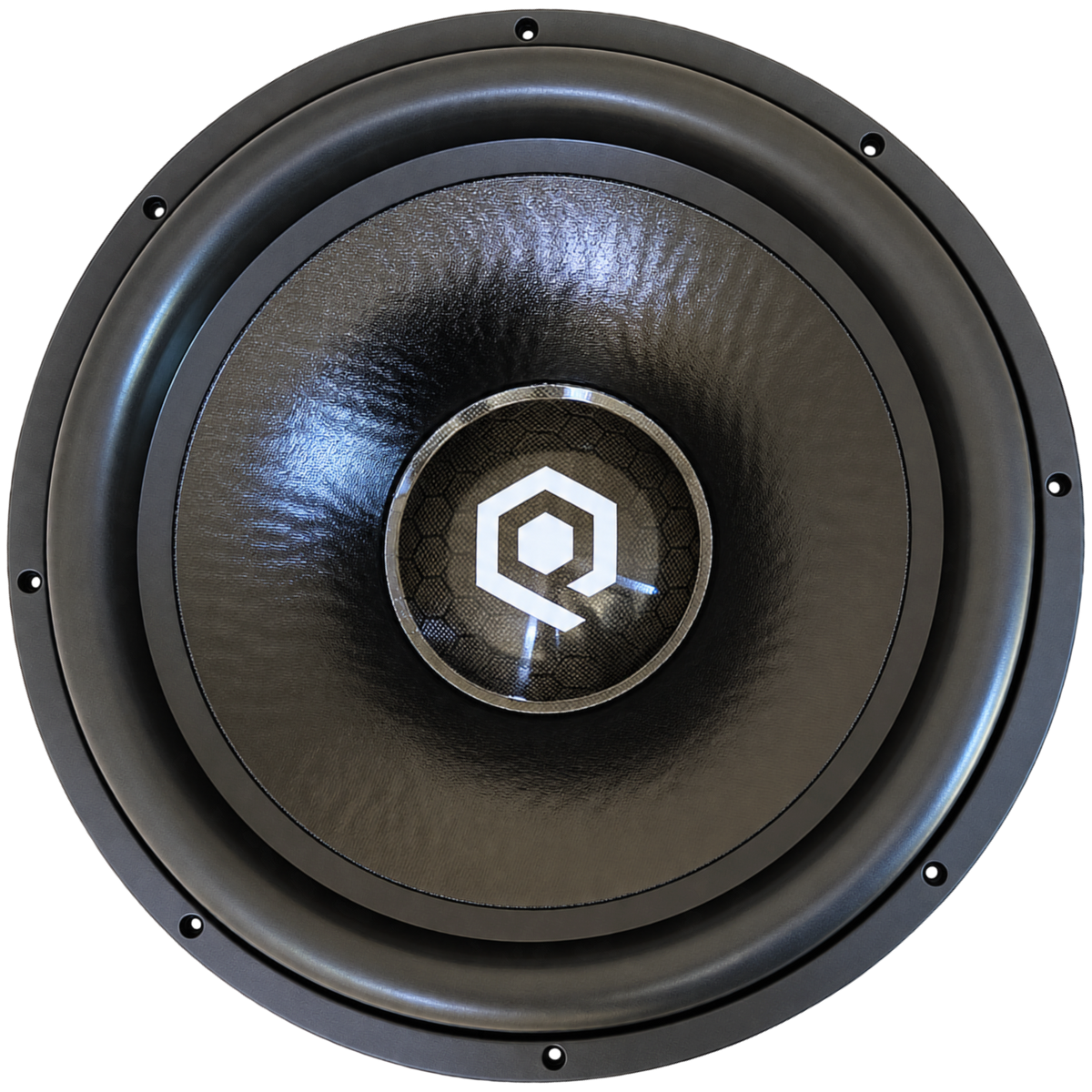

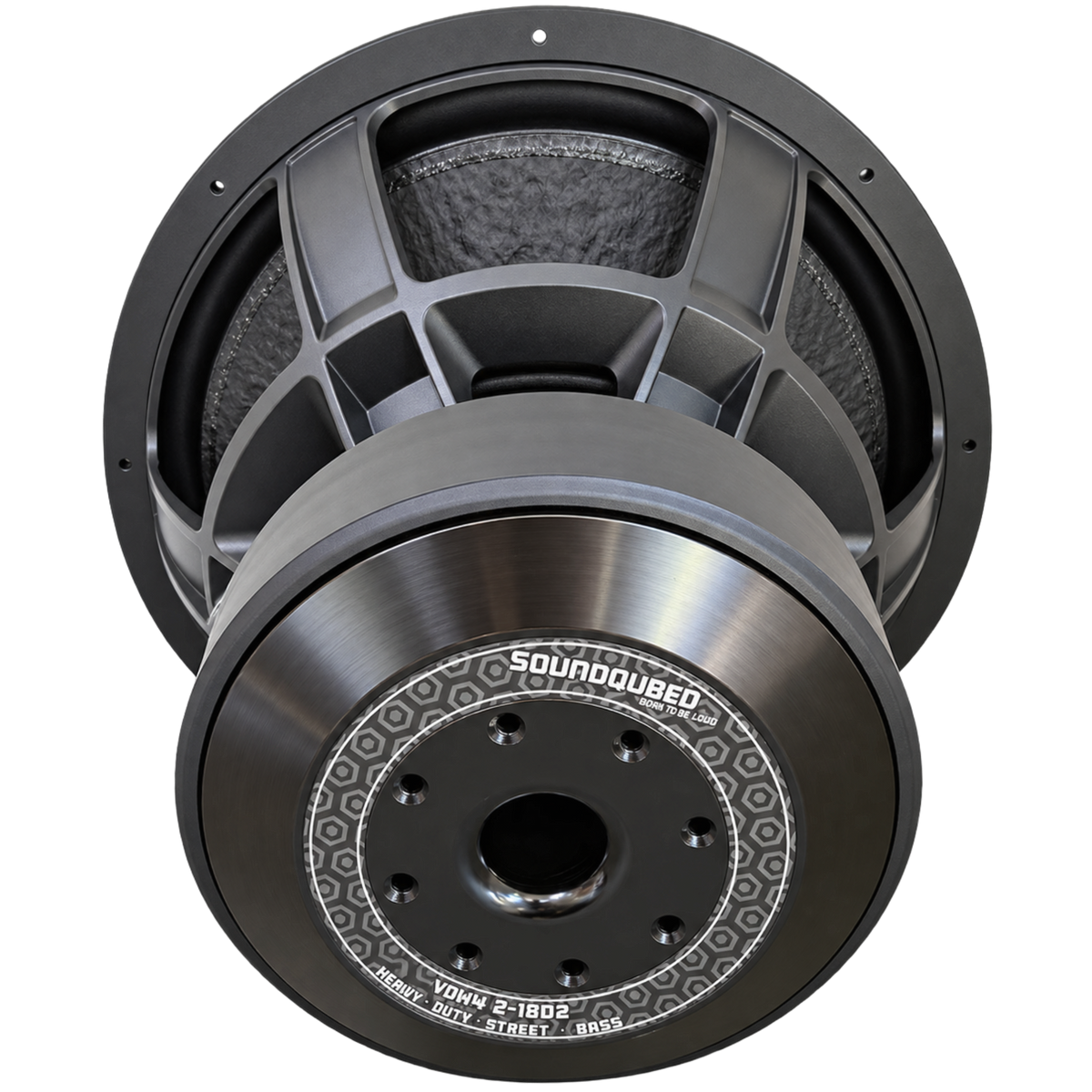

Soundqubed HDX4.2 Series 18" Subwoofer 4" DVC 4,000 Watts RMS D2/D4

SoundQubed HDX4.2-18 — 4,000W RMS Competition-Grade 18" Subwoofer

The SoundQubed HDX4.2 Series 18" subwoofer is the largest and most powerful driver in the HDX4.2 lineup — a full-size, competition-ready 18-inch subwoofer built for builders who want maximum cone area, infrasonic bass extension, and the kind of low-end output that physically moves air and people. Rated at 4,000 watts RMS and 8,000 watts peak, the HDX4.2-18 is powered by a 402 oz magnet, a 4-inch diameter voice coil with a 70mm coil length, and a motor assembly engineered for extreme linear excursion across a massive 1,200 cm² cone area. Available in Dual 2 Ohm (D2) and Dual 4 Ohm (D4) configurations, this sub is built for wall builds, trunk builds, and any application where maximum displacement and infrasonic output are the goal.

With an Xmax of 23mm (±) and Xmech of 47mm (±), the HDX4.2-18 delivers controlled linear excursion across its enormous cone area, producing authoritative sub-bass extension down to a free-air resonance (Fs) of 31.6 Hz (D2) / 31.7 Hz (D4). With sensitivity ratings of 90.3–90.4 dB, this is the most efficient driver in the HDX4.2 lineup — capable of producing serious SPL output even on moderate amplifier power, and absolutely devastating when fed its full 4,000W RMS rating.

Why Choose the SoundQubed HDX4.2-18?

• 4,000W RMS / 8,000W Peak Power: Handles extreme amplifier output without flinching — built for high-power mono block amplifiers in daily and competition installs.
• 402 oz Magnet Assembly: Massive motor force delivers exceptional BL (17.8 N/A D2 / 23.3 N/A D4) for precise, controlled cone movement at high excursion levels.
• 4" Voice Coil, 70mm Coil Length: Extended coil length maximizes gap interaction for superior thermal management and sustained high-power performance.
• 1,200 cm² Cone Area (SD): The largest cone in the HDX4.2 lineup — maximum air displacement for the deepest, most physical sub-bass output.
• 23mm Xmax / 47mm Xmech: Exceptional linear and mechanical excursion — deep, authoritative bass without bottoming out.
• Dual 2 Ohm & Dual 4 Ohm Available: Wire D2 to 1Ω or 4Ω, wire D4 to 2Ω or 8Ω — maximum flexibility for any amplifier's stable impedance load.
• Ported Enclosure Optimized: Recommended ported volume 5–7 ft³ and sealed 3.0–5.75 ft³ — built to breathe and move in a large, properly tuned vented box.
• 90.3–90.4 dB Sensitivity: The most efficient driver in the HDX4.2 lineup — gets devastatingly loud without demanding every last watt from your amplifier.

Amplifier & Enclosure Recommendations

The HDX4.2-18 is designed to be paired with a high-output mono block amplifier capable of delivering 4,000W RMS or more at the wired impedance load. For the D2 (Dual 2 Ohm) variant, wire the coils in parallel for a 1Ω final load or in series for 4Ω. For the D4 (Dual 4 Ohm) variant, wire in parallel for 2Ω or in series for 8Ω. Most high-power Class D mono amps are stable at 1Ω, making the D2 the most common choice for single-sub builds.

For enclosures, a ported box tuned to 28–34 Hz in the 5–7 ft³ range will maximize SPL output and infrasonic bass extension. The HDX4.2-18 is optimized for ported loading — its large cone area and long-throw suspension need room to breathe. A sealed enclosure in the 3.0–5.75 ft³ range can work for tighter, more controlled bass in applications where ported isn't practical.

Electro Acoustic Specifications & Thiele Small Parameters

Mounting Dimensions

Enclosure Suggestions

Frequently Asked Questions

What amplifier do I need for the SoundQubed HDX4.2-18?
You need a mono block amplifier rated at 4,000W RMS or more at your wired impedance. The D2 wired to 1Ω is the most common pairing. Look for a high-current Class D mono amp stable at 1Ω for best results.

Should I choose the D2 or D4 version?
Choose D2 (Dual 2 Ohm) if your amplifier is stable at 1Ω (parallel) or 4Ω (series) — this is the most common configuration. Choose D4 (Dual 4 Ohm) if your amp is stable at 2Ω (parallel) or you need an 8Ω final load (series).

What size box does the HDX4.2-18 need?
For ported, use 5–7 ft³ tuned to approximately 28–34 Hz for maximum SPL and infrasonic bass extension. For sealed, use 3.0–5.75 ft³ for tighter, more controlled bass.

Can this subwoofer handle daily use or is it competition-only?
The HDX4.2-18 is built for both. Its 90.3–90.4 dB sensitivity — the highest in the HDX4.2 lineup — means it gets devastatingly loud even on moderate power, while its 4,000W RMS rating and 402 oz motor make it a serious competition contender.
