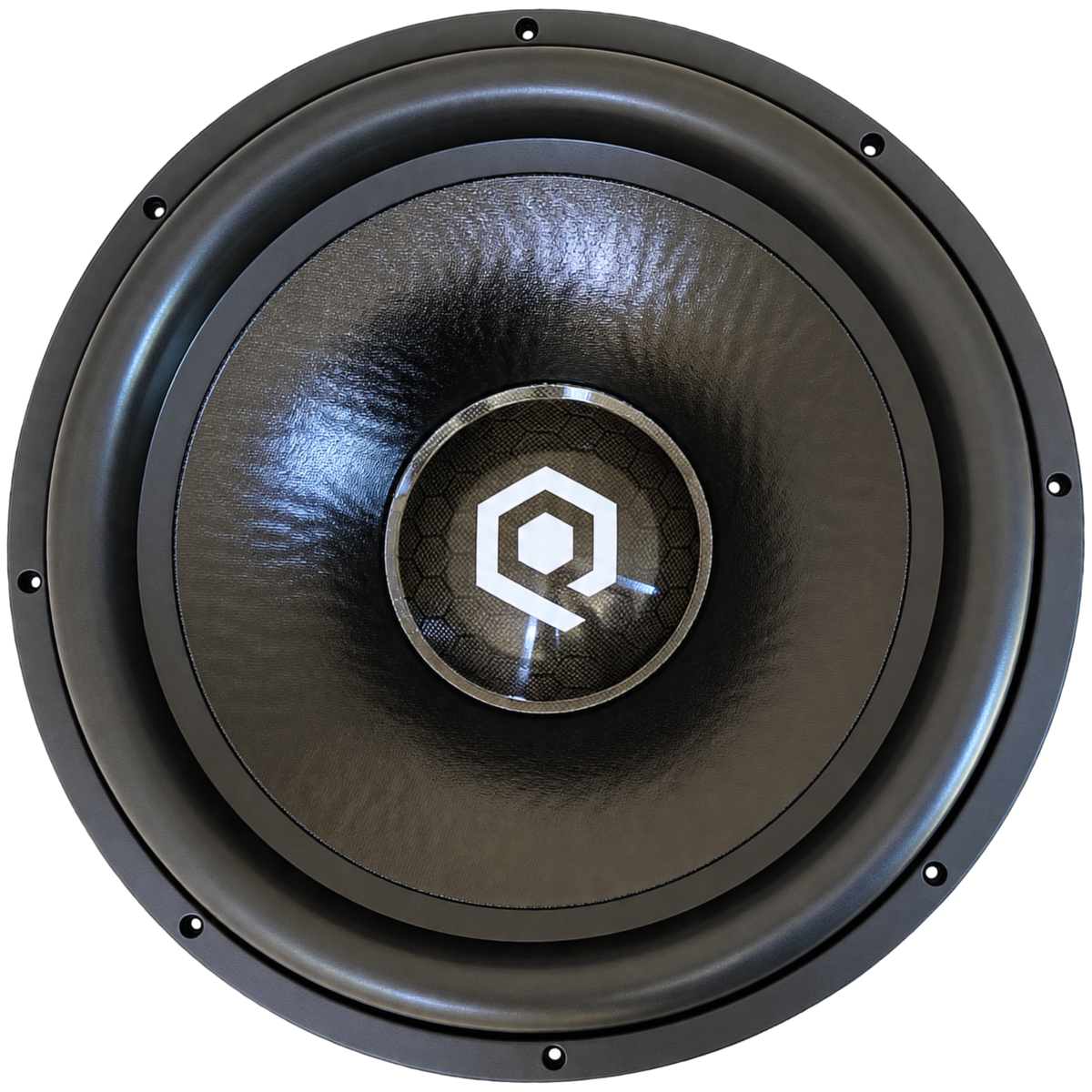

SoundQubed HDX4.2 Series 18" Subwoofer 4" DVC 4,000 Watts RMS D1/D2
Key features
- Subwoofer size: 18.0 inches
- RMS power per subwoofer: 4000 W
- Voice-coil options: D1, D2
- Mounting depth (D2): 11.34 in / 288 mm
- Mounting cutout diameter (D2): 16.73 in / 425 mm
- Linear excursion (Xmax, D2): ±23 mm
SoundQubed HDX4.2 Series 18" Subwoofer 4" DVC 4,000 Watts RMS D1/D2 - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
SoundQubed HDX4.2 Series 18" Subwoofer 4" DVC 4,000 Watts RMS D1/D2 - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a high-output system around the SoundQubed HDX4.2-18, an 18-inch subwoofer rated for 4,000 watts RMS. Its 1,200 cm² cone area and 4-inch dual voice coil are designed for substantial air displacement in high-power builds.
Choose the D1 or D2 version to suit your amplifier’s supported final load. The source recommends ported enclosures for this subwoofer, with sealed-box volume options also listed below.
Key Features & Benefits
- 4,000 W RMS rating: Match amplifier output to the subwoofer’s rating at the final wired load.
- 18-inch cone with 1,200 cm² SD: The large cone area supports high air displacement.
- 4-inch voice coil: The 70 mm coil length is specified for this high-power driver.
- 23 mm Xmax (±): The listed linear excursion helps you assess its movement range.
- D1 and D2 options: Select a coil configuration that works with your amplifier and system wiring.
- Ported and sealed volume guidance: Use the listed enclosure ranges to plan your build.
Technical Specifications
| Specification | HDX4.2-18D1 | HDX4.2-18D2 |
|---|---|---|
| Woofer Size | 18" | 18" |
| RMS Power | 4,000 W | 4,000 W |
| Peak Power | 8,000 W | 8,000 W |
| Magnet Weight | 402 oz | 402 oz |
| Coil Diameter | 4 in | 4 in |
| Coil Length | 70 mm | 70 mm |
| Fs | 31.6 Hz | 31.7 Hz |
| Impedance | 1+1 Ohm | 2+2 Ohm |
| QMS | 3.56 | 3.30 |
| QES | 0.52 | 0.55 |
| QTS | 0.45 | 0.47 |
| VAS | 114.0 L | 113.2 L |
| Le | 0.99 mH | 1.65 mH |
| η (No) | 0.67% | 0.63% |
| CMS | 0.06 mm/N | 0.06 mm/N |
| Sensitivity (1W/1M) | 90.3 dB | 90.4 dB |
| BL | 17.8 N/A | 23.3 N/A |
| Xmax (±) | 23 mm | 23 mm |
| Xmech (±) | 47 mm | 47 mm |
| SD | 1,200 cm² | 1,200 cm² |
| Model | A | B | C | D |
|---|---|---|---|---|
| HDX4.2-18D1 | 465 mm / 18.3" | 425 mm / 16.73" | 260 mm / 10.24" | 288 mm / 11.34" |
| HDX4.2-18D2 | 465 mm / 18.3" | 425 mm / 16.73" | 260 mm / 10.24" | 288 mm / 11.34" |
| Enclosure Type | HDX4.2-18 D1/D2 |
|---|---|
| Sealed Enclosure | 3.0–5.75 ft³ |
| Ported Enclosure | 5–7 ft³ |
For ported use, the source recommends tuning to 28–34 Hz.
Why Choose This Product?
The HDX4.2-18 pairs a large cone area with a 402 oz magnet and a 4,000 W RMS rating. Those specifications make it an option for daily or competition-oriented builds designed around a high-power 18-inch subwoofer.
The choice between D1 and D2 affects the final load you can wire from one subwoofer. Check that load against your amplifier’s minimum supported impedance before selecting a version.
Installation & Compatibility Notes
- Single D1 wiring: Parallel wiring produces 0.5Ω; series wiring produces 2Ω.
- Single D2 wiring: Parallel wiring produces 1Ω; series wiring produces 4Ω.
- Amplifier matching: Match power to the 4,000 W RMS rating at the final wired load, and set gain to avoid clipping.
- Load limits: Do not use a 0.5Ω load unless the amplifier is explicitly rated for it. Multiple-subwoofer wiring changes the final load.
- Enclosure planning: Allow for the selected enclosure volume and compare the listed mounting dimensions with your available space.
Frequently Asked Questions
What amplifier power should I use with the HDX4.2-18?
Match amplifier power to the subwoofer’s 4,000 W RMS rating at the final wired impedance. The amplifier must support that load, and gain should be set to avoid clipping.
What final impedance can I wire from one D1 or D2 subwoofer?
A single D1 can be wired to 0.5Ω in parallel or 2Ω in series. A single D2 can be wired to 1Ω in parallel or 4Ω in series. Use only a load supported by your amplifier.
What enclosure size and tuning are recommended?
The listed sealed volume is 3.0–5.75 ft³. The ported volume is 5–7 ft³, with a recommended tuning range of 28–34 Hz.
What are the mounting dimensions?
Both versions list A: 465 mm / 18.3", B: 425 mm / 16.73", C: 260 mm / 10.24", and D: 288 mm / 11.34". Compare these dimensions with your planned installation space.
Is the HDX4.2-18 intended only for competition use?
The product description identifies it for both daily and competition installs. Its 4,000 W RMS rating and enclosure requirements should guide your system planning.
