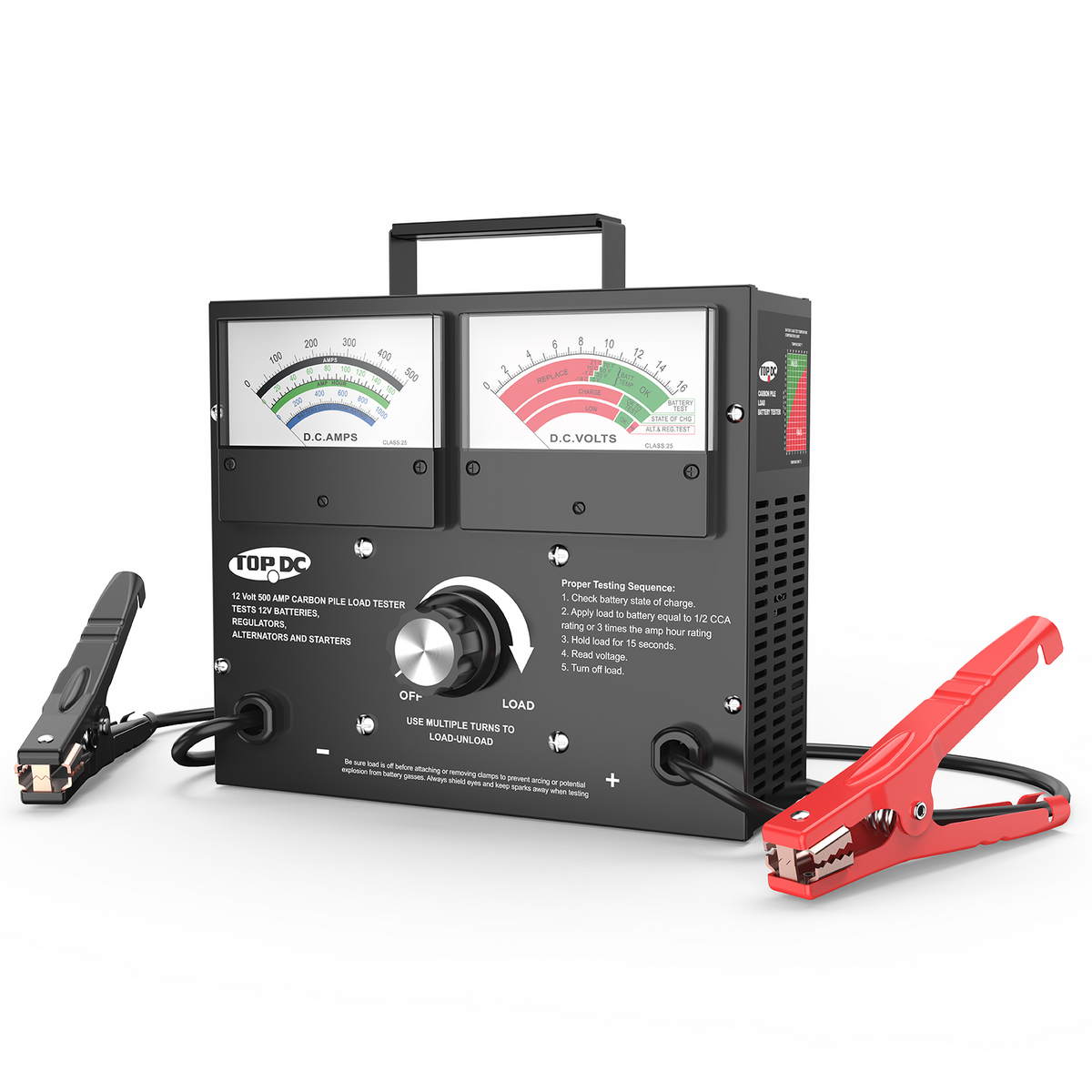

12 Volt Tools BT-501 500A Carbon Pile Battery Load Tester
Key features
- Adjustable load: Apply a carbon-pile load of up to 500 A for battery checks.
- Dual analog meters: View voltage and current while testing.
- CCA scale: Read the scale up to 1000 CCA.
- Amp-hour scale: Read the scale up to 160 amp-hours.
- 4 AWG battery cables: Approximately 3 feet long for connecting the tester to the battery.
12 Volt Tools BT-501 500A Carbon Pile Battery Load Tester is backordered and will ship as soon as it is back in stock.
12 Volt Tools BT-501 500A Carbon Pile Battery Load Tester is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

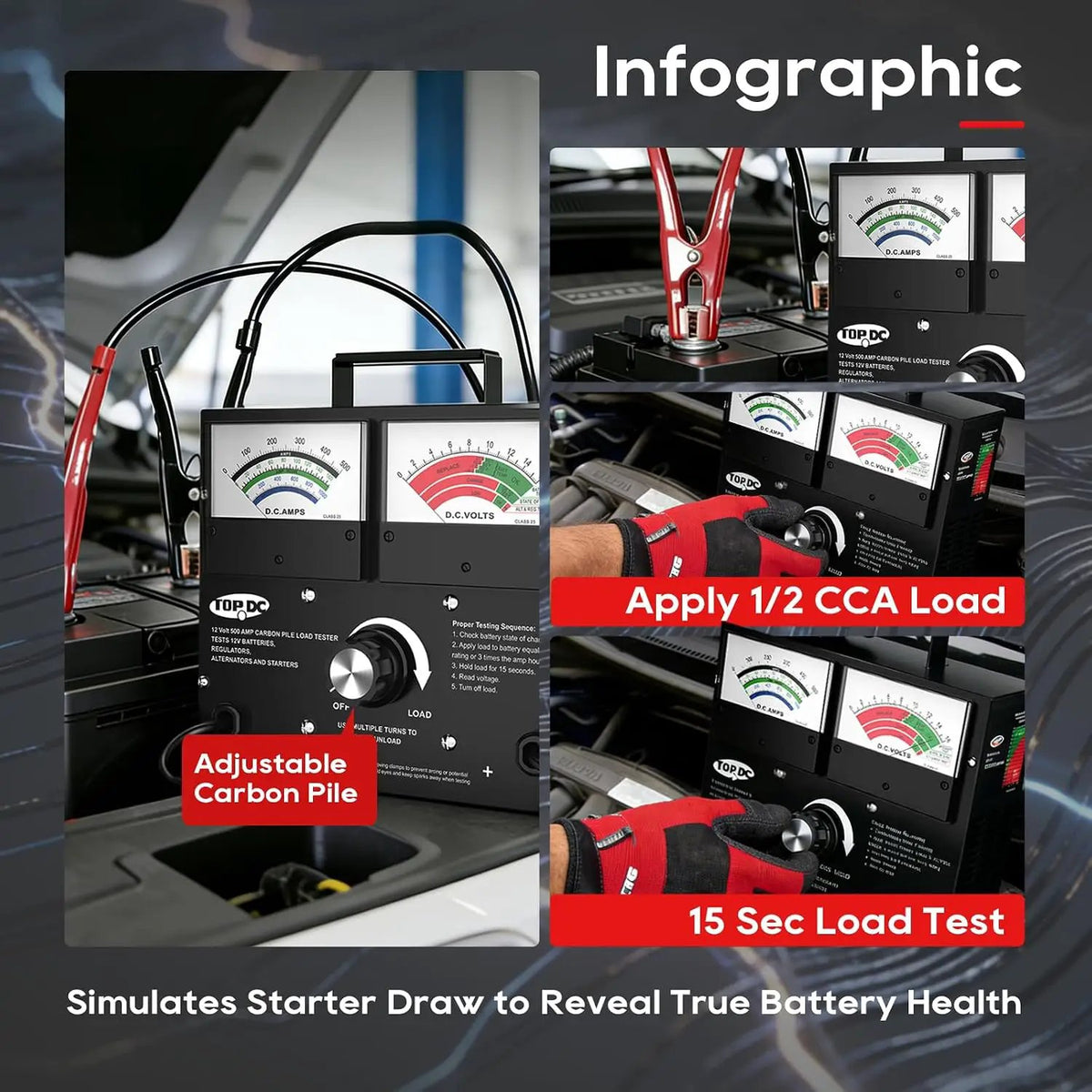

Check a 12 V lead-acid battery under an adjustable load with the 12 Volt Tools BT-501 500A Carbon Pile Battery Load Tester. Its dual analog meters show voltage and current during load, starting-system, and charging-system checks.
Key Features & Benefits
- Adjustable load: Apply a carbon-pile load of up to 500 A for battery checks.

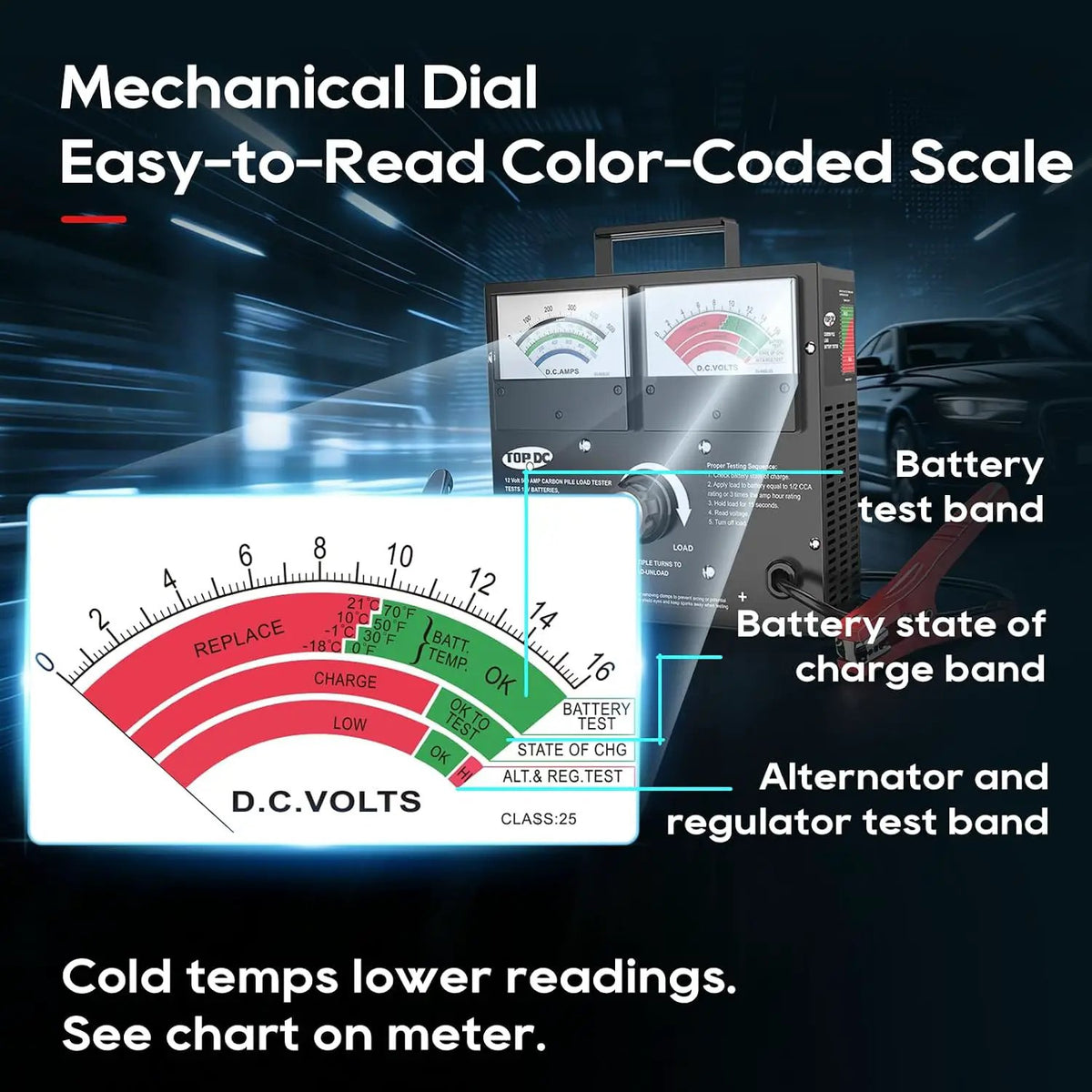

- Dual analog meters: View voltage and current while testing.
- CCA scale: Read the scale up to 1000 CCA.
- Amp-hour scale: Read the scale up to 160 amp-hours.
- 4 AWG battery cables: Approximately 3 feet long for connecting the tester to the battery.
Technical Specifications
| Brand | 12 Volt Tools |
|---|---|
| Model | BT-501 |
| Catalog part | BLT501 |
| Product type | Carbon pile battery load tester |
| System | 12 V lead-acid |
| Adjustable test load | Up to 500 A |
| CCA scale | Up to 1000 |
| Amp-hour scale | Up to 160 |
| Meters | Dual analog; displays voltage and current |

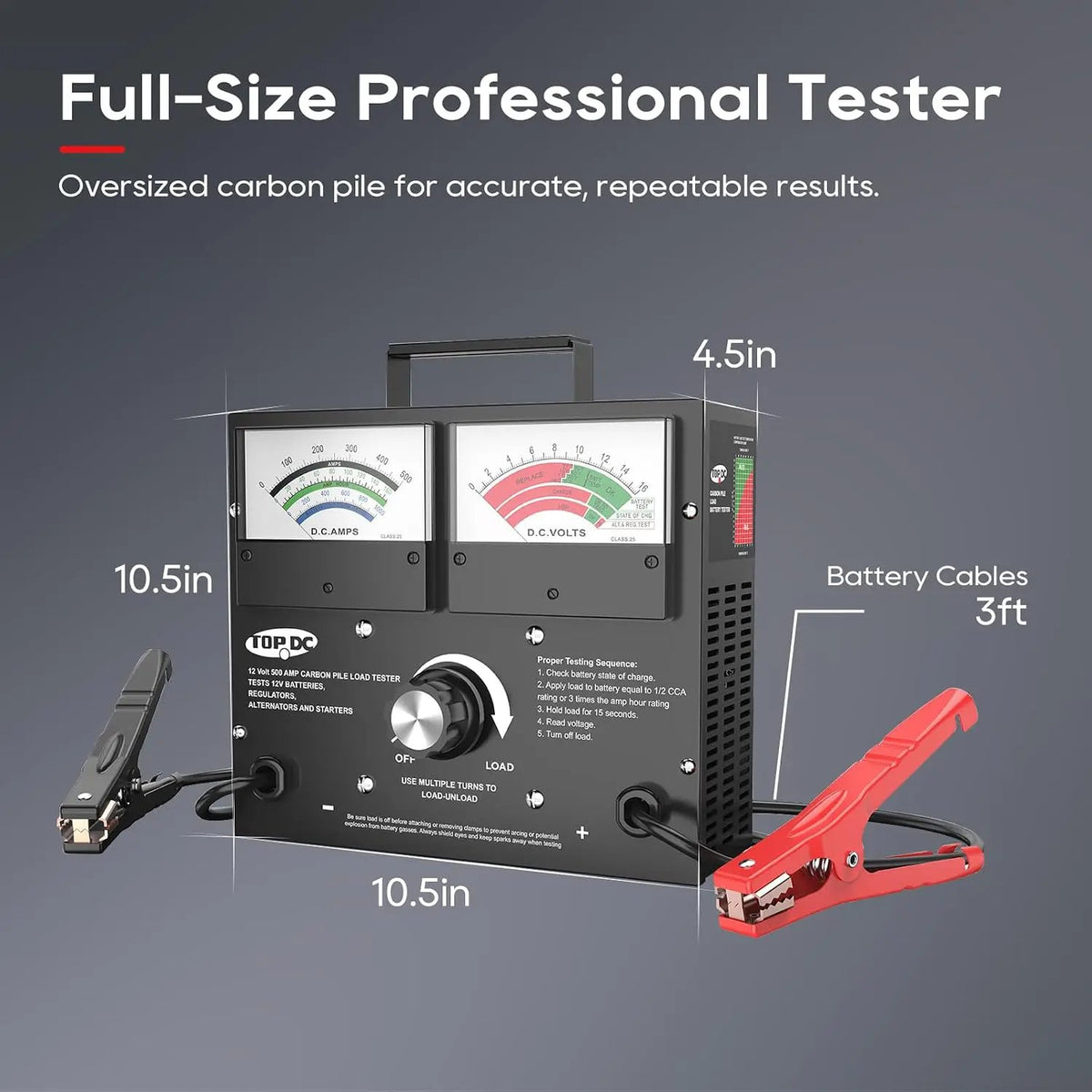

| Battery cables | 4 AWG; approximately 3 feet long |
Why Choose This Product?
The BT-501 combines adjustable carbon-pile loading with voltage and current readings in one tester. Its CCA and amp-hour scales add reference points when you assess a 12 V lead-acid battery.
Installation & Compatibility Notes

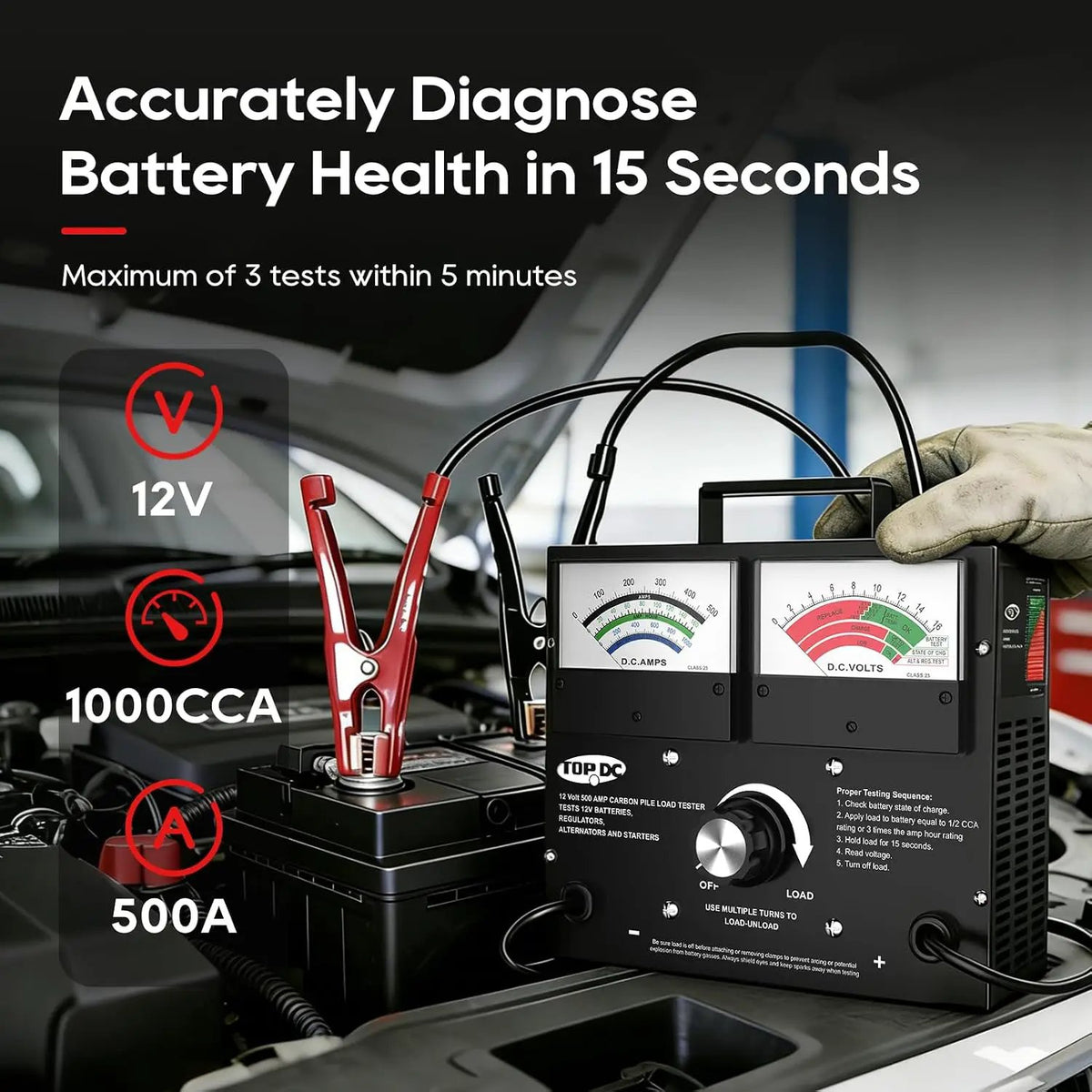

This tester is for 12 V lead-acid systems. Follow the manufacturer’s maximum 15-second test duration, and observe all ventilation, heat, and connection precautions.
Frequently Asked Questions
Which batteries is the BT-501 intended for?
It is intended for 12 V lead-acid systems.
How much test load can it apply?
The adjustable carbon-pile load goes up to 500 A. Follow the manufacturer’s maximum 15-second test duration.
What do the analog meters display?
The dual analog meters display voltage and current during load, starting-system, and charging-system checks.
How long are the battery cables?
The 4 AWG battery cables are approximately 3 feet long.
