Audiopipe | SKU:
APTV-600.4
$22.00 off

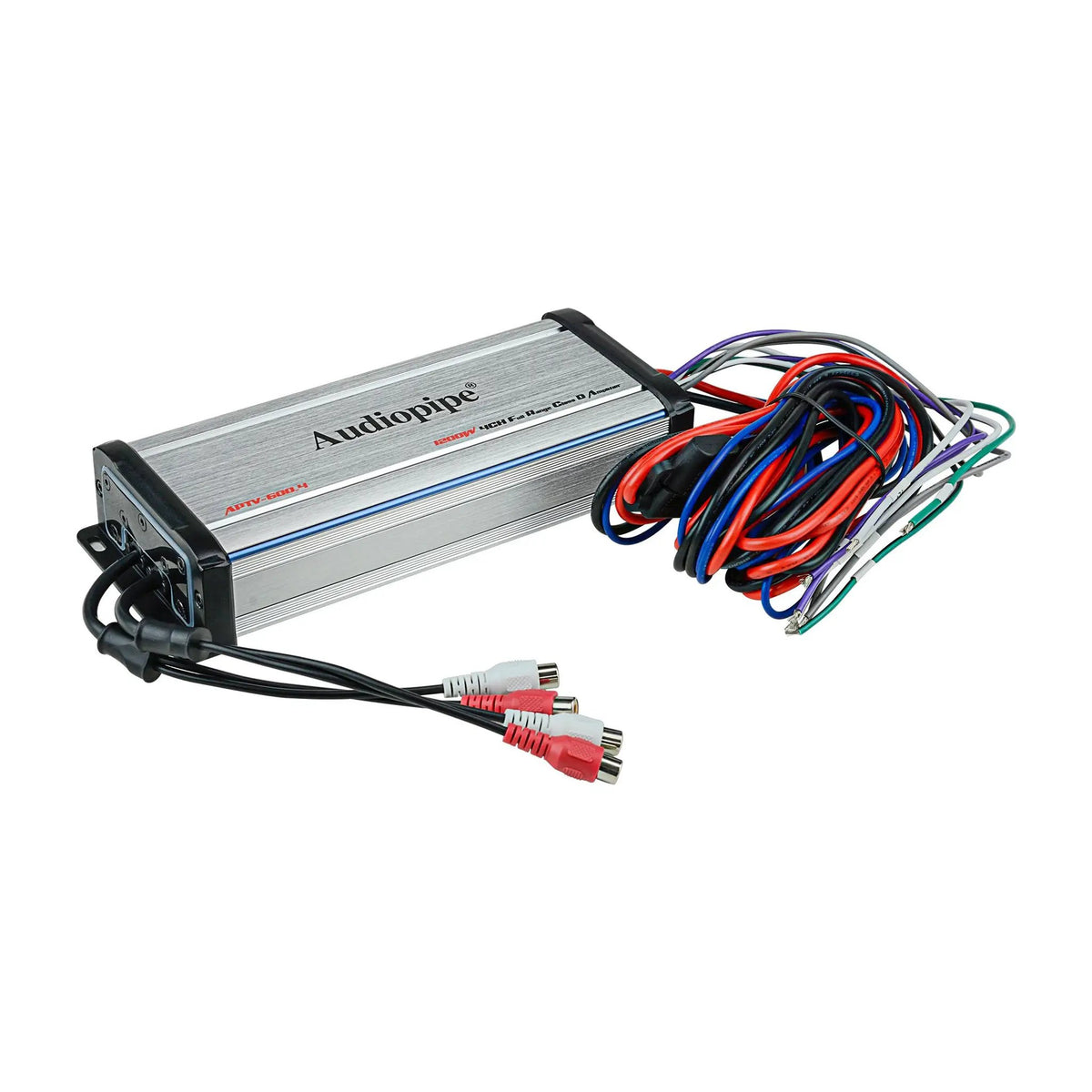

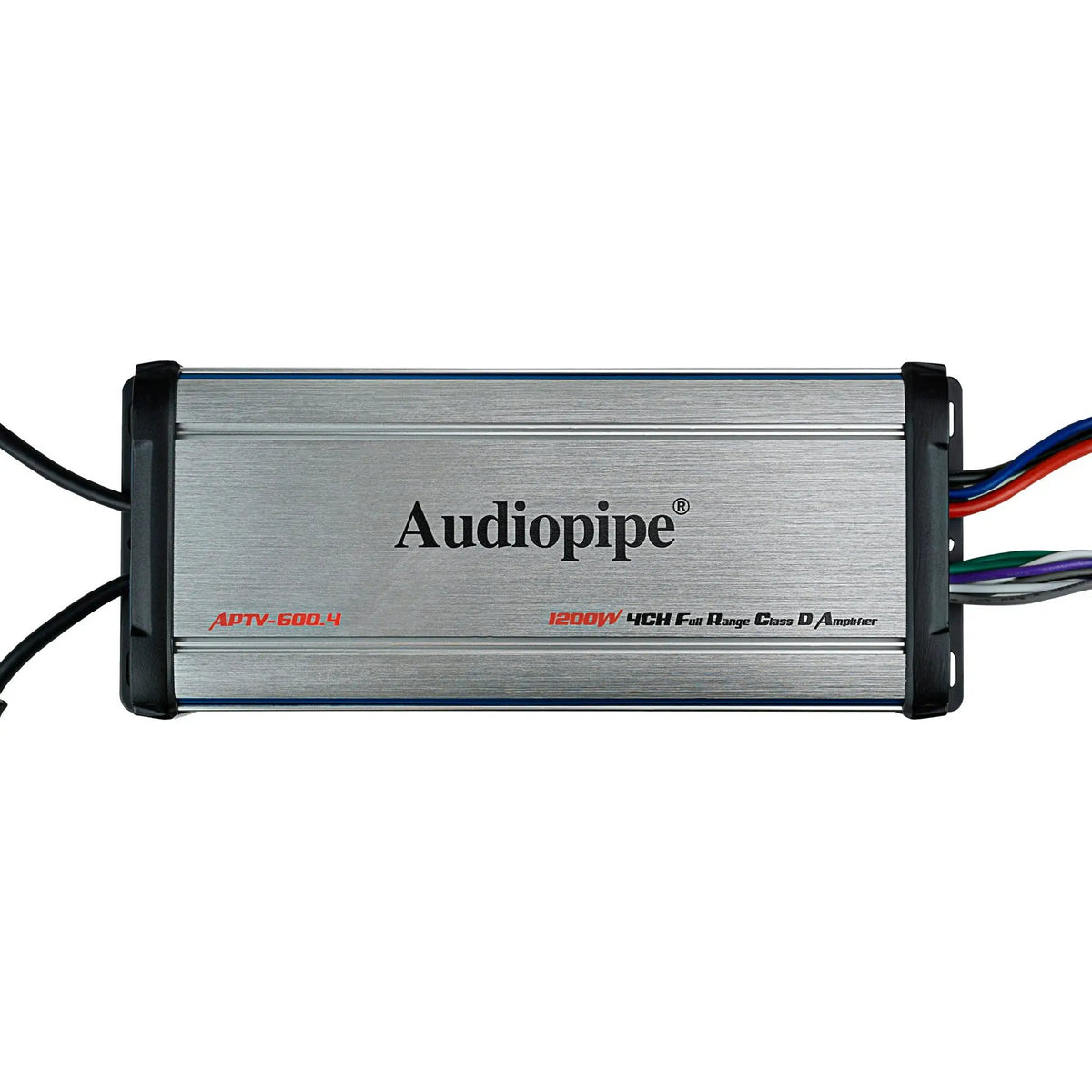

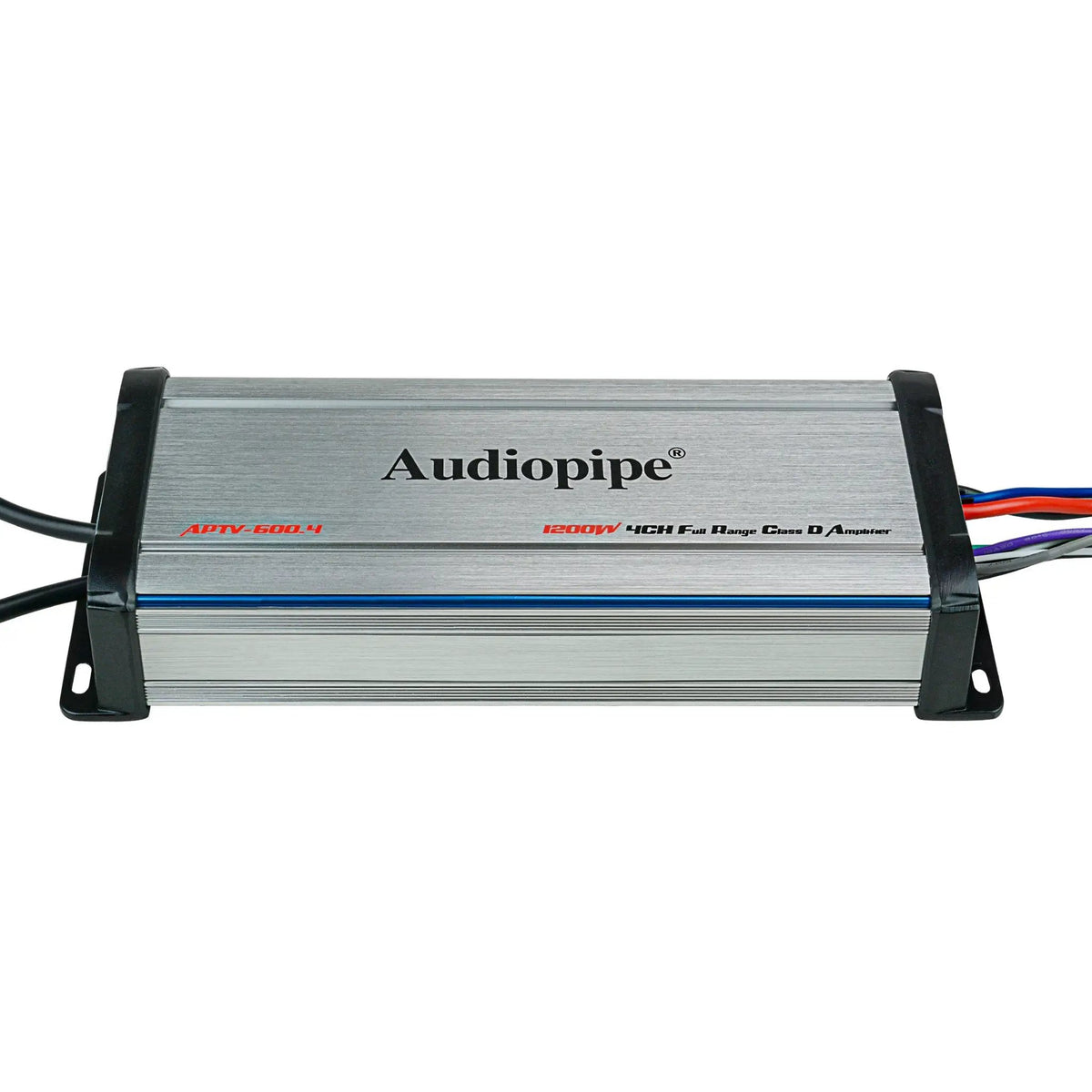

Audiopipe APTV-600.4 4 Channel Full Range Class D Amplifier
Sale price
$197.99
Regular price
$219.99
Unit price
Shipping calculated at checkout.
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 60 W
- RMS per channel at 2 ohms: 100 W
- RMS output: 60 watts × 4 at 4 ohms or 100 watts × 4 at 2 ohms.
- Bridged output: 200 watts × 2 at 4 ohms.

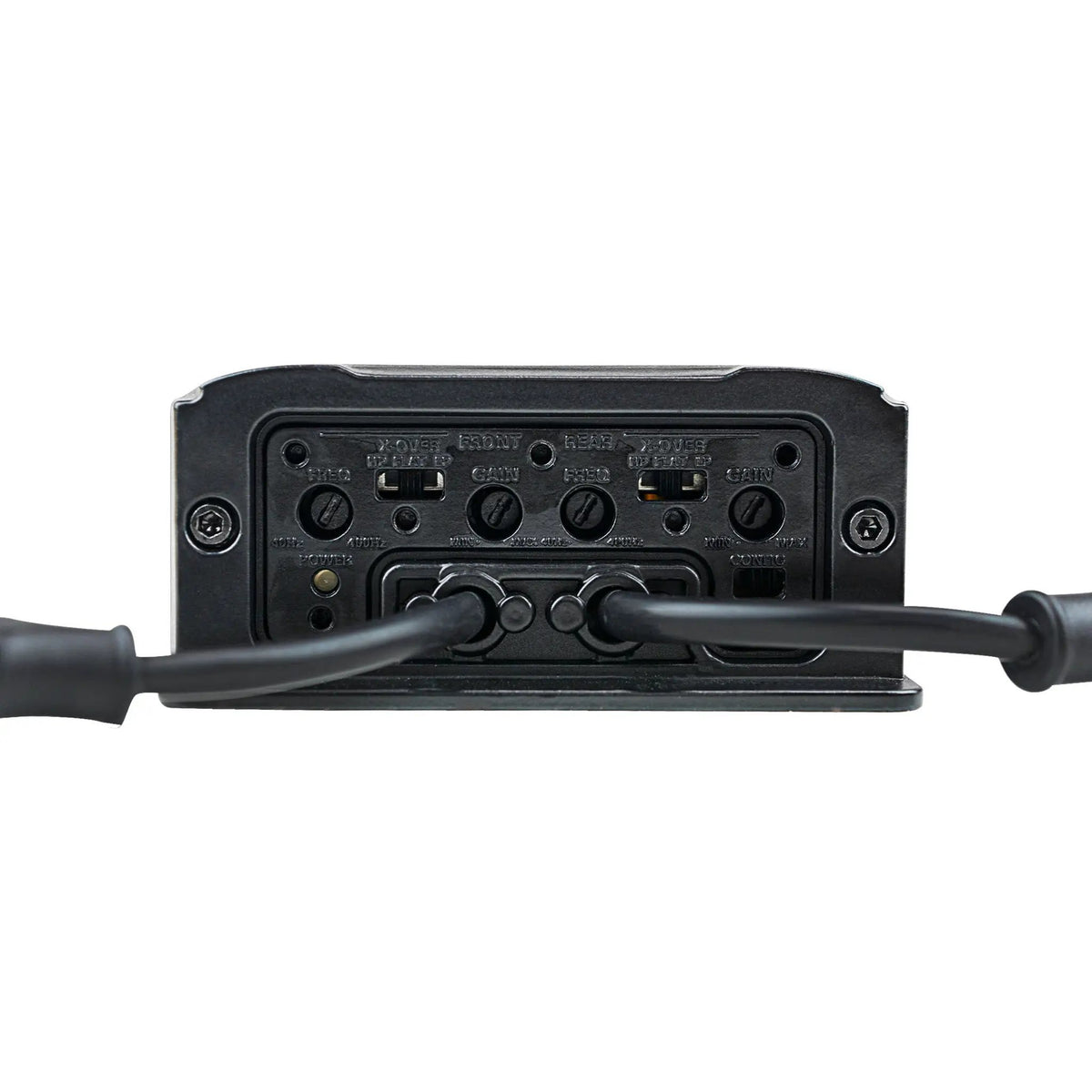

- Crossover adjustment: 40–400 Hz, with a 12 dB/octave slope.
Audiopipe APTV-600.4 4 Channel Full Range Class D Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
The Audiopipe APTV-600.4 is a four-channel, full-range Class D amplifier for powering a multi-speaker audio system. Adjustable high-pass and low-pass crossovers allow its output to be matched to the connected speakers rather than sending every frequency to every driver.
APTV-600.4 specifications
- RMS output: 60 watts × 4 at 4 ohms or 100 watts × 4 at 2 ohms.
- Bridged output: 200 watts × 2 at 4 ohms.
- Crossover adjustment: 40–400 Hz, with a 12 dB/octave slope.
- Frequency response: 20 Hz–20 kHz.
- Input sensitivity: 0.2–10 volts; operating voltage: 9–16 volts.

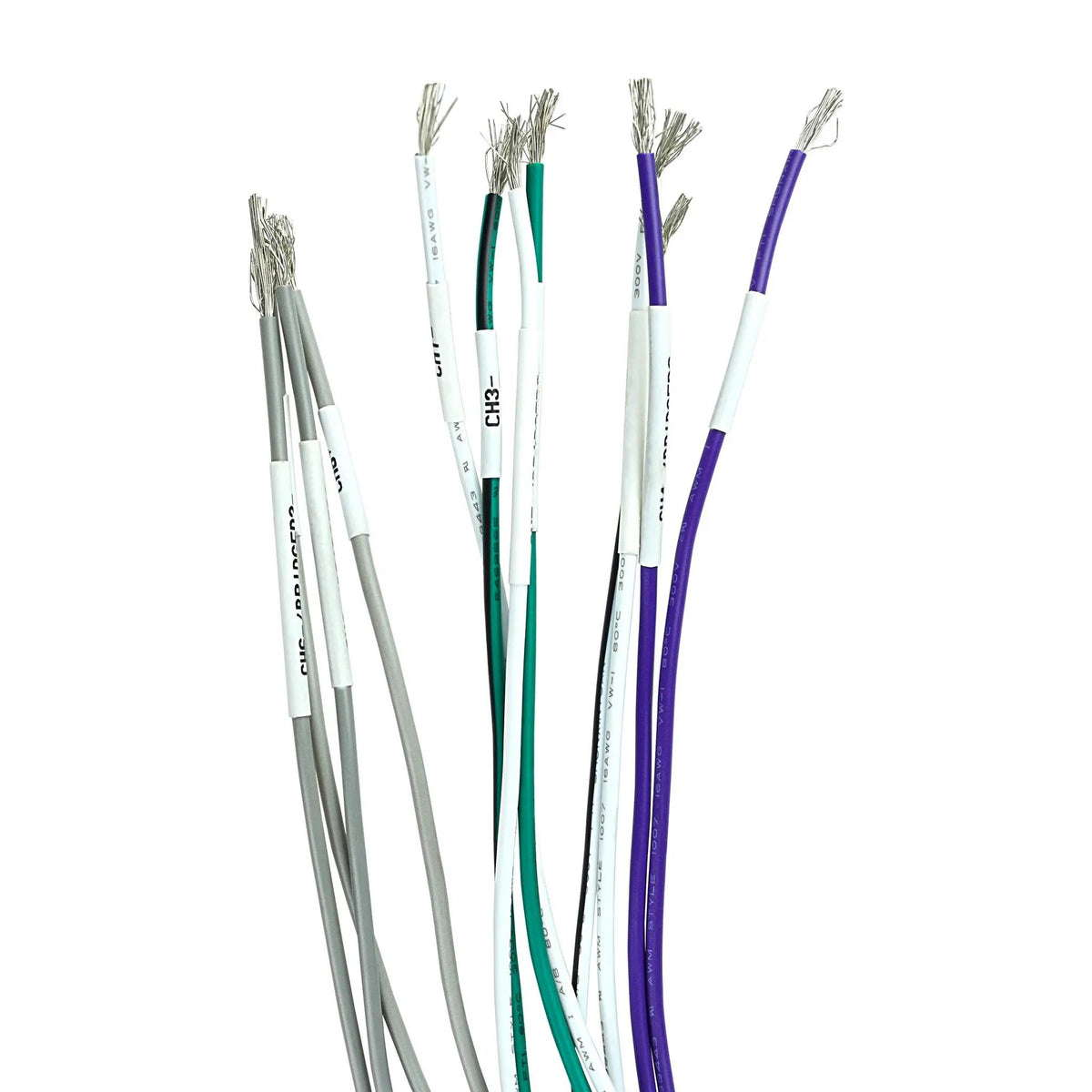

Decide on four-channel or bridged operation before wiring the speakers. Use the load rating for the chosen configuration and confirm installation requirements against the amplifier manual.
