iBEAM TE-BPLTC LED License Plate Backup Camera with Active Parking Lines

Product Overview

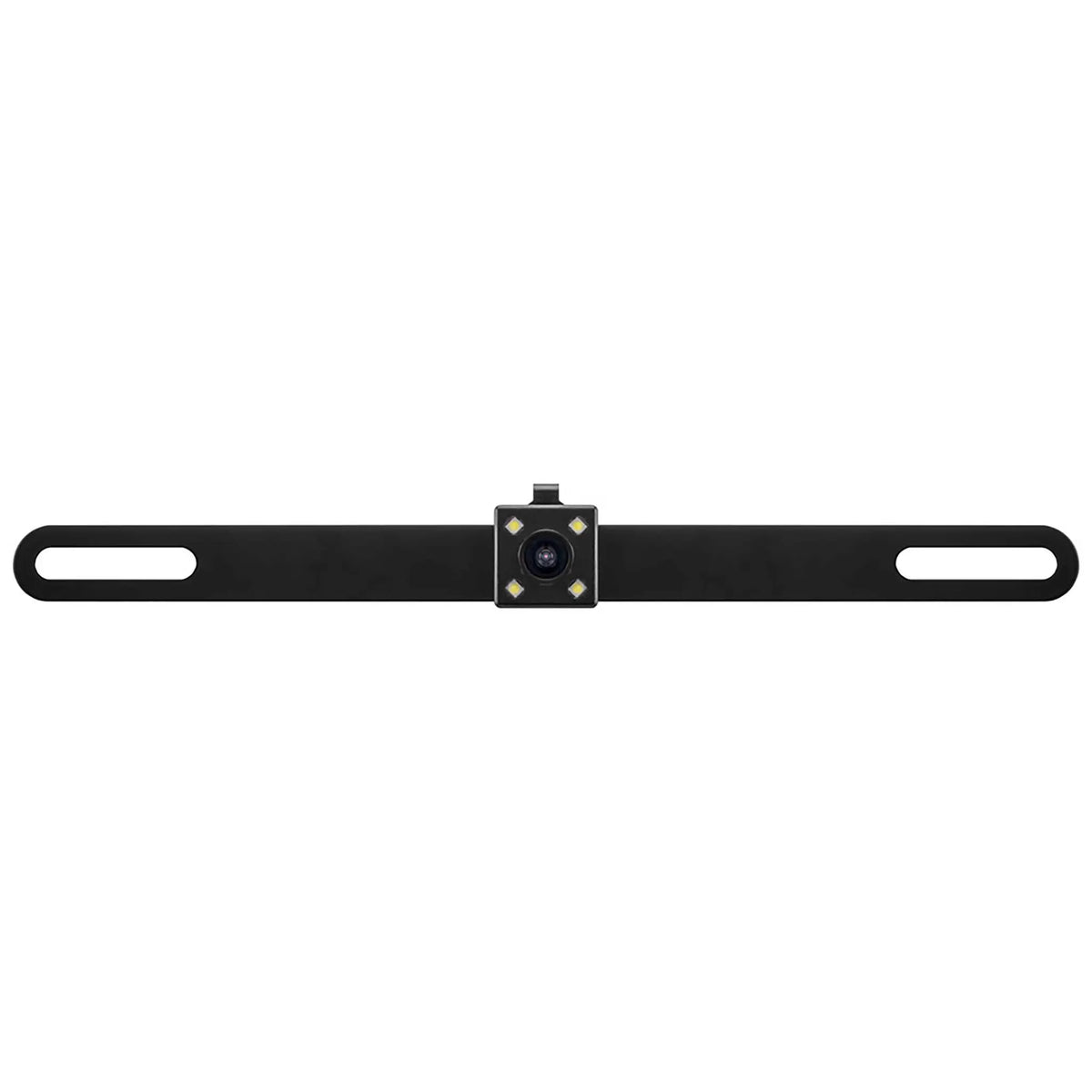

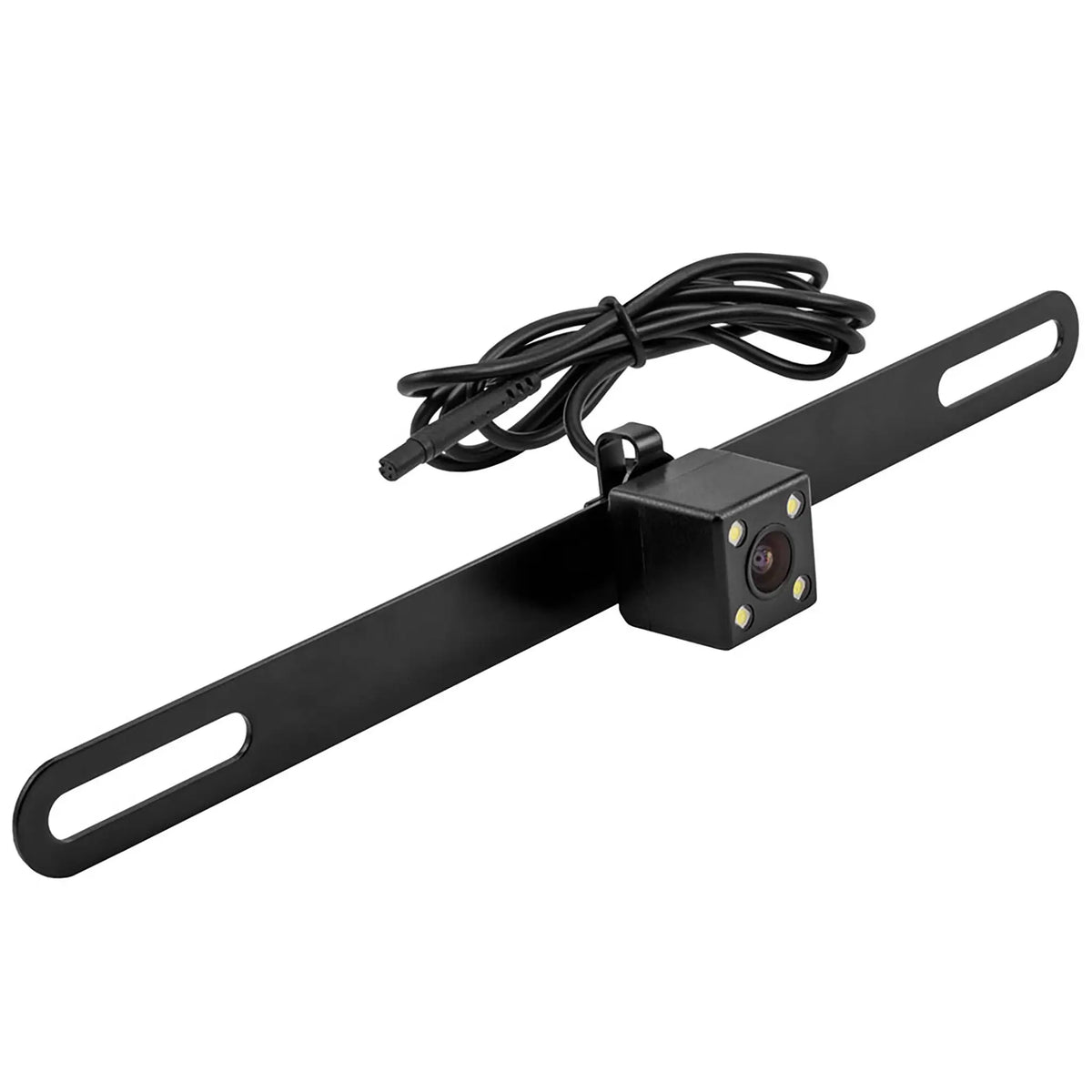

The iBEAM TE-BPLTC combines a behind-license-plate mounting bracket, active parking guidelines and four built-in LEDs in a wired rear-view camera. The bracket sits behind the plate while the camera projects above it, making this a practical option when the license-plate area provides a clear view behind the vehicle. Connect it to a compatible camera-input radio or monitor to see the rear scene when reversing.

Unlike the non-LED TE-BPTC, this model adds illumination around the lens. The LEDs turn on whenever the camera receives power, rather than waiting for a separate darkness sensor. It is a camera for live viewing, not a dash cam or self-contained recording system.

Key Features & Benefits

• Four built-in LEDs: Add light near the camera for nighttime reversing; visibility still depends on the scene, mounting position and available light.
• Active parking lines: The overlay shifts while the vehicle turns in reverse and straightens when it is no longer turning.
• Behind-plate bracket: Positions the camera just above the license plate without using a full surrounding license-plate frame.
• Wired video connection: Yellow RCA video connects to a compatible reverse-camera input; no wireless pairing or phone app is required.
• Water-resistant camera housing: Designed for an exterior rear-camera position, with careful protection of wiring and connections during installation.

Technical Specifications

Specification note: Metra’s product pages, catalogs and linked manuals differ on viewing-angle, image-resolution, low-light and ingress-rating figures. Those conflicting numerical ratings are not presented here as guaranteed specifications.

Why Choose This Product?

Choose the TE-BPLTC when you want a plate-area camera with its own LED illumination and a moving guidance overlay. It suits a rear-camera retrofit alongside a compatible aftermarket receiver or separate display, provided the mounting position and video input are suitable. A recessed plate pocket, trim panel, hitch or spare tire can obstruct a camera, so checking the actual sightline matters more than assuming every plate location will work.

Installation & Compatibility Notes

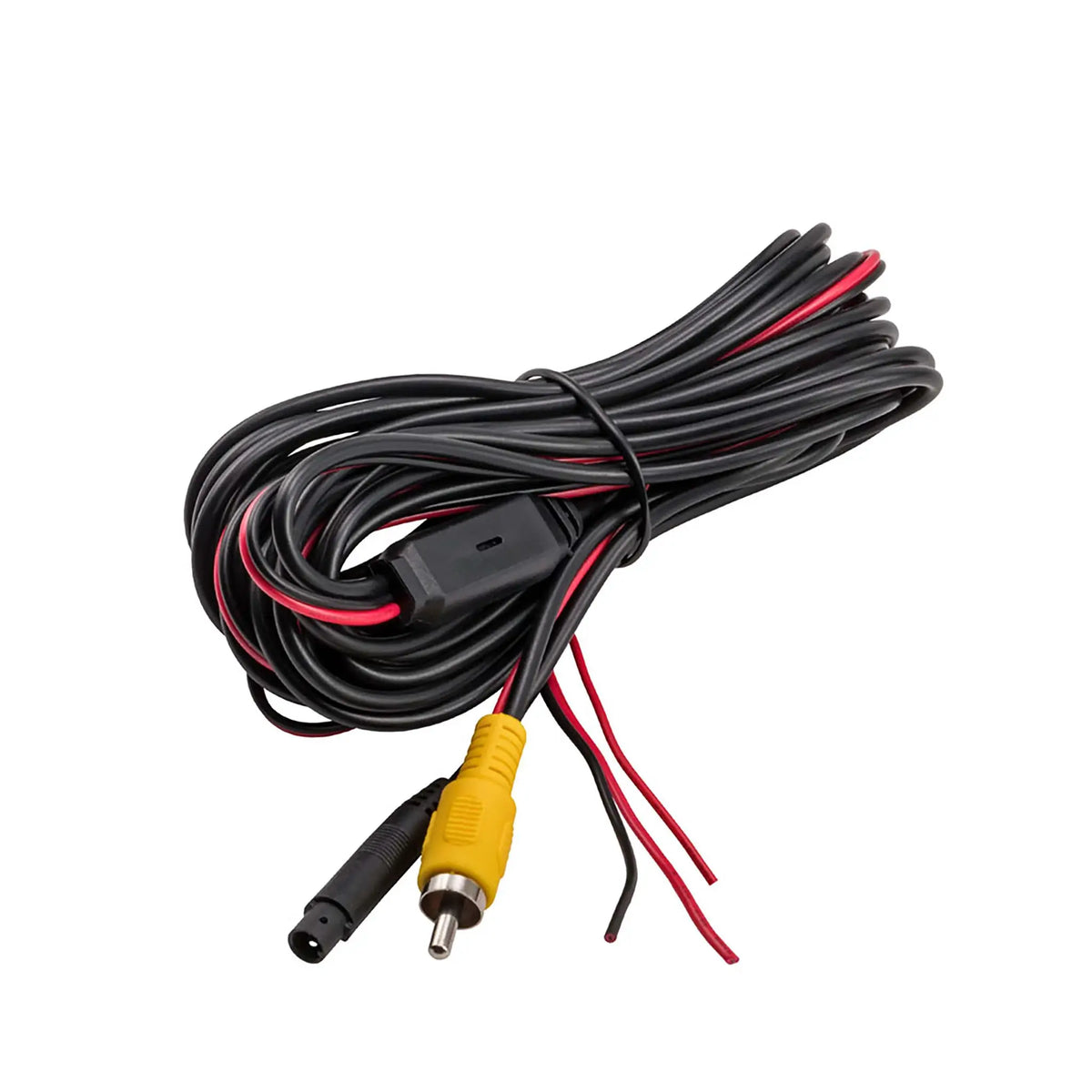

Check bracket clearance and license-plate visibility before fastening the camera. The manufacturer calls for a downward camera angle of approximately 30–40° for the guidance function. Following the supplied instructions, connect red to the appropriate +12V reverse-power circuit, black to ground and yellow RCA to the display’s reverse-camera input. Route and protect the cable away from heat, sharp edges and moving parts. Test image orientation, viewing area and display switching before final reassembly.

A camera is an additional viewing aid, not a substitute for mirrors, direct observation or safe reversing. Professional installation is recommended if you are unfamiliar with vehicle wiring.

Frequently Asked Questions

How is TE-BPLTC different from TE-BPTC?

Both use a behind-license-plate bracket and active parking lines. TE-BPLTC has four built-in LEDs; TE-BPTC is the standard non-LED version. Choose by the illumination and mounting requirements of your installation.

Do the LEDs turn on only at night?

No. Metra states that the LEDs turn on when the camera is powered. With the reverse-power wiring described in the manual, they illuminate when that circuit powers the camera.

Do the lines read the steering-wheel angle?

Metra describes the lines moving as the vehicle turns while reversing, then straightening when the turn ends. This is not a verified claim of CAN-bus steering-angle integration or guideline movement while the vehicle is stationary.

Will it connect directly to my factory screen?

Not necessarily. The camera supplies wired RCA video. A factory display may require a vehicle-specific interface, adapter or programming. Check the display’s accepted camera signal and switching requirements before purchase.

Does it record video or include a screen?

No screen or DVR is included. This is a standalone backup camera that needs a compatible display; it does not provide onboard video recording.

Can I rely on the lines to detect obstacles?

No. The lines are a visual positioning aid, not obstacle detection, distance sensors or automatic braking. Always check mirrors, the surrounding area and the actual camera image while reversing.

Explore More

Browse backup cameras and car video equipment to plan a compatible rear-view system. Review the official TE-BPLTC product information and manufacturer installation manual before installation.
