Install Bay YNBC-5 Yellow 12–10 AWG Nylon Butt Connectors – 500 Pack
Key features
- 12–10 AWG wire range identifies the intended conductor size.
- Yellow nylon insulation distinguishes this connector at the bench.
- 500 individual butt connectors per package, not 500 wire pairs.
- Inline splice format for a compact, permanent crimp connection.
Install Bay YNBC-5 Yellow 12–10 AWG Nylon Butt Connectors – 500 Pack is backordered and will ship as soon as it is back in stock.
Install Bay YNBC-5 Yellow 12–10 AWG Nylon Butt Connectors – 500 Pack is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

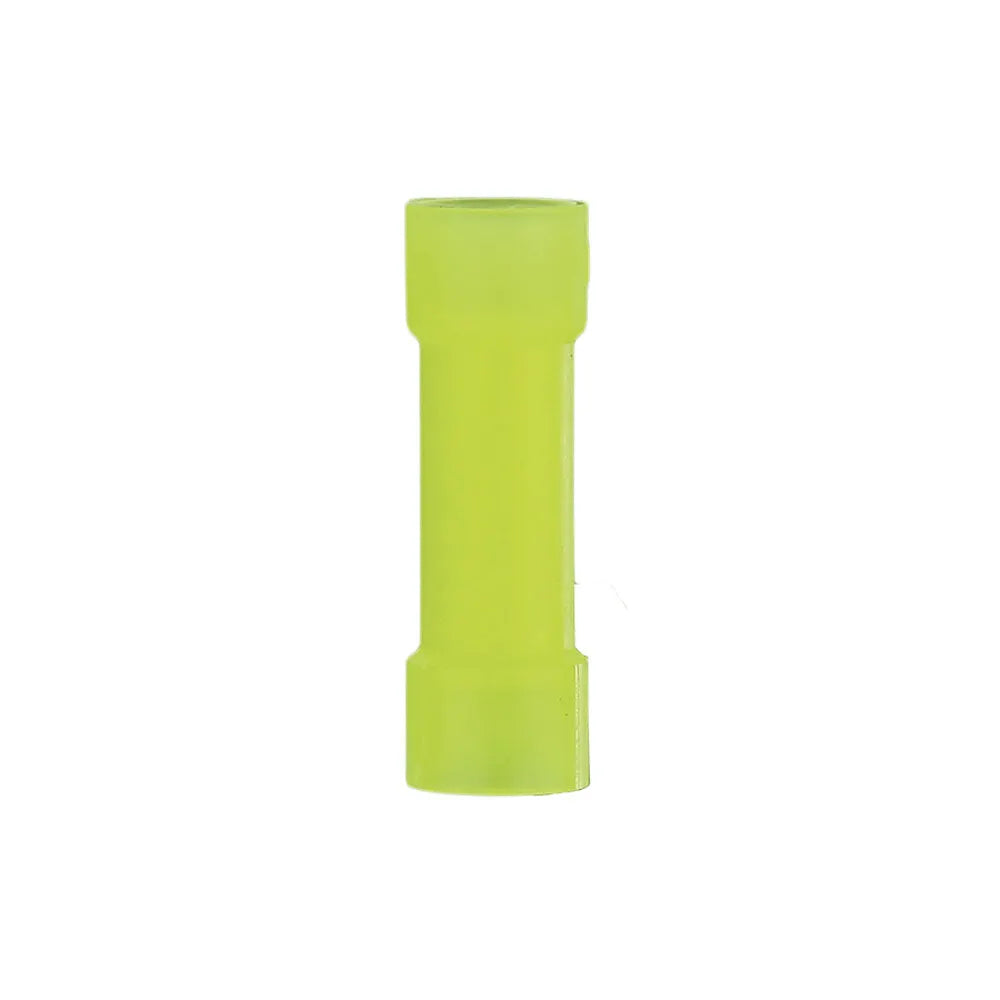

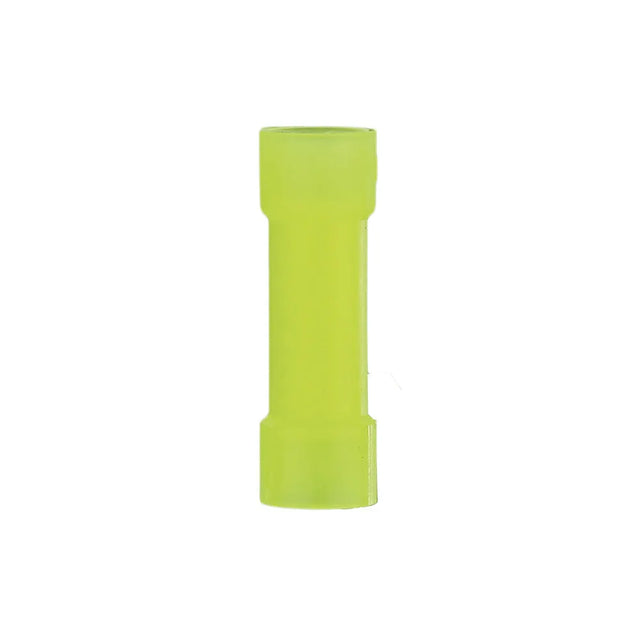

Join matching 12–10 AWG conductors with the Install Bay YNBC-5 nylon butt connectors. This 500-piece package supplies yellow insulated inline splices for building or repairing wiring connections where a permanent crimped joint is preferred over a removable plug.
The nylon sleeve insulates the crimp area and provides resistance to abrasion and impacts. The butt-splice layout accepts wire ends from opposite sides, keeping the splice in line with the harness rather than adding a stud or blade connection. The 500-piece bag offers a larger replenishment quantity without changing the specified wire range.
Key Features
- 12–10 AWG wire range identifies the intended conductor size.
- Yellow nylon insulation distinguishes this connector at the bench.
- 500 individual butt connectors per package, not 500 wire pairs.
- Inline splice format for a compact, permanent crimp connection.
Specifications
| Brand | Install Bay |
|---|---|
| Manufacturer part number | YNBC-5 |
| Connector style | Inline butt splice |
| Wire size | 12–10 AWG |
| Insulation | Nylon |
| Color | Yellow |
| Package quantity | 500 connectors |
Selection and Installation Notes
Check the conductor size at both ends of the splice and use a crimping tool appropriate for the 12–10 AWG connector. Prepare the wire without cutting strands, crimp each end securely, and inspect and gently pull-test the finished connection with the circuit de-energized. The nylon sleeve is not a stated waterproof or adhesive-lined heat-shrink seal.
Frequently Asked Questions
How many connectors are included?
This YNBC-5 listing is one package of 500 individual butt connectors. The listed price is for the package, not one loose connector.
Is this a removable connector?
No. A butt splice is a crimped wire joint, not a male/female disconnect. Choose a mating disconnect system if the circuit needs regular separation.
Can I choose the size from the insulation color alone?
Use the specified 12–10 AWG range and the YNBC-5 part number. Color helps identification but does not replace checking wire size.
Is a crimp tool included?
This package contains connectors only. Use a suitable crimping tool and follow the installation requirements for the circuit.
