Elite Audio EA3000M 1,500 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- Frequency response: 10–245 Hz
- Low-pass filter: 35–250 Hz
- Subsonic filter: 10–50 Hz
- Remote bass control: included
- Power / ground terminals: 4 AWG
Elite Audio EA3000M 1,500 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Elite Audio EA3000M 1,500 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description

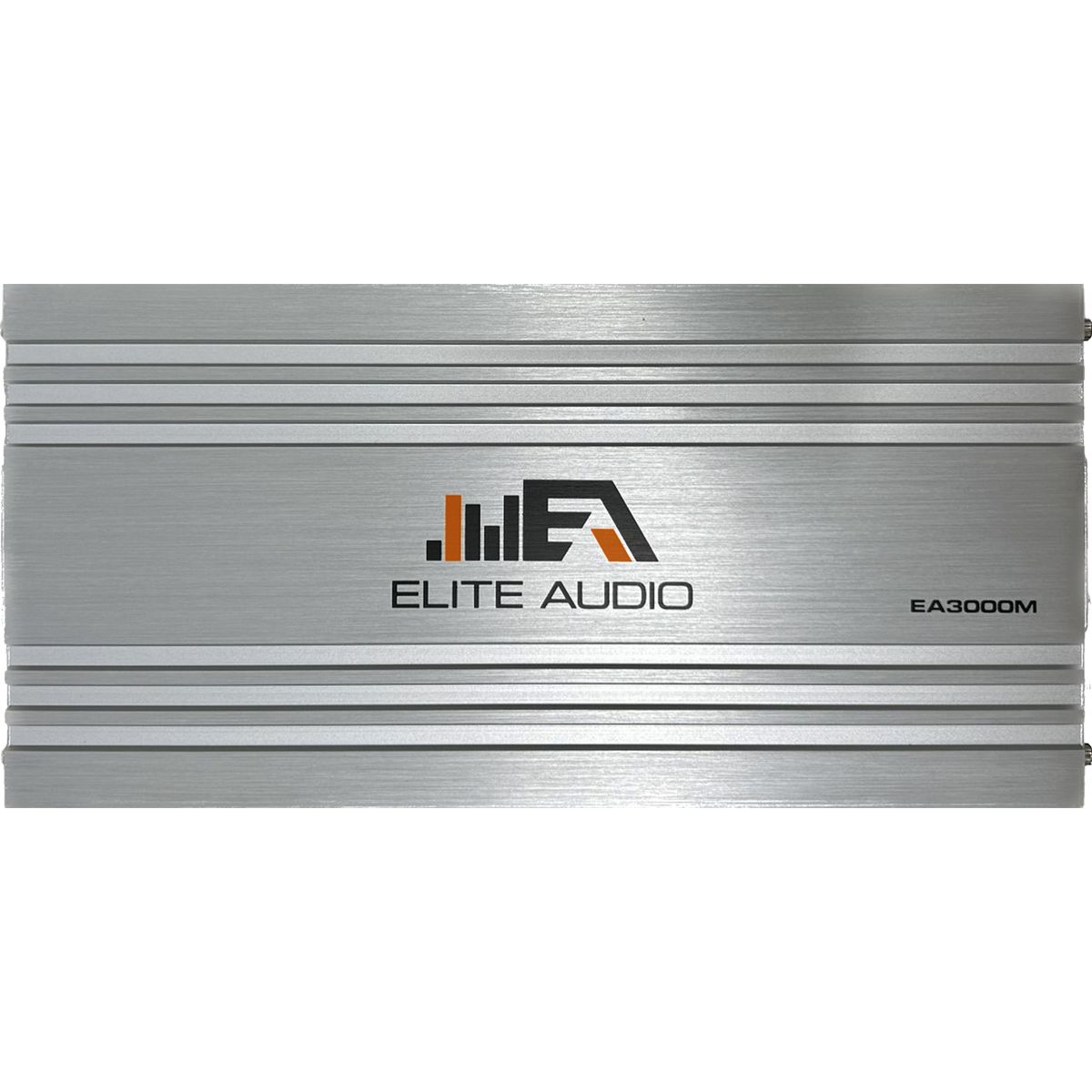

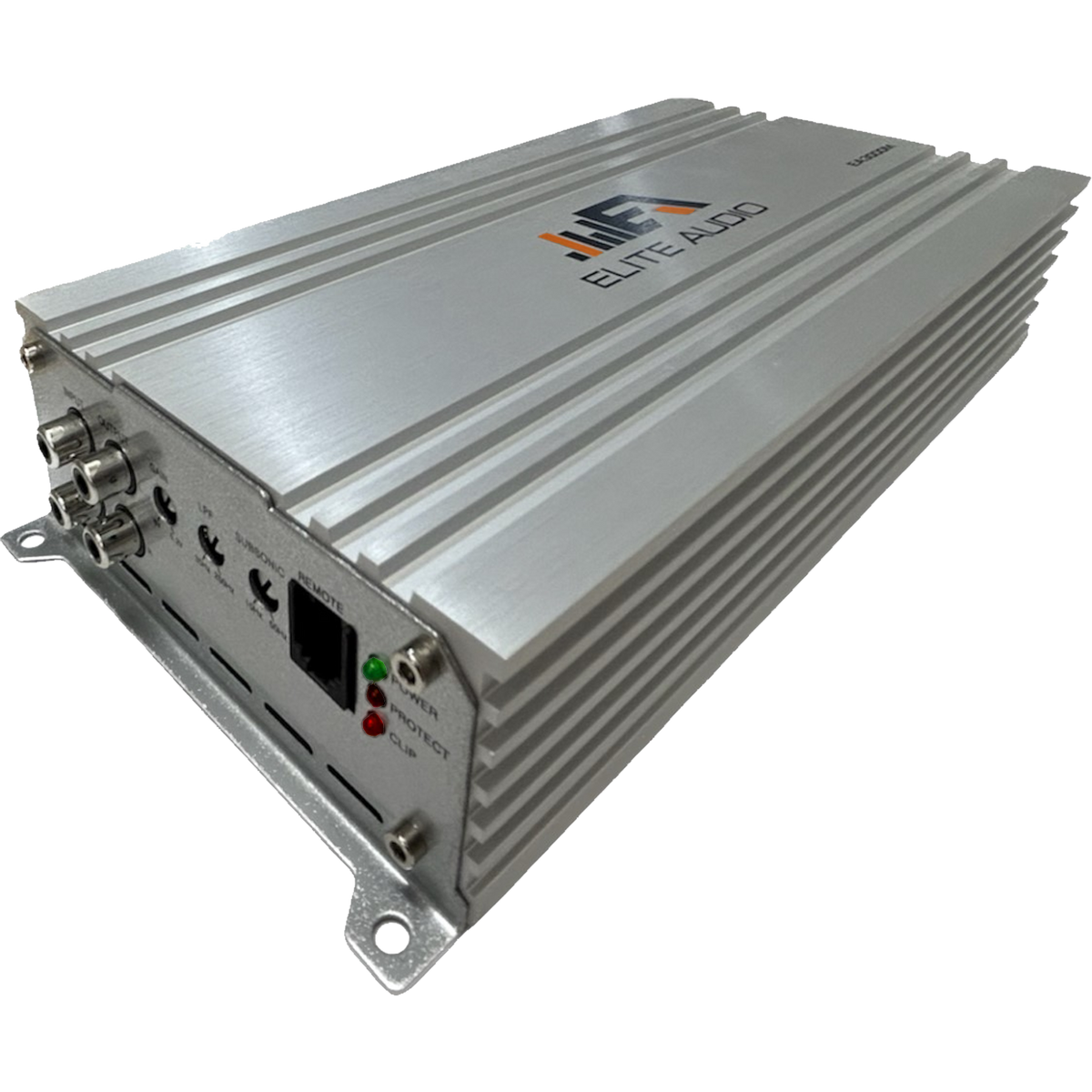

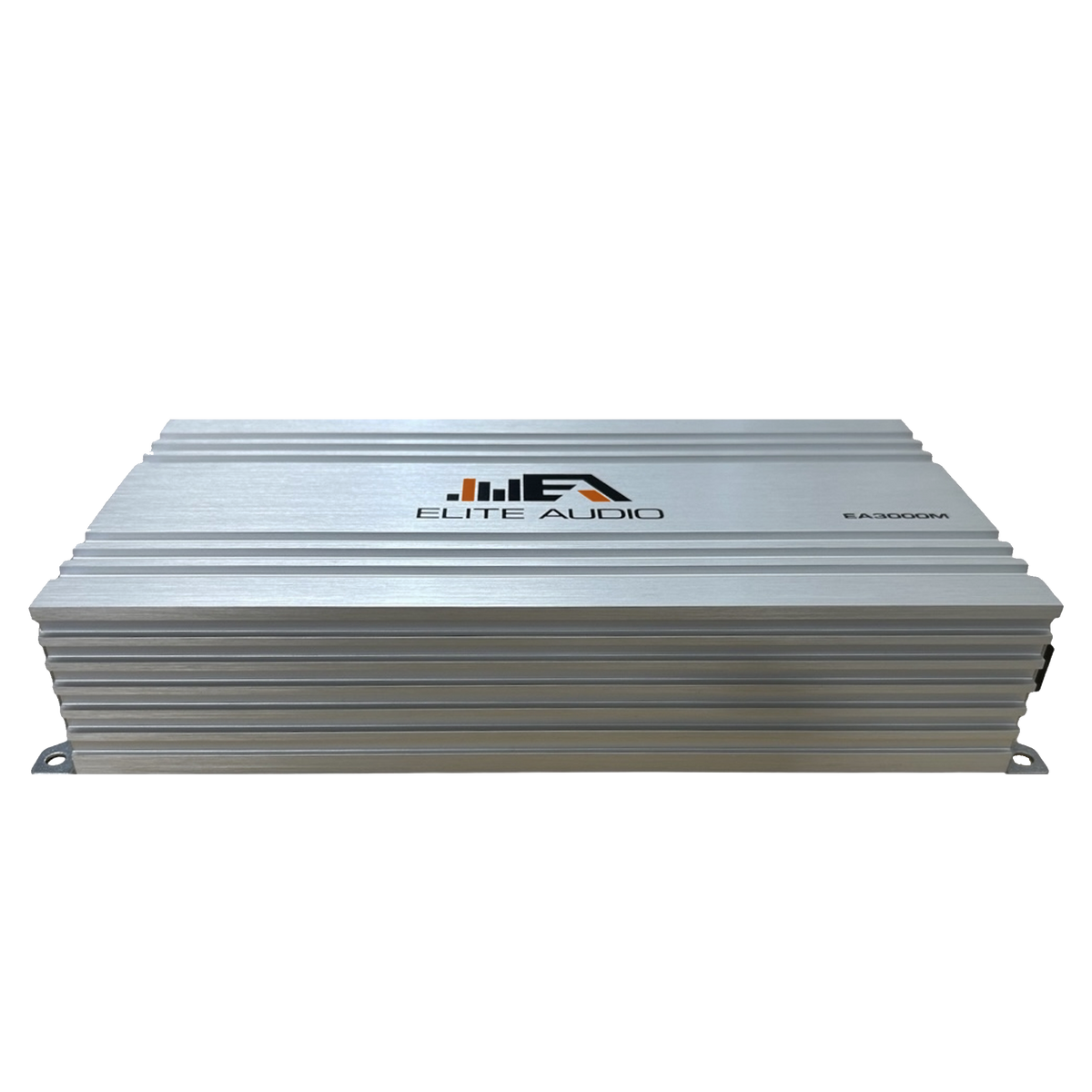

The Elite Audio EA3000M is a monoblock car audio amplifier with a single-channel output rated at 1,500 watts into 1 ohm. Its output ratings are 1,100 watts at 2 ohms and 650 watts at 4 ohms, giving you model-specific figures for matching the amplifier to your subwoofer load.

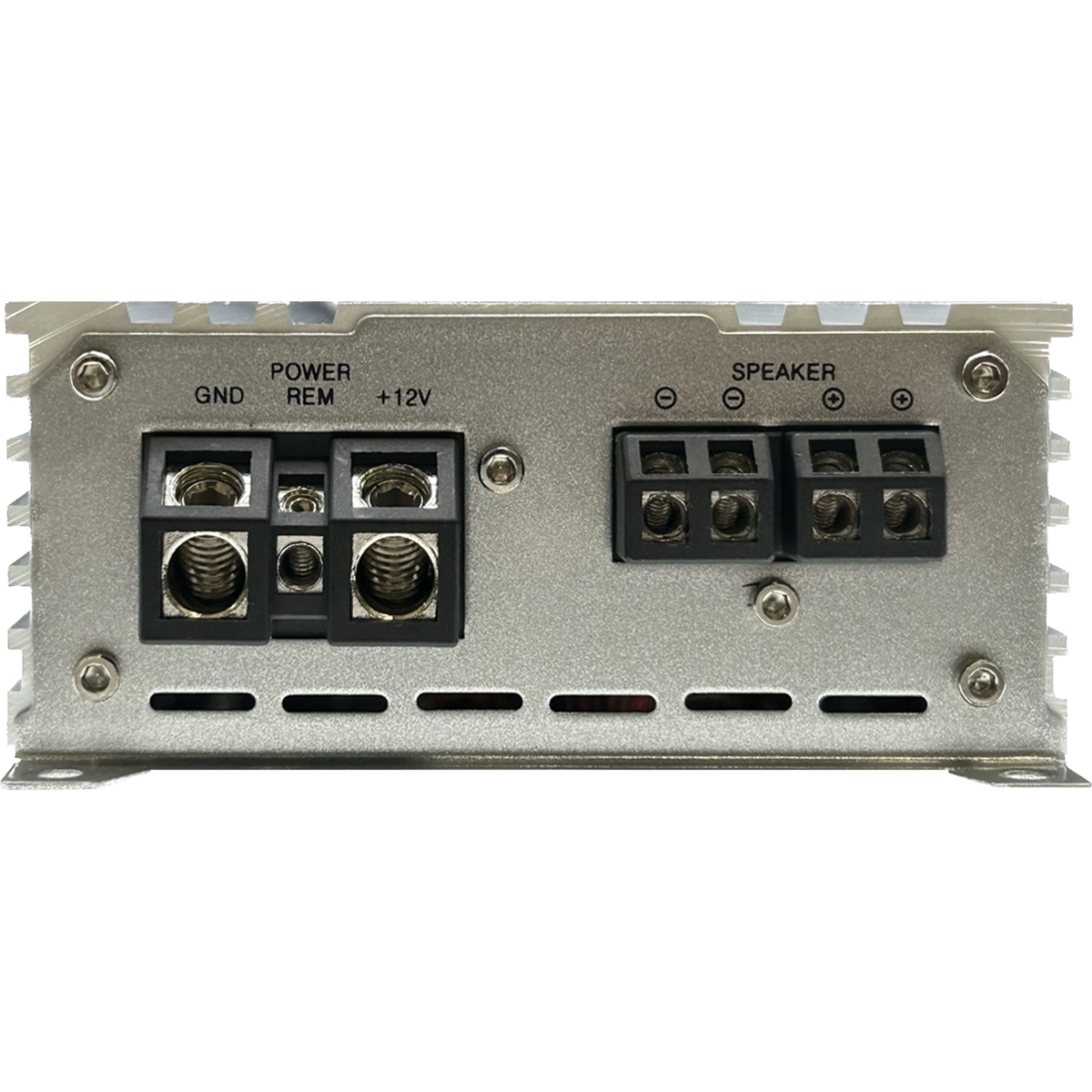

The EA3000M includes a remote bass knob, on-board clipping indication and four-way protection circuitry. A high-speed MOSFET power supply, variable filtering and 4-gauge power and ground terminals support the amplifier’s installation and adjustment.
EA3000M features
- Single-channel monoblock design with 1-ohm stability

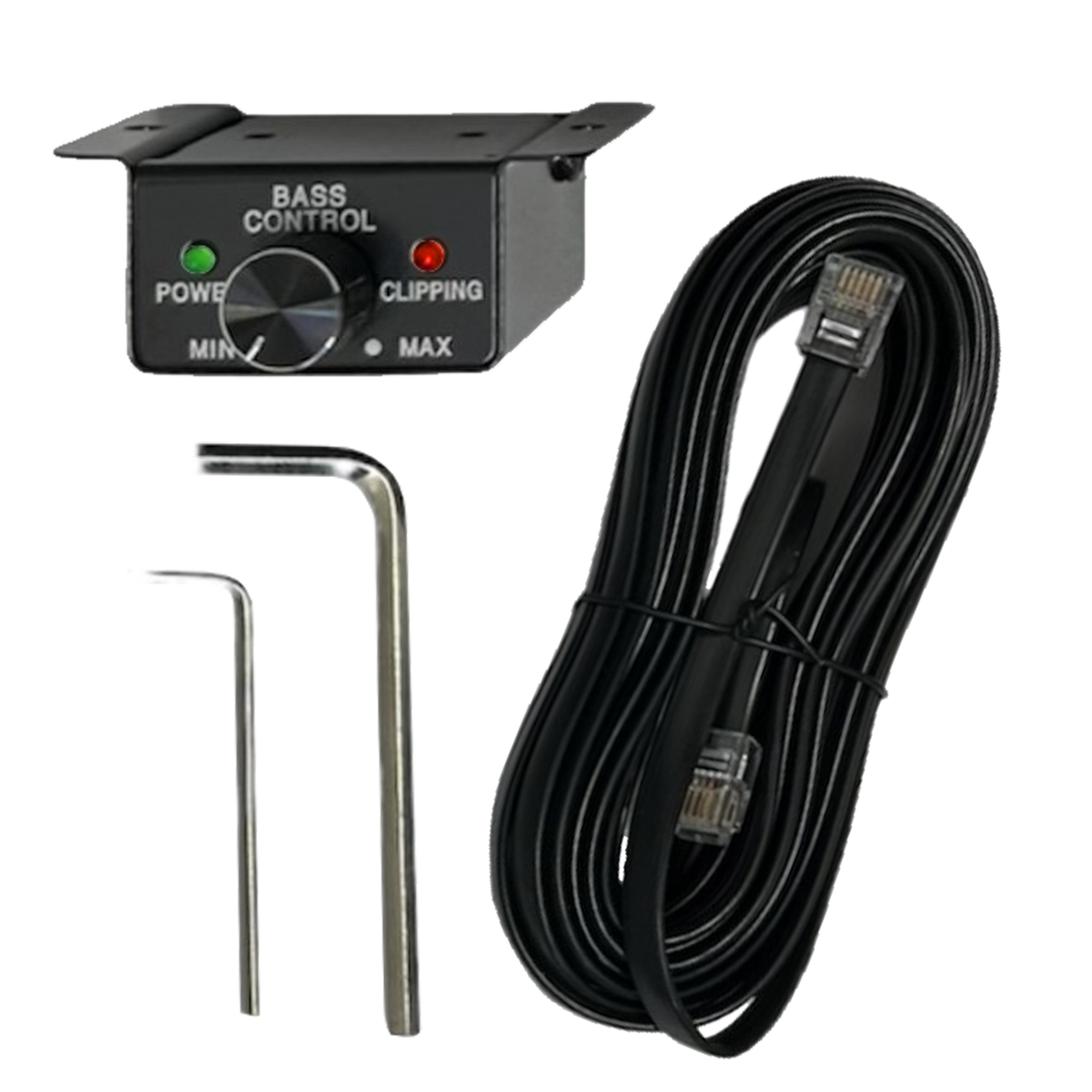

- Remote bass knob and remote gain control
- On-board clipping indication
- Four-way protection circuitry
- High-purity copper printed circuit board

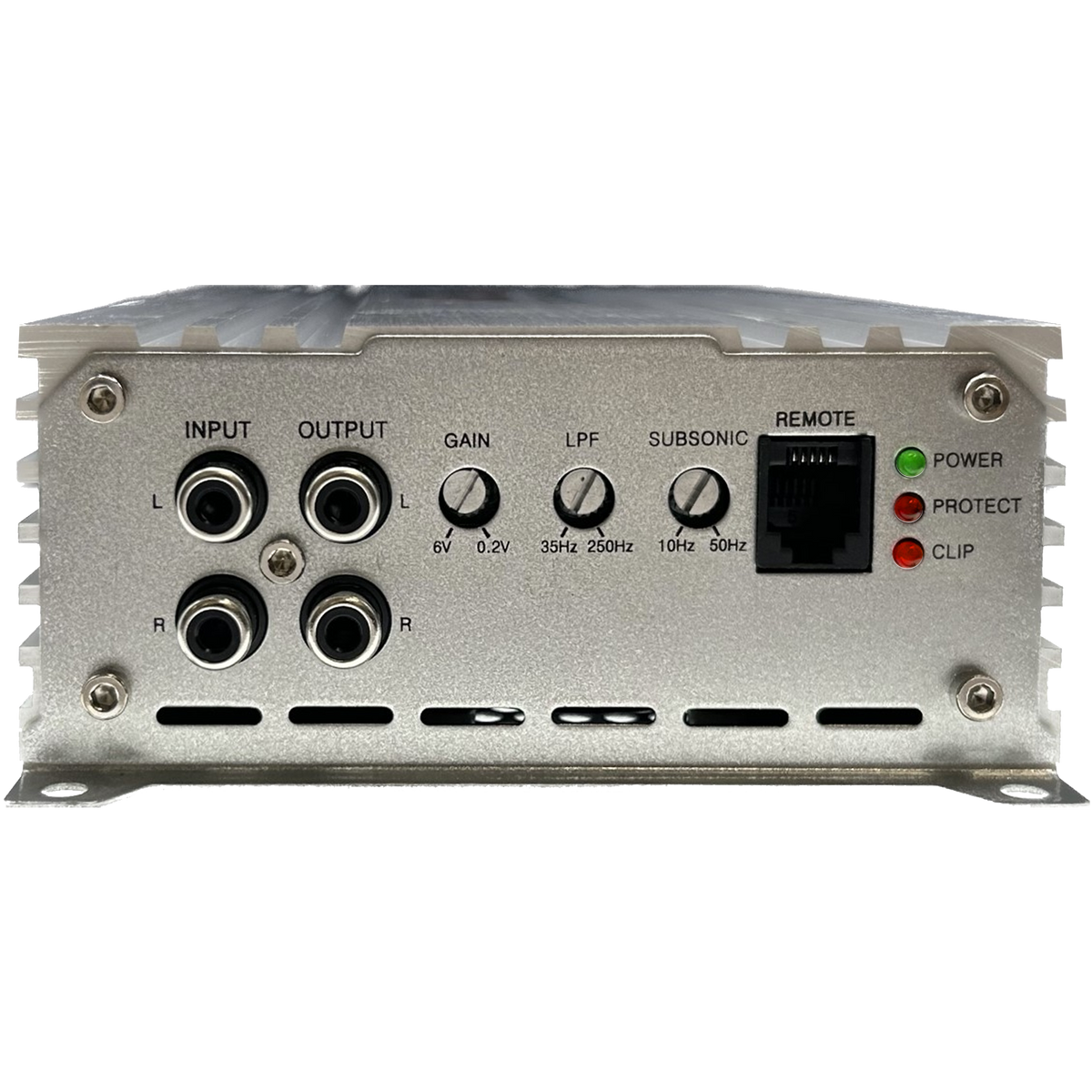

- Variable low-pass and subsonic filters
EA3000M specifications
| Power at 4 ohms | 650 W × 1 |
|---|---|
| Power at 2 ohms | 1,100 W × 1 |
| Power at 1 ohm | 1,500 W × 1 |
| Frequency response | 10–245 Hz |
| Signal-to-noise ratio | 96 dB |
| Input sensitivity | 0.2–6 V |
| Low-pass filter | 35–250 Hz |
| Subsonic filter | 10–50 Hz |
| Power and ground terminals | 4 gauge |
| Operating voltage | 9–16 V |
| External fuse requirement | 150 A |
| Dimensions (L × W × H) | 240 × 120 × 50 mm |
Confirm the final subwoofer impedance, power wiring and external fuse arrangement before installation.
