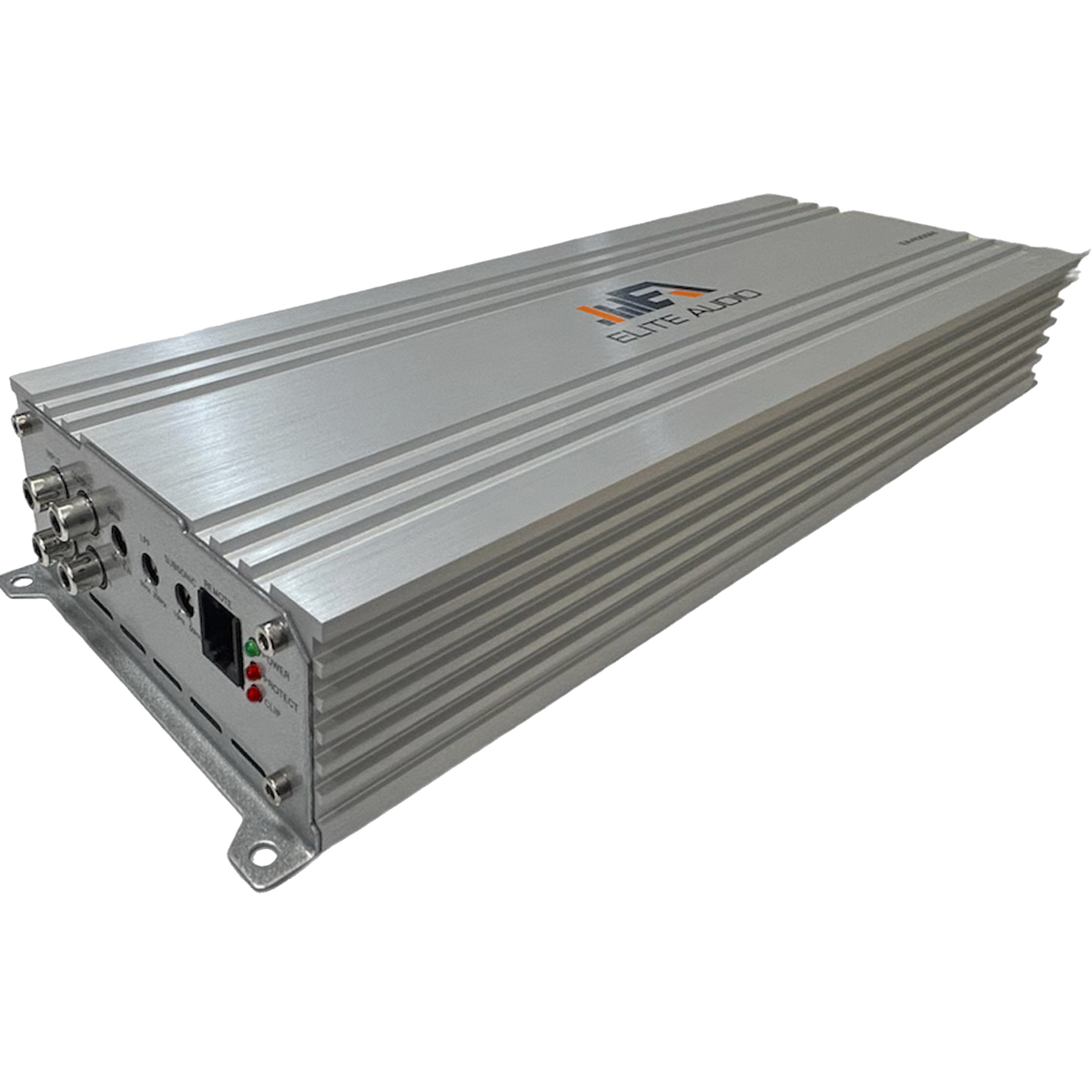

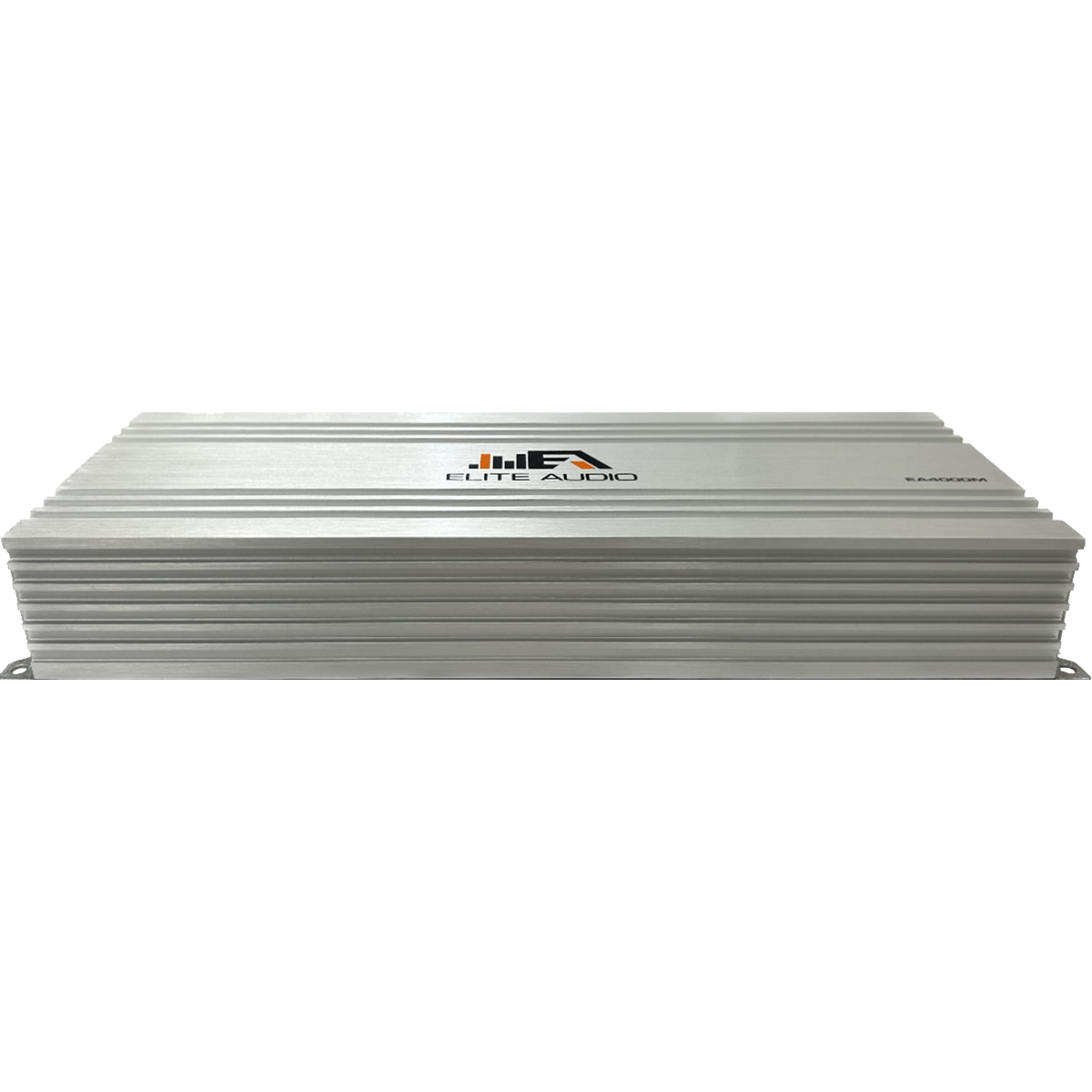

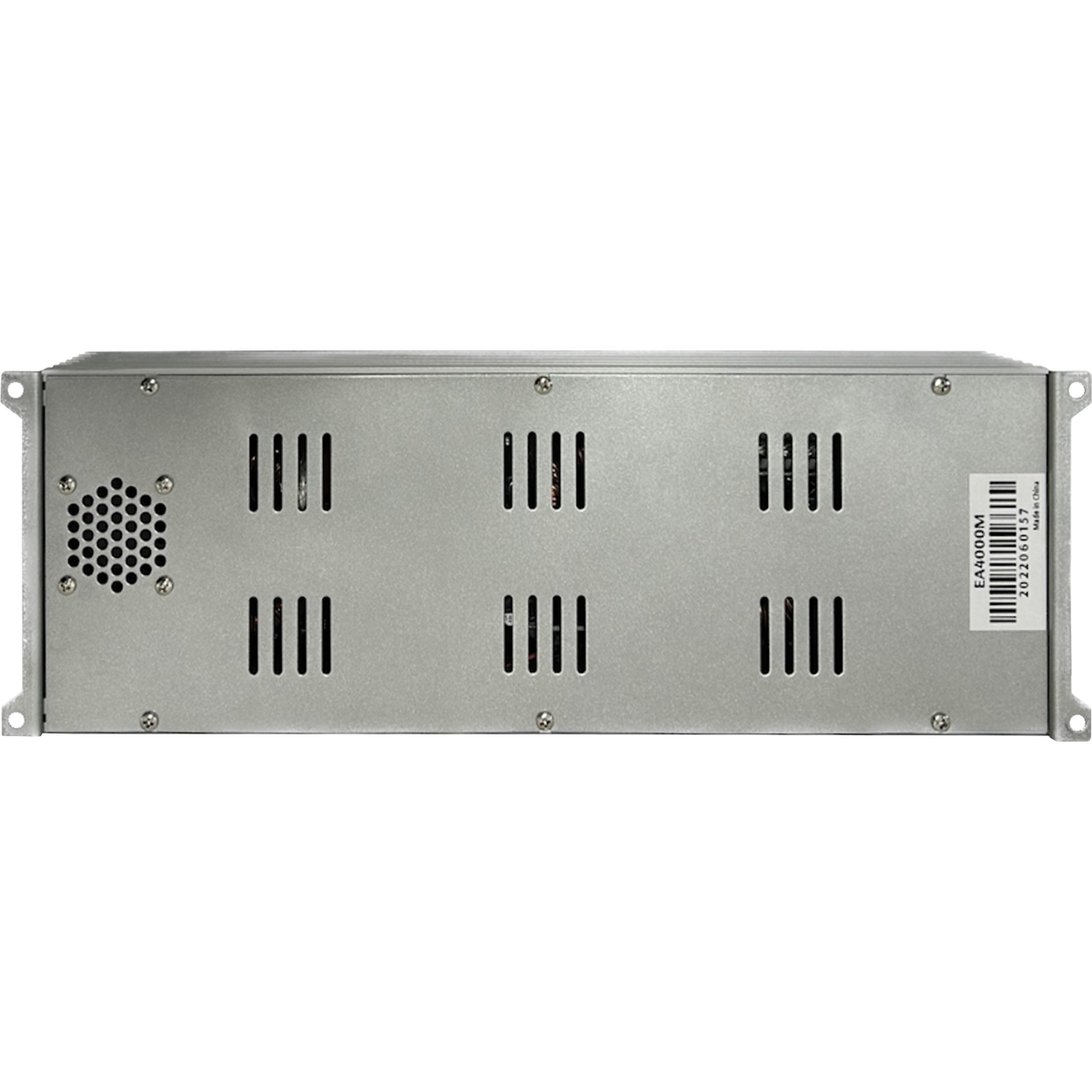

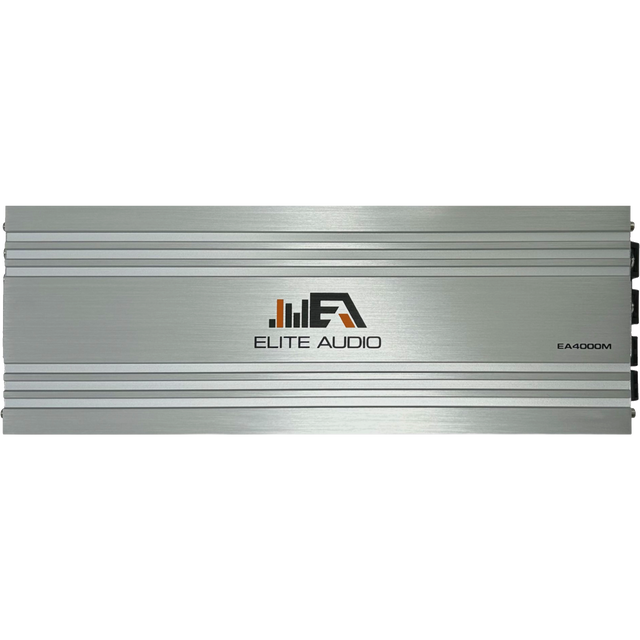

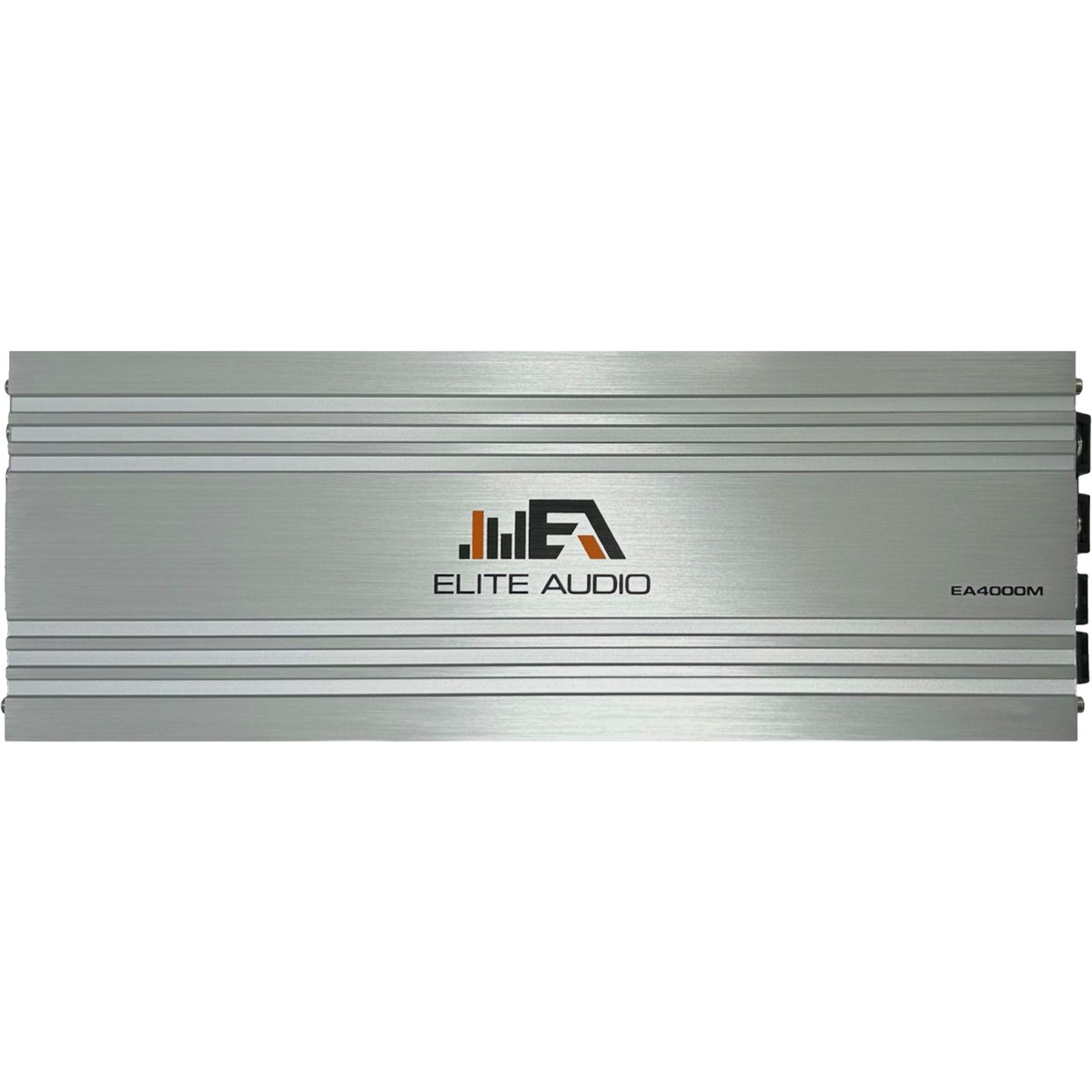

Elite Audio EA4000M 2,000 Watt Monoblock Amplifier

Product Overview

The Elite Audio EA4000M is a monoblock car amplifier rated at 2,000 x 1 power at 1 ohm. Its variable low-pass and subsonic filters let you adjust the amplifier’s filter settings for your system.

On a system designed for a 1-ohm load, the EA4000M combines monoblock operation with a remote bass knob and onboard clipping indication.

Key Features & Benefits

• 1-ohm stability: The monoblock design is rated for operation at 1 ohm.

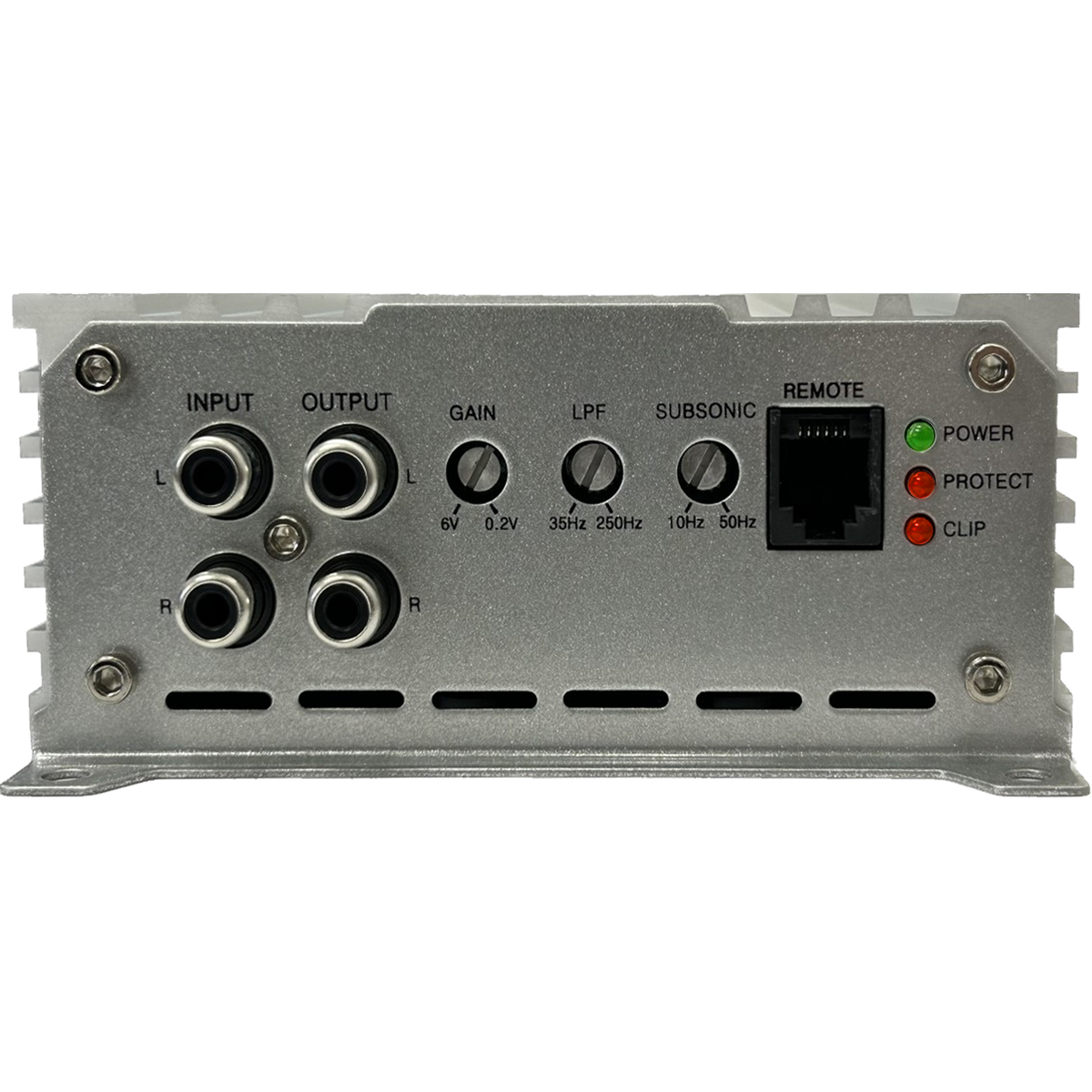

• Variable filters: Adjust the low-pass filter from 35–250Hz and the subsonic filter from 10–50Hz.

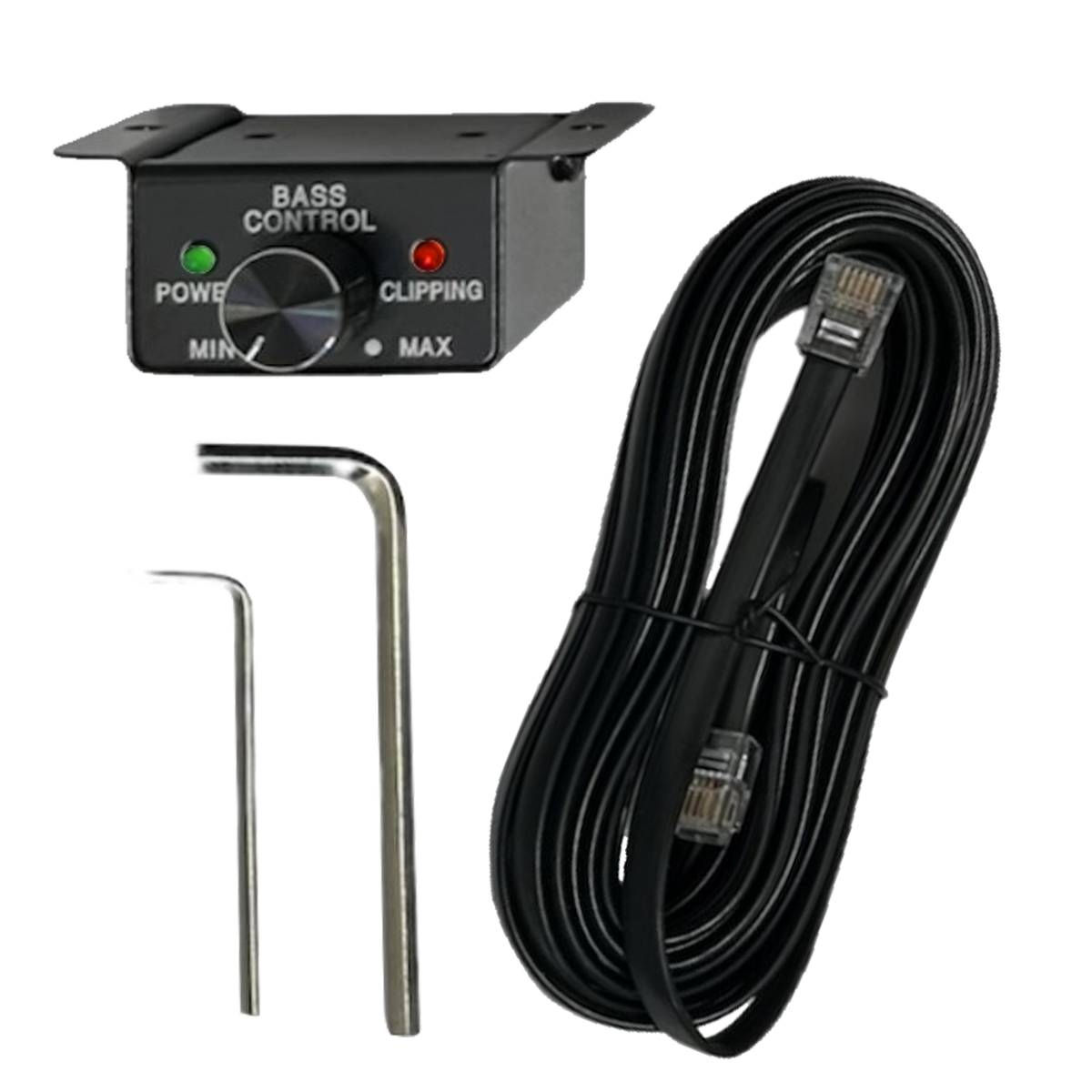

• Remote bass knob: Adjust bass level from the included remote control connection point; the product details identify a remote bass knob for monoblock models.
• Onboard clipping indication: Check the amplifier’s clipping indication while setting up your system.

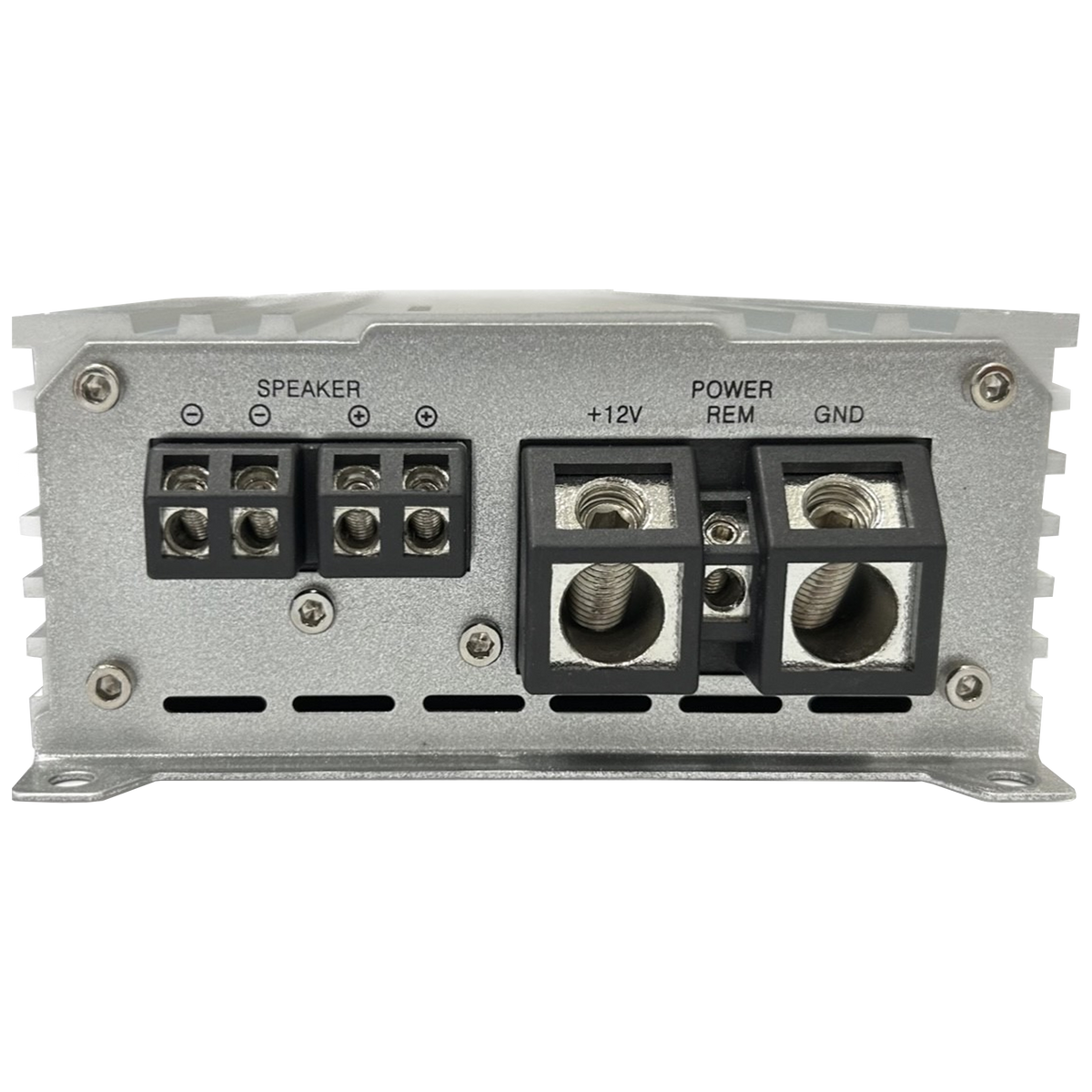

• Protection and power connections: Four-way protection circuitry and 4-gauge power and ground terminals are listed among the amplifier features.

Technical Specifications

The listed amplifier features also include high-speed MOSFET power supplies and high-purity copper printed boards. The product details specify 2-ohm stability per channel for 4-channel models and 1-ohm stability for monoblock models.

Why Choose This Product?

The EA4000M pairs a single-channel design with listed power ratings at 4, 2, and 1 ohm, making load-specific ratings central to comparing it with other amplifiers. Its adjustable low-pass and subsonic filters provide two settings to consider when matching the amplifier to your system.

The remote bass knob and onboard clipping indication add practical setup and adjustment features, while the protection circuitry is part of the listed design.

Installation & Compatibility Notes

Check your system’s impedance and power requirements against the EA4000M ratings before installation. The listed power and ground terminals are 4 gauge, the operating voltage range is 9V–16V, and the external fuse needed is 200A.

Allow for the amplifier’s 330x120x50 mm dimensions (LxWxH) when planning its mounting location. Confirm that the available space and your electrical system suit these requirements before purchase.

Frequently Asked Questions

What is the EA4000M’s power rating at 1 ohm?

The listed rating is 2000x1 at 1 ohm.

Is the EA4000M stable at 1 ohm?

Yes. The product details specify 1-ohm stability for monoblock models.

What filter adjustments does this amplifier offer?

The listed low-pass filter range is 35–250Hz, and the subsonic filter range is 10–50Hz.

What electrical requirements should I account for?

The listed operating voltage range is 9V–16V, and the external fuse needed is 200A. The power and ground terminals are 4 gauge.

How much mounting space does the EA4000M need?

Its listed dimensions are 330x120x50 mm (LxWxH).
