Hifonics HEW10D4 ELITE 10-Inch Dual 4-Ohm Subwoofer
Key features
- 600 W RMS power handling: Use the RMS rating as a reference when matching an amplifier.
- Dual 4-ohm voice coils: Account for both coils when planning the subwoofer’s wiring and amplifier load.
- Heat-management design: The vented motor and aluminum voice-coil former help manage heat during demanding playback.
- Controlled cone movement: The dual poly-cotton spider supports cone movement, while the pressure-treated, double-stitched foam surround forms the suspension.
- Push-and-insert terminals: These terminals simplify wiring connections.
Hifonics HEW10D4 ELITE 10-Inch Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Hifonics HEW10D4 ELITE 10-Inch Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

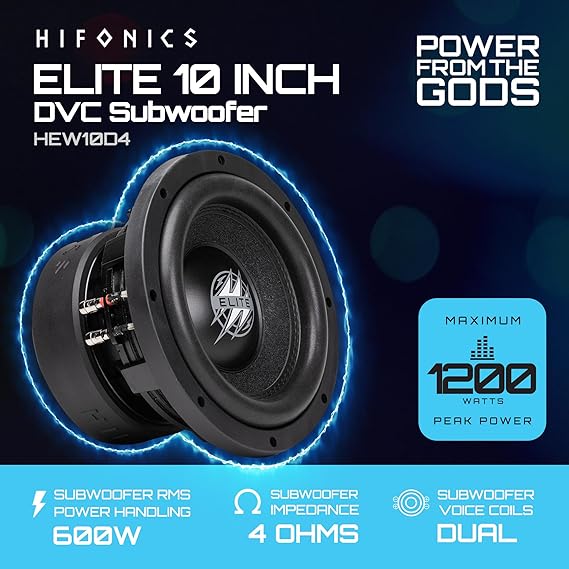

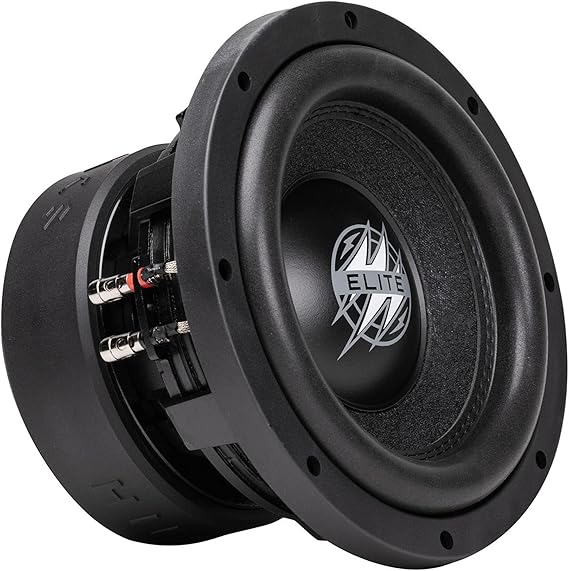

Get substantial bass from a standard-depth 10-inch subwoofer built for sealed or vented enclosures. The Hifonics HEW10D4 ELITE combines dual 4-ohm voice coils with a 600 W RMS power-handling rating to guide amplifier matching.
Its cast-aluminum basket, vented motor, and 3-inch voice-coil assembly are designed for demanding bass playback. This is the standard-depth HEW model, not the shallow-mount HEW S version.
Key Features & Benefits
- 600 W RMS power handling: Use the RMS rating as a reference when matching an amplifier.
- Dual 4-ohm voice coils: Account for both coils when planning the subwoofer’s wiring and amplifier load.
- Heat-management design: The vented motor and aluminum voice-coil former help manage heat during demanding playback.
- Controlled cone movement: The dual poly-cotton spider supports cone movement, while the pressure-treated, double-stitched foam surround forms the suspension.
- Push-and-insert terminals: These terminals simplify wiring connections.
Technical Specifications
| Specification | Value |
|---|---|
| Size | 10 inches |
| Voice coils | Dual 4 ohms |
| Power handling | 600 W RMS / 1200 W maximum |
| Voice coil diameter | 3 inches |
| Mounting hole | 9.375 inches |
| Mounting depth | 6.53 inches |
| Outside diameter | 10.875 inches |
| Sensitivity | 83.4 dB at 1 W / 1 m |
| Enclosure types | Sealed or vented; use manufacturer enclosure specifications |
| Included quantity | Sold individually |
Why Choose This Product?
The HEW10D4 ELITE gives you key details for planning a subwoofer installation: a 600 W RMS rating, dual 4-ohm coils, and listed mounting measurements. Its cast-aluminum basket and 3-inch voice-coil assembly make it a specifically equipped standard-depth option in the HEW range.
Installation & Compatibility Notes
Check that your mounting space accommodates the 9.375-inch mounting hole and 6.53-inch depth. The outside diameter is 10.875 inches. Choose a sealed or vented enclosure and follow the manufacturer’s enclosure specifications.
Match your amplifier to the subwoofer’s power rating and the load created by your wiring configuration. The enclosure and amplifier are separate.
Frequently Asked Questions
What does the 600 W RMS rating mean?
It is the subwoofer’s RMS power-handling rating. The maximum rating is 1200 W; keep the two ratings distinct when comparing equipment.
What impedance are the voice coils?
The subwoofer has two 4-ohm voice coils. Account for both coils when determining the wiring configuration and amplifier load.
Will it fit my enclosure?
Compare the 9.375-inch mounting hole and 6.53-inch mounting depth with your available space. The outside diameter is 10.875 inches.
Is this the shallow-mount HEW S model?
No. This is the standard-depth HEW model, not the shallow-mount HEW S version.
Does the subwoofer include an enclosure or amplifier?
No. The enclosure and amplifier are separate. The subwoofer is sold individually.
