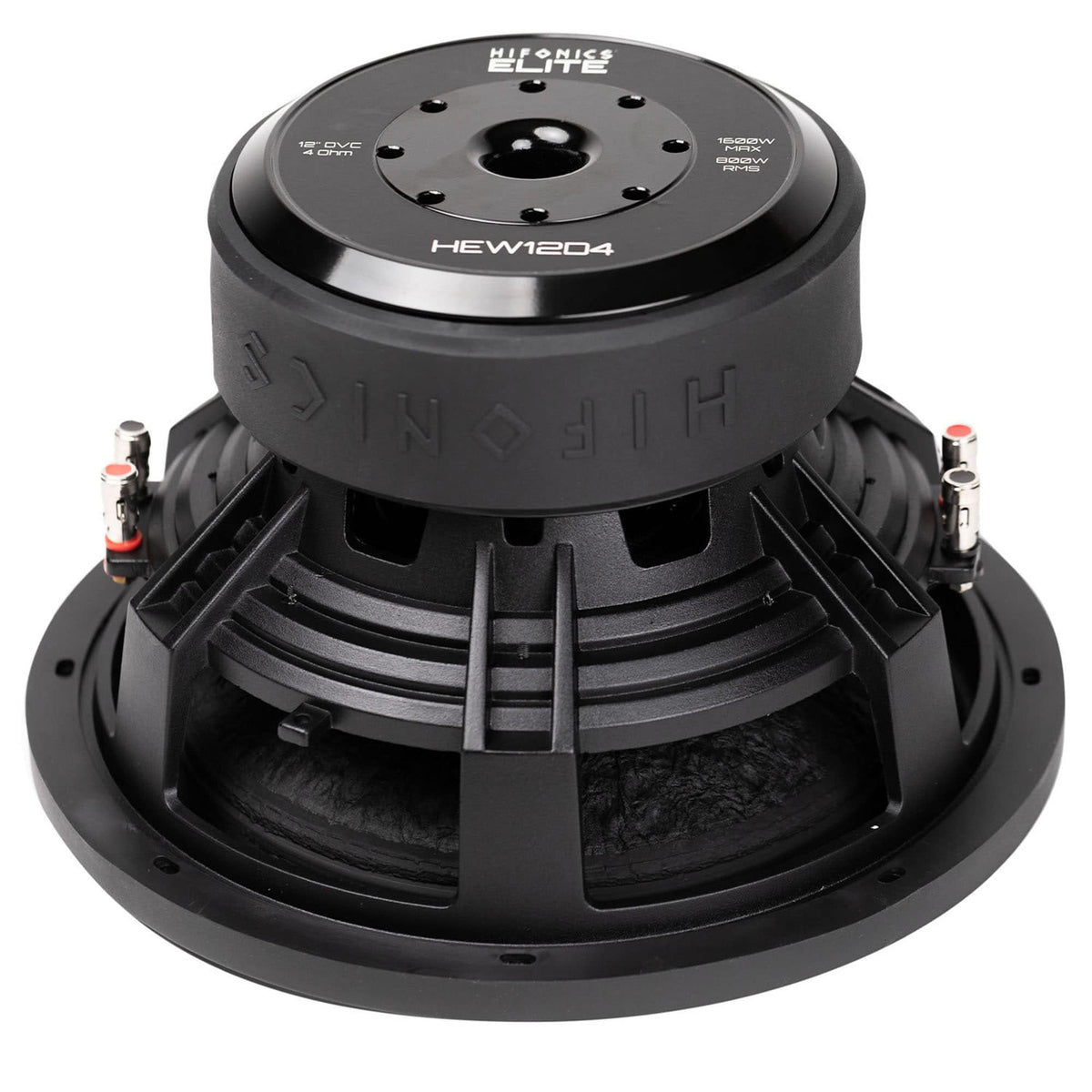

Hifonics HEW12D4 ELITE 12-Inch Dual 4-Ohm Subwoofer
Key features
- Dual 4-ohm voice coils: Consider the subwoofer’s coil configuration when matching it to your amplifier.
- 800 W RMS power handling: Use the RMS rating as a key reference when selecting an amplifier.
- Cast-aluminum basket: The rigid basket provides a solid structure for the subwoofer assembly.
- Heat-management features: The vented motor and aluminum voice-coil former are designed to help manage heat during demanding bass playback.
- Controlled cone movement: A dual poly-cotton spider and pressure-treated, double-stitched foam surround support cone movement.
- Push-and-insert terminals: These terminals simplify connecting the subwoofer during installation.
Hifonics HEW12D4 ELITE 12-Inch Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Hifonics HEW12D4 ELITE 12-Inch Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Hifonics HEW12D4 ELITE is a 12-inch dual 4-ohm subwoofer for adding dedicated bass to a car audio system. Its 800 W RMS power handling, 3-inch voice coil and vented motor give you clear details to consider when matching an amplifier and planning an enclosure.
This is the standard-depth HEW model, not the HEW shallow-mount S version. It is sold individually; the enclosure and amplifier are separate.
Key Features & Benefits
- Dual 4-ohm voice coils: Consider the subwoofer’s coil configuration when matching it to your amplifier.
- 800 W RMS power handling: Use the RMS rating as a key reference when selecting an amplifier.
- Cast-aluminum basket: The rigid basket provides a solid structure for the subwoofer assembly.
- Heat-management features: The vented motor and aluminum voice-coil former are designed to help manage heat during demanding bass playback.
- Controlled cone movement: A dual poly-cotton spider and pressure-treated, double-stitched foam surround support cone movement.
- Push-and-insert terminals: These terminals simplify connecting the subwoofer during installation.
Technical Specifications
| Specification | Details |
|---|---|
| Size | 12 inches |
| Voice coils | Dual 4 ohms |
| Power handling | 800 W RMS / 1600 W maximum |
| Voice coil diameter | 3 inches |
| Mounting hole | 11.375 inches |
| Mounting depth | 7.32 inches |
| Outside diameter | 13.0 inches |
| Sensitivity | 85.3 dB at 1 W / 1 m |
| Enclosure types | Sealed or vented; use manufacturer enclosure specifications |
| Included quantity | Sold individually |
Why Choose This Product?
The HEW12D4 ELITE brings together a dual 4-ohm configuration and an 800 W RMS rating, giving you specific figures to use when planning your bass system. Its cast-aluminum basket, vented motor and aluminum voice-coil former make construction and heat management central considerations.
Choose between a sealed or vented enclosure using the manufacturer’s enclosure specifications. The push-and-insert terminals also offer a straightforward connection point during installation.
Installation & Compatibility Notes
Check the mounting opening, available depth and outside clearance against the dimensions listed above. This is the standard-depth HEW model, so do not confuse it with the HEW shallow-mount S version.
Match your amplifier to the subwoofer’s dual 4-ohm voice coils and 800 W RMS power handling. Select a sealed or vented enclosure according to the manufacturer’s specifications. The enclosure and amplifier are sold separately.
Frequently Asked Questions
What does dual 4 ohms mean for amplifier matching?
The subwoofer has two 4-ohm voice coils. Consider that configuration alongside your amplifier’s supported load when planning the system.
Is the 1600 W maximum rating the same as the RMS rating?
No. The listed ratings are 800 W RMS and 1600 W maximum. Keep the distinction in mind when comparing amplifier power ratings.
What enclosure types can I use?
The listed enclosure types are sealed or vented. Follow the manufacturer’s enclosure specifications for either type.
Is this the shallow-mount S model?
No. The HEW12D4 ELITE is the standard-depth HEW model, not the HEW shallow-mount S version.
Are an enclosure and amplifier included?
No. The subwoofer is sold individually, and the enclosure and amplifier are separate.
