Memphis MM900.6V 6-Channel Marine Amplifier
Key features
- Six-channel layout: Four main channels and two higher-output channels allow flexible speaker and subwoofer setups.
- Marine-use construction: The IPX5-rated enclosure and conformal-coated circuitry are designed for marine use.

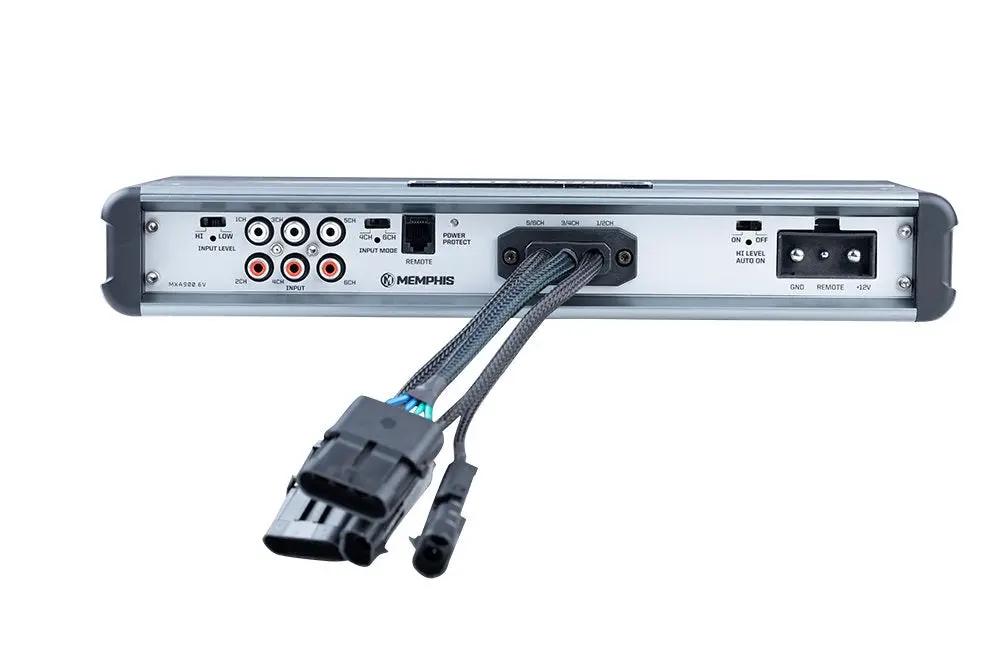

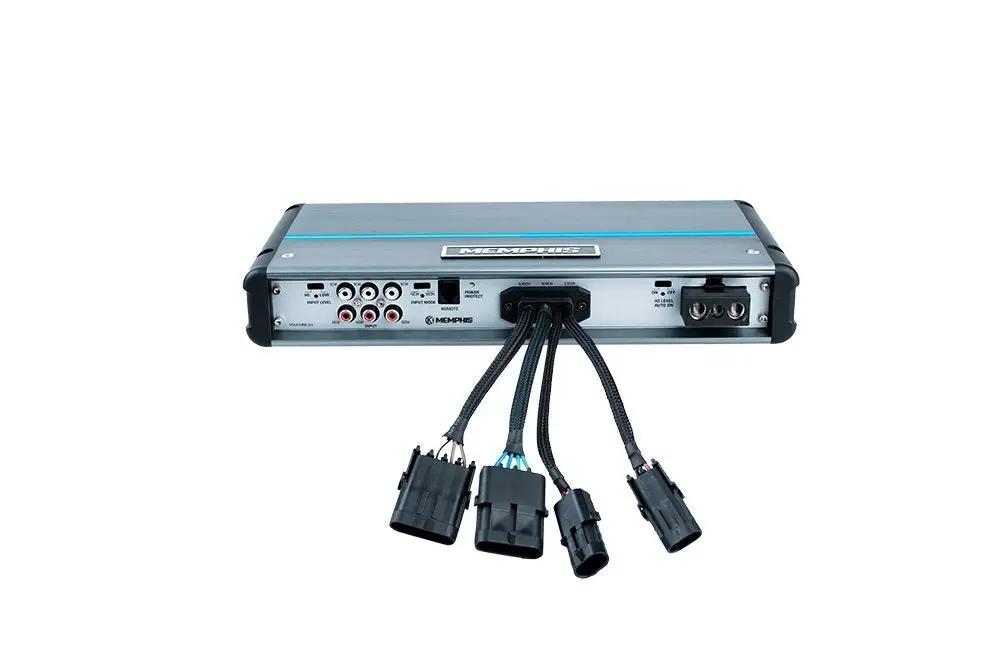

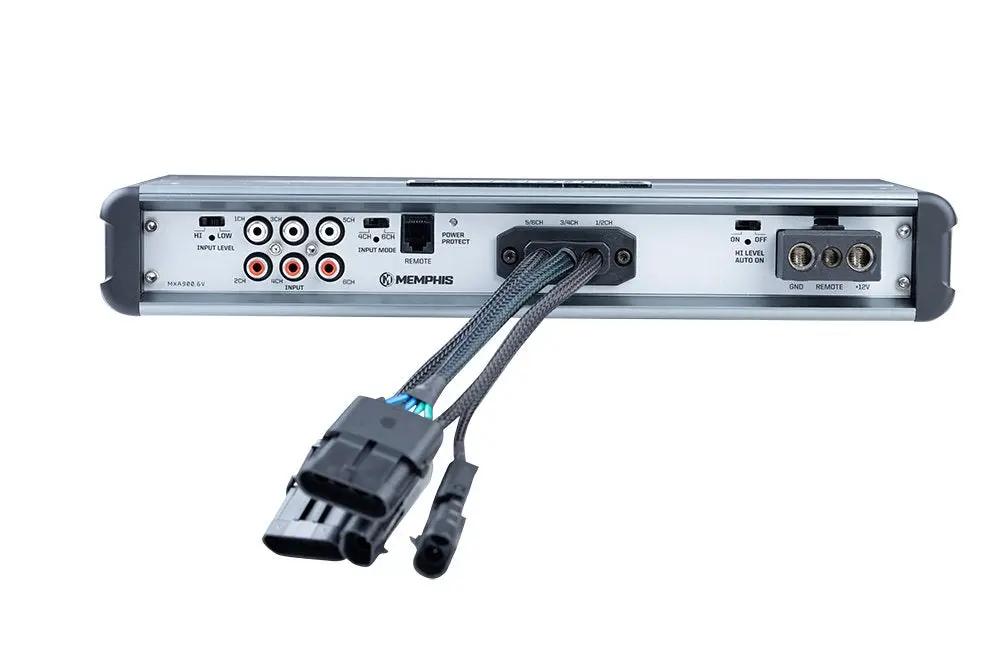

- Installation access: Sealed top controls and removable power and signal terminals provide access during setup.
- Adjustable signal shaping: Butterworth crossovers, a 24 dB infrasonic filter, and bass boost help tailor system output.
- Turn-on and input options: Signal-sensing turn-on and an input selector support different system configurations.
- Protection and controls: Thermal, overload, short-circuit, and reverse-polarity protection are included, along with remote bass control and an LED accent strip.
Memphis MM900.6V 6-Channel Marine Amplifier is backordered and will ship as soon as it is back in stock.
Memphis MM900.6V 6-Channel Marine Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Run a multi-speaker boat audio system with the Memphis MM900.6V 6-channel marine amplifier. It combines four main channels with two higher-output channels for speaker and subwoofer configurations, in a marine-use design with an IPX5-rated enclosure and conformal-coated circuitry.
Sealed top controls, removable power and signal terminals, and an aluminum heatsink support a practical installation. Adjustable crossovers, an infrasonic filter, and bass boost give you options for shaping the system’s output.
Key Features & Benefits
- Six-channel layout: Four main channels and two higher-output channels allow flexible speaker and subwoofer setups.
- Marine-use construction: The IPX5-rated enclosure and conformal-coated circuitry are designed for marine use.
- Installation access: Sealed top controls and removable power and signal terminals provide access during setup.
- Adjustable signal shaping: Butterworth crossovers, a 24 dB infrasonic filter, and bass boost help tailor system output.
- Turn-on and input options: Signal-sensing turn-on and an input selector support different system configurations.
- Protection and controls: Thermal, overload, short-circuit, and reverse-polarity protection are included, along with remote bass control and an LED accent strip.
Technical Specifications
| Specification | Value |
|---|---|
| RMS at 4 ohms | 70W x 4 + 200W x 2 |
| RMS at 2 ohms | 90W x 4 + 300W x 2 |
| Bridged at 4 ohms | 200W x 2 + 600W x 1 |
| Frequency response | 10 Hz–36 kHz |
| THD | Less than 1% |
| Input | 200 mV–20 V |
| Dimensions | 13.1 x 7.3 x 2 inches |
| Crossovers | Adjustable Butterworth, 12 dB/octave |
| Infrasonic filter | 24 dB |
| Bass boost | 0–12 dB at 45 Hz |
| Recommended wiring | 4GKIT, sold separately |
Why Choose This Product?
The MM900.6V combines four main channels and two higher-output channels in one amplifier, making it an option to consider when planning a boat system with multiple speakers and subwoofers. Its adjustable signal controls give you choices for system tuning, while the listed protection features address thermal, overload, short-circuit, and reverse-polarity conditions.
Installation & Compatibility Notes
Allow space for the amplifier’s 13.1 x 7.3 x 2-inch dimensions and check your system’s speaker loads against the ratings above before selecting a configuration. The recommended 4GKIT wiring is sold separately. Confirm that your planned connections and installation location suit your boat and system requirements.
Frequently Asked Questions
What does the MM900.6V’s six-channel layout provide?
It has four main channels and two higher-output channels for speaker and subwoofer configurations.
What are its power ratings?
At 4 ohms, RMS output is 70W x 4 + 200W x 2. At 2 ohms, it is 90W x 4 + 300W x 2. Bridged at 4 ohms, it is 200W x 2 + 600W x 1.
What are the amplifier’s dimensions?
It measures 13.1 x 7.3 x 2 inches. Check the available mounting space before installation.
Is wiring included?
The recommended 4GKIT wiring is sold separately.
What signal adjustments are available?
The amplifier has adjustable Butterworth crossovers, a 24 dB infrasonic filter, and 0–12 dB bass boost at 45 Hz.
