Memphis MX600.6 600W 6-Channel Powersports Amplifier
Key features
- Compact IP66-rated enclosure: Its narrow form helps fit powersports installations where space is limited.
- Protected electronics: A conformal-coated circuit board and sealed connectors suit the amplifier’s weather-resistant design.
- Accessible controls: Protected adjustments on top of the chassis are easier to reach in tight mounting spaces.
- Flexible inputs: High- and low-level inputs and four/six-channel input selection support different system signal setups.
- Bridgeable outputs: Bridging options provide additional configuration flexibility for supported speaker layouts.
Memphis MX600.6 600W 6-Channel Powersports Amplifier is backordered and will ship as soon as it is back in stock.
Memphis MX600.6 600W 6-Channel Powersports Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep a six-channel powersports audio system compact with the Memphis MX600.6 600W amplifier. Its narrow, IP66-rated weather-resistant chassis combines four main channels with two higher-power channels for flexible speaker layouts.

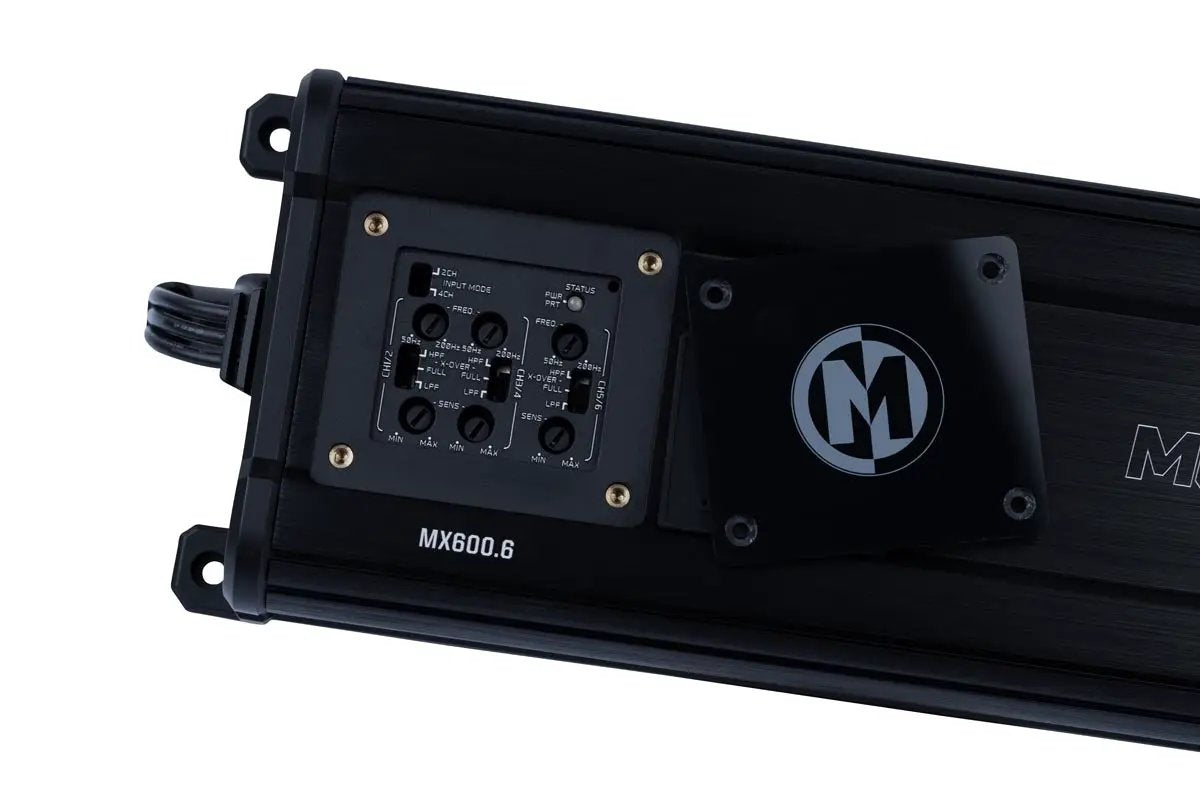

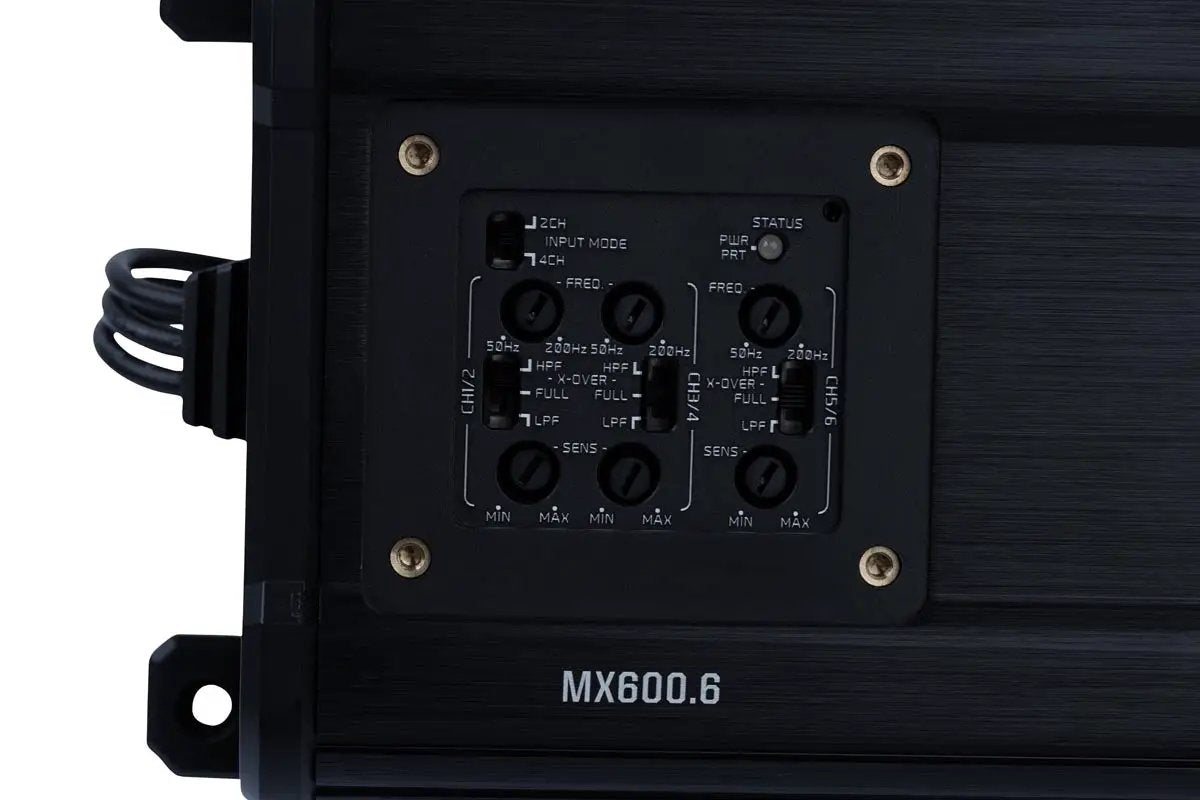

Top-mounted adjustment controls are protected and accessible in tight installations. High- and low-level inputs let you choose the input type that suits your system.
Key Features & Benefits
- Compact IP66-rated enclosure: Its narrow form helps fit powersports installations where space is limited.
- Protected electronics: A conformal-coated circuit board and sealed connectors suit the amplifier’s weather-resistant design.
- Accessible controls: Protected adjustments on top of the chassis are easier to reach in tight mounting spaces.
- Flexible inputs: High- and low-level inputs and four/six-channel input selection support different system signal setups.
- Bridgeable outputs: Bridging options provide additional configuration flexibility for supported speaker layouts.
Technical Specifications
| Specification | Value |
|---|---|
| RMS at 4 ohms | 50W x 4 + 100W x 2 |
| RMS at 2 ohms | 75W x 4 + 150W x 2 |
| Bridged at 4 ohms | 150W x 2 + 300W x 1 |
| Frequency response | 10 Hz–20 kHz |
| THD at 4 ohms | less than 1% |
| Input range | 300 mV–9.7 V |
| Dimensions | 11.7 x 4.35 x 1.75 inches |
| Recommended wiring kit | MXA8GKIT, sold separately |
Why Choose This Product?
The MX600.6 brings six amplifier channels into a narrow chassis, with four main channels and two higher-power channels. Its stated power ratings vary by impedance and bridging configuration, giving you specific figures to consider when planning your system. The weather-resistant enclosure, sealed connectors, and conformal-coated circuit board are features designed for powersports installations.
Installation & Compatibility Notes
Check that the 11.7 x 4.35 x 1.75-inch chassis fits your intended mounting location and that your speaker layout matches the amplifier’s channel and load ratings. The recommended MXA8GKIT wiring kit is sold separately.
Frequently Asked Questions
What power does the MX600.6 provide at 4 ohms?
Its RMS rating at 4 ohms is 50W x 4 + 100W x 2. The bridged rating at 4 ohms is 150W x 2 + 300W x 1.
What is the RMS rating at 2 ohms?
The listed RMS output at 2 ohms is 75W x 4 + 150W x 2.
Can I use high-level or low-level inputs?
Yes. The amplifier has high- and low-level inputs, plus four/six-channel input selection.
Is the recommended wiring kit included?
The MXA8GKIT is listed as a recommended wiring kit and sold separately.
