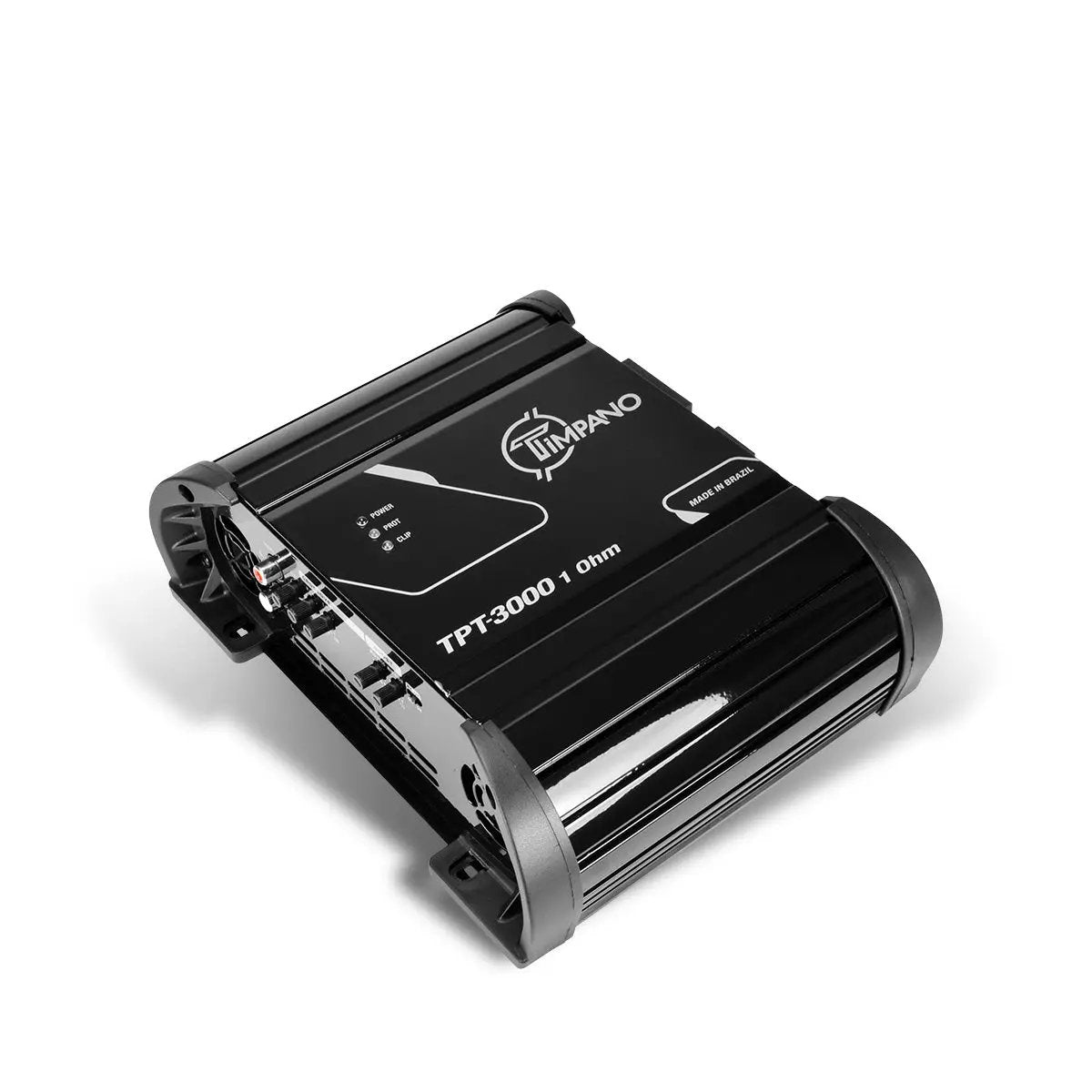

Timpano TPT-3000 1 Ohm Full-Range Monoblock Amplifier
Key features
- Full-range output: The 10 Hz–20 kHz response supports compatible subwoofer, speaker, or driver systems with suitable crossover settings.

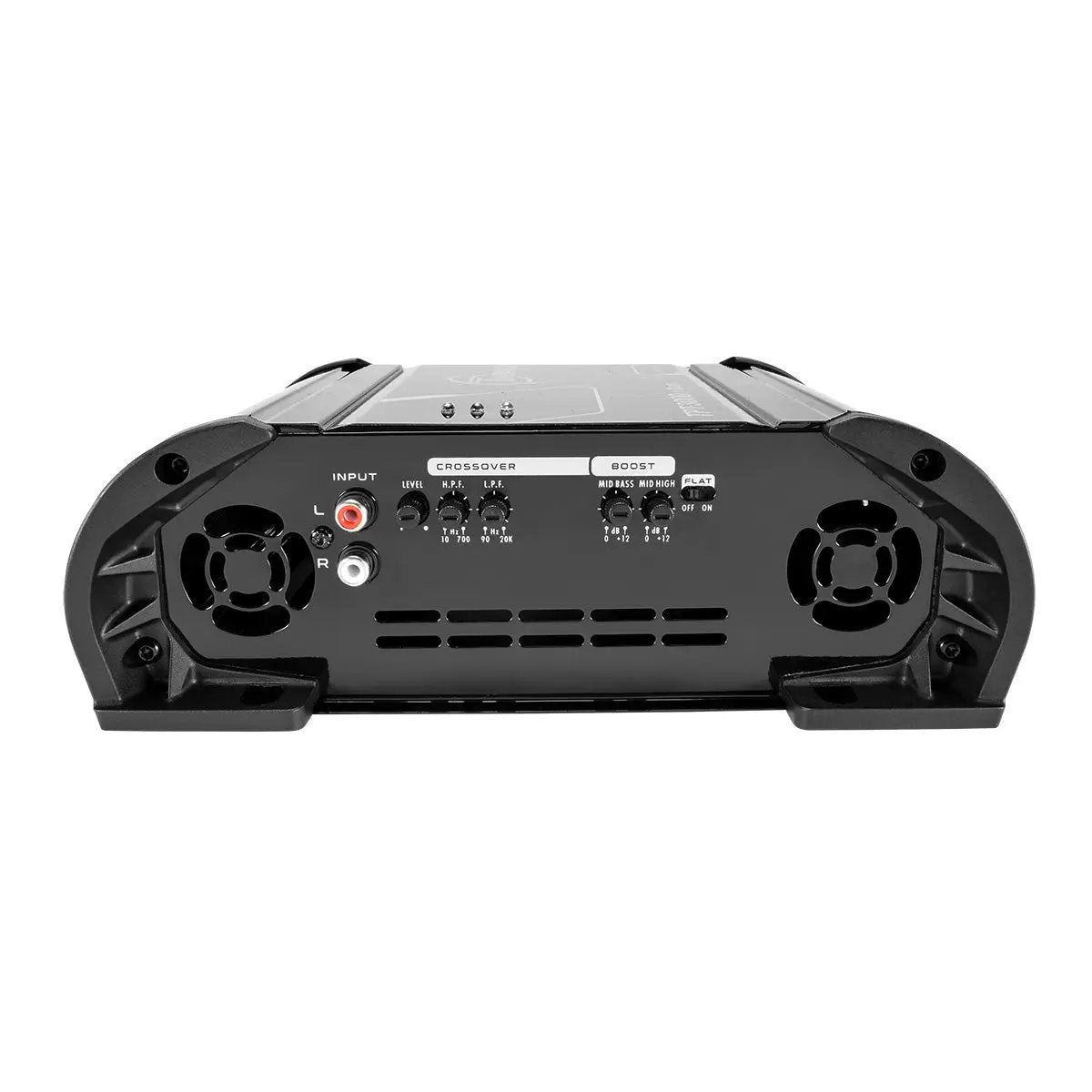

- Filter adjustment: High-pass and low-pass controls help tailor the output to the connected speakers.
- Variable gain: Adjust the amplifier’s input level to align with the source signal.
- System protection: Built-in thermal and short-circuit protection help protect the amplifier during operation.
- Compact chassis: The heat-sink design measures 9.36 × 7.46 × 3.05 inches for installation planning.
Timpano TPT-3000 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Timpano TPT-3000 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a high-output car audio system around the Timpano TPT-3000 1 Ohm full-range monoblock amplifier. Its Class D design, single channel, and broad frequency response support compatible speaker applications beyond bass-only setups.
Adjustable high-pass and low-pass filters let you tune the signal for your system, while power ratings are specified at different supply voltages and speaker loads.
Key Features & Benefits
- Full-range output: The 10 Hz–20 kHz response supports compatible subwoofer, speaker, or driver systems with suitable crossover settings.
- Filter adjustment: High-pass and low-pass controls help tailor the output to the connected speakers.
- Variable gain: Adjust the amplifier’s input level to align with the source signal.
- System protection: Built-in thermal and short-circuit protection help protect the amplifier during operation.
- Compact chassis: The heat-sink design measures 9.36 × 7.46 × 3.05 inches for installation planning.
Technical Specifications
| Amplifier type | Class D full-range monoblock |
|---|---|
| Channels | 1 |
| Minimum speaker load | 1 ohm |
| RMS power at 14.4 V | 3,350 W × 1 at 1 ohm; 2,100 W × 1 at 2 ohms |
| RMS power at 12.6 V | 3,000 W × 1 at 1 ohm; 2,000 W × 1 at 2 ohms |
| Supply voltage | 9–16 V |
| Frequency response | 10 Hz–20 kHz |
| High-pass filter | 10–700 Hz |
| Low-pass filter | 90 Hz–20 kHz |
| Signal-to-noise ratio | >90 dB |

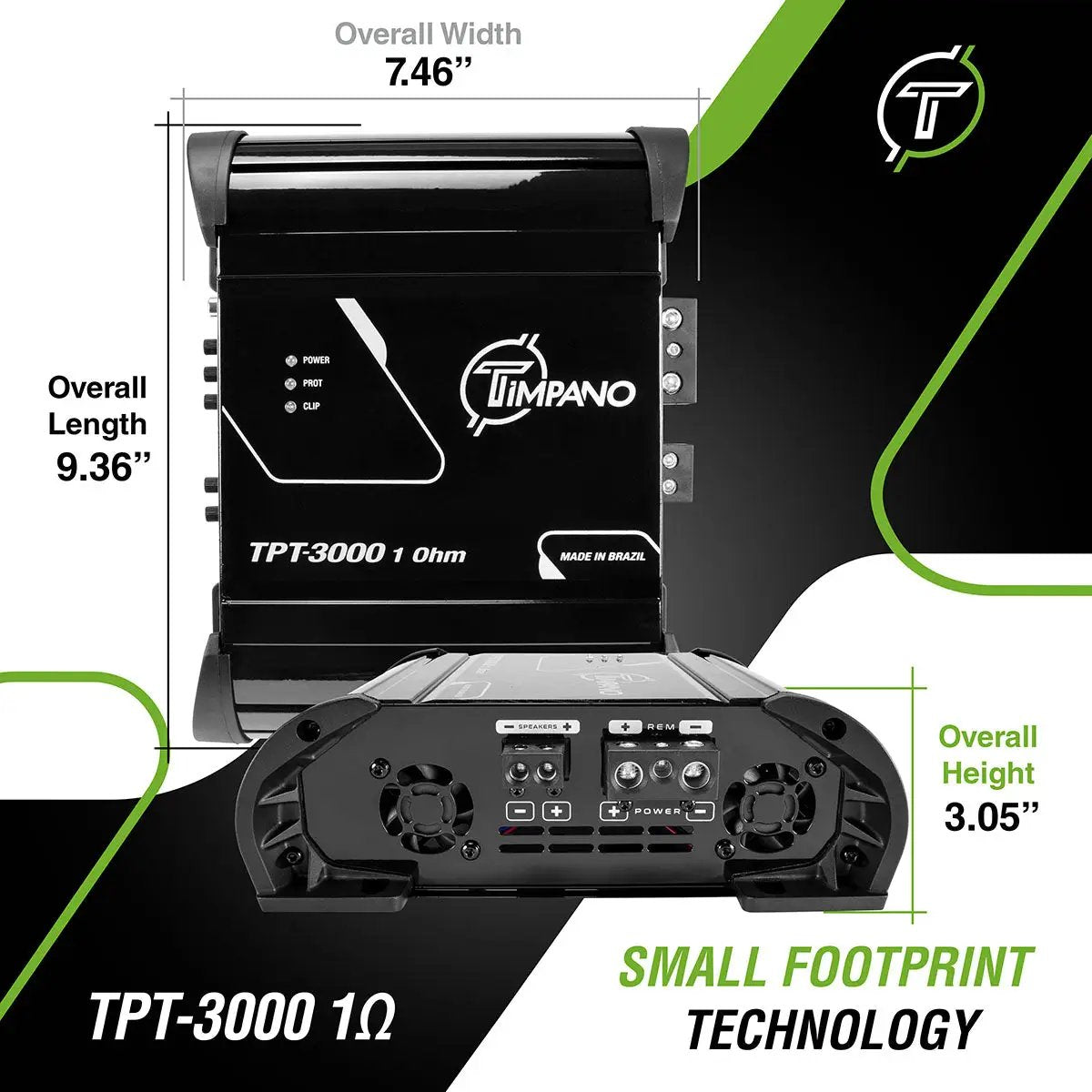

| Dimensions (manufacturer L × W × H) | 9.36 × 7.46 × 3.05 inches |
| Equalization | Mid-bass: 0 to +12 dB at 270 Hz; mid-high: 0 to +12 dB at 2 kHz |
| Weight | 4.81 lb (official manual) |
Why Choose This Product?
The TPT-3000 combines a single full-range channel with adjustable filters and equalization. That gives you tuning controls for a compatible system without limiting the amplifier to bass-only applications.
Its power figures are tied to both load impedance and supply voltage, making those conditions important when comparing ratings and planning your system.
Installation & Compatibility Notes

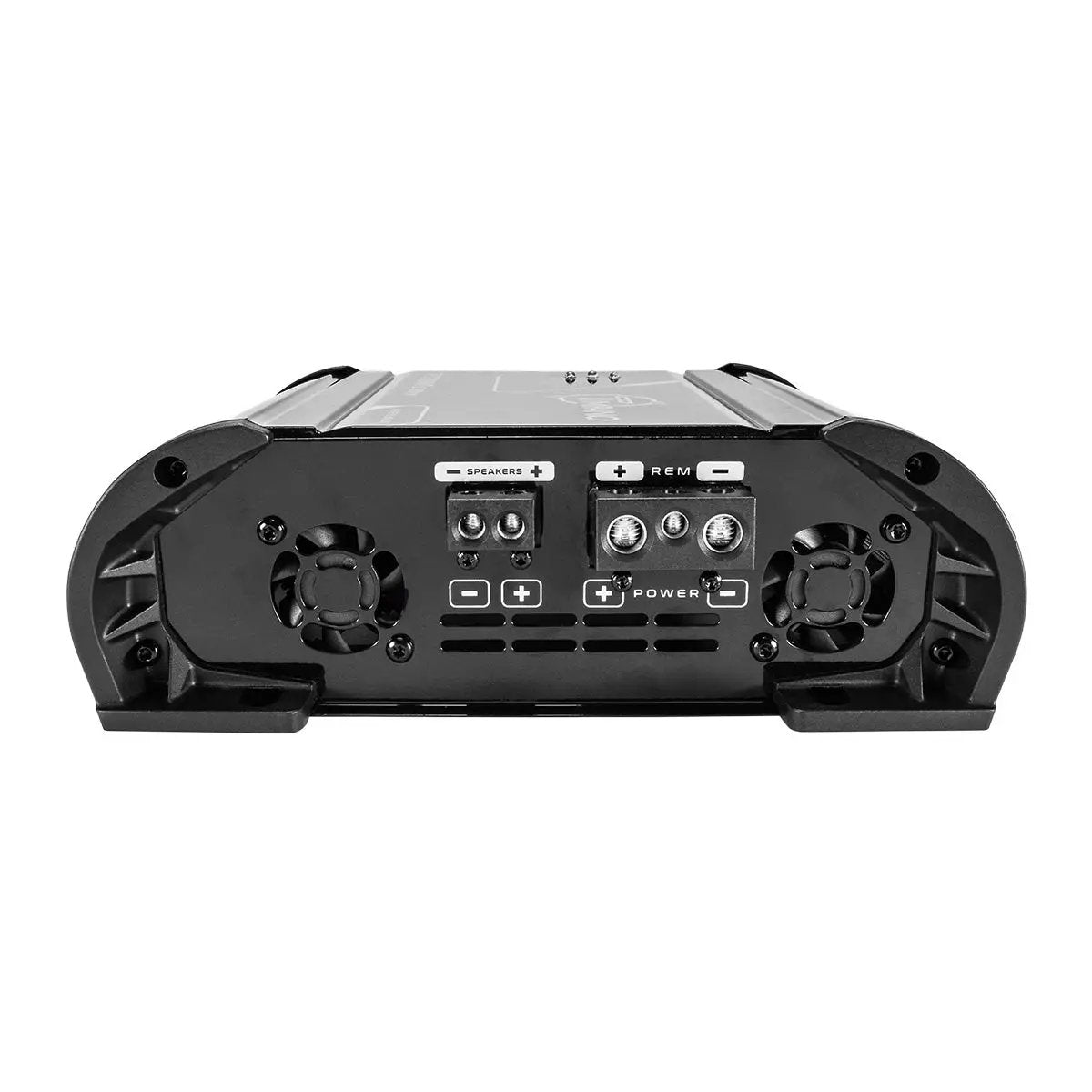

Match speaker wiring to the amplifier’s minimum rated impedance and size the vehicle electrical system for the intended installation. Use the manufacturer’s instructions for power wiring, fusing, ventilation, and setup.
Check available mounting space against the listed dimensions, and confirm that your speakers and source signal suit the planned configuration.
Frequently Asked Questions
Is the TPT-3000 a bass-only amplifier?
No. It is a full-range monoblock with a stated frequency response of 10 Hz–20 kHz. Use appropriate crossover settings for the connected speakers.
How should I compare its RMS power ratings?
Compare ratings at the same supply voltage and speaker load. The specifications list separate output figures at 12.6 V and 14.4 V, and at 1 ohm and 2 ohms.
What speaker load should I use?
The listed minimum speaker load is 1 ohm. Match the final speaker wiring configuration to that rating.
What should I plan for during installation?
Allow space for the amplifier’s listed dimensions, and follow the manufacturer’s instructions for electrical connections, fusing, ventilation, and setup.
