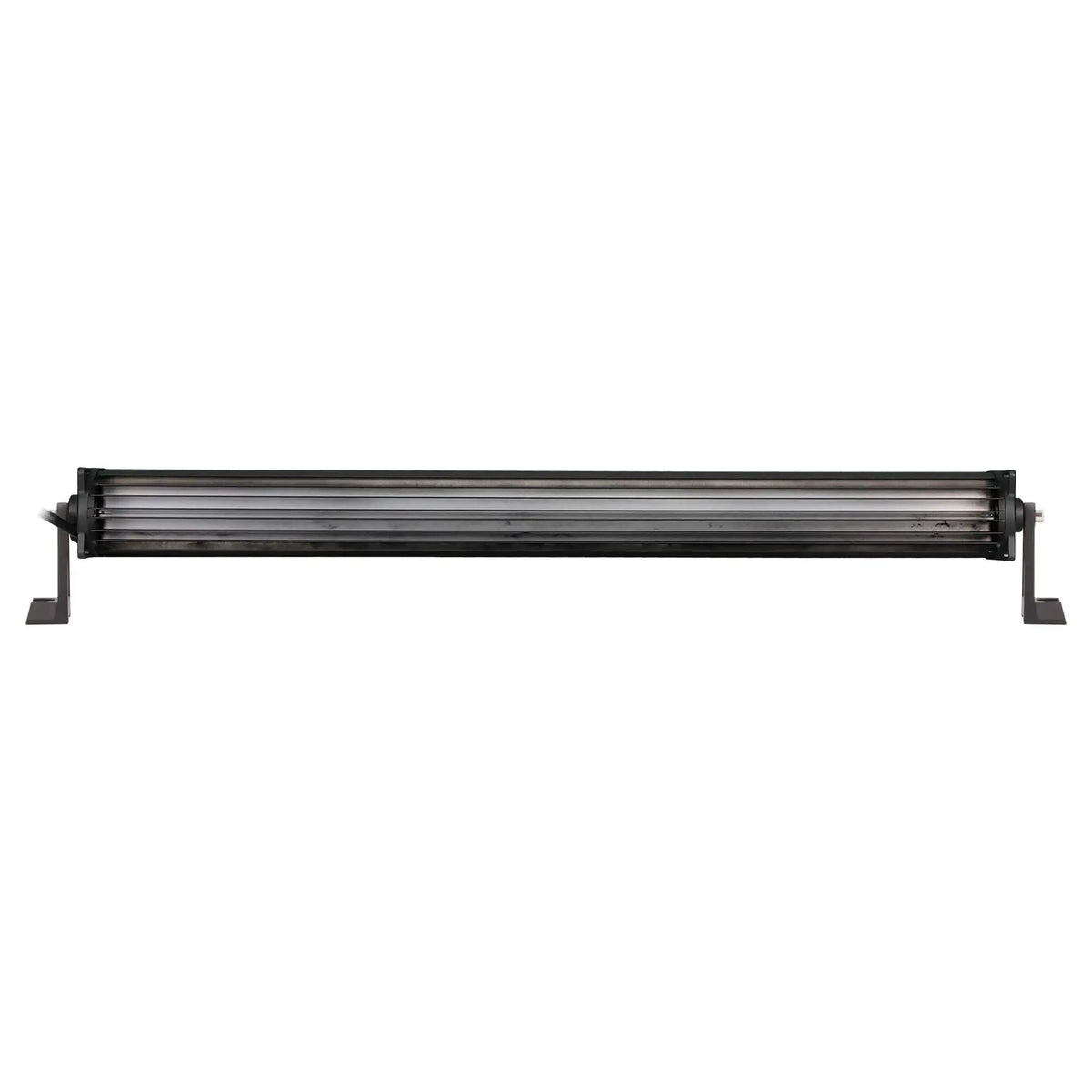

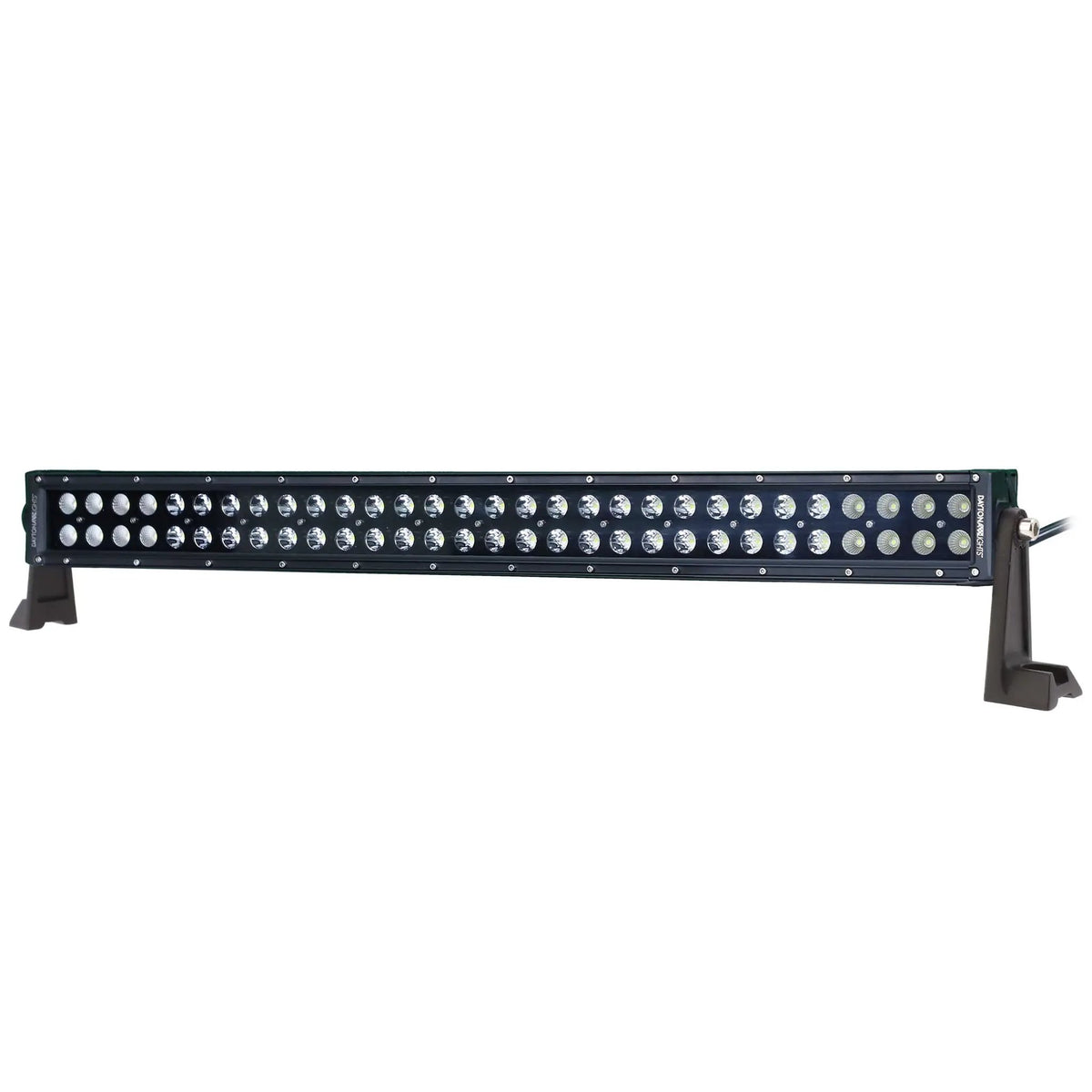

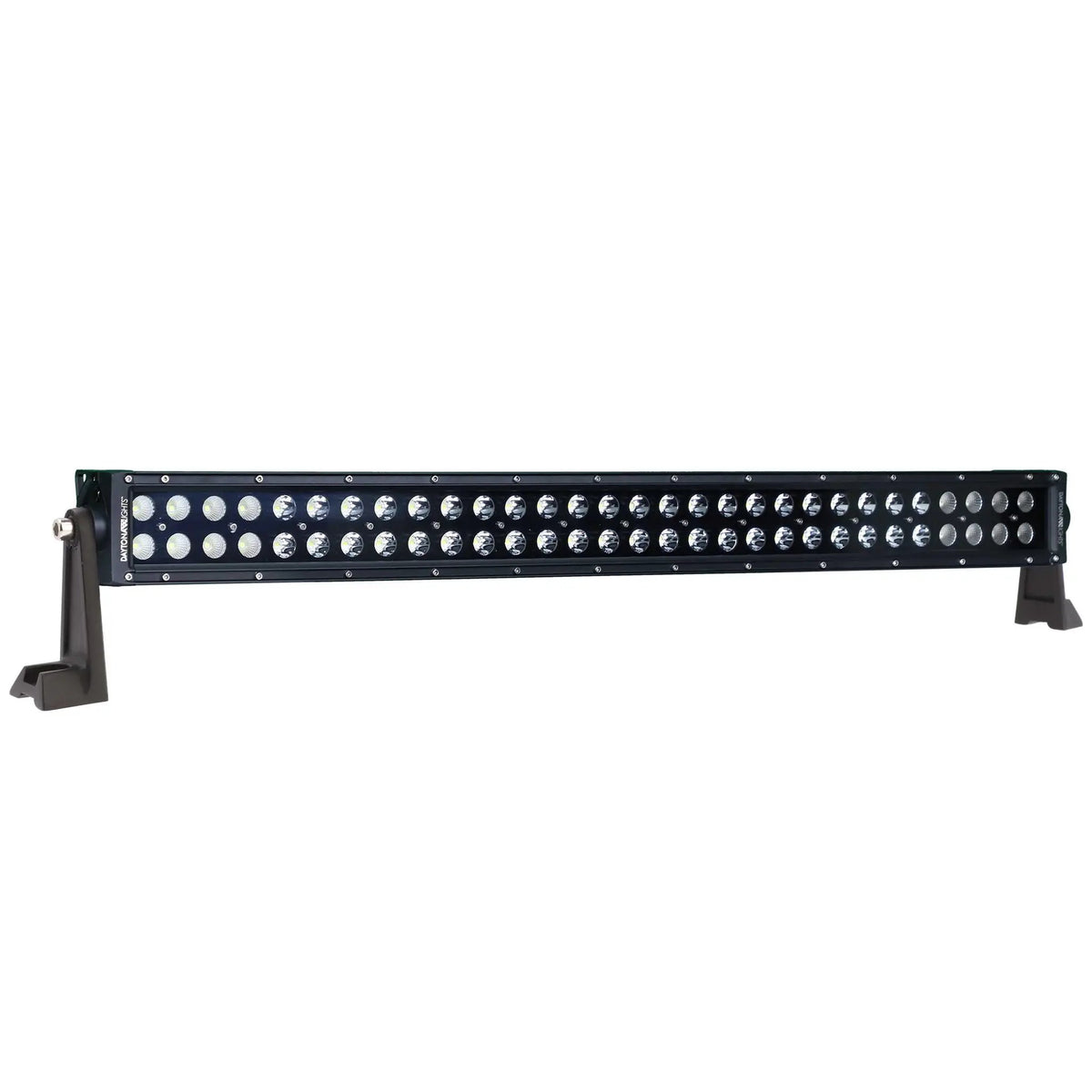

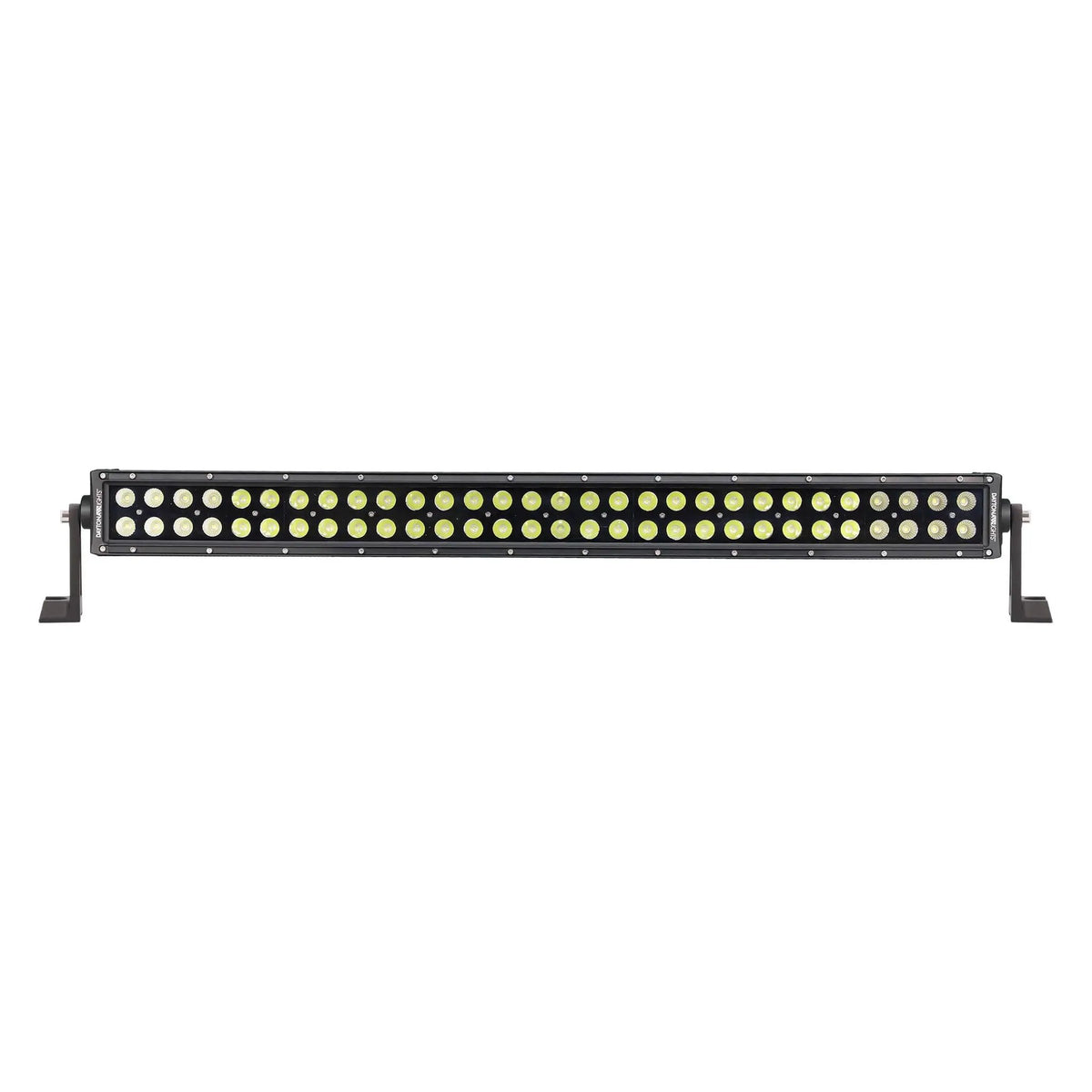

Daytona Lights DL-BDR32 32-inch Blackout Dual Row LED Light Bar
Key features
- Power: 180W
- Light output: 10,800 raw lumens
- Current draw: 13.1A at 13.8V
- Color temperature: 6000K
- LED count: 60
- IP67 rating
Daytona Lights DL-BDR32 32-inch Blackout Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Daytona Lights DL-BDR32 32-inch Blackout Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add auxiliary lighting with the Daytona Lights DL-BDR32 32-inch blackout dual row LED light bar. Its 180W output, 10,800 raw lumens and 6000K color temperature define its lighting specifications, while the black housing gives the assembly a low-profile look.
Use it as a custom-installed auxiliary light where the vehicle has suitable mounting space and wiring. A light-bar mount is included for installation planning.
Key Features & Benefits
- Dual-row LED design: 60 LEDs provide the light source for this 32-inch bar.

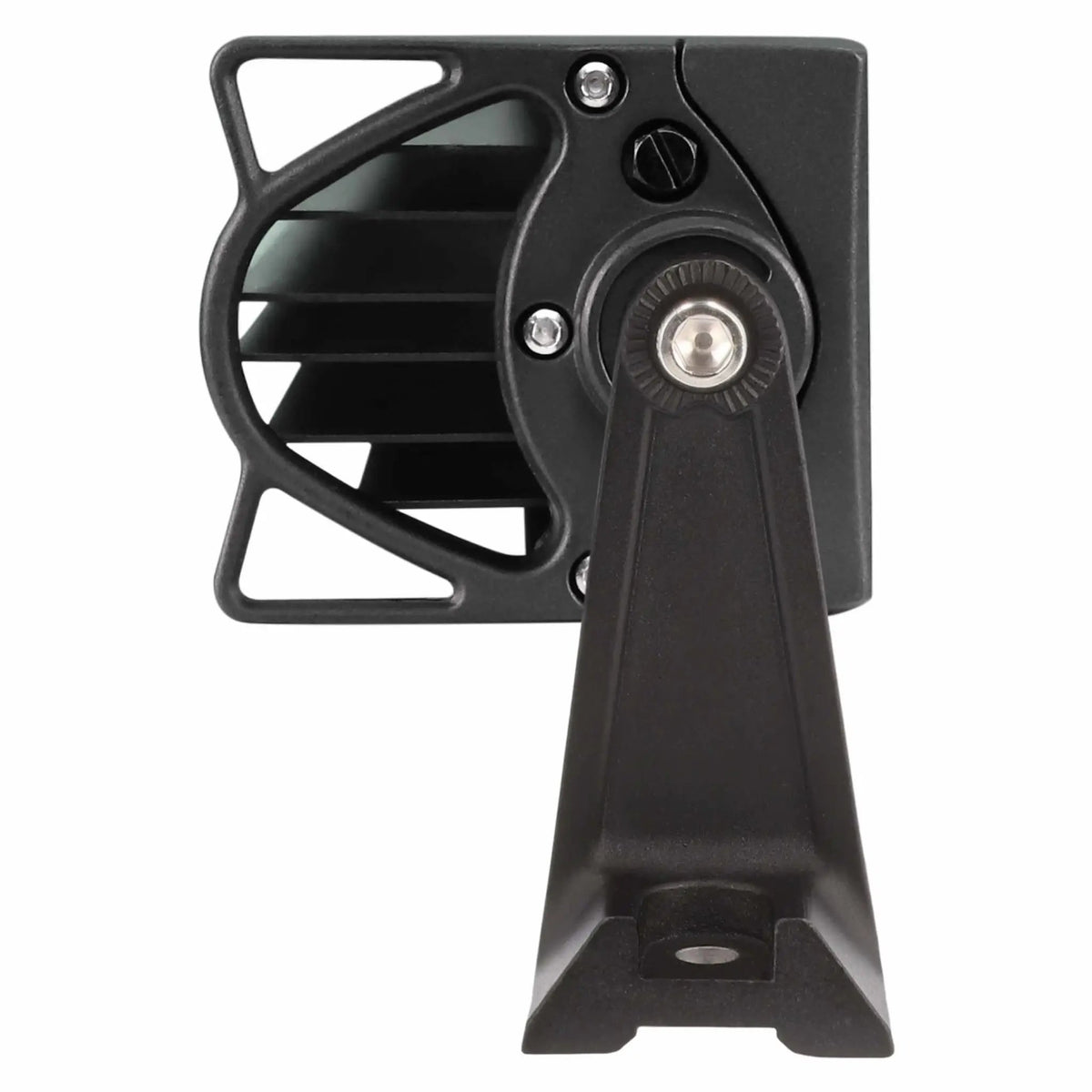

- Die-cast aluminum housing: The body helps dissipate heat during operation.
- Exterior-ready construction: A polycarbonate lens, military breather membrane and IP67 rating are specified.
- Protected electronics: Epoxy-encapsulated electronics and reverse-polarity protection are built in.

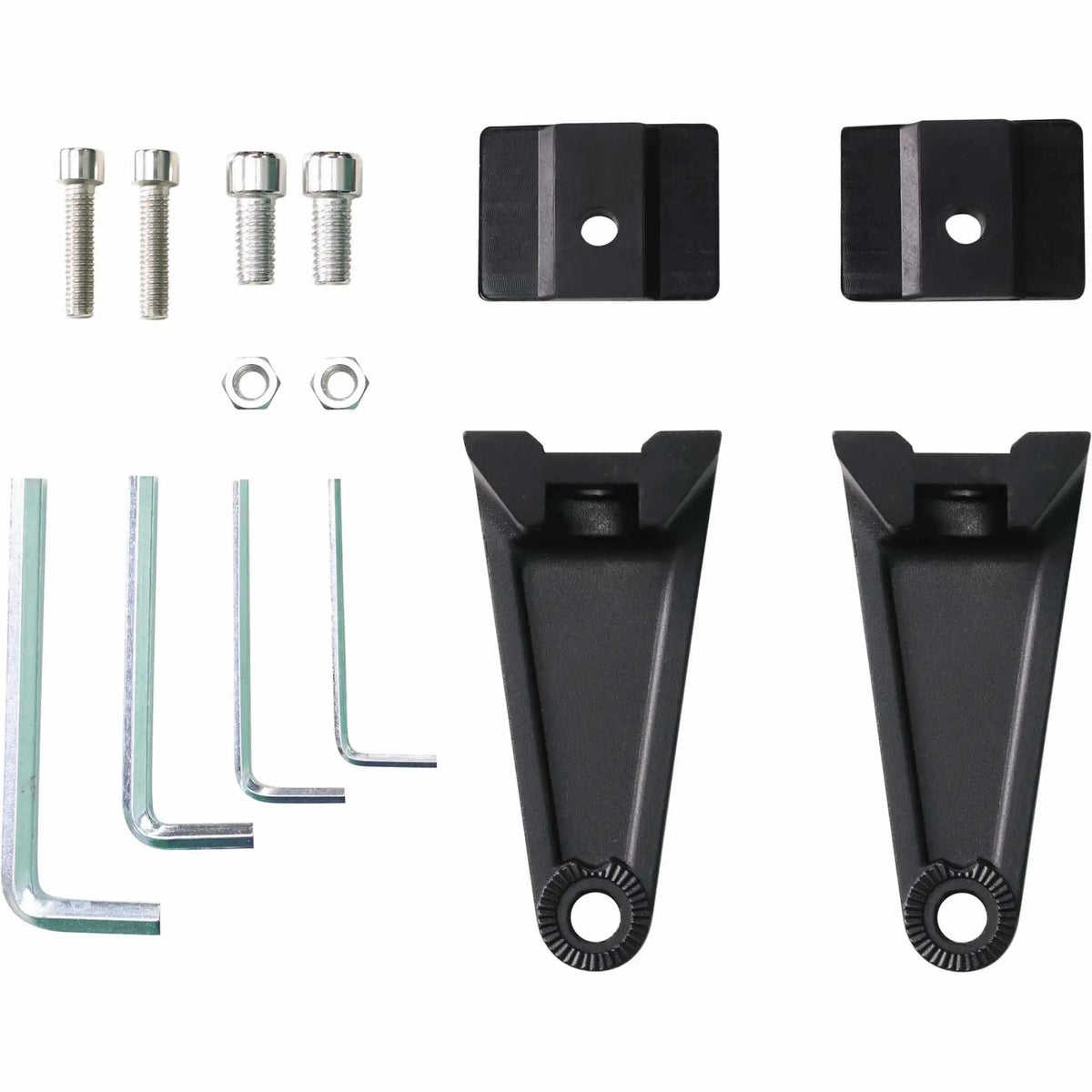

- Mount included: The supplied light-bar mount gives you a mounting component to account for during your custom installation.
Technical Specifications
| Product | Daytona Lights DL-BDR32 32-inch Blackout Dual Row LED Light Bar |
|---|---|
| Power | 180W |
| Light output | 10,800 raw lumens |
| Current draw | 13.1A at 13.8V |
| Color temperature | 6000K |
| LED count | 60 |
| Rating | IP67 |
| Input voltage | 10–30V DC |
| Housing | Black die-cast aluminum |
| Lens | Polycarbonate |
| Electronics | Epoxy-encapsulated |
| Protection | Reverse-polarity protection |
| Operating temperature | -40°F to 140°F |
| Breather | Military breather membrane |
| Hardware | Stainless-steel |
| Included | Light-bar mount |
| Warranty | Manufacturer one-year limited warranty |
Why Choose This Product?
The DL-BDR32 combines a 32-inch dual-row format with a black die-cast aluminum body and a polycarbonate lens. Its stated voltage range is 10–30V DC, which gives you a key electrical requirement to compare with your planned installation.
The breather membrane, epoxy-encapsulated electronics and reverse-polarity protection are built-in design details to consider when choosing an auxiliary light bar. The included mount is part of the product package.
Installation & Compatibility Notes
This light bar is for universal custom installation, not a model-specific direct replacement. Before ordering, check mounting clearance, wiring requirements and compatibility with your vehicle.
Confirm that the installation can support the stated 10–30V DC input and account for the listed current draw of 13.1A at 13.8V. Install and use auxiliary lighting appropriately for the application.
Frequently Asked Questions
What are the DL-BDR32’s power and light-output ratings?
It is rated at 180W and 10,800 raw lumens, with a 6000K color temperature.
What voltage does this LED light bar require?
Its stated input voltage is 10–30V DC. Current draw is 13.1A at 13.8V.
Is this a direct-fit replacement for a specific vehicle?
No. It is intended for universal custom installation, not as a model-specific direct replacement. Check vehicle compatibility and mounting clearance before ordering.
What comes with the light bar?
A light-bar mount is included. Stainless-steel hardware is also specified.
What is the operating temperature range?
The listed operating temperature is -40°F to 140°F.
