Daytona Lights DL-DR14 14-inch Dual Row LED Light Bar
Key features
- Power: 72W
- Light output: 4,320 raw lumens
- Current draw: 5.2A at 13.8V
- Color temperature: 6000K
- Beam: 90° flood / 8° spot combination
- IP67 rating
Daytona Lights DL-DR14 14-inch Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Daytona Lights DL-DR14 14-inch Dual Row LED Light Bar is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

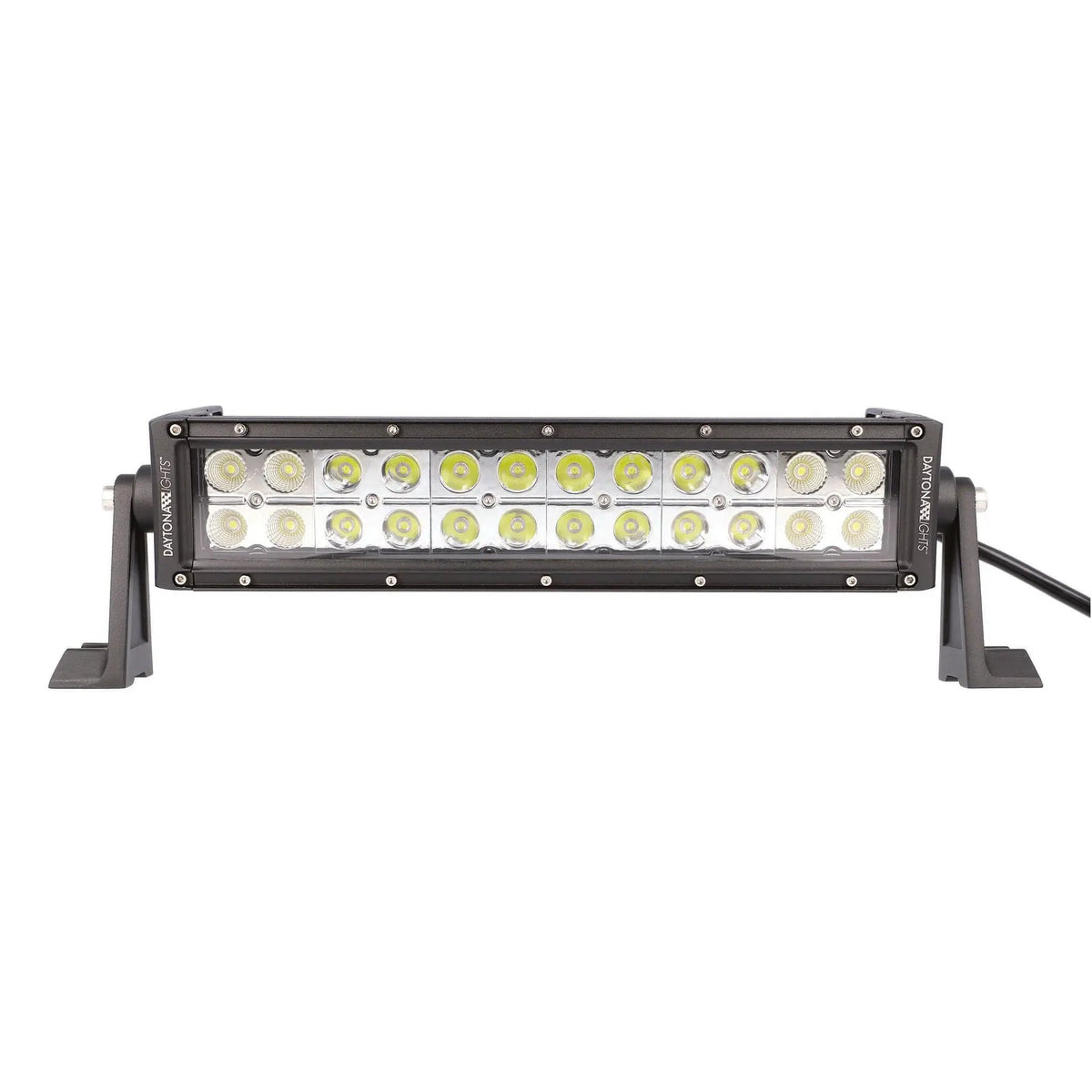

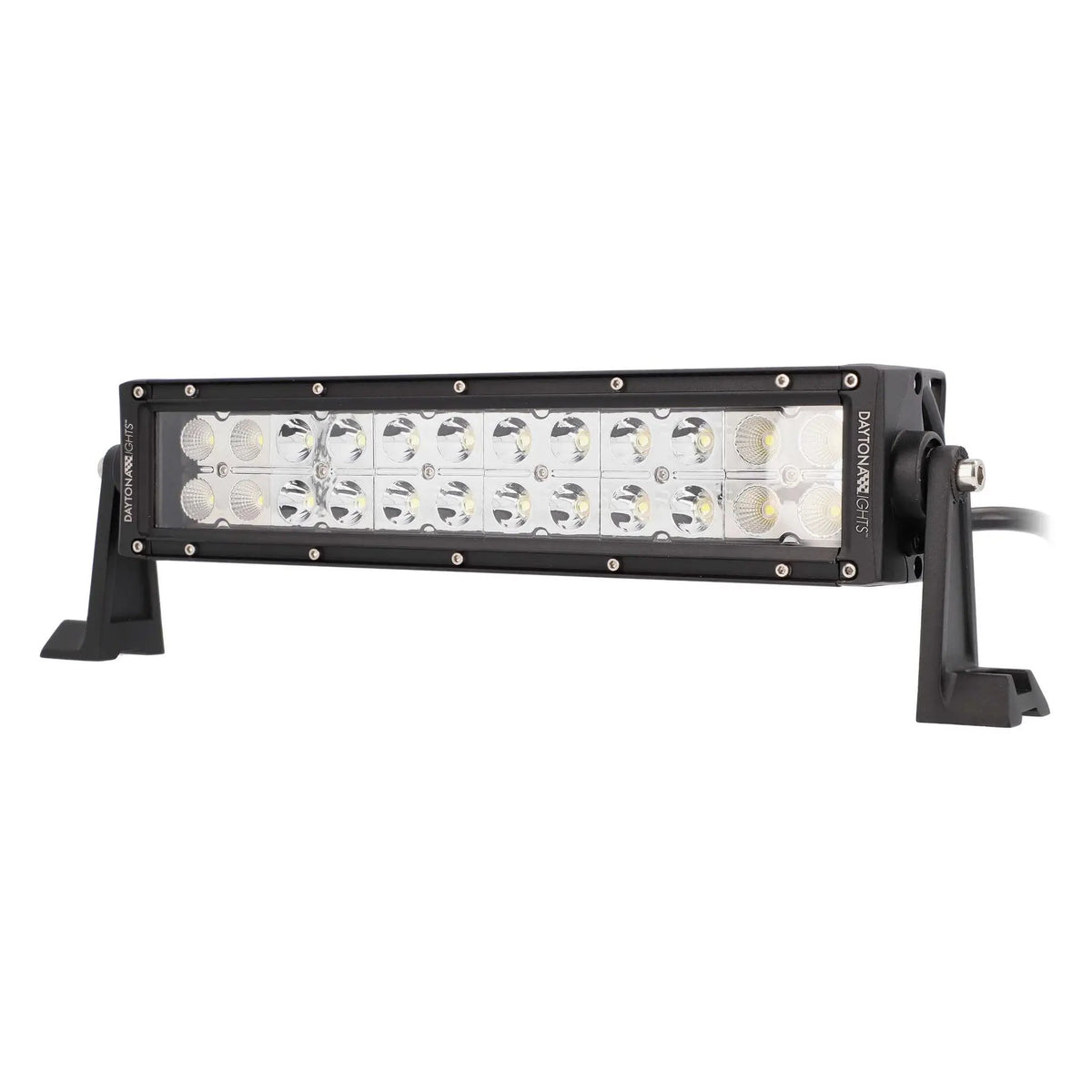

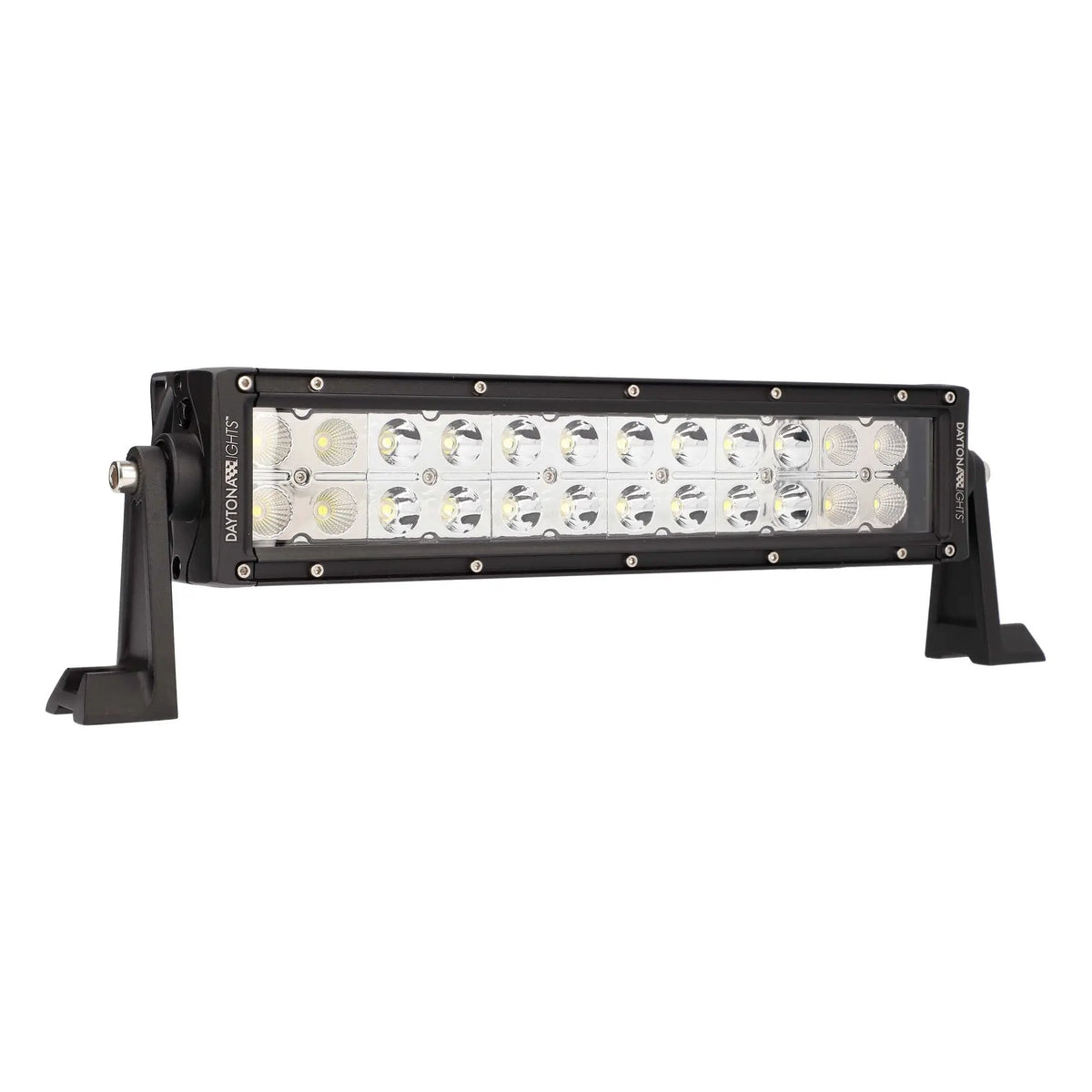

Add auxiliary light with the Daytona Lights DL-DR14 14-inch dual row LED light bar. Its 90° flood and 8° spot combination brings two beam patterns together, while the die-cast aluminum body helps dissipate heat.
Key Features & Benefits
- Combined beam: The 90° flood and 8° spot pattern serve different lighting needs in one bar.
- Exterior-ready construction: The polycarbonate lens, breather membrane, and IP67 rating support exterior installation.
- Protected electronics: Epoxy encapsulation and reverse-polarity protection are built into the light bar.

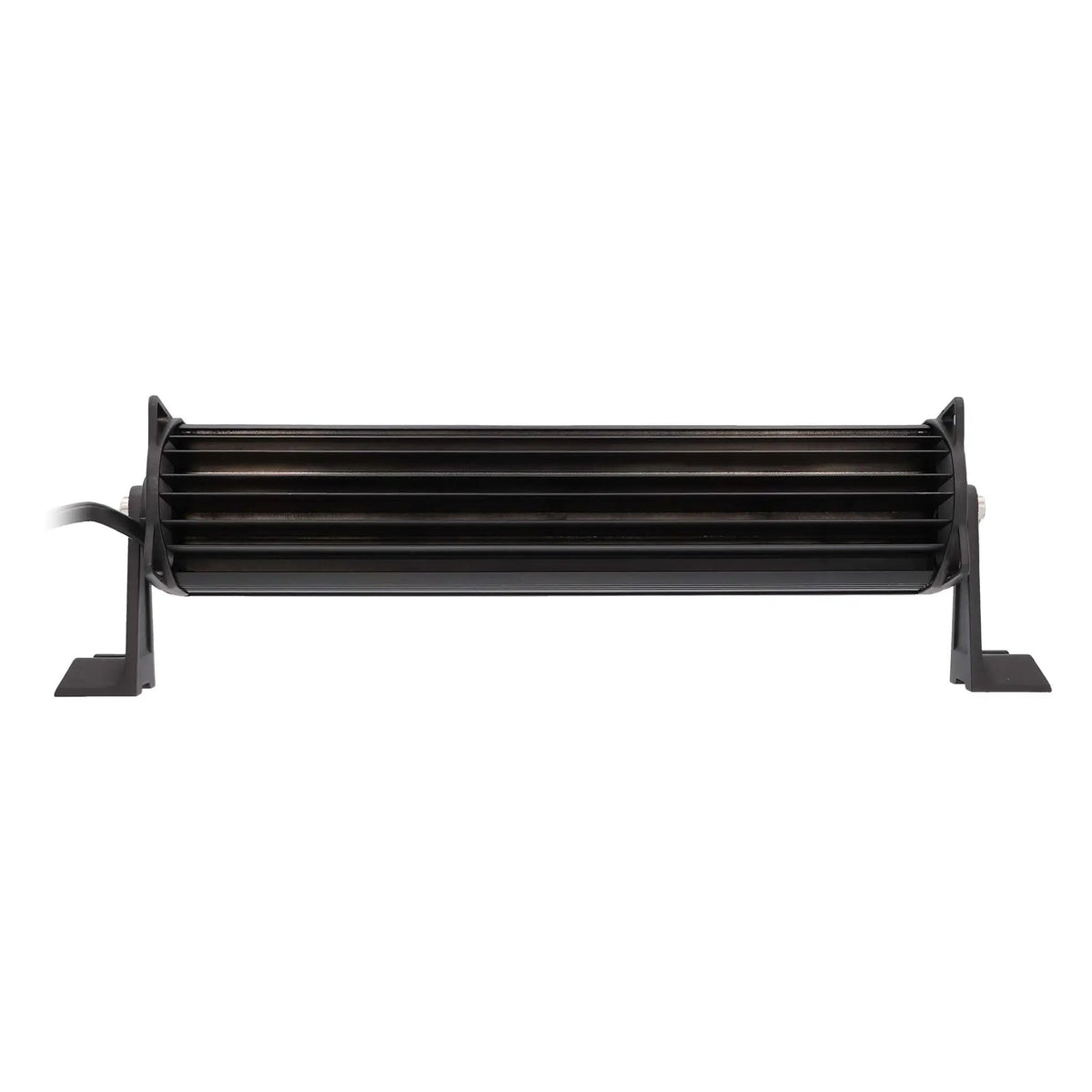

- Heat-dissipating housing: The black die-cast aluminum body helps carry heat away.

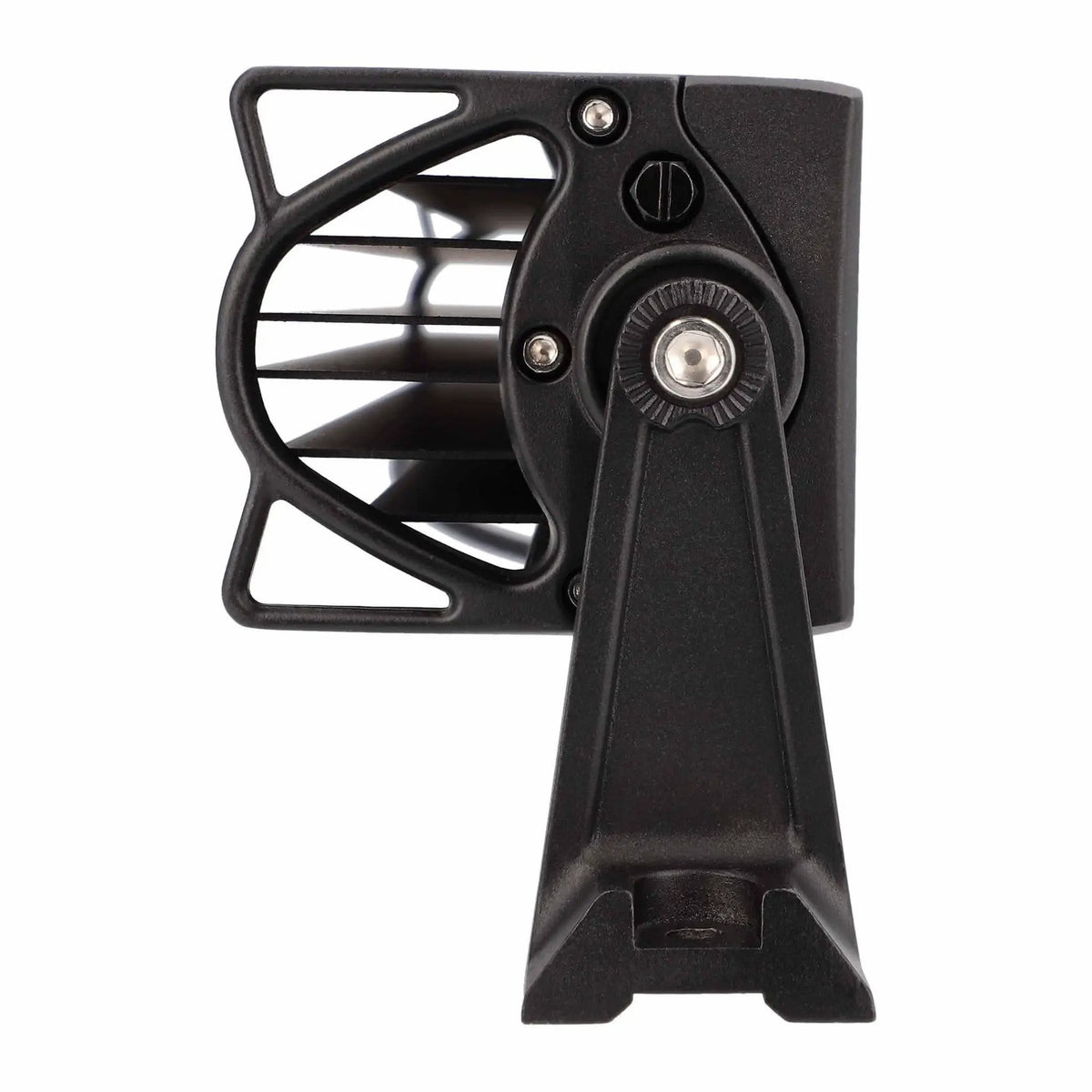

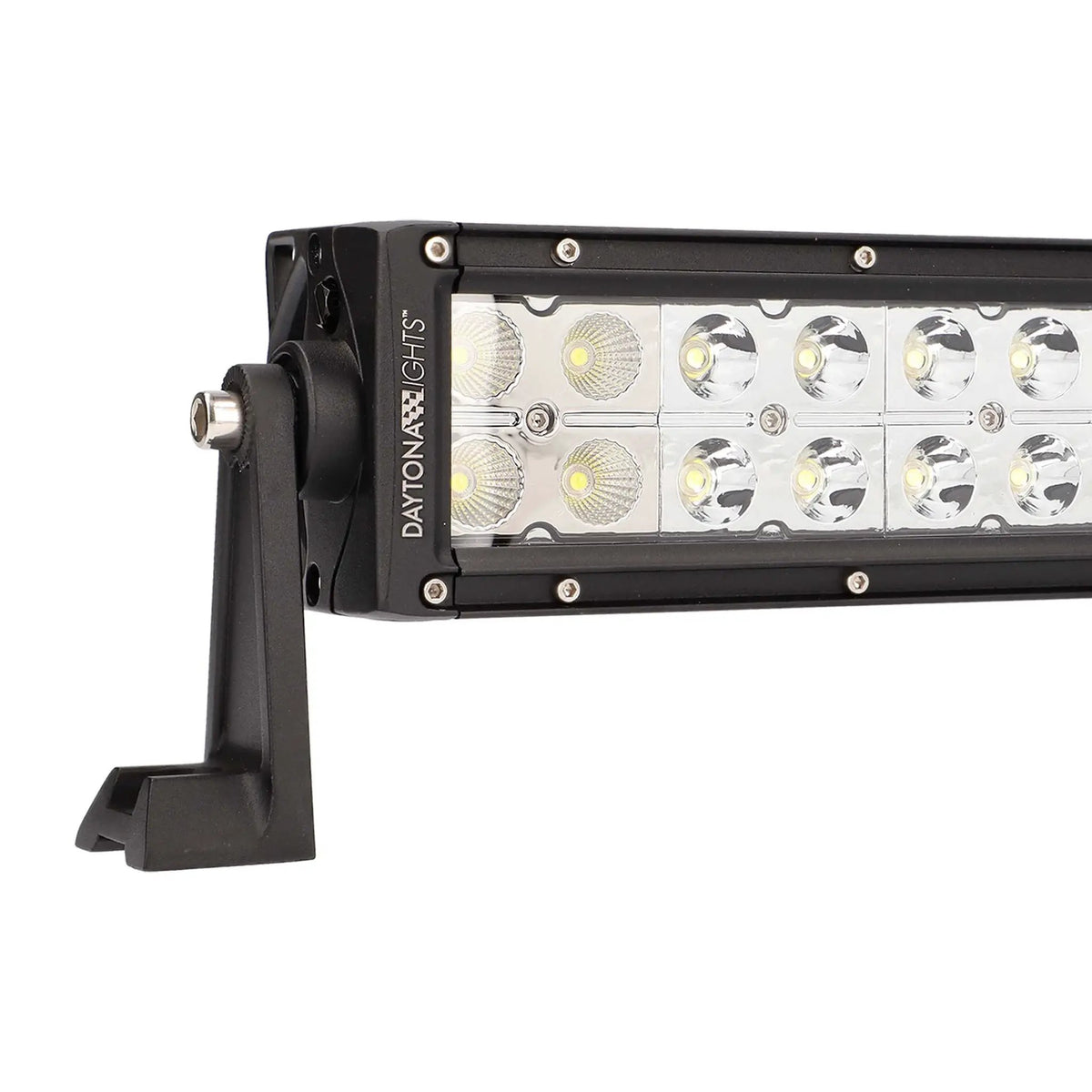

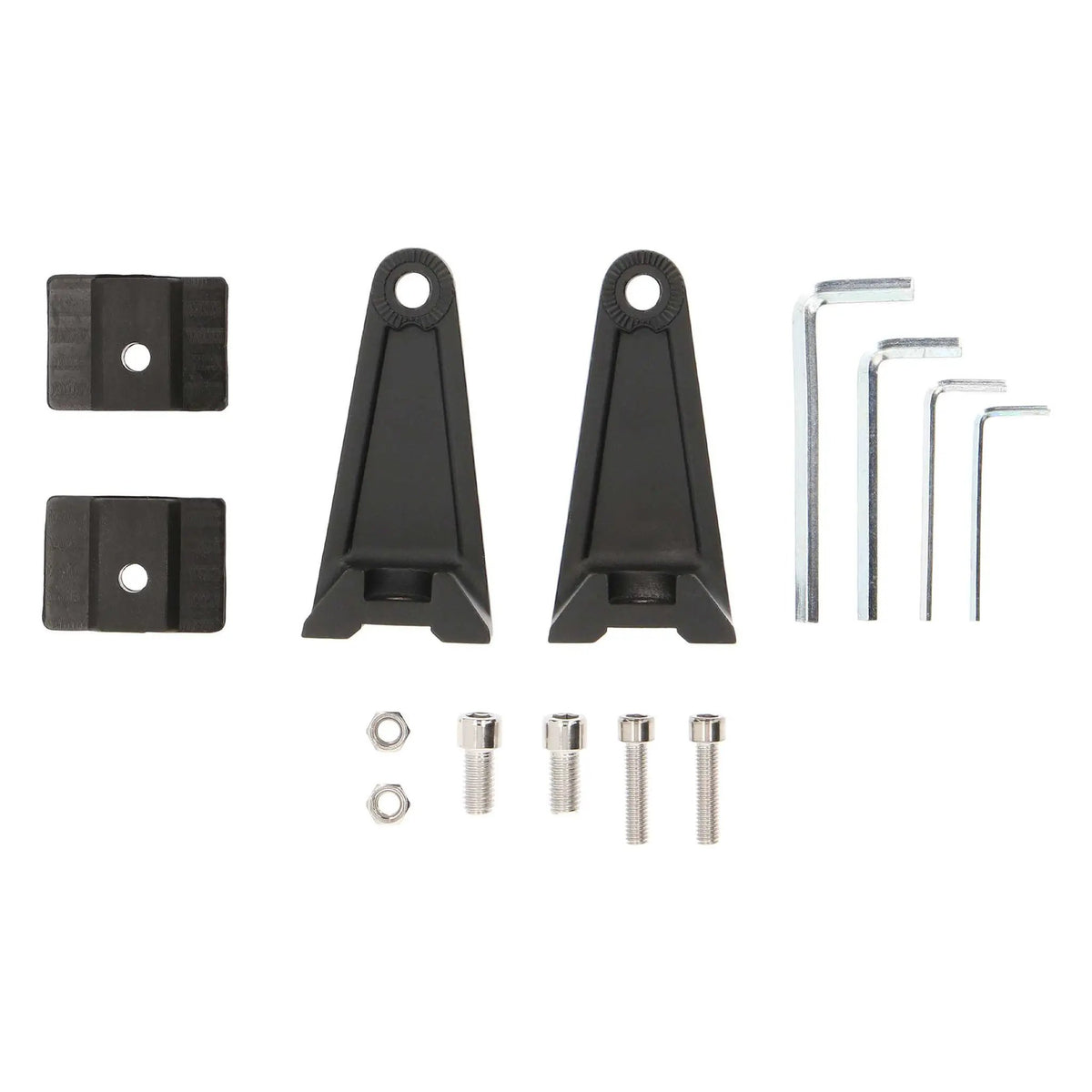

- Mount included: A light-bar mount is included for custom installation.
Technical Specifications
| Specification | Details |
|---|---|
| Power | 72W |
| Light output | 4,320 raw lumens |
| Current draw | 5.2A at 13.8V |
| Color temperature | 6000K |
| Beam | 90° flood / 8° spot combination |
| Rating | IP67 |
| Input voltage | 10–30V DC |
| Housing | Black die-cast aluminum |
| Lens | Polycarbonate |
| Electronics | Epoxy-encapsulated |
| Protection | Reverse-polarity protection |
| Operating temperature | -40°F to 140°F |
| Breather | Military breather membrane |
| Hardware | Stainless steel |
| Included mount | Light-bar mount |

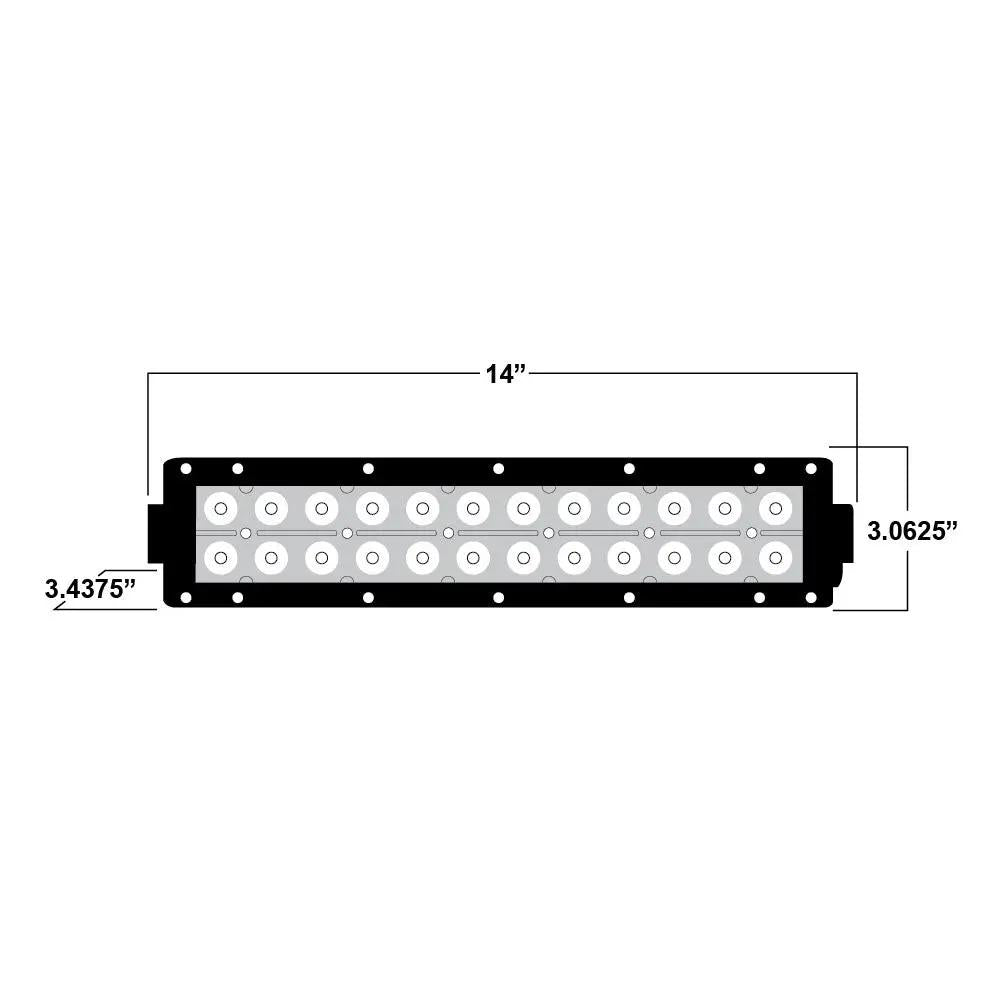

| Bar cross-section | 3.4375 inches D × 3.0625 inches H, bar only |
Why Choose This Product?
The DL-DR14 combines a wide flood beam with a narrower spot beam in a 14-inch dual row light bar. Its listed raw output is 4,320 lumens, and the housing, lens, and protected electronics are specified for exterior use.
Installation & Compatibility Notes
This light bar is for universal custom installation, not a model-specific direct replacement. Check vehicle compatibility, mounting clearance, and wiring requirements before ordering. The input voltage is 10–30V DC; current draw is 5.2A at 13.8V.
Install and use auxiliary lighting appropriately for the application. The stated cross-section measures the bar only.
Frequently Asked Questions
What beam pattern does the DL-DR14 provide?
It has a 90° flood and 8° spot combination.
What voltage does this light bar accept?
Its input voltage is 10–30V DC. The stated current draw is 5.2A at 13.8V.
Is this a direct replacement for a specific vehicle?
No. It is intended for universal custom installation, not a model-specific direct replacement. Check fitment and mounting clearance for your vehicle.
What is included with the light bar?
A light-bar mount is included.
