Fox Box F150-110-04 Ford F-150 SuperCab / SuperCrew Single 10-Inch Sealed Sub Box
Key features
- Single 10-inch mounting position in a sealed enclosure.
- 0.80 cubic feet of internal airspace.
- 6-inch mounting depth with a 6.25-inch-diameter magnet.
- Black spray-applied bed-liner coating.
Fox Box F150-110-04 Ford F-150 SuperCab / SuperCrew Single 10-Inch Sealed Sub Box - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
Fox Box F150-110-04 Ford F-150 SuperCab / SuperCrew Single 10-Inch Sealed Sub Box - NO ADAPTER RING is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

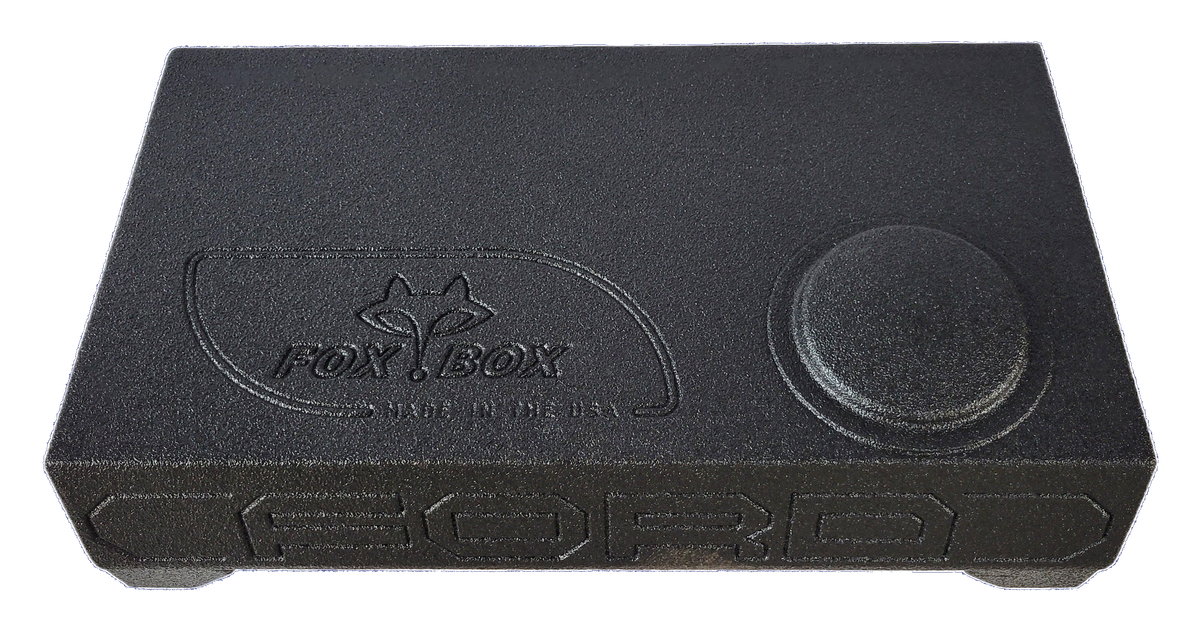

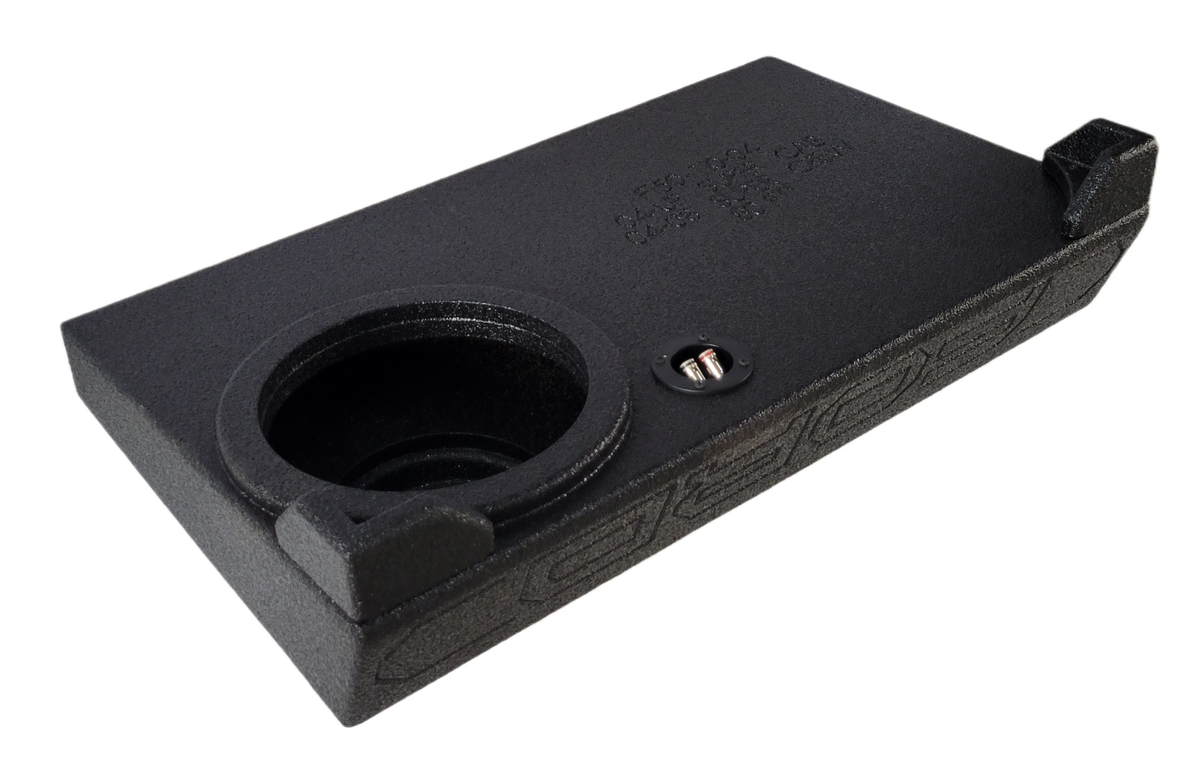

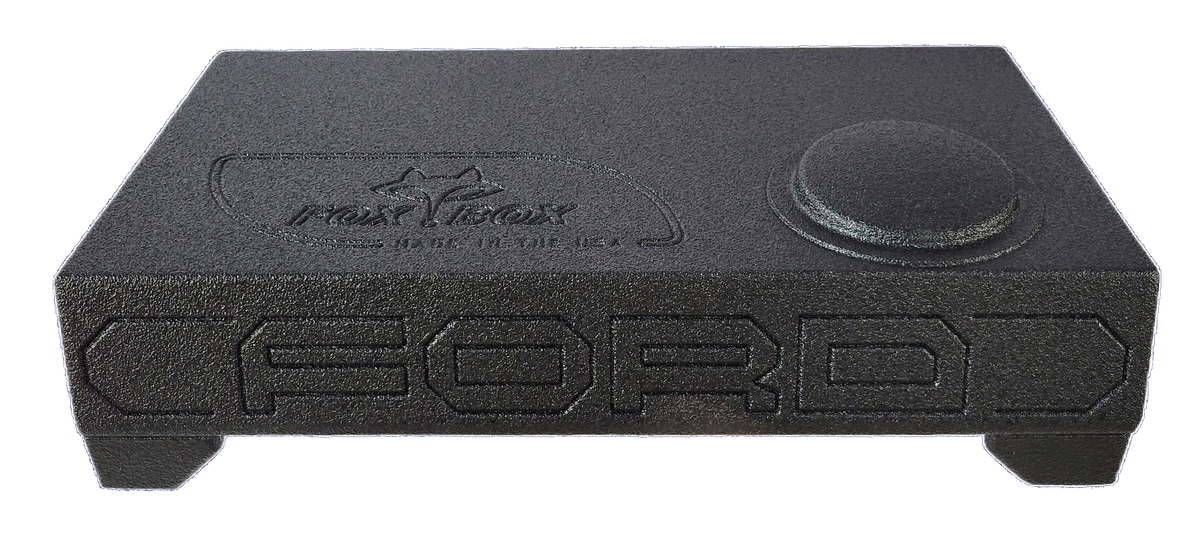

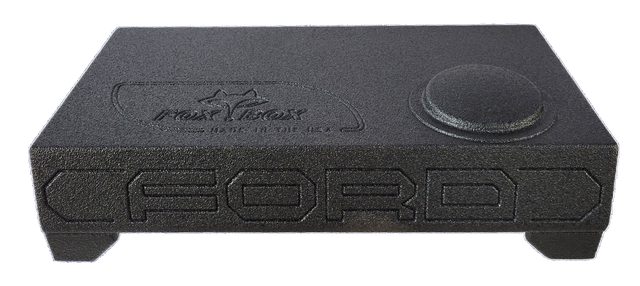

This Fox Box enclosure is supplied empty and is shaped for 2004–2014 Ford F-150 SuperCab; 2004–2008 Ford F-150 SuperCrew. Its physical layout is one 10-inch mounting opening; sealed.
Enclosure-only listing. Subwoofers, amplifier and wiring are not included.
Key Features & Benefits
- Single 10-inch mounting position in a sealed enclosure.
- 0.80 cubic feet of internal airspace.
- 6-inch mounting depth with a 6.25-inch-diameter magnet.
- Black spray-applied bed-liner coating.
Technical Specifications
| Model | F150-110-04 |
|---|---|
| Vehicle fitment | 2004–2014 Ford F-150 SuperCab; 2004–2008 Ford F-150 SuperCrew |
| Configuration | One 10-inch mounting opening; sealed |
| Air volume | 0.80 cu. ft. |
| Mounting hole diameter | 9.125 inches |
| Subwoofer mounting depth | 6 inches with a 6.25-inch-diameter magnet |
| Magnet diameter | 6.25 inches at the stated mounting depth |
| Finish | Black spray-applied bed-liner coating |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 6 inches with a 6.25-inch-diameter magnet; opening diameter: 9.125 inches. Review the interior-clearance and installation restrictions before ordering.
Choose the standard 10-inch opening or the optional two-piece 10-to-8-inch adapter-ring set. Subwoofers are not included.
Installation & Compatibility Notes
- SuperCab fitment covers 2004–2014; SuperCrew fitment covers 2004–2008.
- Check the 9.125-inch opening, mounting depth and magnet clearance before selecting a subwoofer.
Frequently Asked Questions
Will it fit a 2010 F-150 SuperCrew?
No such fitment is listed. This model covers SuperCrew trucks from 2004 through 2008.
How much airspace does it provide?
The manufacturer lists 0.80 cubic feet for the single-subwoofer sealed enclosure.
What mounting dimensions should I check?
Match your driver to the 9.125-inch opening, 6-inch mounting depth and 6.25-inch magnet diameter, along with its recommended sealed airspace.
