Fox Box F150-SC-28-V-09 Ford SuperCrew / Super Duty Dual 8-Inch Ported Sub Box
Key features
- Two 8-inch mounting positions in an undivided ported enclosure.
- 35 Hz tuning and 2.2 cubic feet of airspace.
- 6.75-inch maximum depth with a 6.5-inch maximum magnet diameter.
- Black bed-liner finish and no interference with the factory power inverter.
Fox Box F150-SC-28-V-09 Ford SuperCrew / Super Duty Dual 8-Inch Ported Sub Box is backordered and will ship as soon as it is back in stock.
Fox Box F150-SC-28-V-09 Ford SuperCrew / Super Duty Dual 8-Inch Ported Sub Box is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

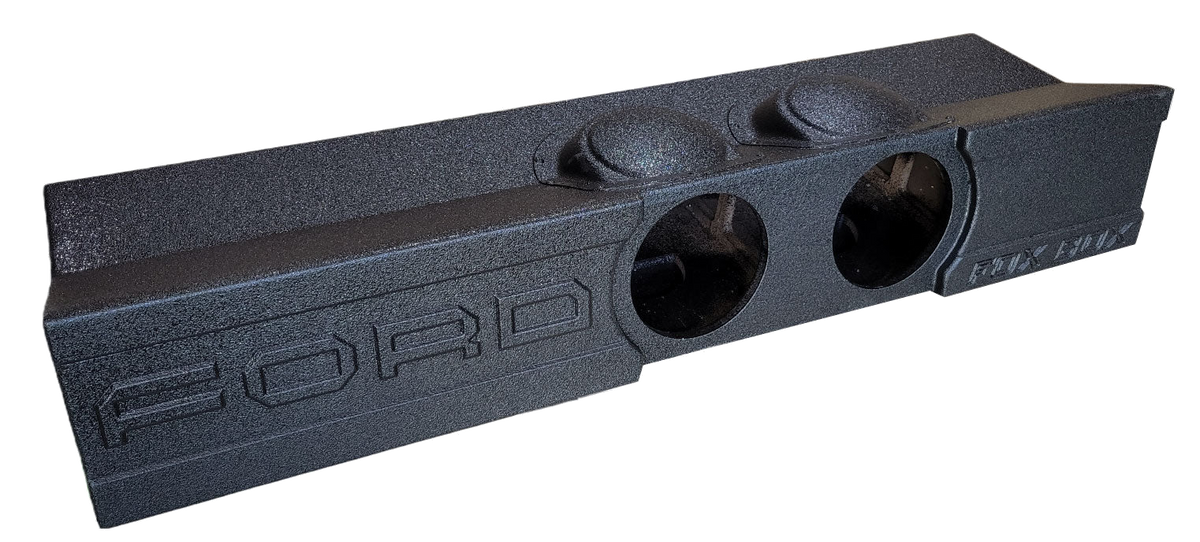

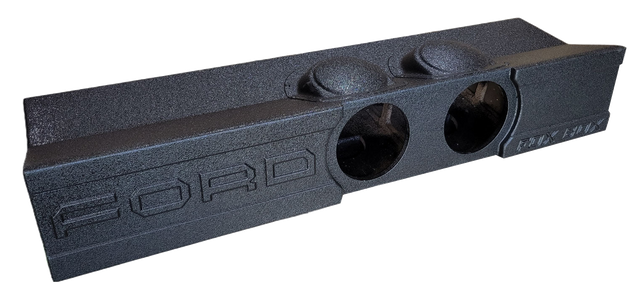

This Fox Box enclosure is supplied empty and is shaped for 2009+ Ford F-150 SuperCrew; 2017+ Ford Super Duty Crew Cab. Its physical layout is two 8-inch mounting openings; vented; undivided chamber.
Enclosure-only listing. Subwoofers, amplifier and wiring are not included.
Key Features & Benefits
- Two 8-inch mounting positions in an undivided ported enclosure.
- 35 Hz tuning and 2.2 cubic feet of airspace.
- 6.75-inch maximum depth with a 6.5-inch maximum magnet diameter.
- Black bed-liner finish and no interference with the factory power inverter.
Technical Specifications
| Model | F150-SC-28-V-09 |
|---|---|
| Vehicle fitment | 2009+ Ford F-150 SuperCrew; 2017+ Ford Super Duty Crew Cab |
| Configuration | Two 8-inch mounting openings; vented; undivided chamber |
| Air volume | 2.2 cu. ft. |
| Port tuning | 35 Hz |
| Mounting hole diameter | 7.25 inches |
| Subwoofer mounting depth | 6.75 inches maximum with a 6.5-inch-diameter magnet |
| Magnet diameter | 6.5 inches maximum |
| Finish | Black spray-applied bed-liner coating |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 6.75 inches maximum with a 6.5-inch-diameter magnet; opening diameter: 7.25 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Eight-inch subwoofer frames vary substantially. Sanding or trimming the enclosure may be necessary.
- Professional installation is recommended if you do not have the tools needed to modify the openings.
- Do not exceed the stated mounting depth or maximum magnet diameter.
Frequently Asked Questions
Will any 8-inch subwoofer fit?
No. Frame size and shape vary. Some drivers require sanding or trimming, even when their nominal size is 8 inches.
Is professional installation necessary?
The manufacturer recommends it when you lack the tools required for possible enclosure fitting.
Does the box affect the factory power inverter?
No. The source states the factory inverter is unaffected.
