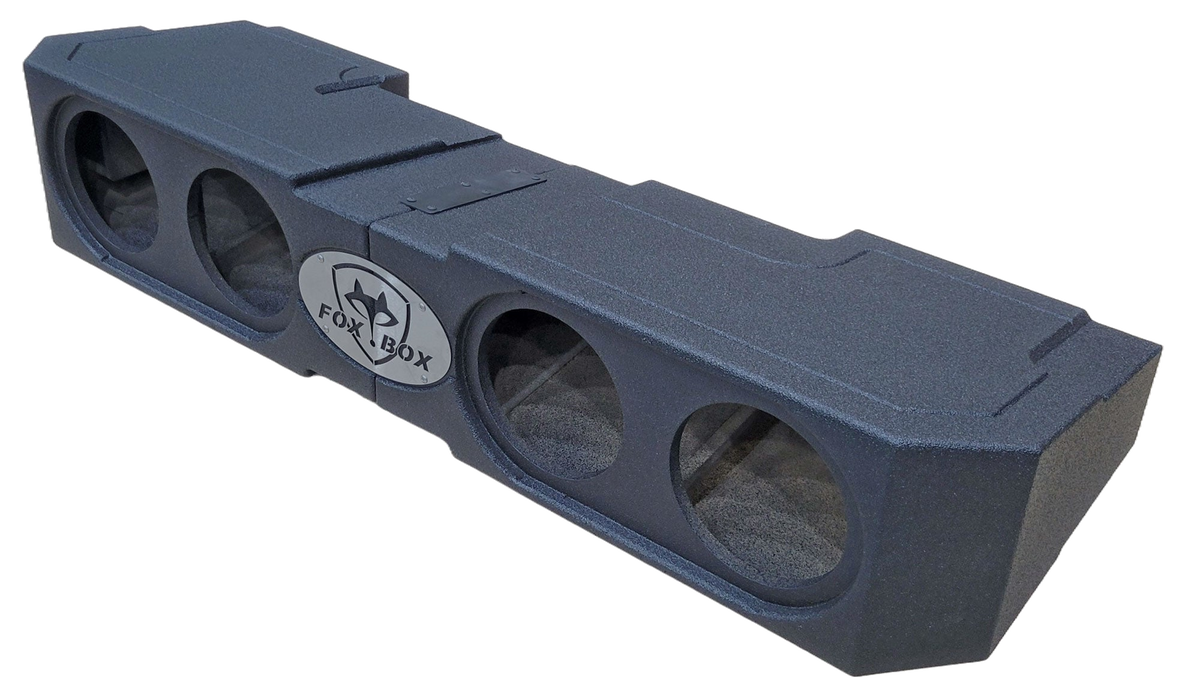

FOX BOX 2007+ GM Crew Cab Quad 8-Inch Vented Subwoofer Enclosure
Key features
- Four 8-inch mounting openings.
- Vented design tuned to 36 Hz.
- Two-piece enclosure can be joined using a steel connector plate.
- Black LINE-X coating offers a durable, easy-to-clean finish.
- Seat spacers required for 2014–2018 trucks are included.
FOX BOX 2007+ GM Crew Cab Quad 8-Inch Vented Subwoofer Enclosure is backordered and will ship as soon as it is back in stock.
FOX BOX 2007+ GM Crew Cab Quad 8-Inch Vented Subwoofer Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
This Fox Box enclosure is supplied empty and is shaped for the vehicle application listed in the specifications. Its physical layout is the mounting layout listed below.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Four 8-inch mounting openings.
- Vented design tuned to 36 Hz.
- Two-piece enclosure can be joined using a steel connector plate.
- Black LINE-X coating offers a durable, easy-to-clean finish.
- Seat spacers required for 2014–2018 trucks are included.
Technical Specifications
| Model | GM-CC-48-V-07 |
|---|---|
| Vehicle application | 2007 and newer GM 1500, 2500 and 3500 Crew Cab trucks |
| Enclosure type | Vented; supplied in two pieces |
| Subwoofer configuration | Four 8-inch mounting openings |
| Mounting cutout | 7.25 inches |
| Mounting depth | 6.75 inches |
| Maximum magnet diameter | 7 inches |
| Listed internal air volume | 1.4 cu ft × 2 |
| Tuning frequency | 36 Hz |
| Finish | Black LINE-X spray-on bed-liner coating |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 6.75 inches. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- For Crew Cab models only; not compatible with Extended Cab or Double Cab trucks.
- 2019 and newer trucks require removal of the under-seat storage tray.
- 2014–2018 trucks require the included 5/8-inch seat-spacer kit. Its eight spacers fit over the studs securing the rear seat.
- The two sections can be screwed together with a steel connector plate. Confirm required assembly hardware before installation.
- Match each subwoofer’s dimensions and recommended enclosure requirements to the listed specifications.
Frequently Asked Questions
How many subs does this box hold?
It is designed for four 8-inch subwoofers.
Is the enclosure delivered as one piece?
No. The enclosure is supplied in two pieces that can be joined with a steel connector plate.
Are subwoofers included?
This listing is for the enclosure-only configuration. Audio equipment and wiring are separate.
