Fox Box 2014-2021 Toyota Tundra CrewMax Dual 10-Inch Vented Subwoofer Enclosure
Key features
- Dual 10-inch vented layout uses 37 Hz tuning.
- A 3.75-inch mounting-depth specification supports careful shallow-driver selection.
- Square recessed pockets allow an installer to prepare the opening for a compatible Kicker L7 shallow 10-inch driver.
- The current design uses a Fox logo and black spray-applied bed-liner coating.
Fox Box 2014-2021 Toyota Tundra CrewMax Dual 10-Inch Vented Subwoofer Enclosure is backordered and will ship as soon as it is back in stock.
Fox Box 2014-2021 Toyota Tundra CrewMax Dual 10-Inch Vented Subwoofer Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

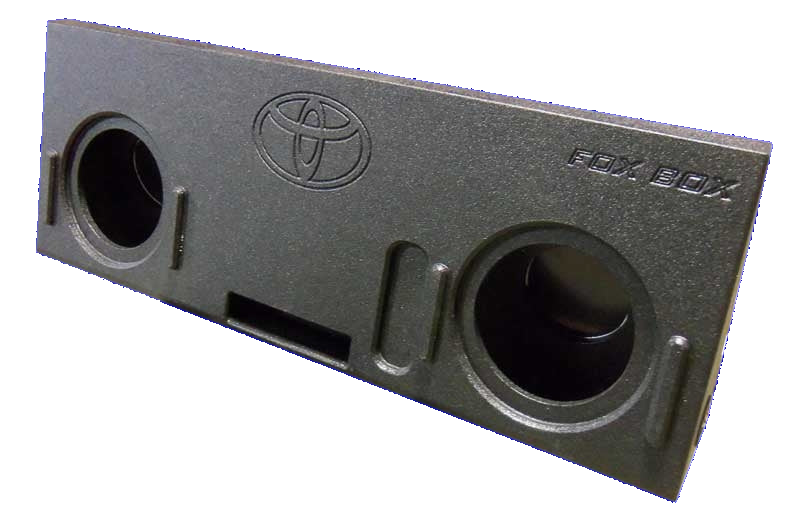

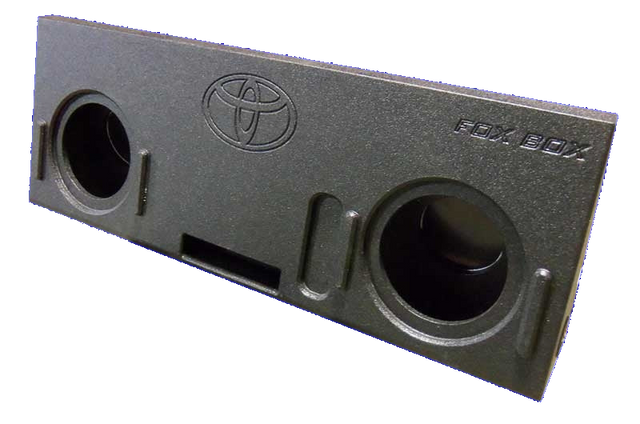

This Fox Box enclosure is supplied empty and is shaped for 2014-2021 Toyota Tundra CrewMax. Its physical layout is dual 10-inch; vented.
This is an empty enclosure. Subwoofers, amplifiers and wiring are not included.
Key Features & Benefits
- Dual 10-inch vented layout uses 37 Hz tuning.
- A 3.75-inch mounting-depth specification supports careful shallow-driver selection.
- Square recessed pockets allow an installer to prepare the opening for a compatible Kicker L7 shallow 10-inch driver.
- The current design uses a Fox logo and black spray-applied bed-liner coating.
Technical Specifications
| Model | TCM-210-V-14 |
|---|---|
| Vehicle fitment | 2014-2021 Toyota Tundra CrewMax |
| Configuration | Dual 10-inch; vented |
| Air volume | 1.75 cu. ft. |
| Chambers | Undivided |
| Port tuning | 37 Hz |
| Standard cutout | 9.125 in.; round |
| Mounting depth | 3.75 in. with a 6-in.-diameter magnet |
| Recessed pockets | Square; round cutouts require modification for square drivers |
| Finish | Black spray-applied bed-liner coating |
Why Choose This Product?
This empty enclosure has the vehicle-specific shape and mounting layout listed above. Physical fit limits include mounting depth: 3.75 in. with a 6-in.-diameter magnet. Review the interior-clearance and installation restrictions before ordering.
Installation & Compatibility Notes
- Remove the rear seat for installation.
- Remove padding from the back wall for proper enclosure fit.
- Larger subwoofer frames require installer trimming.
- For square drivers, the installer must cut the existing round mounting opening to the required square shape. A square recess does not mean the mounting hole arrives square.
Frequently Asked Questions
Does a square subwoofer drop straight in?
No. The recessed pocket accommodates a square layout, but the installer must change the round cutout to the required square opening.
Does the rear seat need to come out?
Yes. Fox specifies rear-seat removal for installation and removal of the back-wall padding.
Which depth should I use when checking subs?
Use 3.75 inches with a 6-inch-diameter magnet, along with the 9.125-inch standard cutout and driver airspace requirements.
Explore More
Compare vehicle-specific designs in our Fox Box enclosure collection.

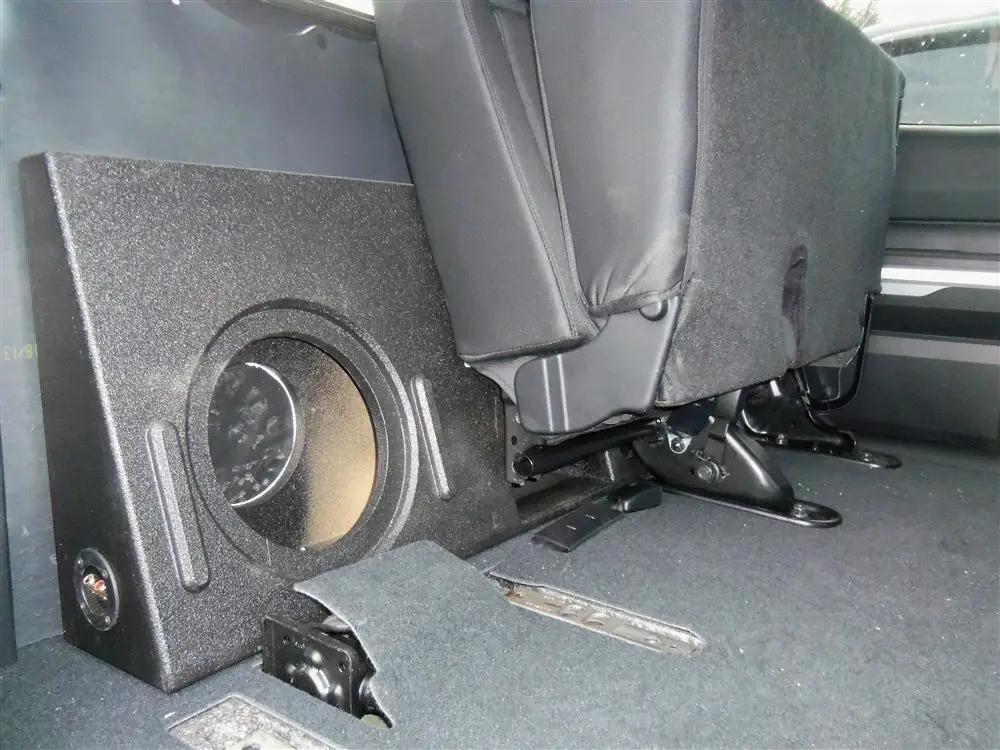

Gallery note: Installation examples show vehicles and other equipment that are not included. Only the empty enclosure or accessory described in this listing is included.
