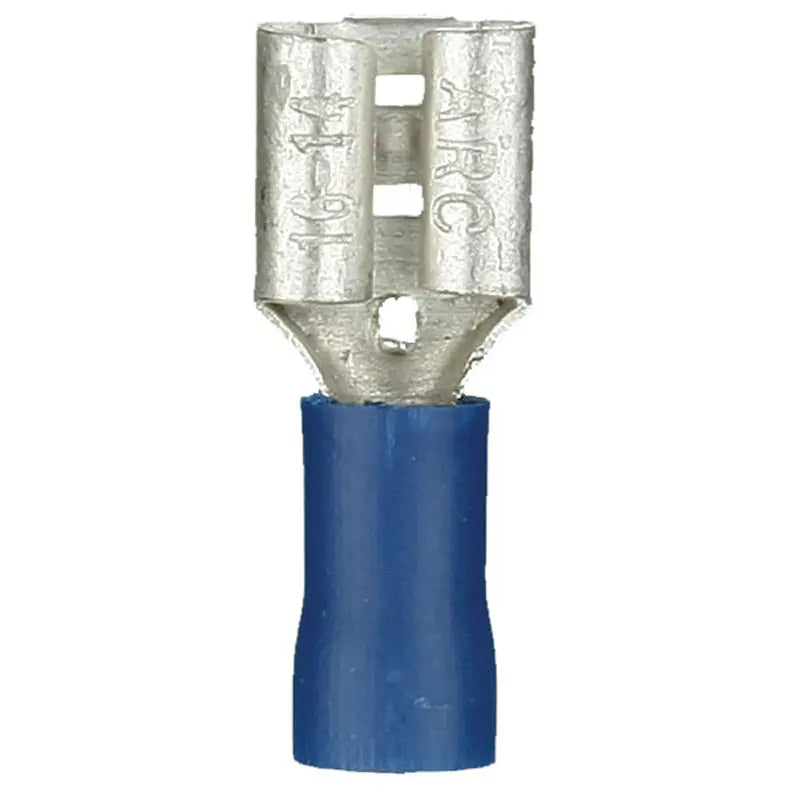

Install Bay BVFD205 Blue Vinyl Female Quick Disconnects, 16-14 AWG, .205 in, 100 Pack
Key features
- Separable terminal format: The female end accepts a matching male terminal, providing a separable connection for equipment that may need to be disconnected for service.
- Specified mating size: The .205-inch blade width distinguishes this terminal from other quick-disconnect sizes.
- Defined wire range: Select 16-14 AWG conductor for this blue vinyl-insulated terminal.
- 100-piece supply: Each pack contains identical BVFD205 terminals rather than a mixed-size or mixed-gender assortment.
Install Bay BVFD205 Blue Vinyl Female Quick Disconnects, 16-14 AWG, .205 in, 100 Pack is backordered and will ship as soon as it is back in stock.
Install Bay BVFD205 Blue Vinyl Female Quick Disconnects, 16-14 AWG, .205 in, 100 Pack is backordered and will ship as soon as it is back in stock.
Description
Description
BVFD205 female quick disconnects with .205-inch fit
Make a connection that can be separated for service with Install Bay BVFD205 female quick disconnect terminals. This blue vinyl-insulated version accepts 16-14 AWG wire and is sized to receive a matching .205-inch male blade. The package contains 100 terminals of the same gender and size, so you can replenish the exact part your installation requires.
Why choose this quick disconnect
- Separable terminal format: The female end accepts a matching male terminal, providing a separable connection for equipment that may need to be disconnected for service.
- Specified mating size: The .205-inch blade width distinguishes this terminal from other quick-disconnect sizes.
- Defined wire range: Select 16-14 AWG conductor for this blue vinyl-insulated terminal.
- 100-piece supply: Each pack contains identical BVFD205 terminals rather than a mixed-size or mixed-gender assortment.
Specifications
| Brand | Install Bay |
|---|---|
| Manufacturer part number | BVFD205 |
| Terminal style | Quick disconnect |
| Terminal gender | Female |
| Wire size | 16-14 AWG |
| Nominal blade width | .205 in |
| Mating terminal | Male, matching .205 in size |
| Insulation material | Vinyl |
| Insulation color | Blue |
| Package quantity | 100 female quick disconnect terminals |
Choosing a compatible wire and mating terminal
Match both sides of the connection: use 16-14 AWG wire in the crimp end and a compatible .205-inch male terminal at the disconnect end. Blade width and wire gauge describe different dimensions. A matching color alone does not establish mating compatibility; confirm the terminal’s width, gender and physical fit against the equipment or mating connector specifications.
De-energize the circuit before installation or disconnection. Prepare the wire and crimp with a tool suitable for the terminal and 16-14 AWG wire, following the tool and equipment instructions. Check the crimp and mating fit before returning the circuit to service. This pack supplies female terminals only; it does not include the mating male terminals or wire.
Frequently asked questions
What size terminal mates with BVFD205?
A compatible .205-inch male terminal. The .205-inch dimension is the nominal blade width; verify the complete mating fit for your equipment.
Does this pack include both male and female terminals?
No. It contains 100 female Install Bay BVFD205 quick disconnects. Choose the matching male terminal separately when needed.
Is the insulation nylon or vinyl?
This model uses blue vinyl insulation. Its wire range is 16-14 AWG.
Can these be used as a sealed connection?
No waterproof or environmental sealing rating is listed in the available specifications. If the connection will be exposed to moisture, choose a connection system with the required documented protection rather than assuming the vinyl insulation provides a seal.
