Install Bay RVST6 Red 22–18 AWG #6 Vinyl Spade Terminals – 100 Pack
Key features
- 22–18 AWG conductor range specified for this part.
- #6 screw/stud size for the spade end.
- Red vinyl insulation at the wire termination.
- Package contains 100 same-size spade terminals.
Install Bay RVST6 Red 22–18 AWG #6 Vinyl Spade Terminals – 100 Pack is backordered and will ship as soon as it is back in stock.
Install Bay RVST6 Red 22–18 AWG #6 Vinyl Spade Terminals – 100 Pack is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

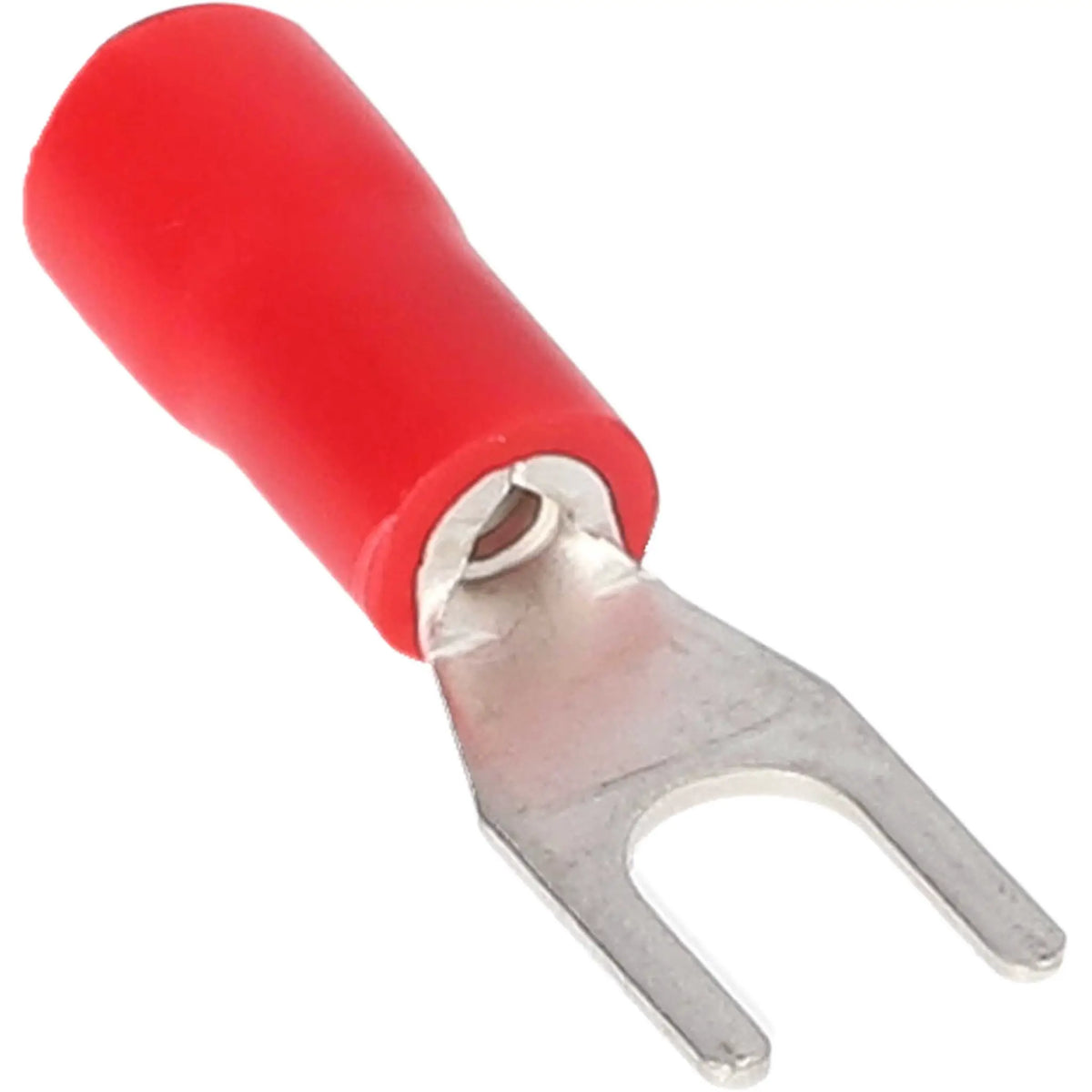

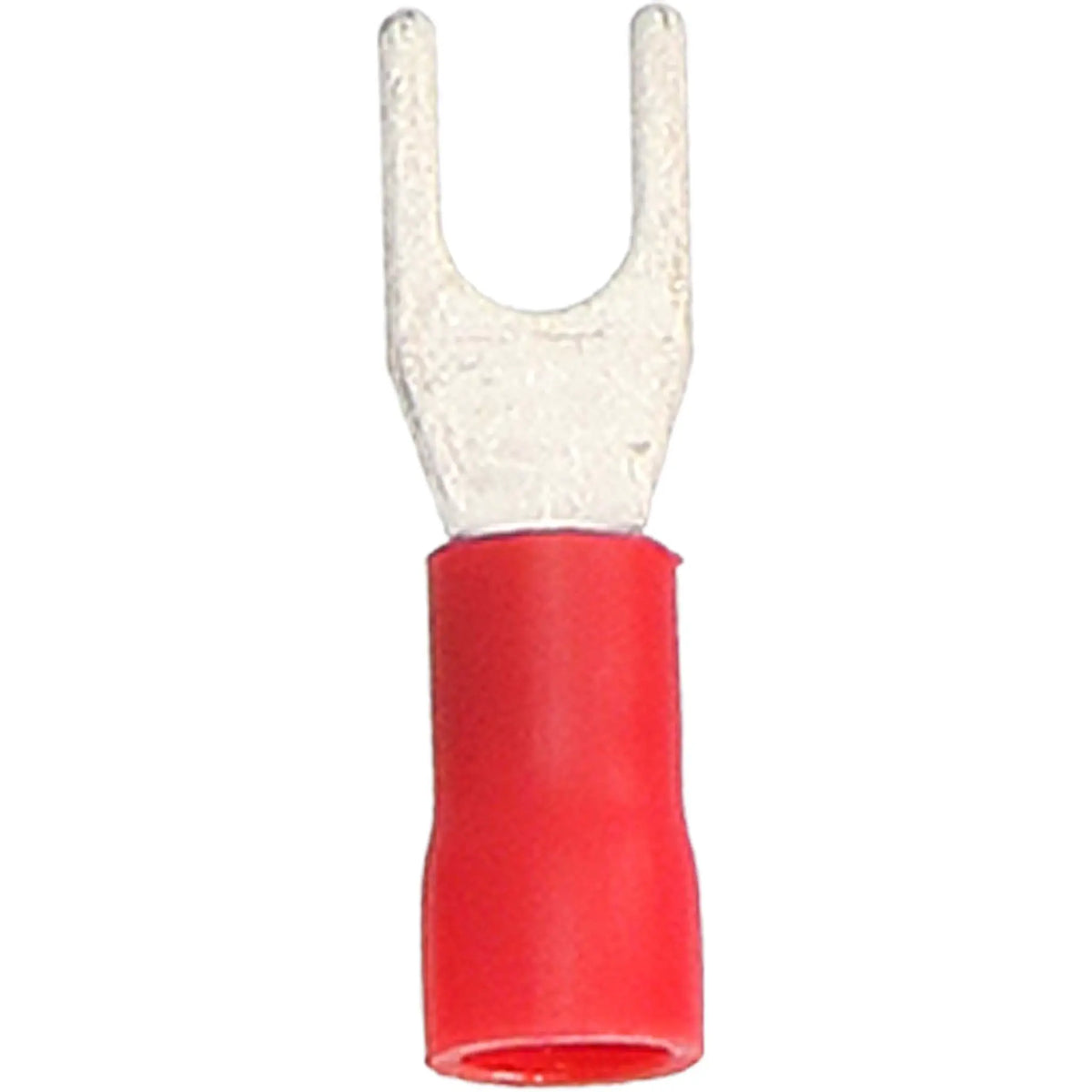

The Install Bay RVST6 combines a #6 open-fork terminal end with a 22–18 AWG wire connection. These red vinyl-insulated spade terminals suit compatible screw-terminal wiring where the conductor needs a defined crimp termination rather than a bare wire end.
An open spade can be positioned under suitable loosened screw hardware, unlike a closed ring that normally requires the screw or nut to be removed. The equipment terminal must still clamp the fork correctly and provide enough clearance around adjacent terminals. Check the fork opening and wire range independently before selecting the part.
Key Features
- 22–18 AWG conductor range specified for this part.
- #6 screw/stud size for the spade end.
- Red vinyl insulation at the wire termination.
- Package contains 100 same-size spade terminals.
Specifications
| Brand | Install Bay |
|---|---|
| Manufacturer part number | RVST6 |
| Connector style | Open-fork spade terminal |
| Wire size | 22–18 AWG |
| Screw/stud size | #6 |
| Insulation | Vinyl |
| Color | Red |
| Package quantity | 100 terminals |
Selection and Installation Notes
Confirm that the equipment accepts a #6 spade terminal and the fork fits its terminal opening. Use a suitable crimp tool for 22–18 AWG conductors, keep stray strands contained, and tighten the equipment connection to its own instructions. De-energize the circuit before work and provide strain relief. This listing does not establish a current rating for the completed circuit.
Frequently Asked Questions
Does the number after # describe wire gauge?
No. #6 is the screw/stud size. The conductor size is 22–18 AWG; both must match your installation.
Are these flat-blade quick disconnects?
No. These are fork-shaped terminals for compatible screw connections, not mating male/female blade connectors.
How many terminals are included?
One package contains 100 individual RVST6 terminals.
Can I assume an amperage rating from the wire size?
No. Wire gauge is only one selection factor. Follow the equipment, wiring and protection requirements for the complete circuit.
